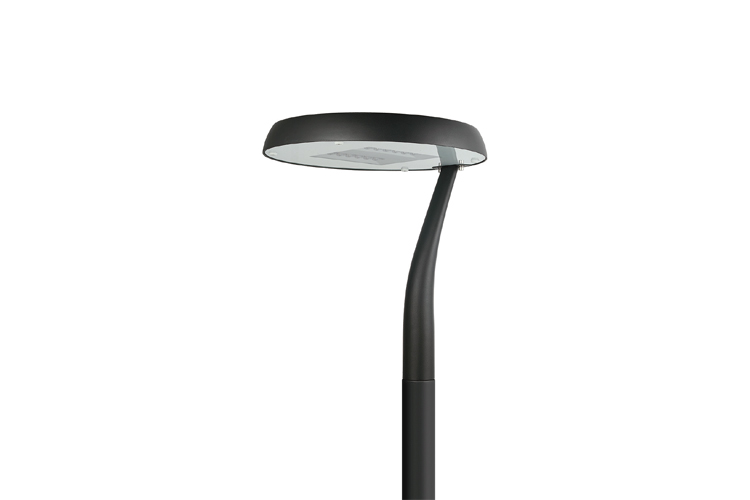

NOVA-P

75W Max

LED Garden Light IP66

Die-casting aluminium body, super white tempered glass, white PC plastic reflector.
Optics with PC lens with high visual comfortable and uniform lighting distribution, multiple light distribution options.
High quality LED chips, Driver with 0-10V/DALI/programmed be options, and with surge protection up to 20KV.
There are a variety of mounting brackets options, form of different shapes of lighitng.
Top and side fixing, angle can be adjustable, installation tube diameter Ø60/Ø76mm.
Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
Street lighting control used with smart control technology. It can be compatible with remote management system.
All external screws are made of 304 stainless steel.

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Pole Mounted: 3-6m燈杆安裝: 3-6m montado en poste: 3-6m
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED

40W 60W 75W
Input Voltage / 輸入電壓

Voltaje de entrada

100 ~ 240VAC (50~60HZ)
Control Protocol/控制協議

Protocolo de Control

SW: ON/OFF Switch Driver AN: 1-10V Dimming Driver

DA: Dali Dimming Driver DMX: DMX 512 Dimming Driver

RDM : RDM Dimming Driver ZI: ZIGBEE Wireless Control

MS: Motion Sensor DS: Daylight Sensor
Power Factor / 功率因數/Factor de potencia

PF>0.9
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD<18%
Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

Line-Earth:6KV

Line-Line:4KV
Light Source Brand-光源品牌-Fuente de luz de marca

CREE
"Lumen Maintenance LM-80 Reported by TM-21"

L70 > 45,000 Hours
LED Life-LED壽命-La vida del LED

>50,000 hours
Color Temperature 色溫 Temperatura y color

3000K / 4000K / 5000K / 5700K
Color Rendering Index-顯色指數

Índice de reproducción cromática

>80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching 3 SCDM

標準偏差配色 3 SCDM

Coincidencia de color estándar Desviación

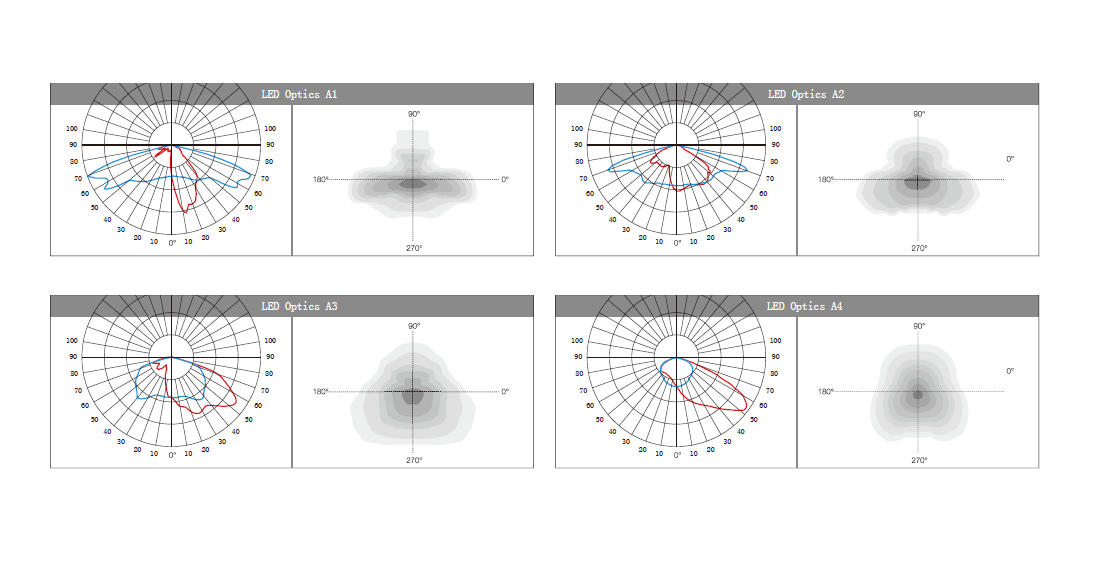

Beam Angle

光束角

ángulo de haz

Optical Type : A1 A2 A3 A4
Luminaire Efficacy燈具效率

La eficacia de la luminaria

120 Lm/w(3000K) 125 Lm/w(4000K) 130 Lm/w(5000K) 130 Lm/w(5700K)
Housing materials 外殼材料

Materiales de la carcasa

Die-cast aluminium alloy and tempered glass

壓鑄鋁和鋼化玻璃

Aluminio fundido a presión y Vidrio templado
Housing Color 外殼顏色 color de la carcasa

Anti Corrosion Polyester powder 防腐噴粉

Black RAL 9005; Grey RAL 9006; White RAL 9003; Dark Grey RAL 7043

黑色 RAL 9005；灰色 RAL 9006；白色 RAL 9003；深灰色RAL 7043
Ingress Protection-防護等級

Protección de ingreso

IP66 - (IEC 60529)
Mech impact protection

機械衝擊保護

Protección contra impactos mecánicos

IK08
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Installation Height 安裝高度Altura de montaje

3-6 M

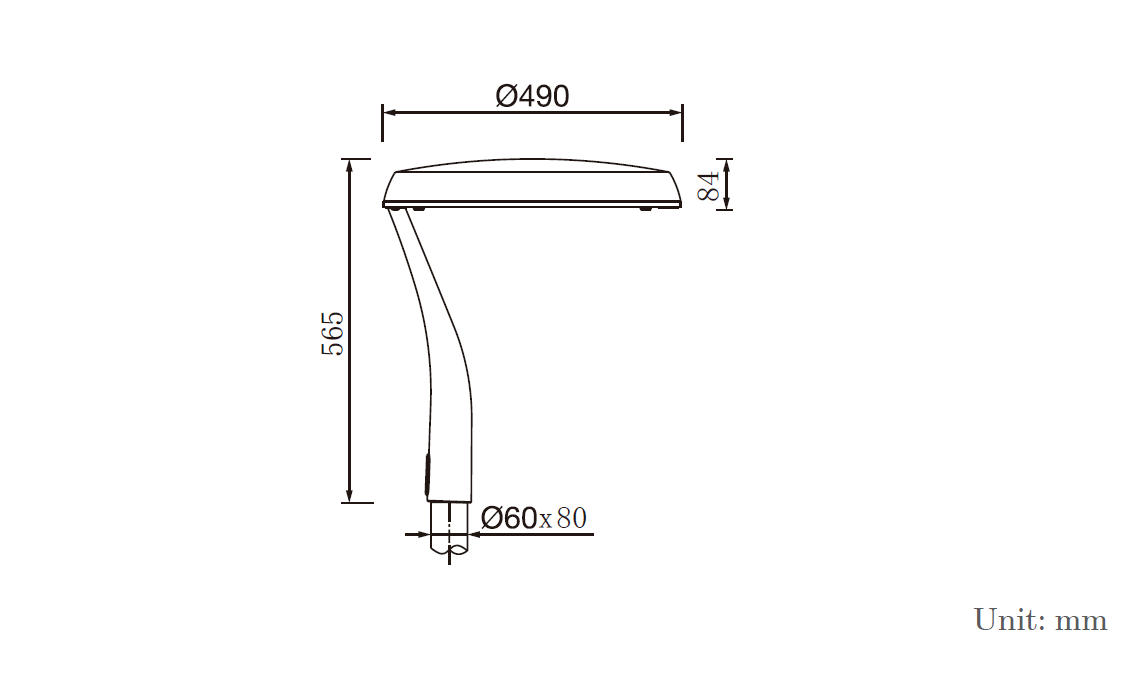

Dimension 尺寸 Dimensión

Refer to drawing 參考圖紙
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: IEC/EN 60598-1 ; IEC/EN 60598-2-3; IEC TR 62778; IEC 62031

LED Driver: IEC 61347-1; IEC 61347-2-13; EN 55015; IEC 61000-3-2;IEC 61000-3-3;

IEC 61547;EN 62384
