STECA-3D

3D Bending LED Neon Light 10x10mm

FLEXIBLE LED NEON FLEX LIGHT

3D Bendable at vertical and horizontal direction

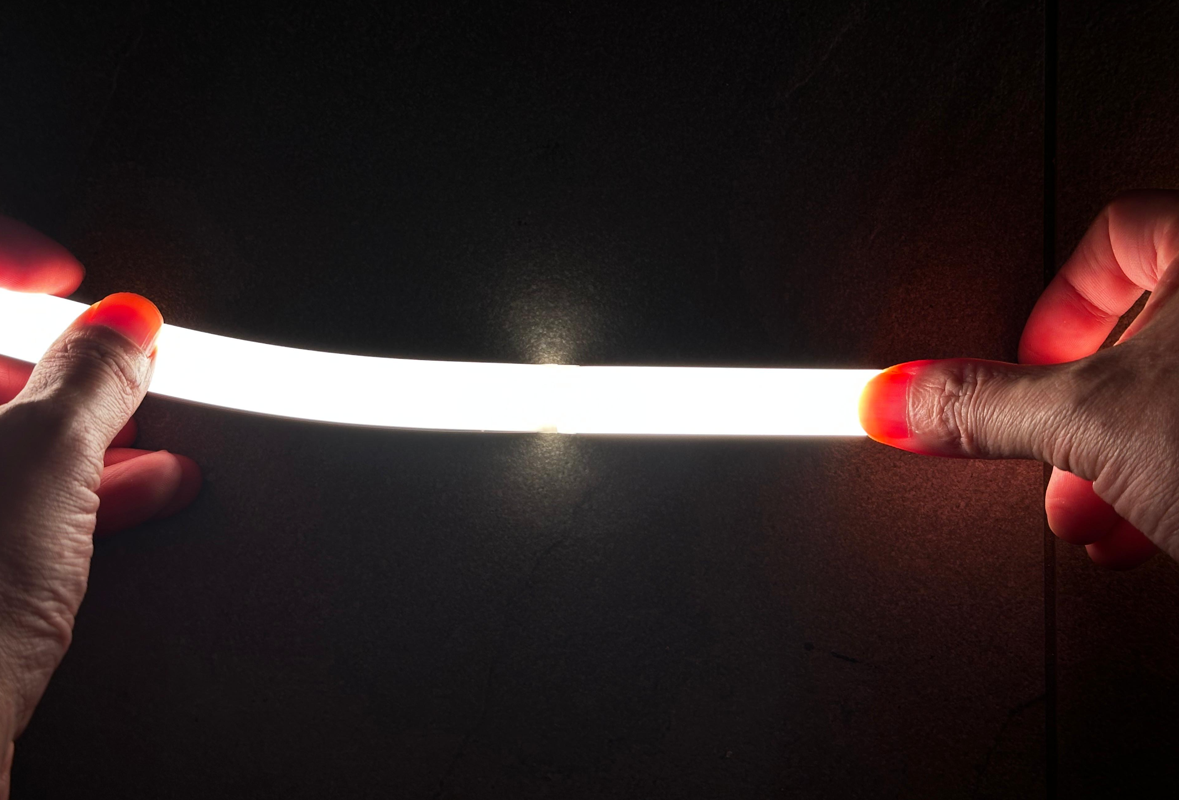

A thin, clear molding head for neon light connections where the goal is to avoid any visible dark gap between two joined pieces. That’s a common challenge in LED/neon strip installations, especially when aiming for seamless illumination across joints.
Seamless, dot free, uniform light output.
Robust housing with high quality silicon. UV proof for true outdoor application.
Cuttable for flexible use.

Technical Data

Installation method / 安裝方式

Metodo de instalacion

Surface Mounted Type / 明裝式燈具 / Superficie Tipo Montado
Power Consumption / LEDs Qty

燈具功率/ LED 燈珠數量

Consumo de energía / Cantidad de LED

4W / Meter @ 224 PCS LED Min. Cutting Length: 31.25mm

5W / Meter @ 224 PCS LED Min. Cutting Length: 31.25mm

6W / Meter @ 224 PCS LED Min. Cutting Length: 31.25mm

8W / Meter @ 224 PCS LED Min. Cutting Length: 31.25mm

10W / Meter @ 224 PCS LED Min. Cutting Length: 31.25mm
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

2. 0/1 -10V Dimming Driver AC220-240V 50/60HZ

3. DALI Dimming Driver AC220-240V 50/60HZ

4. DMX Driver AC220-240V 50/60HZ (Dimming range from 0-100%)
Input Voltage / 輸入電壓

Voltaje de entrada

DC 24V
Color Temperature / 色溫

Temperatura de color

2700K / 3000K / 3500K / 4000K / 5000K/ 6500K
Color Rendering Index / 顯色指數

Índice de reproducción cromática

> 90
Lumen Maintenance LM-80 Reported by TM-21

L70 > 54,000 hours
LED Life / LED壽命 / La vida del LED

>100,000 hours
LED Chips Brand / LED晶片品牌

Marca de chips LED

SMD1216
Beam Angle / 光束角 ángulo de haz

120°
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching ≤ 3 SDCM

標準偏差配色≤3 SDCM

Coincidencia de color estándar Desviación ≤3 SDCM
Luminaire Efficacy / 燈具效率

La eficacia de la luminaria

50 LM/W (2700K) 50 LM/W (3000K) 55 LM/W (3500K& 4000K) 60 LM/W (5000K&6500K)
Housing materials / 外殼材料

Materiales de la carcasa

Silicone / 硅膠 / Silicona
Bending Direction / 可彎曲方向 / Dirección de flexión

3D Bending for Vertical Bending and Horizontal Bending

3D彎曲方向，包括垂直彎曲和水平彎曲
Minimum Bend Diameter / 最小彎曲直徑

Diámetro mínimo de curvatura

Dia 300 mm
Maximum Length Feed

最大連接長度

Longitud máxima del feed

10m @ Single Feed 單端供電
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-10 °C / +50 °C
Operating Humidity / 工作濕度

Humedad de funcionamiento

0~90%, non-condensing / 不結霜

sin condensación
Ingress Protection/ 防護等級

Protección de ingreso

IP67 (IEC 60529)

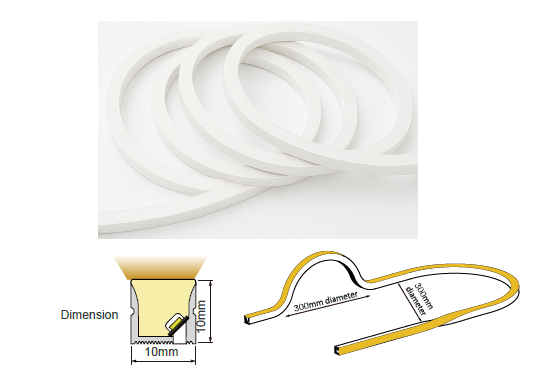

Dimension / 尺寸 / Dimensión

W: 10 x H: 10mm
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaries: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471; IEC TR 62778:2014 IEC/EN 62031; IEC/EN 62493; IEC 60529; IEC/EN 55015; IEC/EN 61000-3-2; IEC/EN 61000-3-3; IEC/EN 61547

LED Driver: EN 55015; IEC/EN 61000-3-2; IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN61574; IEC/EN 62384;
