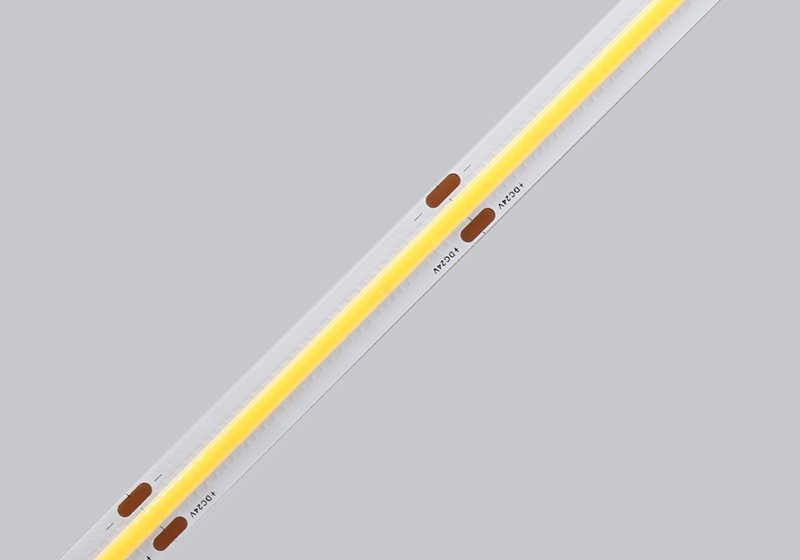

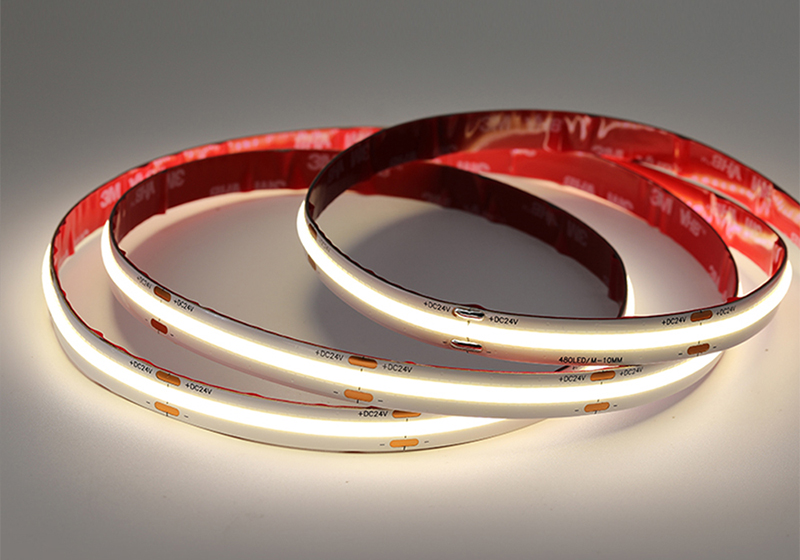

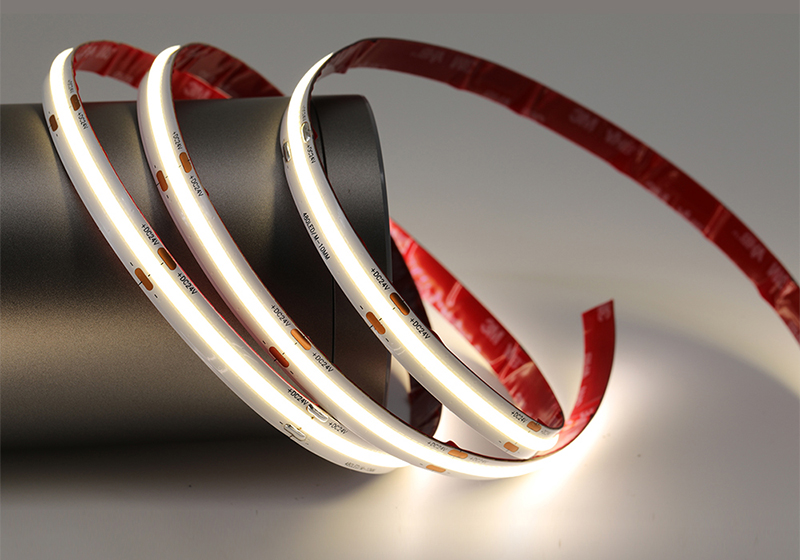

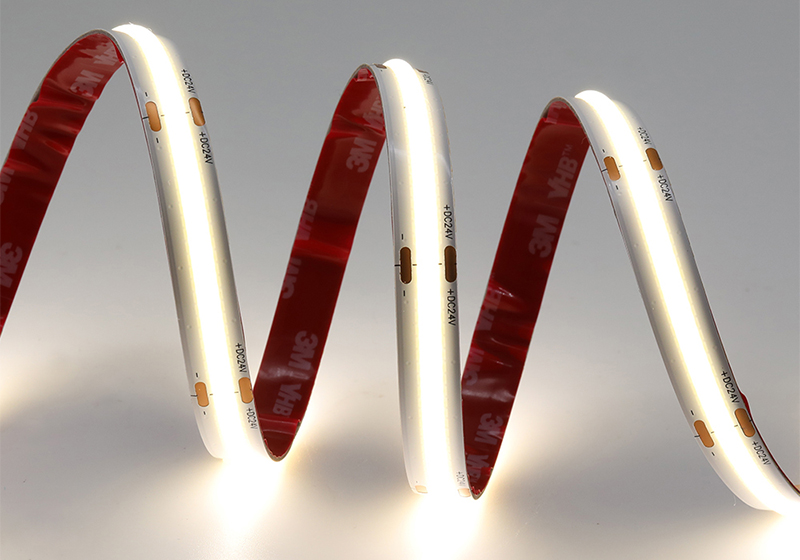

STRAAP-COB

PCB width 10mm 8W-12W

LED COB STRIP LIGHT

The new dotless COB Flexible LED Strips are impressively uniform.
In combination with a phosphor layer on the LED Strip,
It produces a continuous, uniformly bright line of light along the entire length.
Durable and anti-UV Silicone Case material housing protection presents good translucent, achieves seamless and uniformity. LED sources work with high color rendering index for light color consistency.

Technical Data

Luminaire Type-安裝方式-Tipo de luminaria

3M Stick-on Surface Mounted Type-3M粘膠明裝式燈具-Tipo de montaje en superficie adhesivo 3M

Aluminum Profile Mounted 鋁型材安裝 Montaje en perfil de aluminio

Clip Mounted 夾裝式 Montado en clip
Dimension-尺寸-Dimensión

W: 10 x H: 4.3 mm @ Length Per Roll: 5M
QTY of LEDs-燈珠數量-CANT de LEDs

And Cutting Length 切割長度Y longitud de corte
- 640 PCS Leds /Meter @ Cutting Length:50 mm ---Tunable White
- 320 PCS Leds /Meter @ Cutting Length:50 mm
- 512 PCS Leds /Meter @ Cutting Length:62.5 mm
- 480 PCS Leds /Meter @ Cutting Length:50 mm
- 420 PCS Leds /Meter @ Cutting Length:50 mm
- 320 PCS Leds /Meter @ Cutting Length:50 mm
- 280 PCS Leds /Meter @ Cutting Length:50 mm
Power Consumption Max-燈具功率

Consumo de energía Max
- 8W
- 9.6W
- 12W
- 20W for 640 PCS Tunable White only
Input Voltage-輸入電壓-Voltaje de entrada

DC24 V
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

2. 0 -10V Dimming Driver AC220-240V 50/60HZ

3. Dali Dimming Driver AC220-240V 50/60HZ

4. DMX Driver AC220-240V 50/60HZ
Control Protocol-控制協議Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle光束角ángulo de haz
- 120°
- 140°
Light Source Brand-光源品牌-Fuente de luz de marca

COB LED
"Lumen Maintenance LM-80 Reported by TM-21"

L70 > 60,000 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫Temperatura del color

2700K / 3000K / 3500K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

>90
MacAdam Ellipses Binning 麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM 標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy

燈具效率

La eficacia de la luminaria

High Efficacy LED for IP20

140 Lm/w(2700K), 150 Lm/w(3000K), 150 Lm/w(3500K), 160 Lm/w(4000K), 160 Lm/w(5000K), 160 Lm/w(6500K),

Low Efficacy LED for IP20 and IP67

95 Lm/w(2700K), 95Lm/w(3000K), 95Lm/w(3500K), 100 Lm/w(4000K), 100 Lm/w(5000K), 100 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

FPC (IP20)

FPC +Extrusion filling Silicone (IP67)FPC+ 擠出灌裝矽膠 FPC+Silicona de relleno por extrusión
Housing Color 外殼顏色

color de la carcasa

Transparent color 透明色 Color transparente
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection-防護等級

Protección de ingreso

IP20 IP67
Package Dimension -包裝尺寸

Dimensión del paquete

5M / Roll
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: EN 60598-2-1; EN 60598-1; EN 62471; EN 62493;EN 62031;ROHS;IEC 62722-2-1;EC62722-1; TM21;IEC 60529

EN 60598-2-22 for IP20 only

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015
