LAHAN -X

W61xH85 IP66

Linear Type

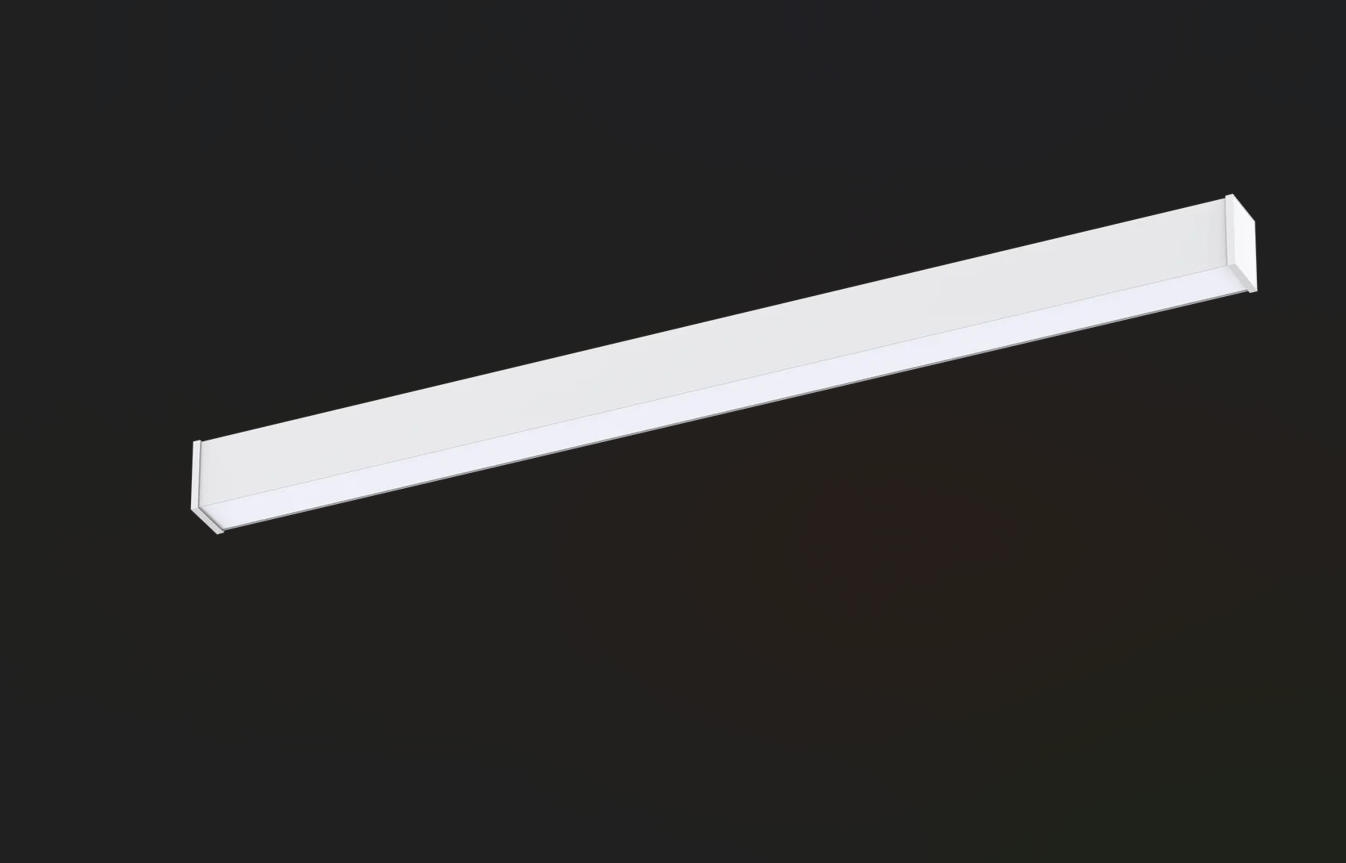

The IP65 Waterproof LED linear is designed to withstand harsh weather conditions, making it an ideal lighting solution for outdoor spaces. Its waterproof seal ensures complete protection against rain and snow, while its robust casing guarantees durability and longevity. The milky white PC diffuser creates a uniform lighting effect. This versatile product supports various installation methods, including pendant, surface mount, wall mount installation. It also supports straight-line splicing for surface mount and pendant installation.

High lumen efficiency up to 125lm/W
IP66, IK08
CCT switchable by external DIP switch
Built-in flicker free driver
Dimming options: DALI

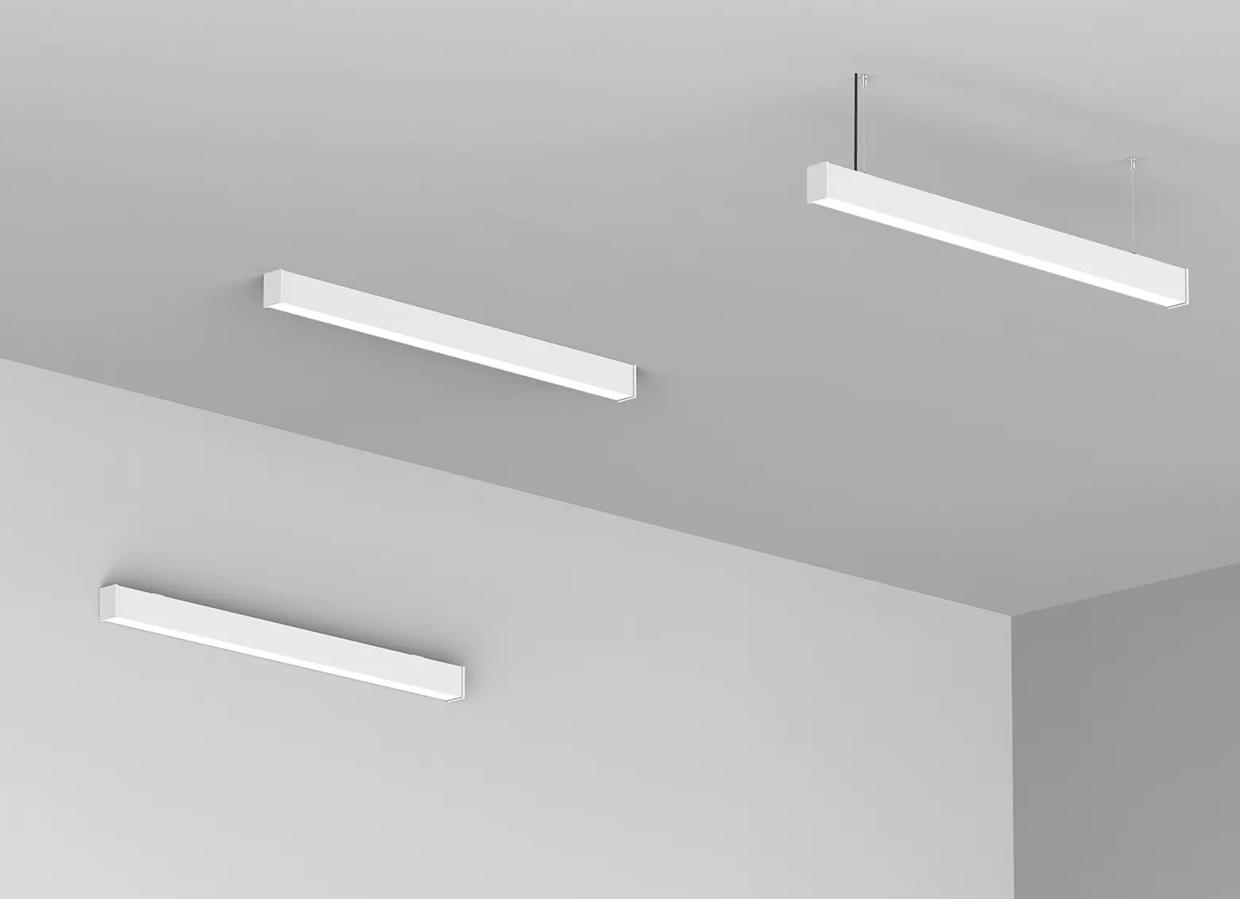

Support surface mount, wall mount, pendant installation

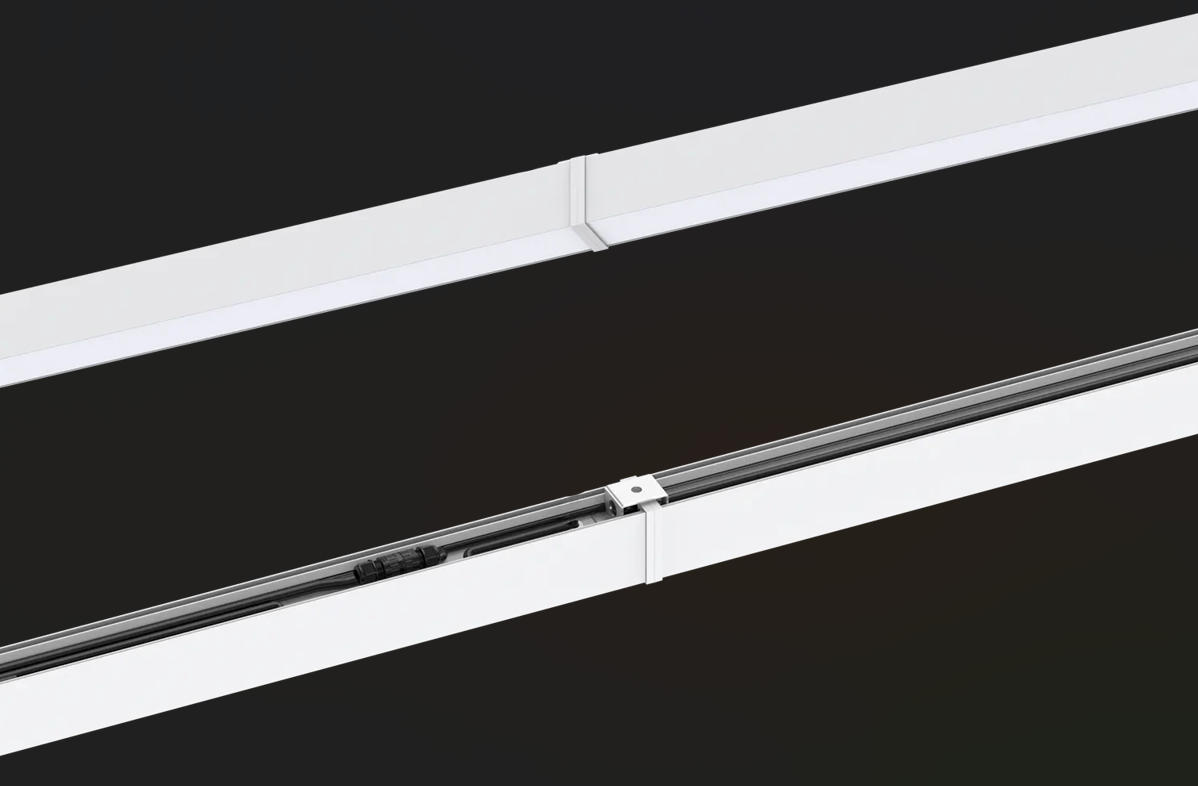

Splicing for both surface mount and pendant

Technical Data

Installation method / 安裝方式 / Método de instalación

Pendant Mounted / Surface Mounted / Wall Mounted

吊掛式/吸頂式/壁掛式

Montaje colgante / Montaje en superficie / Montaje en pared
Dimension / 尺寸 / Dimensión

L612*W61*H85mm L1212*W61*H85mm L1512*W61*H85mm
Power Consumption / 燈具功率

Consumo de energía
- L612*W61*H85mm 15W 18W
- L1212*W61*H85mm 30W 38W
- L1512*W61*H85mm 40W 45W
Input Voltage / 輸入電壓 / Voltaje de entrada

AC220-240V 50/60HZ
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated Type LED Driver-Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

2. 1 -10V Dimming Driver AC220-240V 50/60HZ

3. DALI Dimming Driver AC220-240V 50/60HZ
LED Driver Features / 驅動特性

Funciones del controlador de LED

Power Factor: >0.9 Efficiency : 90%

(Total Harmonic Distortion:<20%)
Control Protocol / 控制協議

Protocolo de Control

0/1-10V / DALI
Beam Angle / 光束角 / ángulo de haz

110°
Light Source Brand / 光源品牌 / Fuente de luz de marca

SMD
Lumen Maintenance LM-80 Reported by TM-21

L70> 54,000 hrs
LED Life-LED壽命-La vida del LED

>100,000 hours
Color Temperature / 色溫 / Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K

2-CCT By DIP Switch: 3000K+4000K
Color Rendering Index / 顯色指數

Índice de reproducción cromática

> 80
MacAdam Ellipses Binning 麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM 標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy / 燈具效率

La eficacia de la luminaria

110 LM/W (2700K) 110 LM/W (3000K) 120 LM/W (4000K)

125LM/W (5000K) 125 LMW (6500K)
LED Source Luminous Efficacy / LED光源光效

Fuente luminosa LED Eficacia

150 LM/W (2700K) 155 LM/W (3000K) 160 LM/W (4000K)

165 LM/W (5000K) 165 LMW (6500K)
Housing materials / 外殼材料

Materiales de la carcasa

Extruded Aluminium Alloy body and Opal polycarbonate Diffuser

壓鋁S6063合金和乳白PC擴散罩
Housing Color / 外殼顏色 / color de la carcasa

Coated with epoxy resin and top coated with UV stabilized polyester powder

Color: Black RAL9005 White RAL9016

顏色：黑色RAL9005 /白色RAL9016
Ingress Protection / 防護等級 / Protección de ingreso

IP66
Impact Protection / 機械衝擊保護

Protección contra impactos

IK08
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +45 °C
Operating Humidity / 工作濕度

Humedad de funcionamiento

0~90%, non-condensing / 不結霜

sin condensación
Comply Testing Standard / 符合測試標準

Cumplir el estándar de prueba

LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471(Risk Group 1) EN60598-2-22 Hot Wire Testing: 850°C

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
