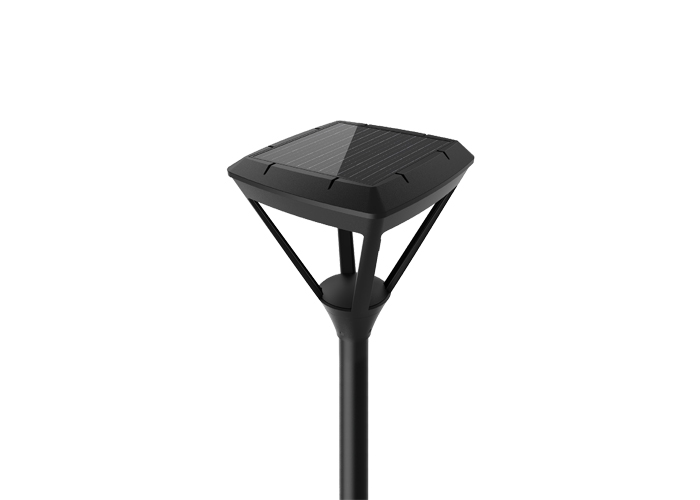

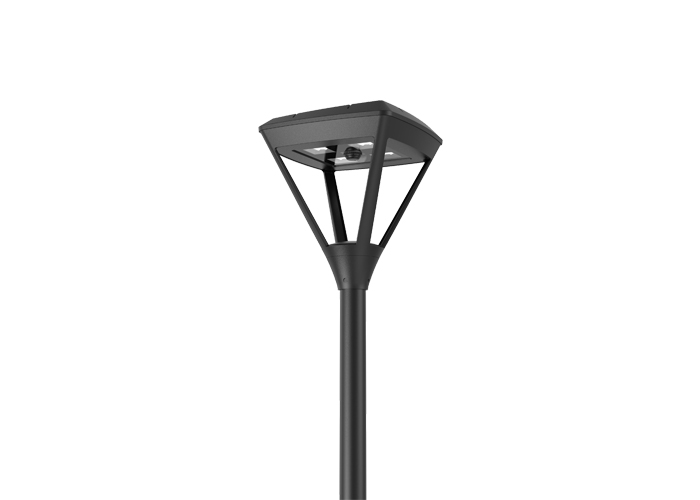

LUMINA-Solar

Solar LED Garden Light

With LiFePO4 battery which usually apply for electric bus.
Die-casting aluminium body, super white tempered glass, white PC plastic reflector.
Optics with PC lens with high visual comfortable and uniform lighting distribution, multiple light distribution options.
High quality LED chips.
Infrared/microwave induction is optional, and the installation pipe diameter is Ø60/Ø76mm.
Surface anti-ultravilet pure polyester powder painting, Corrosion resistance can be more than 1000 hours.
No photo-biological risk, (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
Street lighting control used with smart control technology. It can be compatible with remote management system.
All external screws are made of 304 stainless steel.

Technical Data

Luminaire Type-安裝方式Tipo de luminaria

Pole Mounted: 3-6m燈杆安裝: 3-6m montado en poste: 3-6m
LED Rated Power

LED 照明功率

Solar LED Lighting太陽能LED 照明功率 : 12W
Solar Panel Power / 太陽能電池板功率

Energía del panel solar

18W monocrystalline
Photovoltaic Cell Type / 光伏電池類型

Tipo de celda fotovoltaica

Monocrystalline Wafer
Photovoltaic / 光伏效率

Eficiencia fotovoltaica

Up to Max.22% 最高可達22%
Type of battery / 電池類型 / tipo de batería

LiFePO4 Battery
Battery Capacity / 電池容量

Capacidad de la batería

12.8V 12Ah
Solar Controller / 太陽能控制器

Controlador solar

Programmable MPPT
Lighting Control 燈光控制Control

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

2. Motion Sensor Control
Solar Charge Time / 太陽能充電時間

/ tiempo de carga

8 Hours (By Bright Sunlight) *depend solar radiation

8 小時（明亮陽光下）*取決於太陽輻射
Discharge Time / 放電時間

Tiempo de descarga

3 Days Max
Color Temperature / 色溫

Temperatura del color

3000K / 4000K / 5000K / 5700K
Color Rendering Index / 顯色指數

Índice de reproducción cromática

> 80
Luminaire Efficiency / 燈具光效

Eficiencia de la luminaria

120 Lm/w(3000K) 125 Lm/w(4000K) 130 Lm/w(5000K) 130 Lm/w(5700K),

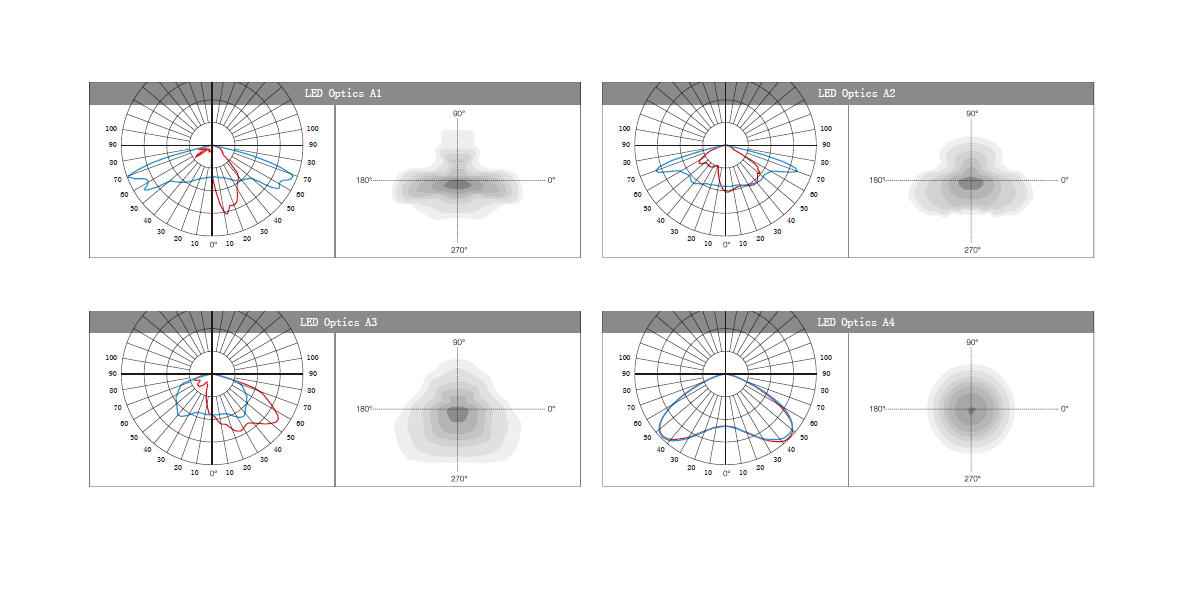

Beam Angle光束角

ángulo de haz

Optical Type : A1 A2 A3 A4
Housing materials / 外殼材料

Materiales de vivienda

Die-cast aluminium alloy and tempered glass

壓鑄鋁和鋼化玻璃

Aluminio fundido a presión y Vidrio templado
Housing Color / 外殼顏色 / Color de la carcasa

Anti Corrosion Polyester powder 防腐噴粉

Black RAL 9005; Grey RAL 9006; White RAL 9003; Dark Grey RAL 7043

黑色 RAL 9005；灰色 RAL 9006；白色 RAL 9003；深灰色RAL 7043
Ingress Protection / 防護等級 / Protección de ingreso

IP66
Mech impact protection / 機械衝擊防護

LED Lantern

IK08

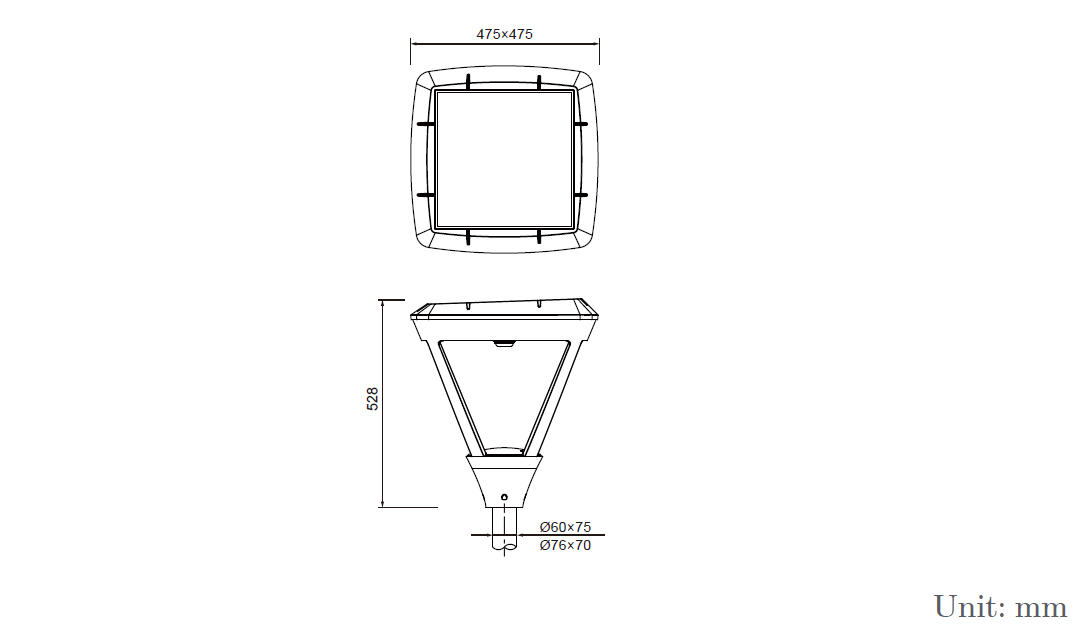

Dimension / 尺寸 / Dimensión

Refer to drawing 參考圖紙
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

30 °C / +50 °C
