STRANCE G3

W:18xH:10mm Horizontal Bending Neon Light

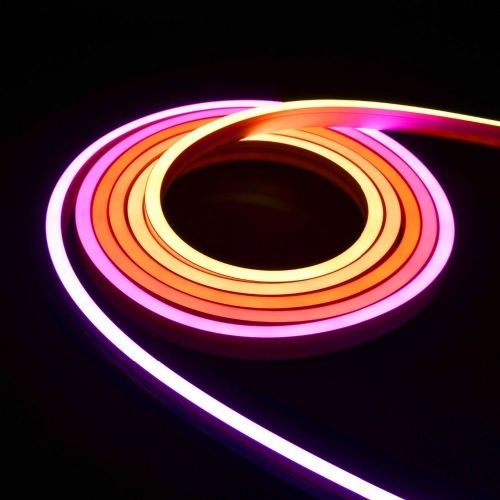

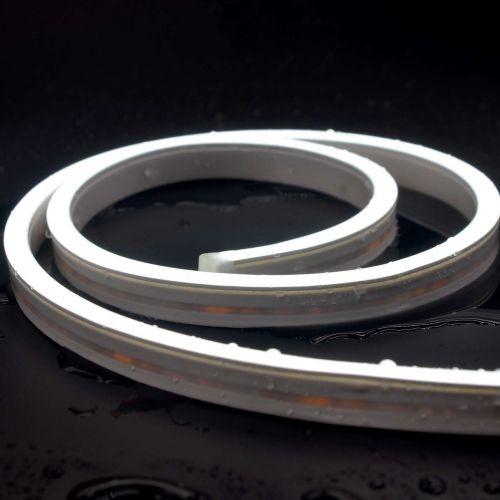

Horizontal Bending Flexible LED Neon Light

LED silicone neon light is an ideal flexible linear lighting solution. Adopted first-class eco-friendly food-grade silicone material,

our silicone neon light comes with a wide array of features allowing lighting designers and specifiers the ability to select the right lights.

New technology CO-Extrusion enables the product higher quality and more durable.

Side-view 10x18mm LED silicone light with non-dot high performance homogeneous light, makes it perfect for architectural and illumination.

Technical Data

  • Luminaire Type/ 安裝方式/ Tipo de luminaria

    Surface Mounted Type 明裝式燈具   Superficie Tipo Montado

    5M / Roll     5M/卷    5M / Rollo

  • Power Consumption Max/LEDs Qty

    燈具最大功率/ LED 燈珠數量

    Consumo de energía Máx. / Cantidad de LED

     5W / Meter  @ 60 / 120 PCS LED

     6W / Meter  @ 60 / 120 PCS LED

     8W / Meter  @ 60 / 120 PCS LED

    10W / Meter  @ 60 / 120 PCS LED

    Cutting Length: 50mm / 33.3mm



  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ

    2. 1 -10V Dimming Driver  AC220-240V 50/60HZ

    3. DALI Dimming Driver AC220-240V 50/60HZ(Dimming range from 1-100%)

    4. DMX Driver AC220-240V 50/60HZ (Dimming range from 0-100%)

    5. RDM Driver  AC220-240V 50/60HZ(Dimming range from 0-100%)

  • Control Protocol-控制協議

    Protocolo de Control

    DMX 512A / RDM  / 1-10V / DALI

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    DC24V

    DC12V

  • Color / Color Temperature

    顏色或色溫

    Color / Temperatura de color

    2700K / 3000K / 4000K / 5000K / 6500K

    RGB / RGBW

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

    >90

  • "Lumen Maintenance LM-80 Reported by TM-21"

     L70 >54,000 hrs

  • Beam Angle/光束角 ángulo de haz

    120°

  • Type of Light Source / 光源類型

    Fuente de luz de marca

    SMD 5050

    SMD 2835

  • LED Life/LED壽命/La vida del LED

    >100,000 hours

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy-燈具效率

    La eficacia de la luminaria

    25 Lm/w(2700K)    30Lm/w(3000K)  35 Lm/w(4000K)  40 Lm/w(5000K),   40 Lm/w(6500K),

  • Housing materials/外殼材料

    Materiales de la carcasa

    Silicone material 矽膠材質

    material de silicona

  • Bending Direction 可彎曲方向

    Dirección de flexión

    Horizontal Bending / 水平彎曲

    Doblado Horizontal

  • Max Length  Feed

    單組最大連接長度

    Alimentación de longitud máx.

    7m @ Single Feed 單端通電

    15m @ Double Feed 兩端通

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Ingress Protection/ 防護等級

    Protección de ingreso

    IP68

  • Dimension/尺寸/Dimensión

    W: 18 x H: 10mm

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaries:  LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 (Risk Group 1)

    LED Driver:           IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

                                  IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
STRANCE-10W
STRANCE-G3
-
Power Consumption

Power Consumption

  • 5W
    5W / Meter
  • 6W
    6W / Meter
  • 8W
    8W / Meter
  • 10W
    10W / Meter
