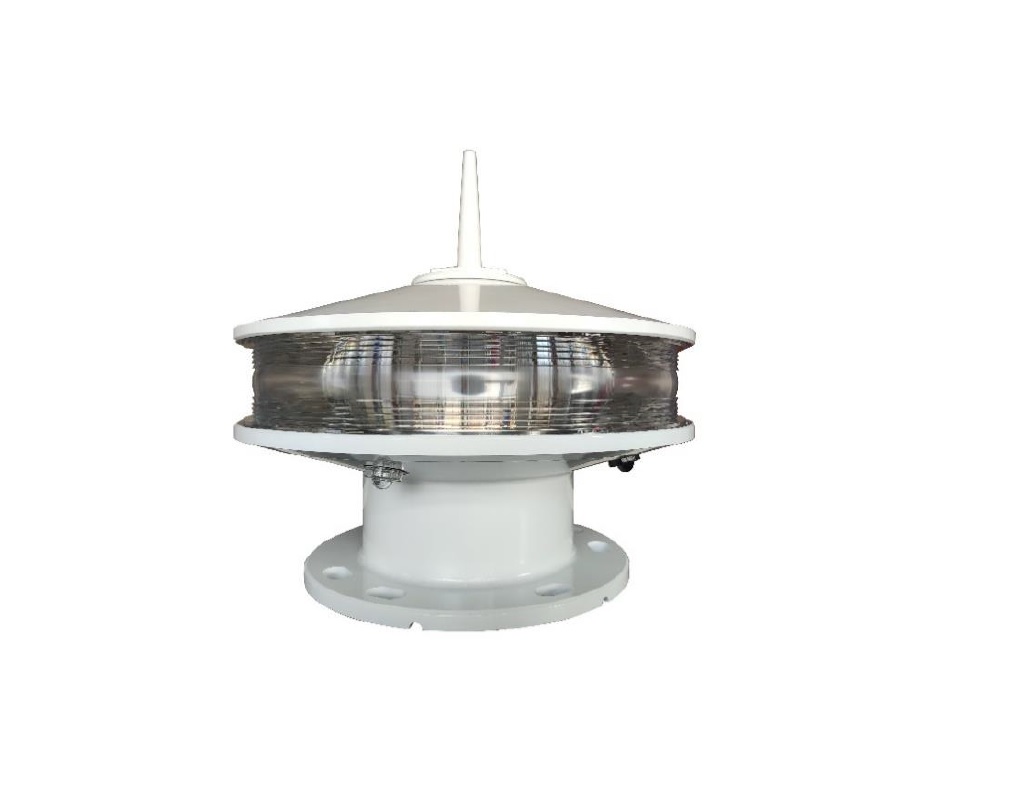

PACIFIC- X-12NM

6-12NM-Selfcontained Marine Lartern

Maximum range 12nm

User selectable power and flash character settings via DM Bluetooth-Smart App (Android Base)

Max Distance up to 12nm

It can be widely used in inland rivers, Coastal and harbor light buoys.

This series of lamps is composed of LED point light source, lens, solar panel and weather-resistant material base.

The lamp can easily realize the remote measurement and control of the lantern through the NB-IoT or 4G communication method with DIMON Marine Monitoring system App.

The GPS high-precision clock is used to realize the synchronous flash function;

the maximum range is 12 nautical miles, the vertical divergence angle is 2.5 degrees, and the horizontal divergence angle is 360 degrees.

Technical Data

Features

特性
- Long Life -LED Light Source LED
- 恆定電流驅動，光電轉換效率高，發光穩定，壽命長
- Optional GPS synchronisation module
- GNSS同步閃功能(GPS+北斗)，日光閥值可設定
- 15 levels of luminous intensity adjustment to adapt to different range requirements.
- 15檔發光強度調節，適應不同射程需求
- Available in all IALA approved colours 提供所有IALA批准的顏色
- 256 user selectable flash characters and selectable dayligt sensor
- 256種燈具可供選擇
- User selectable power and flash character settings via BLUE-Tooth 5.0 up to 40meter
- 藍牙5.0遙測遙控功能，有效距離40米
- Optional GNSS synchronized-conotrol flash function by GPS or BDS 支援北斗短報文
- Optional 4G wireless DIMON Monitoring system for comprehensive fault alarm and status monitoring.
- 遠端遙測遙控，全面的故障警報和狀態監控
- Ingress Protection: IP67 所有零件耐腐蝕抗老化，防護等級IP67
Selectable Range 射程

(T=0.74)

6-15 nautical miles selectable

15級可調，透過網路遠端設定最大15海浬(T=0.74)
Available Colours

燈具顏色
- Red 紅
- Green 綠
- Yellow 黃
- White 白
Visibility 水平發散角

360° horizon (omnidirectional)360°

360度全向
Vertical Divergence

垂直發散角

2.5°

>2.5度
Flash Codes

燈質

Up to 256 codes IALA , field selectable

IALA 256種燈具可供選擇
Synchronisation

同步

GPS-Global Positioning System + BDS-BeiDou Navigation Satellite

GPS 定位 GNSS授時(GPS+北斗)
Daylight (Lux) Sensor

日光閥值

Default 300Lux (100~1000Lux adjustable)

預設300Lux,100-1000Lux可調
POWER 動態功耗

LED Lamp Input Voltage 工作電壓

40W

DC10-30V
Control Protocol Selection:

控制協議選擇：
- BLUE Tooth 5.0 up to 50meter for IALA Flasing Code, Lux Sensor and Distance setting. Settting and Monitoring by DM Bluetooth -Smart App Setting
- 藍牙 5.0，有效距離可達 50 米，支援 IALA 閃光碼、照度感測器和距離設定。可透過 DM 藍牙智慧應用程式進行設定和監控。
- AIS Automatic Identification System AIS自動辨識系統
- 4G Wireless control system: Overvoltage and Undervoltage, Fault, Position offset report by PC IOT Software
- 4G 無線控制系統：過壓/欠壓、故障、位置偏移報告，可透過 PC 物聯網軟體取得。
- BDS-BeiDou Navigation Satellite
- 北斗導航衛星系統無線回饋：過壓/欠壓、故障、位置偏移報告，可透過 PC 物聯網軟體取得。
Net Weight 淨重

18KG
Dimension 尺寸

Dia 320mm x H:305mm
Operating Temperature Range

工作溫度

-30° to +60°C
Ingress Protection

防護等級

IP 67
Housing materials

燈具材料

Marine Grade Almuimin and UV resistant molded polycarbonate

船用級鋁材和抗紫外線模壓聚碳酸酯
