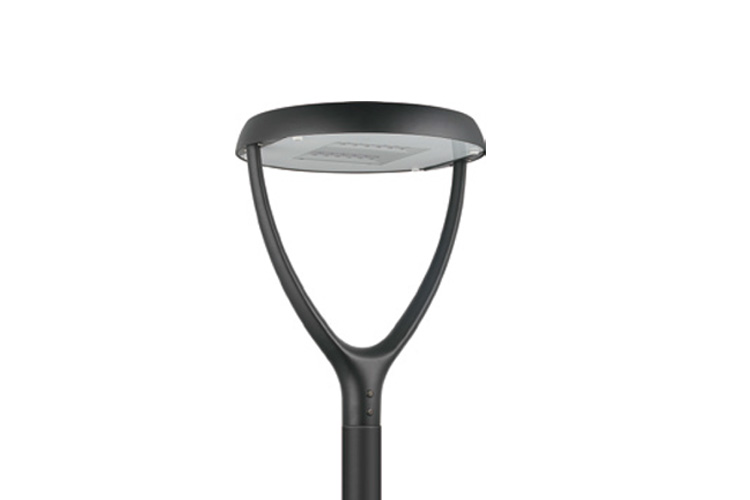

GOLLOP

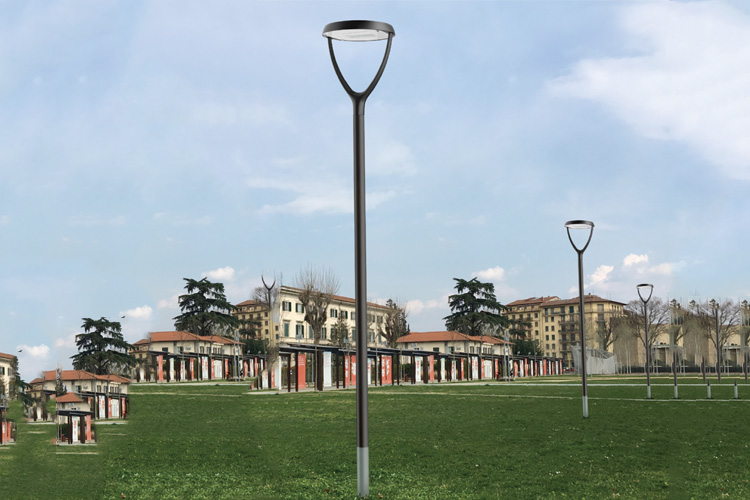

GOLLOP-2
30W-80W
LED Garden Light IP66

The Garden Light GOLLOP is finished by Die-cast aluminium with separated and integrated LED Driver Box , with surface anti-ageing electrostatic spray processing,super resistance to corrosion and rotated bracket, Gaskets in anti-aging rubber , 5 mm tempered clear Glass and Heat Resisting Cable.  It’s as well a great alternative to urban furniture due to its IP66 protection rating and IK08 Impact protection. Adopt modular light distribution Lens and super clear tempered glass. Button design for opening LED driver box for easy power circuit connection. And, It is able to be controlled by ELV, 0-10V,DALI,Zigbee dimming system. LED module: high-power CREE CRI>70 up to 140lm/w . LM-80 performance approve >50,000 hours; Fixing:Top fitting Ø60mm.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Dia 60mm Pole Mounted: 3-6m

    適合直徑60mm燈杆安装頂部安裝: 3-6m

    Dia 60mm montado en poste: 3-6m



  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    30W      40W     60W      70W    80W

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    100 ~ 240VAC (50~60HZ)

  • Control Protocol/控制協議

    Protocolo de Control

    SW: ON/OFF Switch Driver                   AN: 1-10V Dimming Driver

    DA: Dali  Dimming Driver                      DMX: DMX 512 Dimming Driver

    RDM : RDM Dimming Driver                 ZI:  ZIGBEE Wireless Control

    MS: Motion Sensor                                DS: Daylight Sensor

  • Power Factor / 功率因數/Factor de potencia

     PF>0.95

  • Total Harmonic Distortion/總諧波失/Distorsión armónica total

    THD<20%

  • Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

    20KV  Built-in surge protection device

    20KV內置電湧保護器

    Dispositivo de protección contra sobretensiones incorporado de 20KV

  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE

  • "Lumen Maintenance LM-80 Reported by TM-21"

    L70 > 45,000 Hours

  • LED Life-LED壽命-La vida del LED

    >50,000 hours

  • Color Temperature 色溫  Temperatura y color

    2700K / 3000K / 4000K/ 5000K/ 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    >70

    >80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching 3 SCDM

    標準偏差配色  3 SCDM

    Coincidencia de color estándar Desviación

  • Beam Angle

    光束角

    ángulo de haz

    Symmetric Optical Type :T1

    Asymmetric Optical Type :T2

    Asymmetric Optical Type :T3

    Asymmetric Optical Type :T4

  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    @CRI 80:   100lm/w(2700K)      100lm/w(3000K)      120lm/w(40000K)      130lm/w(5000K)     130lm/w(6500K)

    @CRI 70:  120lm/w(2700K)      120lm/w(3000K)      145lm/w(40000K)      150lm/w(5000K)     150lm/w(6500K)

  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    140lm/w(2700K)      140lm/w(3000K)      160lm/w(40000K)      170lm/w(5000K)     170lm/w(6500K)

  • Housing materials 外殼材料

    Materiales de la carcasa

    Die-cast aluminium and Tempered glass   壓鑄鋁和鋼化玻璃

    Aluminio fundido a presión y Vidrio templado

  • Housing Color 外殼顏色 color de la carcasa

    Polyester powders Coating  (Matte  gray RAL 9007/ Matte Black 9005 , Dark Grey RAL 7016 ).

    聚酯粉末塗料(啞光RAL 9007 /啞光黑9005,深灰RAL 7016)

    Revestimiento de polvos de poliéster (gris mate RAL 9007 / negro mate 9005, gris oscuro RAL 7016)

  • Ingress Protection-防護等級

    Protección de ingreso

    IP66

  • Mech impact protection

    機械衝擊保護

    Protección contra impactos mecánicos

    IK08

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Installation Height 安裝高度Altura de montaje

    3-6 M



  • Dimension 尺寸 Dimensión

    Dia 490 x H: 610 mm

  • Net Weight /Gross Weight  淨重/毛重

    Peso Neto / Peso bruto

    • 7.1kg / 8.1 kg @ Body
    • 3.8kg / 4.1 kg @ Bracket
  • Certificate Standard Complied

    符合安規標準

    estándar certificado de cumplimiento

    LED Luminaries:  IEC/EN  60598-1 ; IEC/EN 60598-2-3; IEC TR 62778;  IEC 62031

    LED Driver:         IEC 61347-1; IEC 61347-2-13; EN 55015; IEC 61000-3-2;IEC 61000-3-3;

                                IEC 61547;EN 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
GOLLOP-80W
GOLLOP
-
POWER CONSUMPTION

POWER CONSUMPTION

  • 30W
    30W
  • 40W
    40W
  • 60W
    60W
  • 70W
    70W
  • 80W
    80W
