GORGE II

28W -75W

LED Garden Light IP66

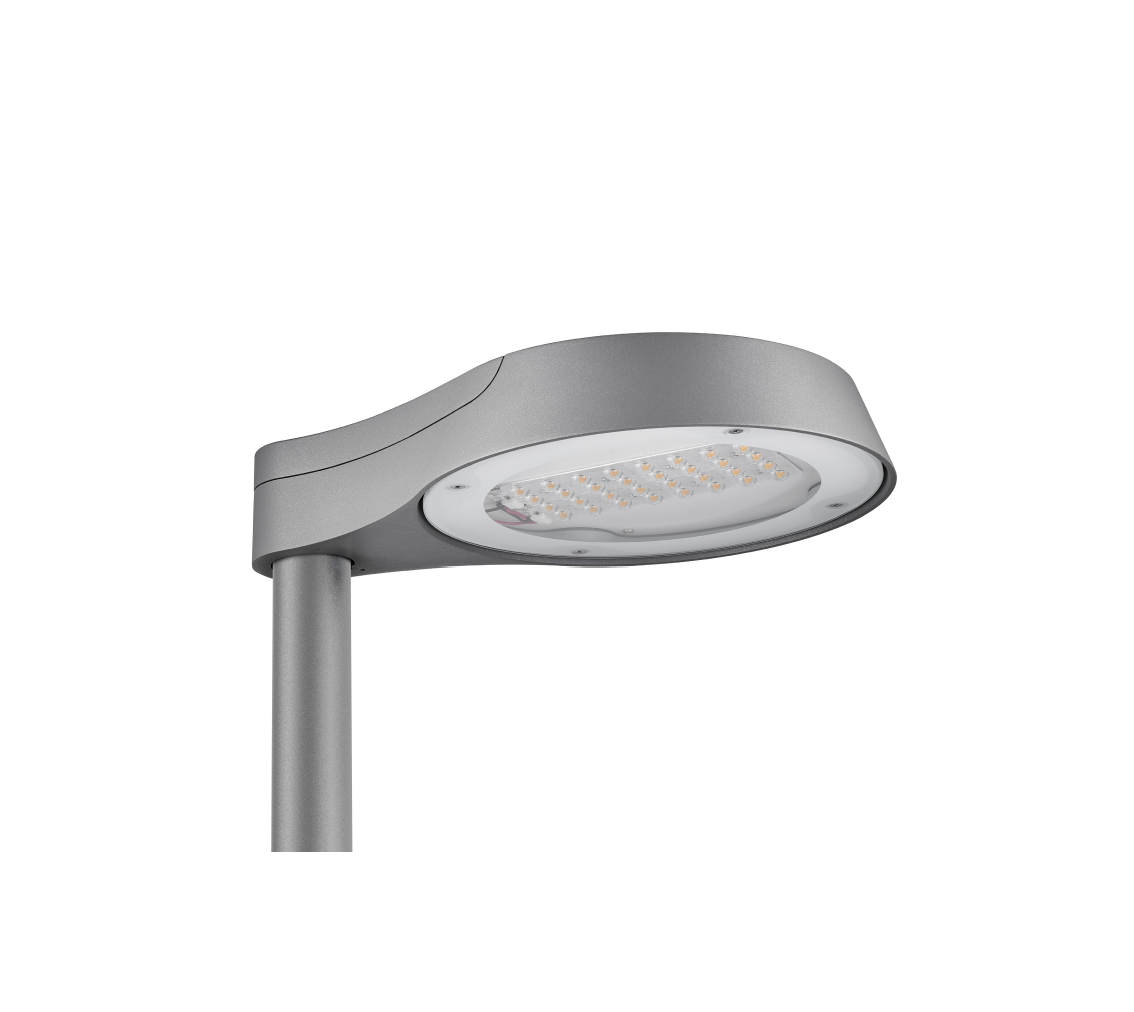

The Garden Light GORGE II is finished by Die-cast aluminium with separated and integrated LED Driver Box , with surface anti-ageing electrostatic spray processing,super resistance to corrosion. Gaskets in anti-aging rubber ,PC Diffuser It’s as well a great alternative to urban furniture due to its IP66 protection rating and IK08 Impact protection. Adopt modular light distribution Lens and super clear tempered glass. Button design for opening LED driver box for easy power circuit connection. And, It is able to be controlled by ELV, 0-10V,DALI,Zigbee dimming system. LED module: high-power CREE CRI>80 up to 140lm/w . LM-80 performance approve >50,000 hours; Fixing: Top or side fitting for Dia 60mm pole

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Dia 60mm Pole Mounted: 3-6m

適合直徑60mm燈杆安装頂部安裝: 3-6m

Dia 60mm montado en poste: 3-6m
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED

28W 30W 40W 50W 60W 75W
Input Voltage / 輸入電壓

Voltaje de entrada

100 ~ 240VAC (50~60HZ)
Control Protocol/控制協議

Protocolo de Control

SW: ON/OFF Switch Driver AN: 1-10V Dimming Driver

DA: Dali Dimming Driver DMX: DMX 512 Dimming Driver

RDM : RDM Dimming Driver ZI: ZIGBEE Wireless Control

MS: Motion Sensor DS: Daylight Sensor
Power Factor / 功率因數/Factor de potencia

PF>0.95
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD<20%
Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

Line-Earth:6KV

Line-Line:4KV
Light Source Brand-光源品牌-Fuente de luz de marca

CREE
"Lumen Maintenance LM-80 Reported by TM-21"

L70 > 45,000 Hours
LED Life-LED壽命-La vida del LED

>50,000 hours
Color Temperature 色溫 Temperatura y color

2700K / 3000K / 4000K/ 5000K/ 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

>80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching 3 SCDM

標準偏差配色 3 SCDM

Coincidencia de color estándar Desviación
Beam Angle 光束角

ángulo de haz

Asymmetric Optical Type : T2 T3 T4 T3M
Luminaire Efficacy燈具效率

La eficacia de la luminaria

100m/w(2700K) 100m/w(3000K) 120m/w(40000K) 130m/w(5000K) 130m/w(6500K)
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

110m/w(2700K) 110m/w(3000K) 130m/w(40000K) 150m/w(5000K) 150m/w(6500K)
Housing materials 外殼材料

Materiales de la carcasa
- Die-cast aluminium and super white tempered glass.壓鑄鋁和超白強化玻璃。

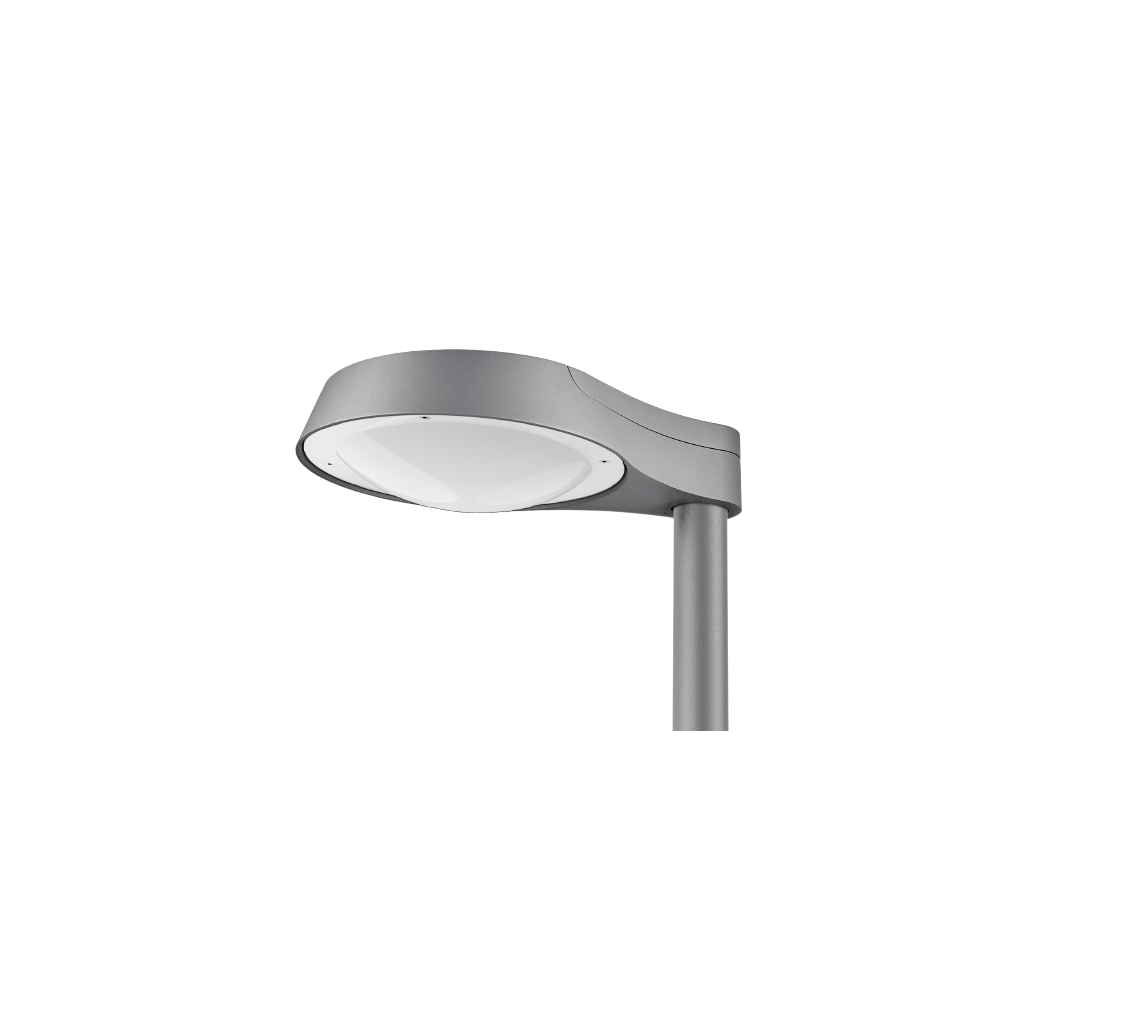

- Optional Die-cast aluminium and Anti UV Opal Polycarbonate diffuser 可選配壓鑄鋁和防紫外線蛋白石聚碳酸酯擴散器
Housing Color 外殼顏色 color de la carcasa

RAL 9003 Signal White白 RAL 9005 Jet Black 墨黑色

RAL 9006 Grey Aluminium 灰色 RAL 7024 Dary Grey 深灰色
Ingress Protection-防護等級

Protección de ingreso

IP66 - (IEC 60529)
Mech impact protection

機械衝擊保護

Protección contra impactos mecánicos

IK08
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Installation Height 安裝高度Altura de montaje

3-6M
Dimension 尺寸 Dimensión

L521x W: 360 x H: 95 mm or L521x W: 360 x H: 146 mm
Net Weight 淨重

6 kg
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: IEC/EN 60598-1 ; IEC/EN 60598-2-3; IEC TR 62778; IEC 62031

LED Driver: IEC 61347-1; IEC 61347-2-13; EN 55015; IEC 61000-3-2;IEC 61000-3-3;

IEC 61547;EN 62384
