BULLON

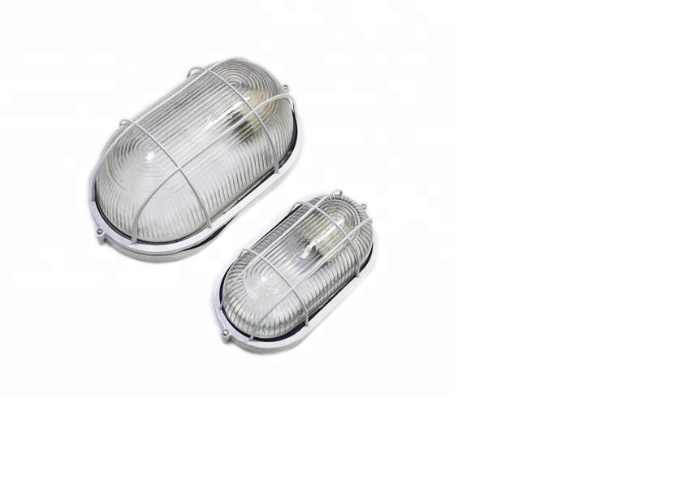

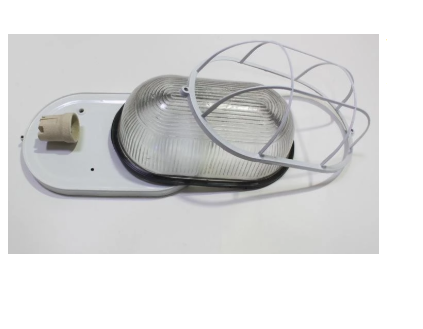

Bulkhead Light

Die casting aluminum,chassis hardness,compressive strengh is not easy to deformation

Thicker frosted glass cover, strong transmittance.With thick rubber mat, strict waterproof, moistureproof

Technical Data

  • Luminaire Type

    Wall and Ceiling Mount Type

  • Dimension

    280*160*H120

  • Input Voltage

    • AC100-240V 50/60Hz 1 Phase
    • DC36V

  • Lamp Holder

    E27

  • Lamp Source

    • DC36V  40WTungsten lamp
    • 6W LED Bulb AC220V
    • 8W CFL Lamp  AC220V

  • Material / Finish

    Die casting aluminum and frosted glass cover

  • Housing Color of Body

    White

  • Operating Temperature Range

    -30 °C / +50 °C

  • Operating Humidity

    0~90%, non-condensing

  • Ingress Protection

    IP65

  • Comply Testing Standard

     Luminaires: IEC 60598-1 / IEC 60598-2-1

  • Certification

Specification Code

Example Product Code:
BULLON-40W
BULLON
-
Lamp Sources

Lamp Sources

  • 40W Tungsten
    DC36V  40W Tungsten lamp
  • 6W
    6W LED Bulb AC220V
  • 8W
    8W CFL Lamp  AC220V
