CHELLE

SQ315x H95mm 24W Max IP65
OUTDOOR WALL & CEILING AMOUNTED

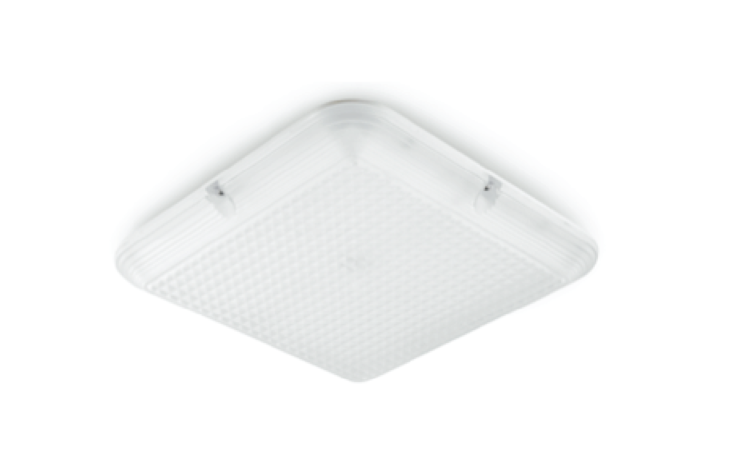

  • The CHELLE Ceiling Light
  • Housing finished :  Die-cast aluminium base with vandal resistant Polycarbonatel diffuser which is self-extinguishing fire properties.
  • And, It is able to be controlled by Dual Mode (Daylight and Microwave motion) Occupancy Sensor  control , 1-10V and DALI.

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria

    Ceiling or Wall  Mount Type吸頂或吸壁安裝Tipo mount en el techo

  • Dimension-尺寸-Dimensión

    W: 315 x L: 315 x H: 95 mm

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 15W         20W             22W                24W
  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60Hz

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch

    2. 1-10V Dimming Driver

    3. Dali Dimming Driver

    4. Stand-alone Dual Mode (Daylight and Microwave motion) Occupancy Sensor  control with belwo Setting:

    • Hold-time: 5s/30s/1min/5min/10min/20min/30min
    • Stand-by period: 0s/10s/1min/5min/10min/30min/1H/ non limitation
    • Stand-by dimming level 10%/20%/30%/50%  (0-10V dimming control)
    • Daylight threshold  2~50Lux, disable
    • Detection range: Max. ( Diameter x H): 12m x 6m
    • Detection area distance setting: 10%/50%/75%/100%
    • Detection angle: 30° ~150°

    5. ZIGBEE Wireless LED Driver

    6. Emergency Backup >2 hours or >3 hours @ < 12charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features

    驅動特性

    Funciones del controlador de LED

    POWER FACTOR : PF>0.90 or PF>0.95  TOTAL HARMONIC DISTORTION: THD< 20%

    Refer to LED driver specification 請參閱LED驅動器規格Consulte la especificación de controlador de LED

  • Control Protocol-控制協議

    Protocolo de Control

    1-10V / Dali / Zigbee  / Stand-alone Dual Mode (Daylight and Microwave motion) Occupancy Sensor

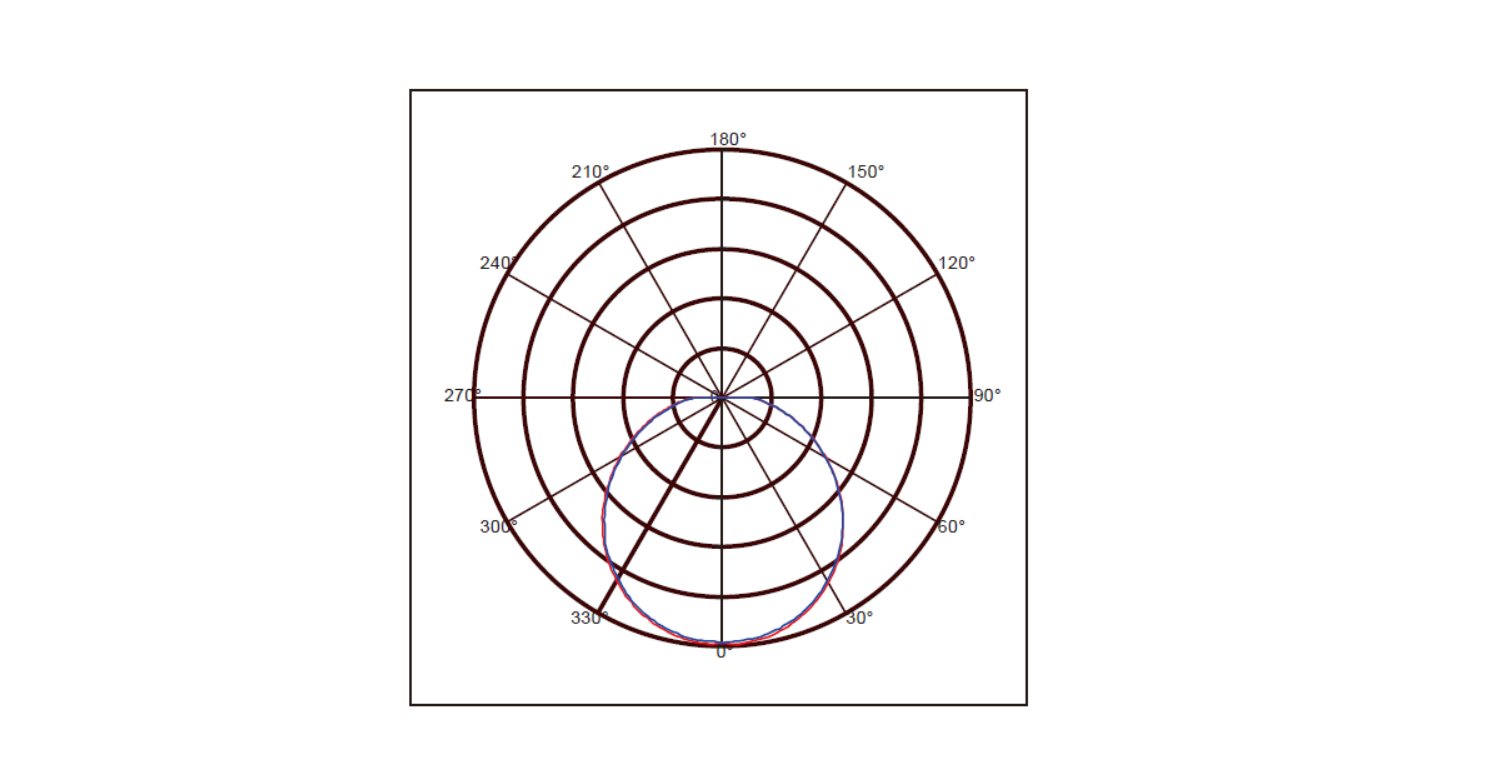

  • Beam Angle光束角ángulo de haz

    120°





  • Light Source Brand-光源品牌-Fuente de luz de marca

    OSRAM LED

  • "Lumen Maintenance LM-80 Reported by TM-21"

    L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

    > 90

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SCDM

    標準偏差配色< 3 SCDM

    Coincidencia de color estándar Desviación

  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    • 100Lm/w(2700K),       110 Lm/w(3000K),    120 Lm/w(4000K),
    • 120Lm/w(5000K),      120  Lm/w(6500K),
  • LED Source Luminous EfficacyLED光源光效

    Fuente luminosa LED Eficacia

    • 130Lm/w(2700K),       140 Lm/w(3000K),    150 Lm/w(4000K),
    • 150Lm/w(5000K),      150  Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminium and Anti UV Polycarbonate Prisms diffuser

    壓鑄鋁和抗紫外線PC棱鏡擴散器

    Difusor de Prismas de Aluminio inyectado y Policarbonato Anti UV

  • Housing Color外殼顏色color de la carcasa

    Matte white啞光白色Blanco mate

  • Ingress Protection-防護等級

    Protección de ingreso

    IP65

  • Mech impact protection 機械衝擊保護

    Protección contra impactos mecánicos

    IK10

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC/ EN 60598-1 /  EN 60598-2-1 /  EN 62031 / EN 62493 / IEC/EN 62471 / IEC 60598-2-22 /  IEC 62031 /EN 55015 /  EN 61000-3-2 / EN 61000-3-3 /  EN 61547  / IEC 62262 /  IEC 60529 / IEC TR62778

    Luminaries Performance : IEC 62722-1 / IEC 62722-2-1   FSD regulation PPA 104A (4th Rev). RoHS

  • Certification-認證-Certificación

Specification Code

Example Product Code:
CHELLE-15W
CHELLE
-
Power Consumption

Power Consumption

  • 15W
    15W
  • 20W
    20W
  • 22W
    22W
  • 24W
    24W
