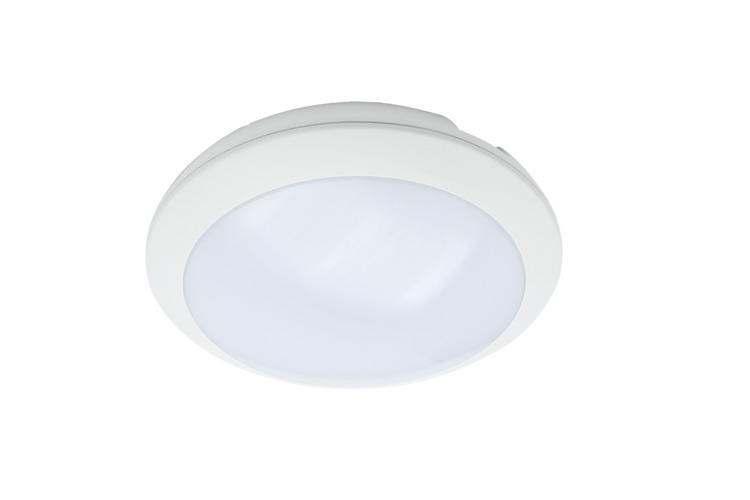

The LED Ceiling Light is finished by Polycarbonate base with vandal resistant and anti Polycarbonate in opal diffuser which is self-extinguishing fire properties. And, It is able to be controlled by dimmable micorwave sensor control , 1-10V and DALI. Excellent Protection in IP66 and IK10
Luminaire Type-安裝方式-Tipo de luminaria
Ceiling Mount Type-吸頂安裝-Tipo mount en el techo
Dimension-尺寸-Dimensión
Power Consumption Max-燈具功率
Consumo de energía Max
Input Voltage-輸入電壓-Voltaje de entrada
AC220-240V 50/60Hz
LED Driver Type
LED驅動款式
Tipo de controlador LED
Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
2. 1-10V Dimming Driver AC220-240V 50/60HZ
3. Dali Dimming Driver AC220-240V 50/60HZ
4. Microwave Motion Sensor 5.8Ghz (Hold time, Stand-by DIM Level,Twilight Time;Detection
Area,Daylight Sensor)
LED Driver Features驅動特性
Funciones del controlador de LED
POWER FACTOR : PF>0.90 or PF: >0.95 TOTAL HARMONIC DISTORTION: THD< 20%
Refer to LED driver specification 請參閱LED驅動器規格Consulte la especificación de controlador de LED
Control Protocol-控制協議
Protocolo de Control
1-10V / Dali / Microwave Motion Sensor
Beam Angle光束角ángulo de haz
120°
Light Source Brand-光源品牌-Fuente de luz de marca
SMD 2835
"Lumen Maintenance LM-80 Reported by TM-21"
L70(10k) > 60,000 hrs
LED Life-LED壽命-La vida del LED
>60,000 hours
Color Temperature -色溫
Temperatura del color
2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數
Índice de reproducción cromática
> 80
>90
MacAdam Ellipses Binning 麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率
La eficacia de la luminaria
LED Source Luminous Efficacy LED光源光效
Fuente luminosa LED Eficacia
Housing materials-外殼材料
Materiales de la carcasa
Anti UV Polycarbonate body and Anti UV Polycarbonate Opal diffuser
抗紫外線聚PC燈體和抗紫外線乳白PC 擴散罩
Cuerpo de Policarbonato Anti UV y difusor de Policarbonato Anti UV Opal
Housing Color 外殼顏色 color de la carcasa
Matte white 啞光白色 Blanco mate
Mech impact protection 機械衝擊保護
Protección contra impactos mecánicos
IK10
Ingress Protection-防護等級
Protección de ingreso
IP66
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +50 °C
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaires: EN 60598-1 / IEC 60598-2-1 IEC TR62778 IEC62471 ; IEC 62031; EN62493 RoHS
LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;
IEC/EN 61000-3-3;IEC/EN61574;EN 55015
