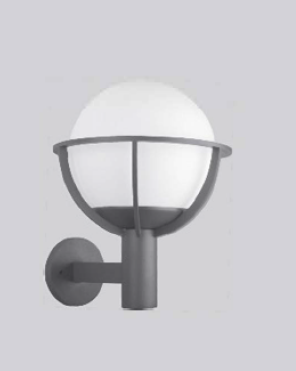

NOVA

Wall Light IP55
Wall Light IP55
  • Body: Die Cast Aluminium Housing with high corrosion resistance paint coasting
  • Color : Black RAL9005 / White RAL9003 / Grey: RAL9006
  • Opal PMMA  Diffuser
  • Stainless Steel Screws

Technical Data

  • Luminaire Type-安裝方式-Tipo de luminaria

    Wall  Mounting  墻裝

  • Dimension

    尺寸

    Dia : 350 x H: 460mm

    DL 380mm

  • Input Voltage

     輸入電壓

    AC 220-240V 50/60Hz

  • Lamp Holder

    燈座

    • E27

  • Housing materials外殼材料

    Die-cast aluminium and Opal PMMA Diffuser  壓鑄鋁和乳白PMMA 燈罩

  • Housing Color外殼顏色

    Polyester powders Coating--Sand Black RAL9005      Sand  Grey  RAL9006       Sand White RAL9003

    聚酯粉末塗料——沙黑 RAL9005、沙灰 RAL9006、沙白 RAL9003



  • Operating Temperature Range

    -30 °C / +50 °C

  • Operating Humidity

    0~90%, non-condensing

  • Ingress Protection-防護等級

    IP55

  • Certificate Standard Complied

    符合安規標準

    LED Luminaries:  IEC / EN 60598-1;IEC/EN 60598-2-5; IEC TR62778 IEC62471 (RG1); IEC 62031;  EN62493 RoHS

  • Certification

Specification Code

Example Product Code:
NOVA
NOVA
-
  • 13W
    13W  Compact fluorescent lamps
  • 26W
    26W  Compact fluorescent lamps
  • 32W
    32W Compact fluorescent lamps
