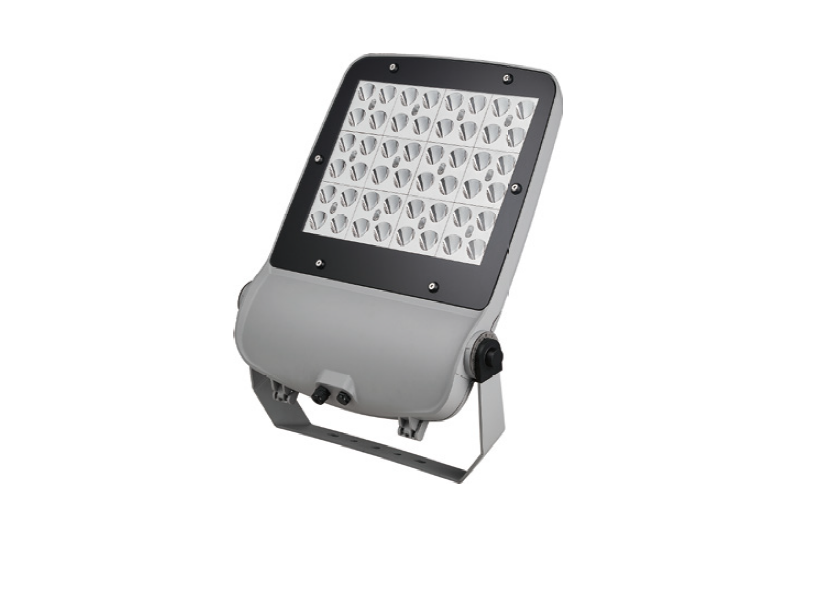

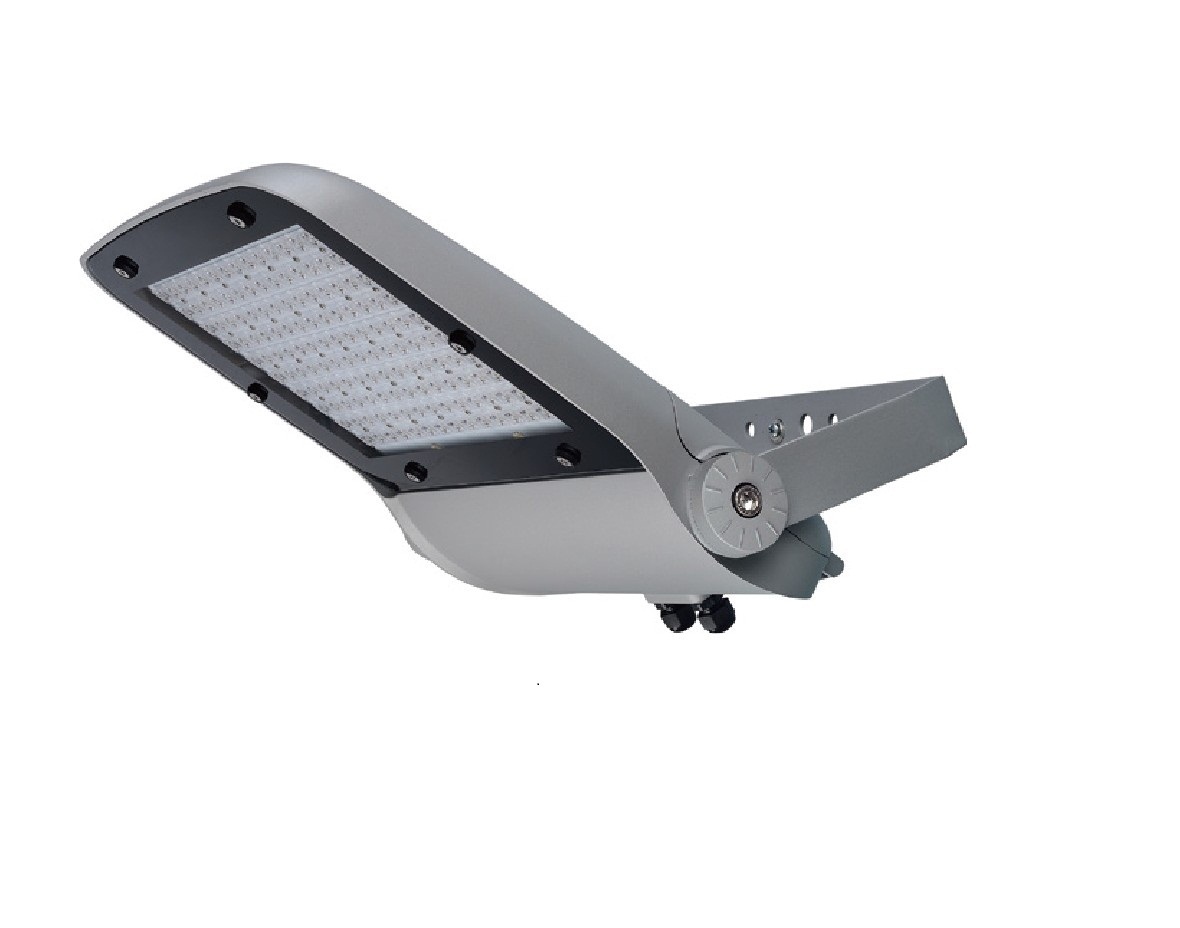

FAB-L

RGBW 300W-480W IP66

COLOR FLOOD LIGHT

COLOR FLOOD LIGHT is an architecture facade flood light with RGBW color for Building Light effect Application. It is able to be controlled by DMX and RDM. Built-in 16-bit PWM embedded LED IC, featuring 16-bit gray scale control, supports up to 65,536 gray scales for color depths.

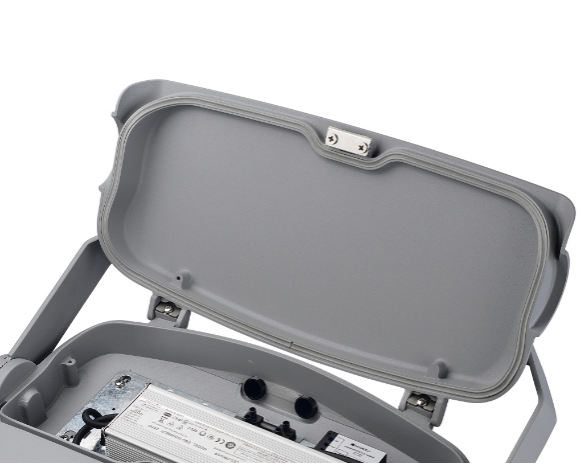

Die-cast aluminium. separate electric housing.Surface anti-ageing electrostatic spray processing,super resistance to corrosion.
Many different optical be option, and with super white tempered glass. Asymmetric & symmetric.

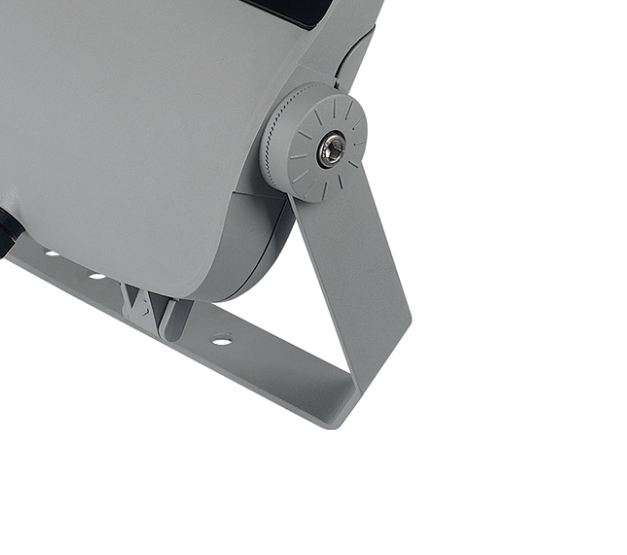

Lye fitting joint, angle can be adjustable.

Technical Data

Luminaire Type/ 安裝方式

Tipo de luminaria

Surface Mount and Adjustable Type

明裝可調安裝腳

Tipo mount en superficie y ajustable
Color -顏色-Color

RGBW ( Warm White: 3000K ) RGBN( Nature White: 4000K )
Power Consumption Max

燈具最大功率

Consumo de energía Max

300W Max 320W Max 400W Max 480W Max
Pixels & DMX Channels

像素和DMX 通道

Píxeles y canales DMX

1 Pixel = 4 DMX Channels
Control Protocol-控制協議

Protocolo de Control

DMX 512A / RDM
Input Voltage / 輸入電壓

Voltaje de entrada

AC100-277V 50/60HZ
Color Range

顏色範圍

Gama de colores

16.7 Million additive RGB colors and White LED

1670萬RGB顏色配合白光LED

Aditivo de 16,7 millones de colores RGB y LED blanco
RGBW Color Resolution with Gamma correction

RGBW顏色經過伽馬校正的分辨率

Resolución de color RGB W con la corrección de gamma

4 x 16-bit gray scale control and Gamma correction, supports up to 65,536 gray scales for color depths

4 x 16位灰度控制，支持高達65,536個灰度級的顏色深度

4 x control de escala de grises de 16 bits, soporta hasta 65.536 escalas de gris para profundidades de color

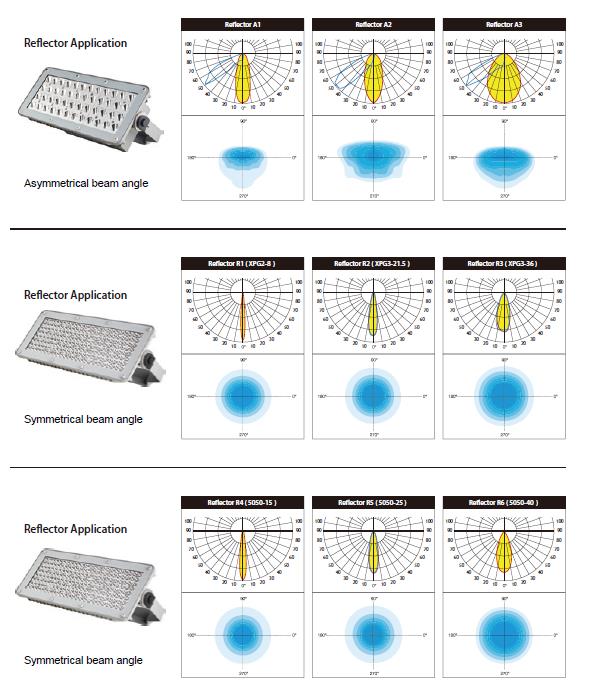

Beam Angle/光束角

ángulo de haz

• A1 & A2 & A3 & R1 & R2 & R3 & R4 & R5 & R6 @ Reflector
• T2A & T3A & T4A & T3 & T4 & T25 & T60 & T90 @ Lens
Light Source Brand/光源品牌

Fuente de luz de marca

CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
LED Life/LED壽命

La vida del LED

>50,000 hours
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 2 SDCM

標準偏差配色< 2 SDCM

Coincidencia de color estándar Desviación < 2 SDCM
Luminaire Efficacy-燈具效率

La eficacia de la luminaria
- 60 Lm/w(RGBW@Full Load)
- 65 Lm/w(RGBN@Full Load)
LED Source Luminous Efficacy-LED光源光效

Fuente luminosa LED Eficacia
- 90 Lm/w(RGBW@Full Load)
- 100 Lm/w(RGBN@Full Load)
Housing materials/外殼材料

Materiales de la carcasa

Die-cast aluminium and Tempered glass

壓鑄鋁和鋼化玻璃

Aluminio fundido a presión y de vidrio templado
Housing Color

外殼顏色

color de la carcasa

Polyester powders Coating (RAL 9006 Silver).

聚酯粉末塗料(RAL 9006 銀灰色)

Polvos de poliéster Revestimiento (RAL 9006 Plata).
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection/ 防護等級

Protección de ingreso

IP66
Environment/ 使用環境

Medio ambiente

Outdoor /戶外/al aire libre
Dimension/尺寸

Dimensión

L: 519x H:588 (681 with Bracket) x H:108mm
Packing box size包裝箱尺寸Tamaño de la caja de embalaje
785×610×165mm
Net Weight /Gross Weight淨重/毛重Peso Neto / Peso bruto
19.4kg / 21.2kg
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaries: IEC / EN 60598-1;IEC/EN 60598-2-5; IEC TR62778 IEC62471 (RG1); IEC 62031; EN62493 RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015
