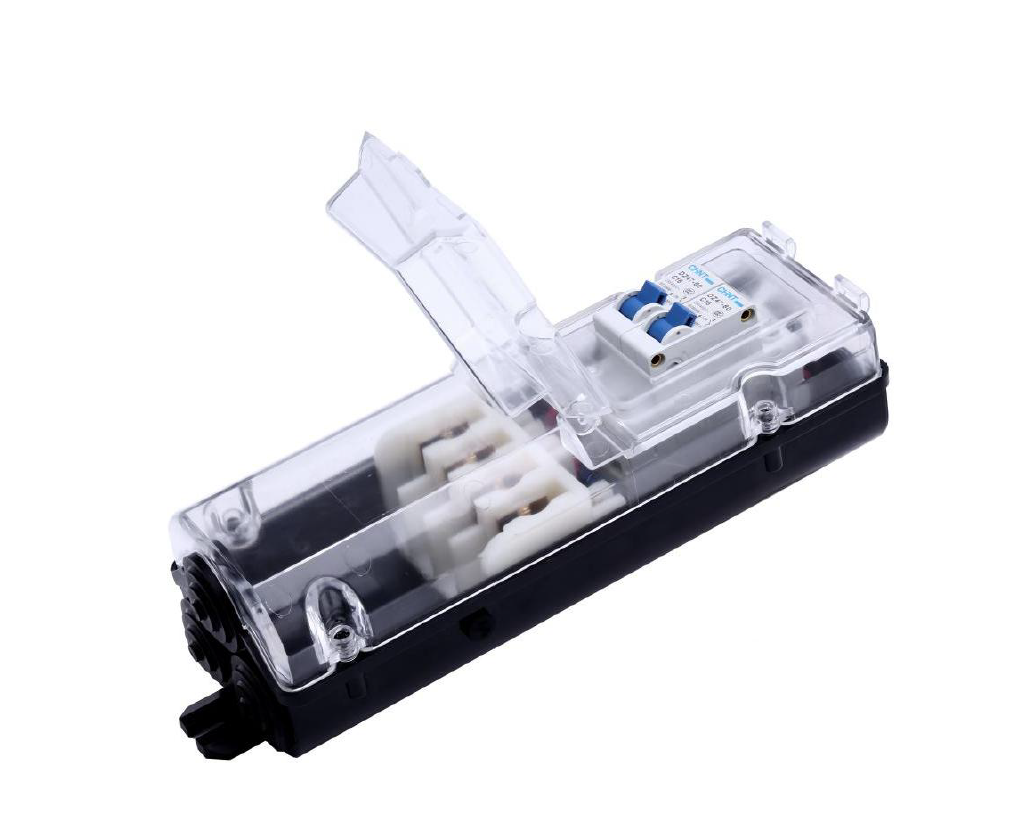

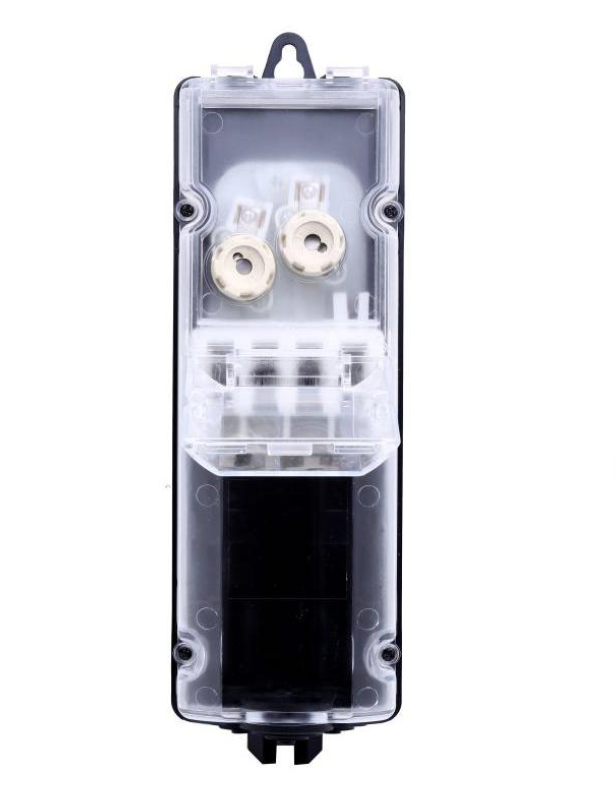

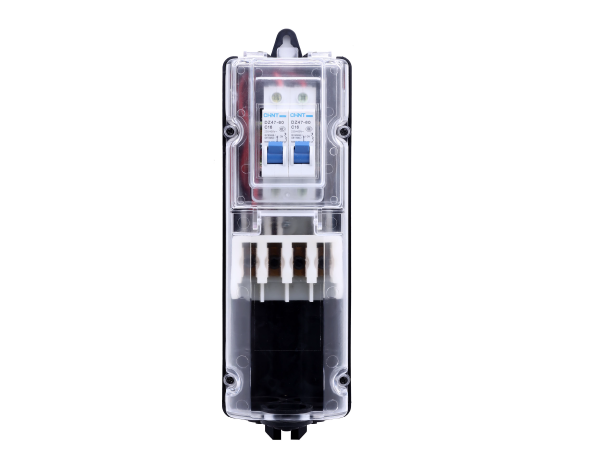

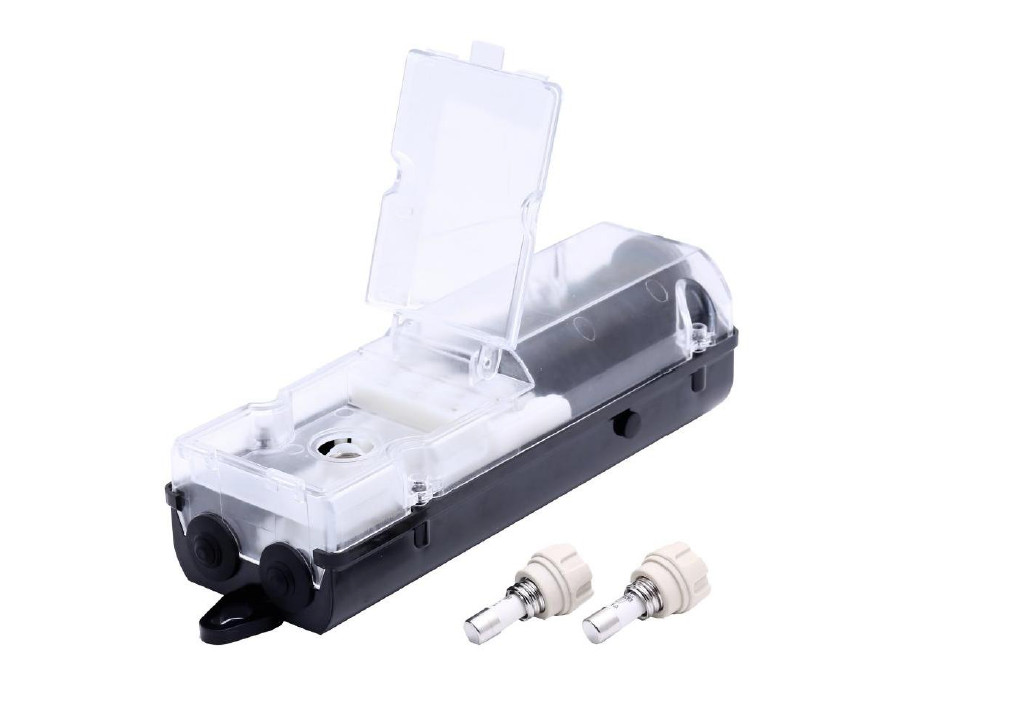

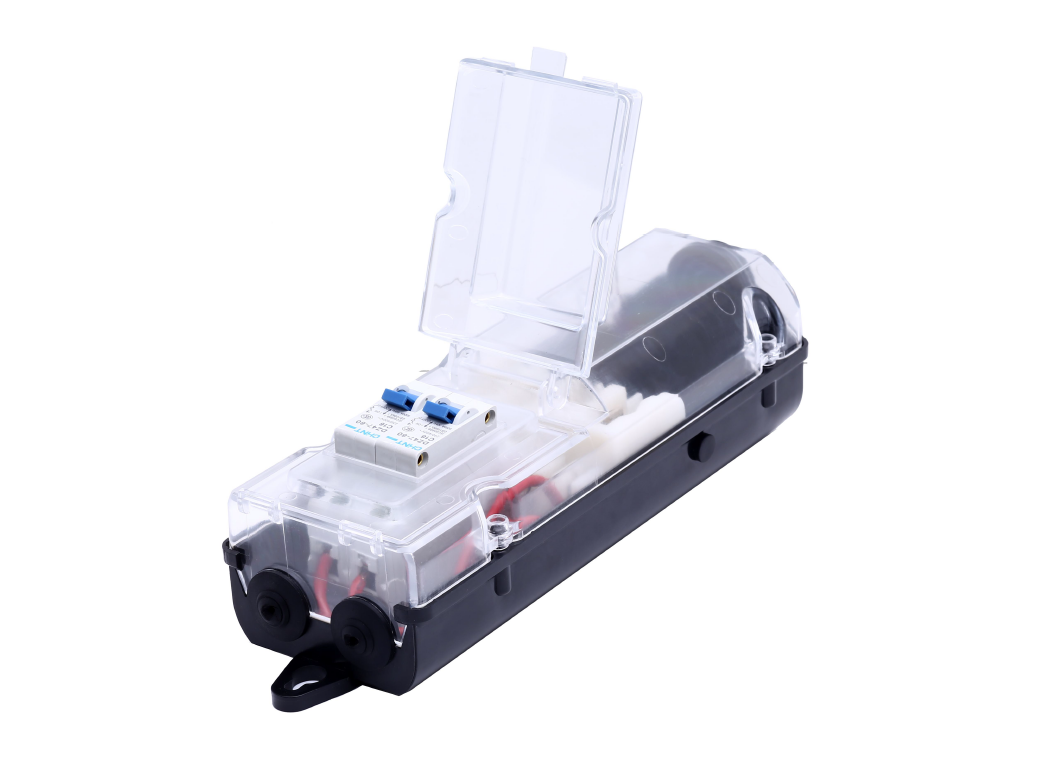

EKM 1836 Fuse BOX

L: 293 x W: 90 x H: 74mm IP54
Fuse BOX
  • Plug technology without screws
  • Screws Terminal for cable connection
  • Protection : IP54
  • Housing material: Anti UV Polycarbonate Class V2 Fire Retardant
  • Optional : Fuse Type or MCB Type

Technical Data

  • Input Current

    Input Voltage

    • 80A   @AC
    • 500V @AC
  • Output Current

    Out put Voltage

    • 16A   @AC
    • 450V @AC
  • Fuses

    max. 16 A / 400 V

  • Terminals  material

    Conductor fixing material

    Connect method

    • H62 copper x4
    • PA66
    • M3 screws
  • Cable Connection

    Input: Max. three cables 2 x 6 - 16 mm²

    Output: Max. three cables 3 x 6 - 16 mm²

  • Box fixing method

    Fixing lugs

  • Housing material

    Anti UV Polycarbonate Class V2 Fire Retardant

  • Ingress Protection

    IP54 IEC 60529

  • Safety standard comply

    DIN 43 628 , VDE0660 part 505; EN60670-22 ; EN60670-1

    MCB: EN60947-2  EN 60898-1

  • Dimension

    Fuse Type: L: 293 x W: 90 x H: 74mm

    MCBType: L: 293 x W: 90 x H: 90mm

  • Certification

Technical Drawing
