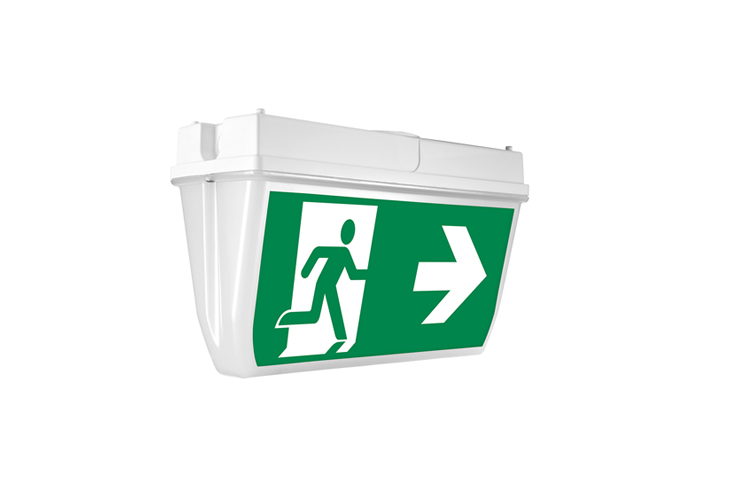

ENTE-Double Side

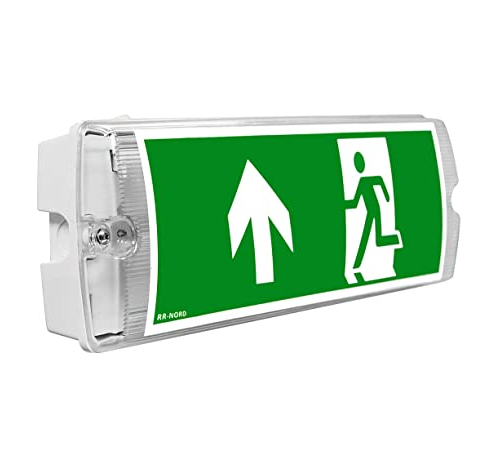

ENTE-Single Side
Single and Double Exit Sign 3W IP65
  • Automatic self-testing function to achieve the periodical test automatically.
  • The objective for this series is to reduce the labor cost to push the test button manually to check the health of the exit sign.
  • Every 28 days for function tests and every 52 weeks for duration tests

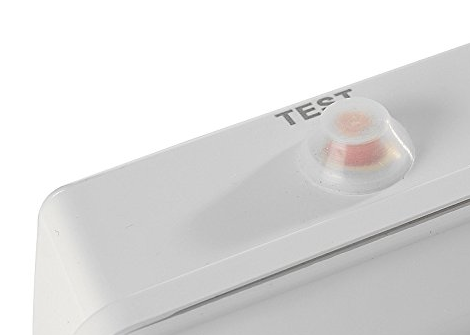

  • A fault indicator will light on in case of failure of testing and will be removed by next successful aubto-testing.
  • Polycarbonate for complete body and under BS EN 60598-2-22 (850°C hot wire test) testing

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria

    Recessed Mounted , Wall Mounted or Surface Mounted Type


    Tipo de montaje empotrado, montaje en pared o montaje en superficie

  • Dimension-尺寸-Dimensión

    • Double side : W:118 x L:343 x H:210 mm
    • Single side:   W: 118 x L: 352 x H: 80mm
  • Input Voltage-輸入電壓-Voltaje de entrada

    AC200-240V 50/60Hz

  • System Mode


    Modo de sistema


    • Maintained Type 長時式 Tipo mantenido
    • Non-Maintained Type式 非長時式Tipo no mantenido
  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 3W


  • Charge Time充電時間 Tiempo de carga


    • <12 Hours              or               <24 Hours
  • Discharge Duration


    Duración de la descarga

    >3 Hours

  • LED Life-LED壽命-La vida del LED

    > 50000 hours

  • Color Temperature -色溫

    Temperatura del color


  • Battery Type電池類型

    Tipo de batería

    • 3.6V 1800mAH Ni-Cd
  • LED indicator Function


    Indicador LED de función

    • Green LED -Mains on/ No fault and Battery Charging 綠色 LED - 電源打開/無故障和電池充電
    • Green Flash-Fast flash 3 hour duration test 綠閃-快閃3小時持續時間測試
    • Red Flash-Battery fault/ Lamp fault/Duration test fault 紅色閃光-電池故障/燈泡故障/持續時間測試故障
  • Housing materials-外殼材料

    Materiales de la carcasa

    Polycarbonate 聚碳酸酯 Policarbonato -BS EN 60598-2-22 (850°C hot wire test)

  • Operating Temperature

    工作溫度Temperatura de funcionamiento

    0°C - 50°C

  • Housing Color外殼顏色

    color de la carcasa


    Matte white啞光白色Blanco mate

  • Ingress Protection-防護等級

    Protección de ingreso

    IP65 - (IEC 60529)

  • Environment-使用環境-medio ambiente


  • Comply Testing Standard


    Cumplir el estándar de prueba

    IEC 60598-1:2020 & BSEN 60598-2-22:2014+A1:2020 at temperature of 850°C and IEC 60695-2-10:2013

    BS EN 50200: 2015 (PH60) and Annex E of BS EN 50200: 2015 (a duration ofsurvival time of 30 minutes) and one of the following standards:

    (i) BS EN 60702-1: 2002 +Al: 2015 & BS EN 60702-2: 2002 +Al: 2015

    (ii) BS 7629-1: 2015 (Cat. Standard 60)

    (iii) BS 7846: 2015 (Cat. F2 for cables of overall diameter not exceeding20mm)

    (b) BS 6387: 2013 Cat. CWZ. The test results from our measurement complied with the relevant sections of BS 5266-1:2016, BS EN 1838:2013 and relevant parts of BS EN 60598-2-22:2014+A1:2020 and regulation PPA / 104 (A) (5th Revision) of Fire Services Department specifications.

  • Certification-認證-Certificación

Technical Drawing
