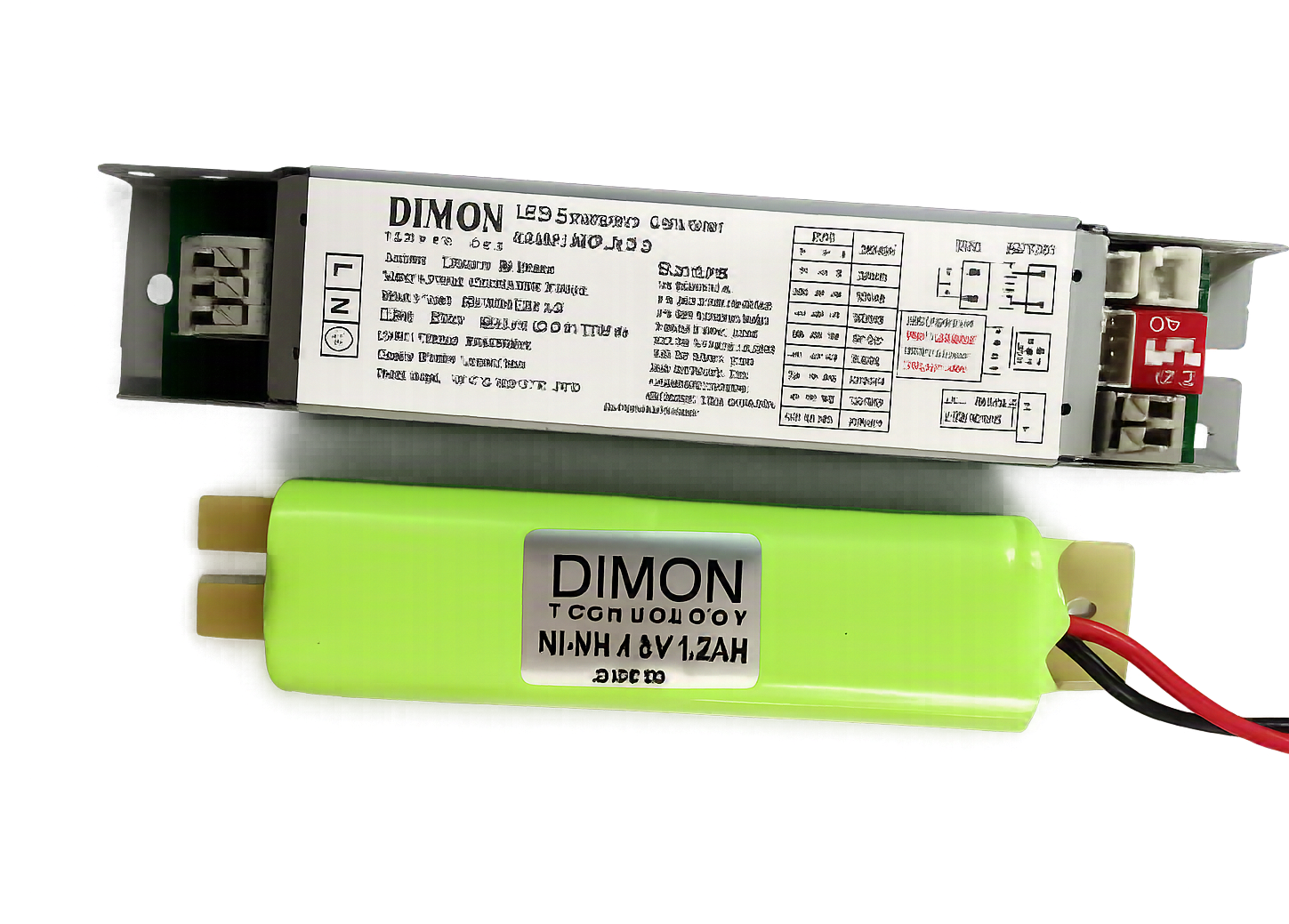

MOLA-3-3

Emergency Converter for Exit Sign
  • Smart dip switch constant current output
  • Suitable for Maintained or Non-maintained luminaires.
  • Electronic charge system.
  • Discharge protection and utomatic shutdown protection if the LED load is out of range.
  • Short-circuit proof battery connection.
  • 3 hours emergency backup with either Ni-MH battery or Ni-Cd battery
  • Provided with a LED for indication when battery charge is in process.
  • Tested in accordance with latest local requirement PPA/104(A) (5th Revision).

Technical Data

  • Model No. / 型號 / N.º de modelo

    MOLA-3-3

  • Input Voltage & Frequency / 輸入電壓和頻率

    Voltaje y frecuencia de entrada

    220-240VAC / 50/60Hz

  • Input Power / 輸入功率 / Potencia de entrada

    3W

  • Output Voltage / 輸出電壓

    Voltaje de salida

    15-48VDC

  • Output Current / 輸出電流

    Corriente de salida

    40mA-100mA

    4 Level adjustable 20mA / step

  • Battery Type / 電池類型 / Tipo de batería

    Ni-CD / Ni-MH

  • Battery Capacity / 電池容量 / Capacidad de la batería

    4.8V 1.2 AH

  • Charge Time / 充電時間 / Tiempo de carga

    12 Hours

  • LED indicator Function / LED指示燈功能

    Indicador LED de función

    Charging: Red

    Full Charged: Green

    Discharging: None

    Battery Failure: Yellow

    Loading Failure: Flashing Red & Green

    Discharging (Auto Test Mode): Flashing Green

  • Operating Temperature / 工作溫度

    Temperatura de funcionamiento

    -10°C - 40°C

  • Housing Materials

    Zinc Iron

  • Operating Humidity / 工作濕度

    Humedad de funcionamiento

    10% - 90%

  • Safety Standards / 安全標準

    Normas de seguridad

    F.S.D PPA/104(A) (5th Revision)

  • Certification
