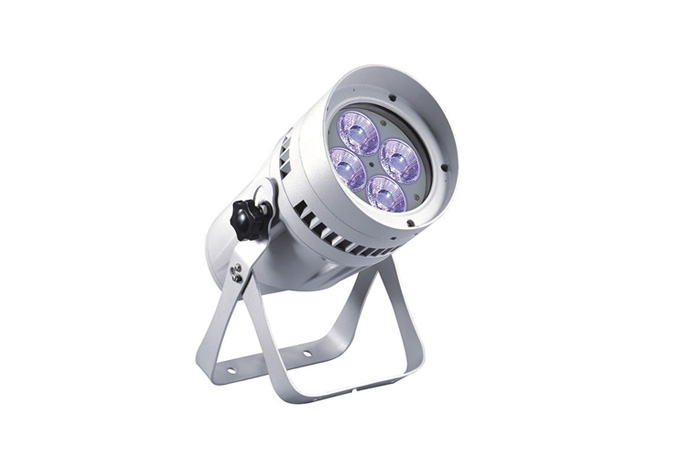

SPOCH

SPOCH
RGBW DIA162mm 45W IP66
COLOR SPOT LIGHT

IP66 rated LED Spotlight with rich, saturated color mixing effect via specially designed lens provides outstanding light output. Compact design with great heat ventilation in a rugged die-cast aluminum housing to ensure reliable performance under harsh environments. Featuring 4pcs x 10W CREE LEDs for excellent color mixing. LED touch-panel display for easy set-up navigation; as well as great built-in shows ( fade ) without  DMX control With Photocell ( light sensor ) feature, units can light.

SPOCH COLOR SPOT LIGHT is a indoor and outdoor fixture with RGBW color for media façade application. It is able to be controlled by DMX and RDM. Built-in 16-bit PWM embedded LED IC, featuring 16-bit gray scale control, supports up to 65,536 gray scales for color depths. The high visual refresh rate can facilitate CCD cameras and video cameras to capture the full video images in real time without flickers. LED color calibration and proffessional architectural lighting projector.

Technical Data

  • Luminaire Type/ 安裝方式

    Tipo de luminaria

    Surface Mount and Adjustable Type

    明裝可調安裝腳

    Tipo mount en superficie y ajustable

  • Color -顏色-Color

    • RGBN( Nature White: 4000K )
    • RGBC ( Cool White: 6500K )
  • Power Consumption Max

    燈具最大功率

    Consumo de energía Max

    45W Max



  • Pixels & DMX Channels

     像素和DMX 通道

    Píxeles y canales DMX



    1 Pixel = 4 DMX Channels

  • Control Protocol-控制協議

    Protocolo de Control

    DMX 512A / RDM

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    AC100-240V 50/60HZ

  • QTY of LEDs-燈珠數量-CANT de LEDs

    4 pcs CREE MCE LEDs @ Quad Color

  • Color Range

    顏色範圍

    Gama de colores

    16.7 Million additive RGB colors and White LED

    1670萬RGB顏色配合白光LED

    Aditivo de 16,7 millones de colores RGB y LED blanco

  • RGBW Color Resolution with Gamma correction

    RGBW顏色經過伽馬校正的分辨率

    Resolución de color RGB W con la corrección de gamma

    4 x 16-bit gray scale control and Gamma correction, supports up to 65,536 gray scales for color depths

    4 x 16位灰度控制,支持高達65,536個灰度級的顏色深度

    4 x control de escala de grises de 16 bits, soporta hasta 65.536 escalas de gris para profundidades de color



  • Beam Angle/光束角

    ángulo de haz

    • 10°
    • 20°
    • 30°



  • Light Source Brand/光源品牌

    Fuente de luz de marca

    CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • LED Life/LED壽命

    La vida del LED

    >50,000 hours

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 2 SDCM

    標準偏差配色< 2 SDCM

    Coincidencia de color estándar Desviación < 2 SDCM

  • Luminaire Efficacy-燈具效率

    La eficacia de la luminaria

    • 50 Lm/w(RGBN@Full Load)
    • 55 Lm/w(RGBC@Full Load)
  • LED Source Luminous Efficacy-LED光源光效

    Fuente luminosa LED Eficacia

    • 60 Lm/w (RGBN@Full Load)
    • 70 Lm/w (RGBC@Full Load)
  • Housing materials/外殼材料

    Materiales de la carcasa

    Die-cast aluminium and Tempered glass

    壓鑄鋁和鋼化玻璃

    Aluminio fundido a presión y de vidrio templado

  • Housing Color

    外殼顏色

    color de la carcasa



    Polyester powders Coating  (RAL 9006 Silver) or (RAL 9005 Black)

    聚酯粉末塗料(RAL 9006 銀灰色)或(RAL 9006 黑色)

    Polvos de poliéster Revestimiento (RAL 9006 Plata) or (RAL 9005 Black)

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento



    -20 °C / +50 °C



  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Ingress Protection/ 防護等級

    Protección de ingreso

    IP66 - (IEC 60529)

  • Dimension/尺寸

    Dimensión

    • L:343 x H:208 x DIA:162 mm @ Fixture A with two brackets
    • L:315 x H:178 x DIA:162 mm @ Fixture B with one bracket



  • Environment/ 使用環境

    Medio ambiente

    Outdoor /戶外/al aire libre

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-3 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1  / IEC 61347-2-13 6 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
SPOCH-45W-RGBC-S-MB-DMX-A
SPOCH
-
Power Consumption
-
Color Tempreture
-
Beam Angle
-
House Color
-
Control Type
-
Bracket Type

Power Consumption

  • 45W
    45W @ 4pcs LED
  • XXW
    Tailor-Made

Color Tempreture

  • RGBN
    RGBN(4000K)
  • RGBC
    RGBC(6500K)

Beam Angle

  • S
    10°
  • N
    20°
  • M
    30°

House Color

  • SG
    RAL 9006 Silver
  • MB
    RAL 9005 Black

Control Type

  • DMX
    DMX
  • RDM
    RDM

Bracket Type

  • A
    Fixture A with two brackets
  • B
    Fixture B with one bracket
