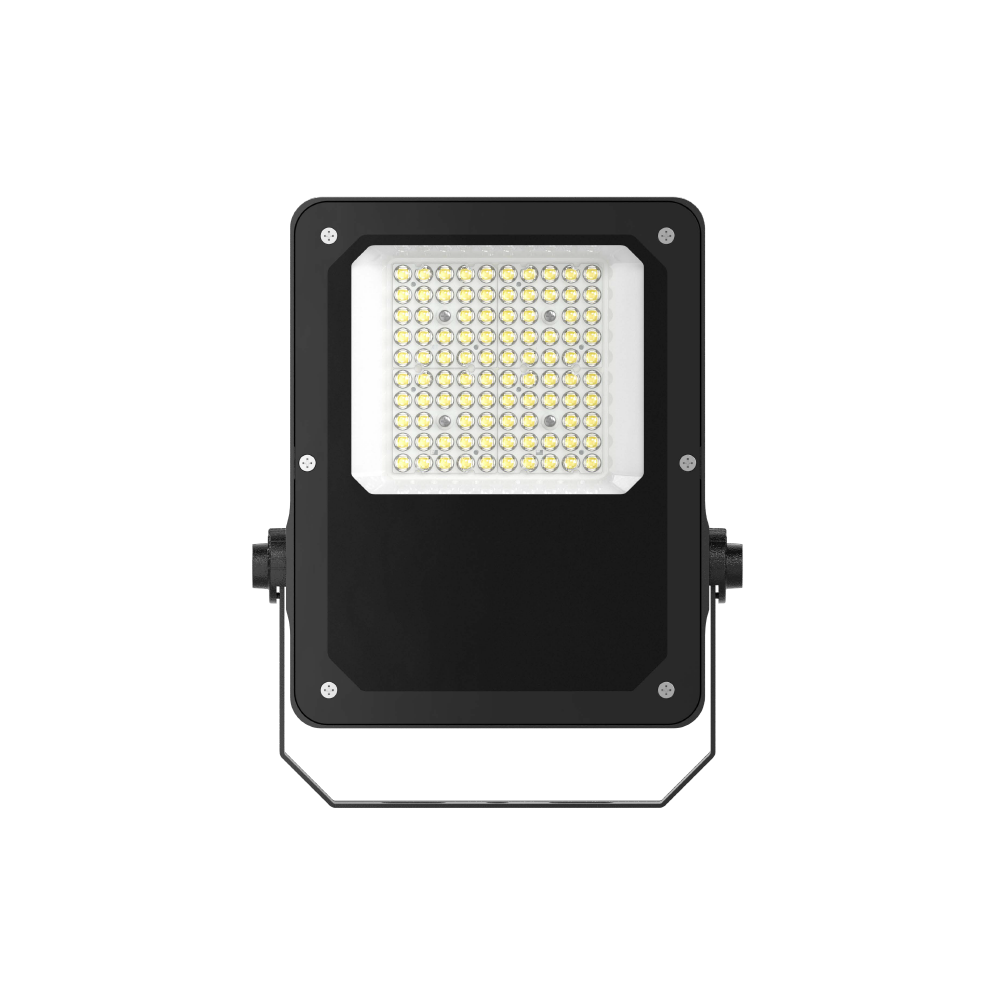

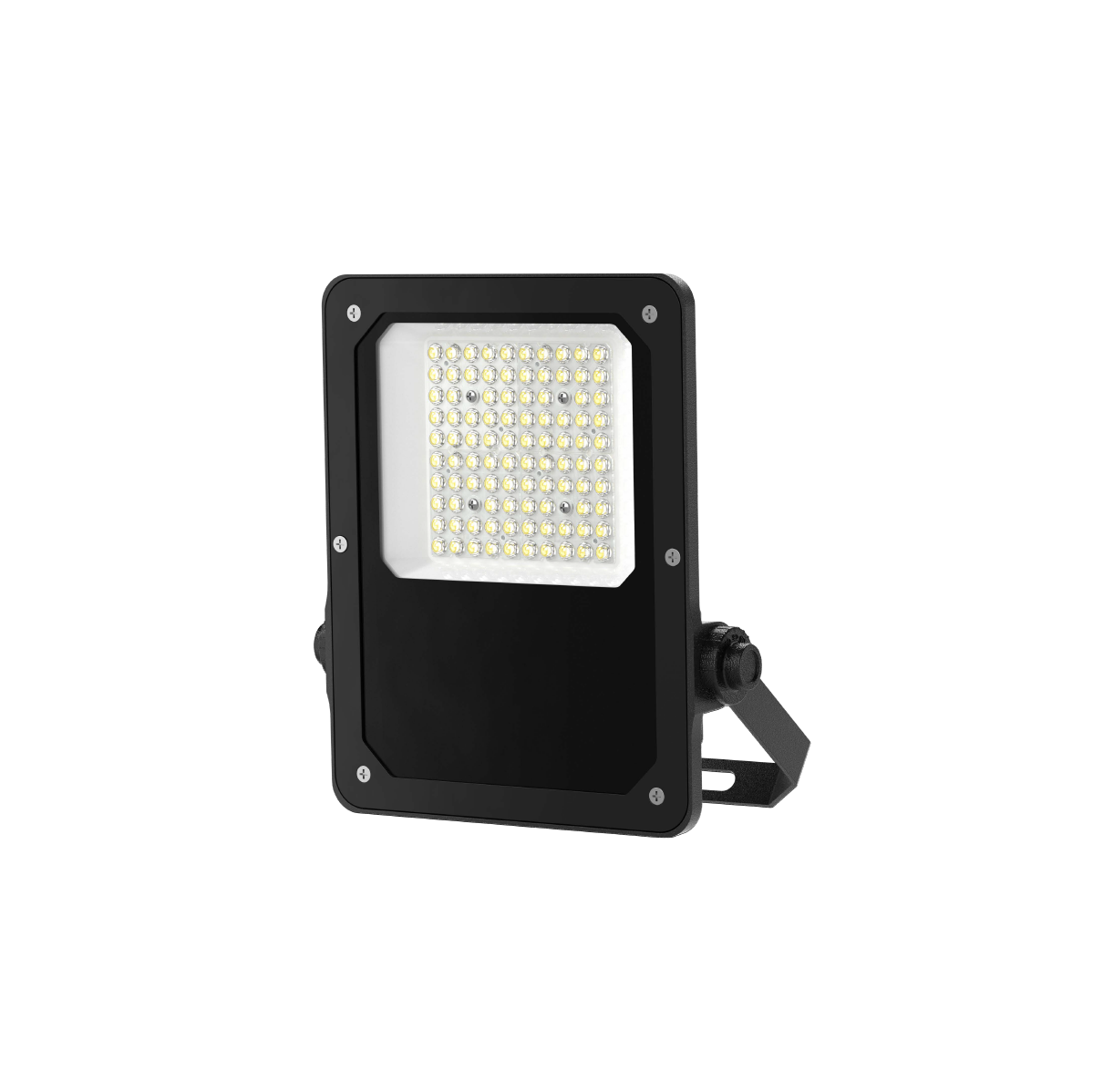

FLARE ECO

20W-50W IP66
Low Power LED Flood Light

This Flood Light is slim yet robust with superior price performance, its compact size can reduce transportation and storage costs.

The clear glass with asymmetrical or symmetrical optics achieves uniform lighting and is ideal for area or recreational sports lighting.

Multiple optics to suit almost sports and flood lighting applications.

High efficiency up to 150lm/W.

Equipped with low copper aluminum alloy body and outdoor powder coating, which guarantee superior corrosion resistance

Technical Data

  • Installation method / 安裝方式

    Metodo de instalacion

    Surface Mounted and Adjustable Type

    明裝可調安裝腳

    Tipo montado en superficie y ajustable

  • Power Consumption with LED Driver

    燈具功率包括LED驅動

    Consumo de energía con controlador de LED

    20W     30W     40W     50W

  • Input Voltage / 輸入電壓/Voltaje de entrada

    220-240VAC 50-60HZ

  • Control / 控制 / Control

    0-10V / DALI / Zigbee

  • Power Factor / 功率因數 / Factor de potencia

    PF>0.9

  • Total Harmonic Distortion / 總諧波失

    Distorsión armónica total

    THD <20%

  • Light Source Brand / 光源品牌 / Fuente de luz de marca

    Lumileds / CREE / Osram

  • Lumen Maintenance LM-80 Reported by TM-21

    L70 > 5,4000 hours

  • LED Life / LED壽命 / La vida del LED

    >100,000 hours

  • Color Temperature色溫 Temperatura y color

    3000K / 4000K / 5000K / 5700 / 6500K

  • Color Rendering Index / 顯色指數

    Índice de reproducción cromáca

    >70

    >80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 5 SDCM

    標準偏差配色< 5 SDCM

    Coincidencia de color estándar Desviación < 5 SDCM

  • Beam Angle / 光束角 / ángulo de haz

     45°     90°     120°     P30     100x60°     T2M     T3M

  • Luminaire Efficacy / 燈具效率

    La eficacia de la luminaria

    140 LM/W (3000K)     140 LM/W (4000K)      150 LM/W(5700K)

    150 LM/W (5000K)     150 LM/W (6500K)

  • LED Source Luminous Efficacy / LED光源光效

    Fuente luminosa LED Eficacia

    160 LM/W (3000K)     160 LM/W (4000K)      170 LM/W(5700K)

    170 LM/W (5000K)     170 LM/W (6500K)

  • Housing materials / 外殼材料

    Materiales de la carcasa

    Die-cast aluminium and Clear Tempered glass

    壓鑄鋁和透明鋼化玻璃

    Aluminio fundido a presión y vidrio templado transparente

  • Housing Color / 外殼顏色

    color de la carcasa

    Polyester powders Coating - Matte Black

    聚酯粉末塗料 - 哑光黑色

    Polvos de poliéster Revestimiento - Matte Black

  • Ingress Protection / 防護等級

    Protección de ingreso

    IP65

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +45 °C

  • Storage Temperature / 儲藏溫度

    Temperatura de almacenamiento

    -20 °C / +65 °C

  • Operating Humidity / 工作濕度

    Humedad de funcionamiento

    0~100%, non-condensing / 不結霜

    sin condensación

  • Dimension / 尺寸 / Dimensión

    Refer to Drawing

  • Certificate Standard Complied

    符合安規標準

    estándar certificado de cumplimiento

    LED Luminaries:  IEC / EN 60598-1;IEC/EN 60598-2-5; IEC TR62778 IEC62471 (RG1); IEC 62031;  EN62493 RoHS

    LED Driver:            IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

                                    IEC/EN 61000-3-3;IEC/EN61574;EN 55015

  • Certification-認證-Certificación

Specification Code

Example Product Code:
FLARE-50W
FLARE-ECO
-
POWER CONSUMPTION

POWER CONSUMPTION

  • 20W
    20W
  • 30W
    30W
  • 40W
    40W
  • 50W
    50W
