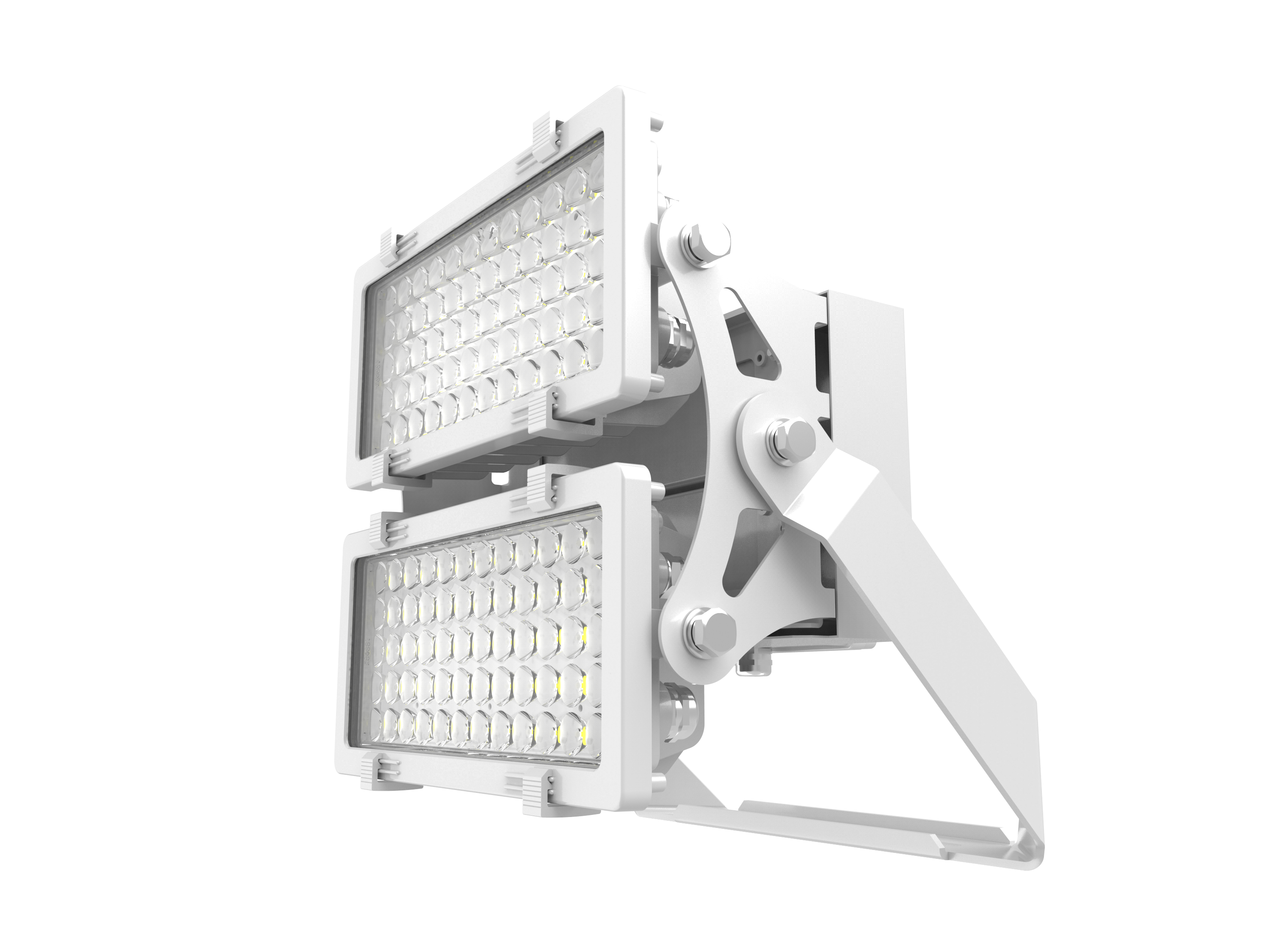

HADRY

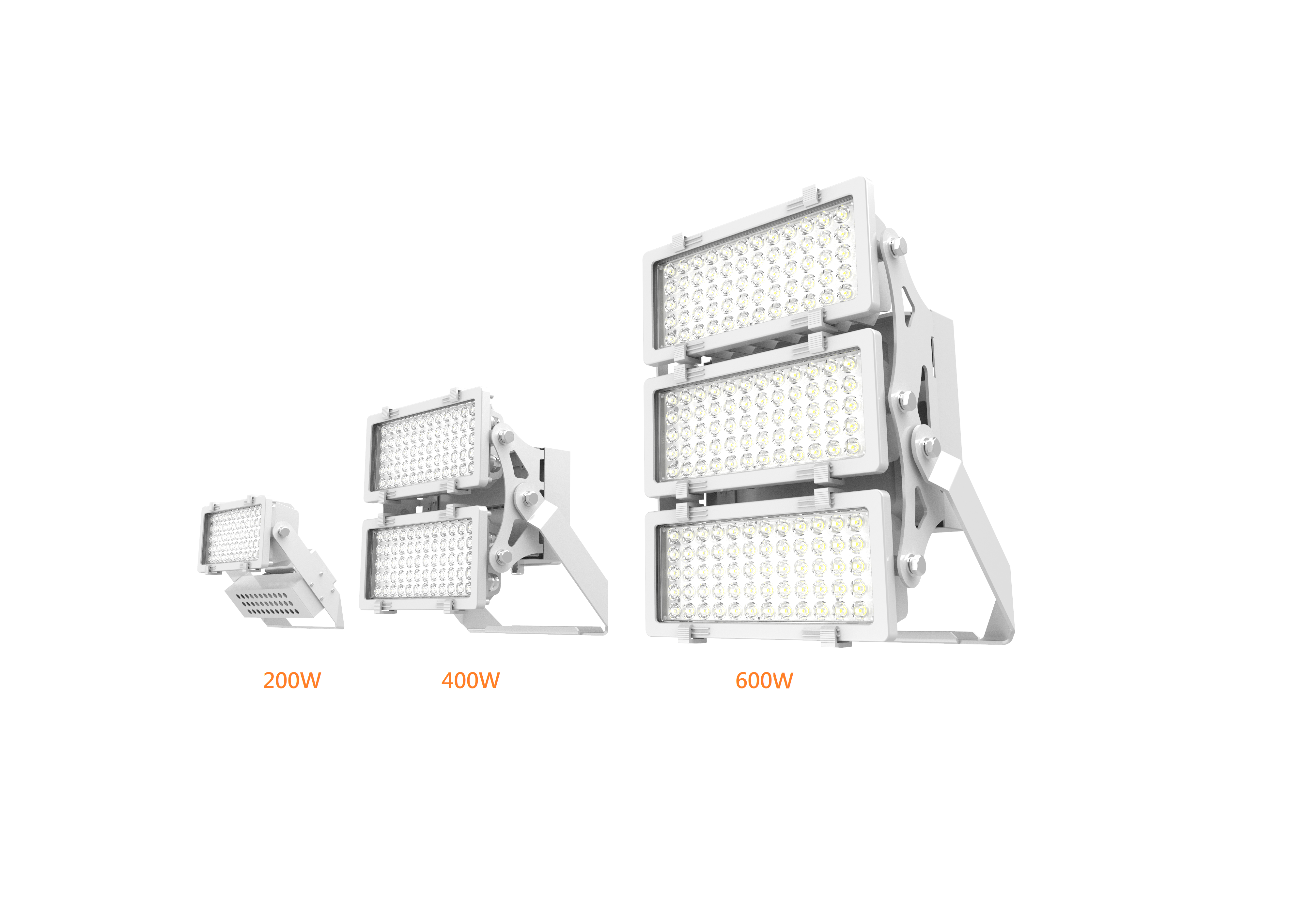

200W- 600W IP66

LED Flood Light IP66

LED Flood Light IP65. The fixture coated with electrophoresis and powder for excellent anti-corrosion performance. And the bracket surface adopts HDG (hot-d:p galvanizing) technology which provide strong corrosion. It is durable with great performance. With SPD protection, it also goes through rigorous test which reaches excellent IP66 and IK08 rating.

Die-cast aluminium. separate electric housing with super white tempered glass.
Galvanized steel plate.Surface anti-ageing electrostatic spray processing,super resistance to corrosion.
Provided with 10KV Build-in Surge Protection Devices.
Efficiency up to 135lm/W, more energy saving

Technical Data

Luminaire Type-安裝方式

Tipo de luminaria

Surface Mounted and Adjustable Type 明裝可調安裝腳

Tipo montado en superficie y ajustable
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED
- 200W
- 400W
- 600W
Input Voltage / 輸入電壓

Voltaje de entrada

100-240VAC/50-60HZ
Control 控制 Control
- SW -ON/OFF Dali Control 0-10V Control DMX512 Zigbee Wireless Control
Power Factor / 功率因數/Factor de potencia

PF>0.92
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD<20
Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

6kV line-line, 10kV line-earth ( Build-in Surge Protection Devices)
Light Source Brand-光源品牌-Fuente de luz de marca

Nichia- ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"

1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>50,000 hours
Color Temperature 色溫

Temperatura y color
- 3000K 4000K 5000K
Color Rendering Index-顯色指數

Índice de reproducción cromáca

>70 or >80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Beam Angle 光束角 ángulo de haz

10° 15° 30° 42° 60° 10°*40°
Luminaire Efficacy燈具效率

La eficacia de la luminaria
- 125 Lm/w(3000K) @CRI >70 ; 120 Lm/w(3000K) @CRI >80
- 130 Lm/w(4000K) @CRI >70 ; 125 Lm/w(4000K) @CRI >80
- 135 Lm/w(5000K) @CRI >70 ; 130 Lm/w(5000K) @CRI >80
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia
- 143 Lm/w(3000K) @CRI >70 ; 134 Lm/w(3000K) @CRI >80
- 163 Lm/w(4000K) @CRI >70 ; 143 Lm/w(4000K) @CRI >80
- 171 Lm/w(5000K) @CRI >70 ; 153 Lm/w(5000K) @CRI >80
Housing materials 外殼材料

Materiales de la carcasa

Die-cast aluminium and Tempered glass

壓鑄鋁和鋼化玻璃

Die fundición de aluminio y vidrio templado
Housing Color 外殼顏色

color de la carcasa

Polyester powders Coating--Matte Sliver or Matte Black

聚酯粉末塗料--哑光黑色和啞光銀色

Recubrimiento de poliéster en polvo: plata mate o negro mate
Ingress Protection-防護等級

Protección de ingreso

IP66 - (IEC 60529)
Mech impact protection機械衝擊保護

Protección contra impactos mecánicos

IK08
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Storage Temperature 儲藏溫度

Temperatura de almacenamiento

-40 °C / +70 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Accessory 配件 accesorio
Visor 遮陽板 Visera
Dimension尺寸

Dimensión
- 200W@ 321×316×118mm(12.64"×12.44"×4.65") 400W@ 419×340×222mm (16.5"×13.39"×8.74")
- 600W@ 529×340×226mm(20.83"×13.39"×8.9")
Net Weight 淨重

Peso Neto
- 200W@ 4.1±0.3kg (9.04±0.66Lbs) 400W@9.4±0.3kg (20.72±0.66Lbs)
- 600W@15.3±0.5kg (33.73±1.1Lbs)
Packing box size包裝箱尺寸

Tamaño de la caja de embalaje

200W@ 360×160×375mm (14.17"×6.3"×14.76") 400W@478×270×390mm(18.82"×10.63"×15.35")

600W@ 598×280×400mm(23.54"×11.02"×15.75")
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: IEC 60598-1;IEC 60598-2-1;IEC62471;RoHS

LED Driver: IEC 61347-1; IEC 61347-2-13; IEC 62384; IEC61000-3-2;

IEC61000-3-3;IEC 61574;EN 55015
