LED Slim Batten Light 6W-80W

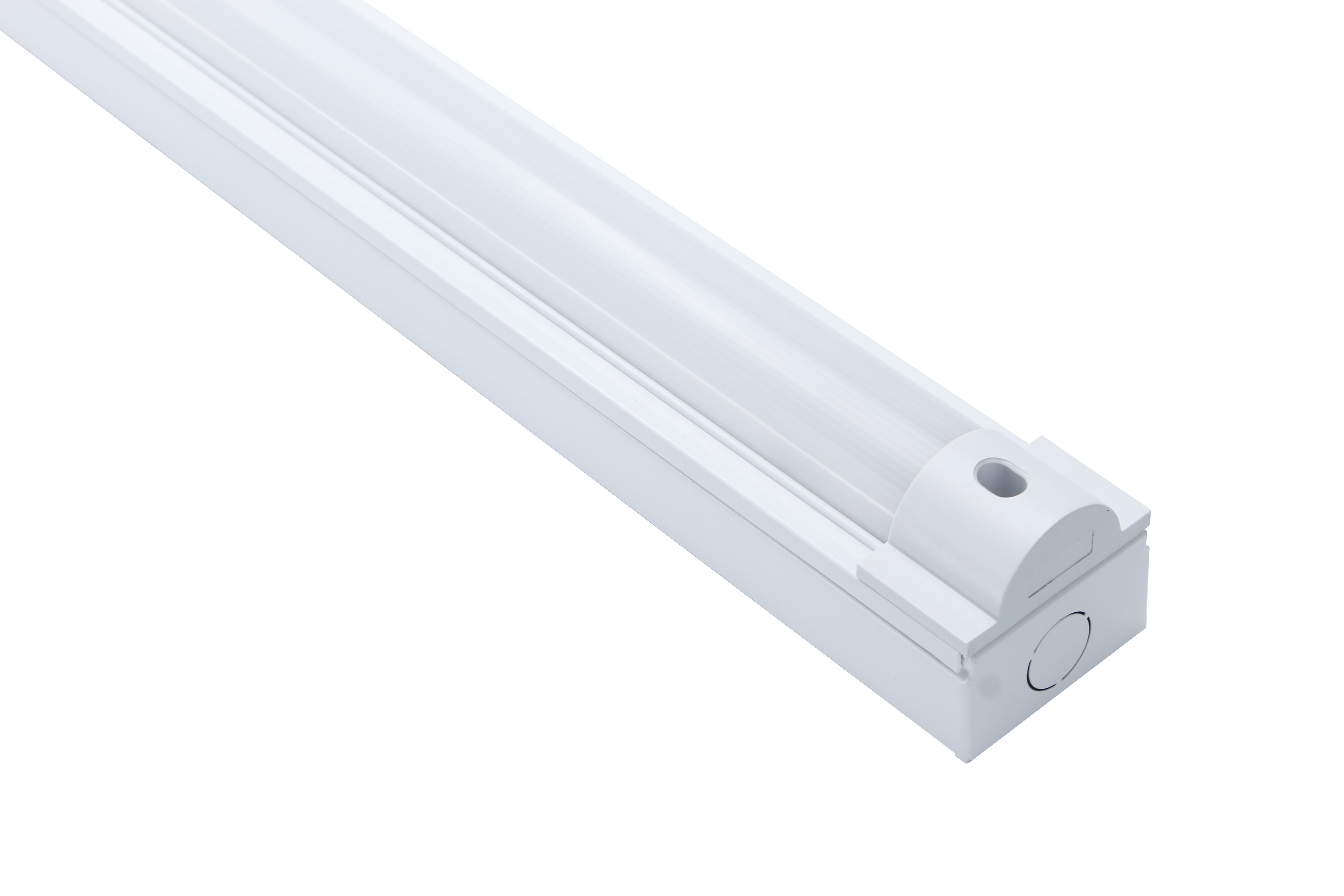

LED Slim Batten Light
  • LED Slim Batten Light for replacing T5, T8, T10 fluorescent lamp;
  • White Coated Formed Stelel Body with anti-glare reflector and diffusor system made of PC;
  • Multiple control function is optional, switch on/off, motion sensor, DALI control dimming, emergency device, emergency + motion sensor.

Technical Data

  • Luminaire Type-安裝方式-Tipo de luminaria

    Surface Mounted Type--明裝式燈具--Superficie Tipo Montado

  • Dimension-尺寸-Dimensión LxWxH

    L: 610 x W: 64 x H: 62mm                      L: 1220 x W: 64 x H: 62mm

    L: 1524 x W: 64 x H: 62mm                    L: 1829 x W: 64 x H: 62mm

  • Input Voltage-輸入電壓-Voltaje de entrada

    • AC220-240V 50/60HZ     or       AC100 ~277V 50/60Hz
  • Power Consumption Max-燈具功率

    Consumo de energía Max

    6W @ L: 610mm     7W @ L:610mm     8W @ L:610mm     9W@ L:610mm

    10W@ L:610mm     12W @ L:610mm   14W @ L:610mm  16W @ L:610mm

    18W@ L:610mm      20W@ L:610mm  @ L:1220mm

    24W@ L:1220mm   28W@ L:1220mm   30W@ L:1220mm

    32W@ L:1220mm    36W@ L:1220mm @ L:1524mm

    40W@ L:1220mm  @ L:1524mm           42W @ L:1524mm

    44W @ L:1524mm   48W @ L:1524mm

    50W @ L: 524mm    54W @ L:1524mm     58W @ L:1524mm     60W @ L:1524mm

    68W @L:1829mm     75W @L:1829mm     78W @L:1829mm      80W @L:1829 mm

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Consulte la especificación de controlador de LED
    1. ON/OFF Switch AC220-240V 50/60HZ
    2. ELV Dimming Driver (5-100%) AC220-240V 50/60HZ
    3. 1-10V Dimming Driver AC220-240V 50/60HZ
    4. Dali Dimming Driver AC220-240V 50/60HZ
    5. Microwave Motion Sensor 5.8Ghz (Hold time, Stand-by DIM Level,Twilight Time;Detection Area,Daylight Sensor)
    6. ZIGBEE Wireless Control (Remoted Driver ) AC220-240V 50/60HZ
    7. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features 驅動特性

    Funciones del controlador de LED

    • POWER FACTOR (Lambda): PF>0.95  or  PF > 0.9   TOTAL HARMONIC DISTORTION: THD< 20%
    • LED DRIVE LIFETIME: 50,000 hour or 100,000 Hours and Electrical protection class I  and class II
  • Control Protocol-控制協議-Protocolo de Control

    • SW -ON/OFF  / Dali Control / 0-10V Control / Microwave Sensor / Zigbee Wireless Control
  • Light Source Brand-光源品牌-Fuente de luz de marca

    Everlight SMD LED (LM-80 Report No. 14-04-VLP-0038-TP)

  • Lumen Maintenance ISTM & TM-21"@ 25 °C

    流明維持率(光通量衰減)報告:  ISTM & TM-21"@ 25 °C

    Mantenimiento de lúmenes ISTM y TM-21 "@ 25 ° C

     L70  > 54,000 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80     or   >90

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

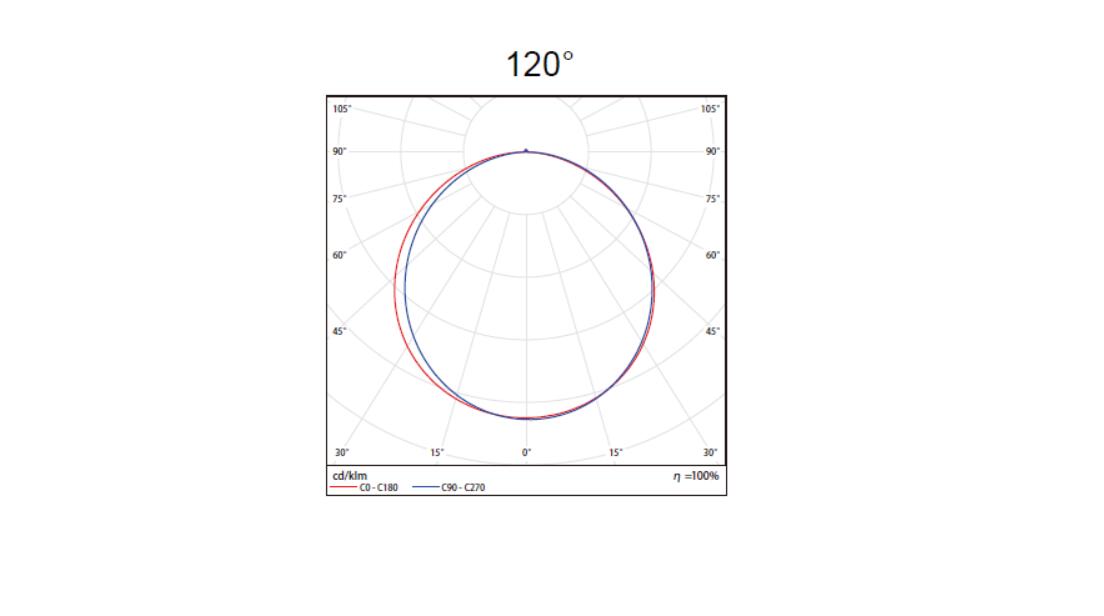

  • Beam Angle   光束角  ángulo de haz

    120°

  • Photobiological safety-IEC 62471 /  of Luminaire

    光生物安全檢驗(ICE/EN 62471) 结果:

    Seguridad fotobiológica-IEC 62471

    • Exempt
    • 豁免
    • Eximir
  • Luminaire Efficacy  燈具效率

    La eficacia de la luminaria

    • 120 Lm/w(2700K),              120 Lm/w(3000K),          125 Lm/w(4000K),
    • 130 Lm/w(5000K),              130 Lm/w(6500K),
  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    • 140 Lm/w(2700K),              140 Lm/w(3000K),           150 Lm/w(4000K),
    • 160 Lm/w(5000K),              160 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    White Coated Formed Steel Body and Polycarbonate

    白色塗層成型鋼體和聚碳酸酯

    Cuerpo de acero moldeado revestido blanco y policarbonato

  • Ingress Protection

    IP44 - (IEC 60529)

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC/ EN 60598-1 /  EN 60598-2-1 /  EN 62031 / EN 62493 / IEC/EN 62471 / IEC 60598-2-22 / IEC 62031  / EN 55015 /  EN 61000-3-2 / EN 61000-3-3 /  EN 61547

    Luminaries Performance : IEC 62722-1 / IEC 62722-2-1   FSD regulation PPA 104A (4th Rev). RoHS

    LED Driver: EN 55015 / EN 61000-3-2 / EN 61347-1 / EN 61347-2-13 / EN 61547 / EN 62384

  • Certification

Specification Code

Example Product Code:
BATESA-60W-SW-40
BATESA
-
Power Consumption
-
LED Driver Type

Power Consumption

  • 6W
    6W @ L: 610 mm
  • 7W
    7W @ L: 610 mm
  • 8W
    8W @ L: 610 mm
  • 9W
    9W @ L: 610 mm
  • 10W
    10W @ L: 610 mm
  • 12W
    12W @ L: 610 mm
  • 14W
    14W @ L: 610 mm
  • 16W
    16W @ L: 610 mm
  • 18W
    18W @ L: 610 mm
  • 20W
    20W @ L: 610 mm @ L: 1220mm
  • 24W
    24W@ L: 1220mm
  • 28W
    28W@ L: 1220mm
  • 30W
    30W@ L: 1220mm
  • 32W
    32W@ L: 1220mm
  • 36W
    36W@ L: 1220mm@ L: 1524mm
  • 40W
    40W@ @ L: 1220mm@ L: 1524mm
  • 42W
    42W @ L: 1524mm
  • 44W
    44W @ L: 1524mm
  • 48W
    48W @ L: 1524mm
  • 50W
    50W @ L: 1524mm
  • 54W
    54W @ L: 1524mm
  • 58W
    58W @ L: 1524mm
  • 60W
    60W @ L: 1524mm
  • 68W
    68W@L: 1829 mm
  • 75W
    75W @L: 1829 mm
  • 78W
    78W @L: 1829 mm
  • 80W
    80W @L: 1829 mm

LED Driver Type

  • SW
    ON/OFF Switch
  • AN
    1 -10V Dimming
  • DA
    DALI Dimming
  • EM
    Emergency Battery
  • ZI
    ZIGBEE Wireless Control
  • MS
    Microwave Sensor

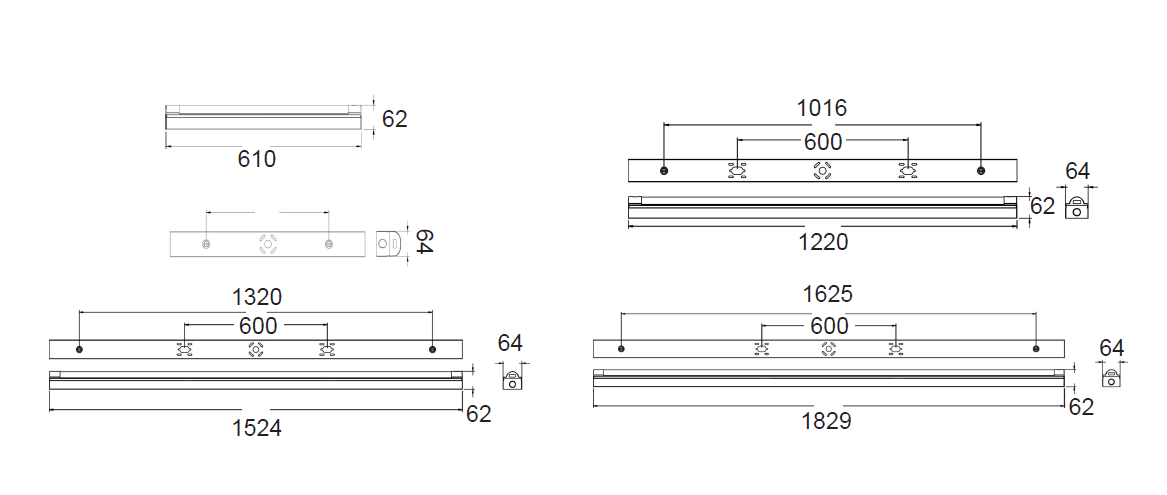

Technical Drawing
