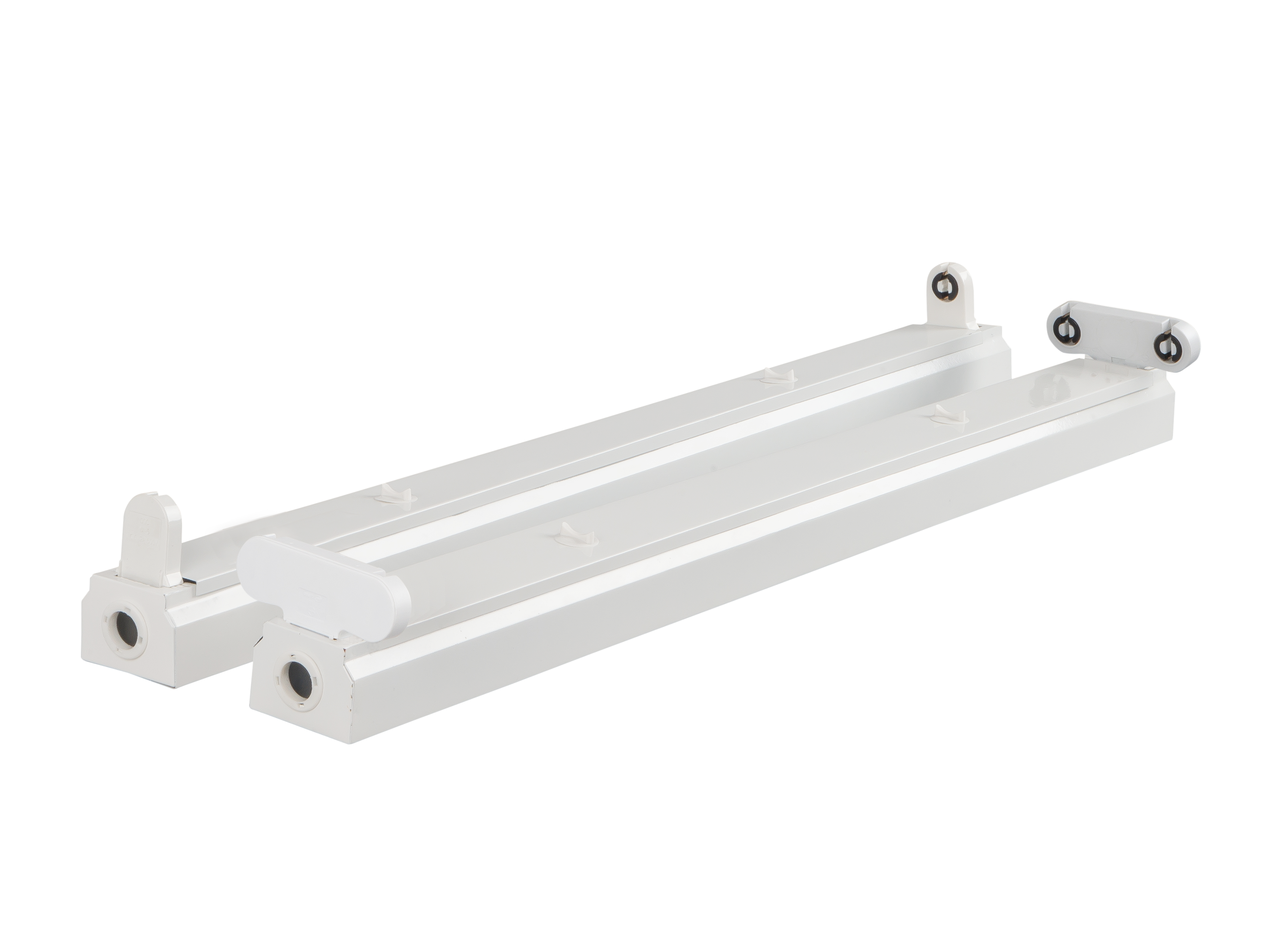

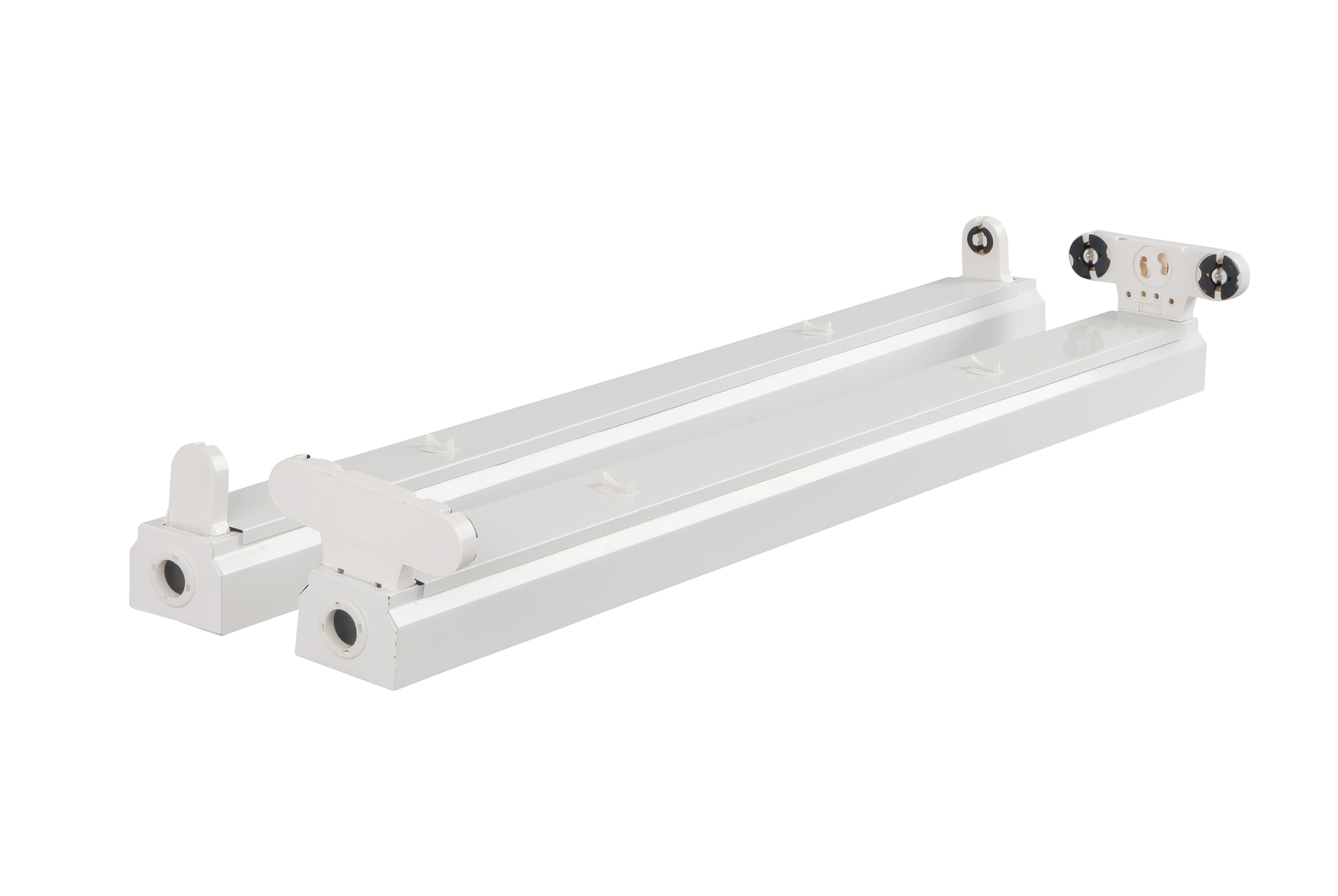

BATESA-G2

For LED T5 / T8 Tube

Steel Sheet with Powder Coasting
Polycarbonate Prismatic for resistant dust and moth
Transmittance rate of the prismatic Polycarbonate plate: 80%
Compatible with LED T8 or LED T5 Tube lamp
Integrated LED Control Gear 1-10V and DALI, and Zigbee wireless
Comply with Hot Wire Testing: 850°C
Options : Reflector or Polycarbonate Prismatic Diffuser

Technical Data

Luminaire Type-安裝方式 Tipo de luminaria

Pendent mounted Type / Surface mounted Type / Wall Mounted Type

吊裝燈具 / 吸頂式燈具 / 壁掛式燈具

Pendent tipo / Surface mounted / Tipo montado en la pared
Accessories配件

accesorios
- Metal Reflector V shape 金屬反射器 V 形 Reflector de metal en forma de V
- Anti-UV Polycarbonate Prismatic Diffuser 抗紫外線PC聚碳酸酯棱鏡擴散器 Difusor prismático de policarbonato anti-UV
Dimension-尺寸-Dimensión

Unit: mm
T5 Batten
- L 575 x W 58 x H 44, L 875 x W 58 x H 44
- L 1175 x W 58 x H 44, L 1475 x W 58 x H 44
T8 Batten
- L 625 x W 58 x H 44, L 925 x W 58 x H 44
- L 1230 x W 58 x H 44, L 1530 x W 58 x H 44
Others
- T5 Batten with reflector or Prismatic Diffuser refer drawing
- T8 Batten with diffuser or Prismatic Diffuser refer drawing
Input Voltage-輸入電壓-Voltaje de entrada

AC 220 -240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max
Single Tube Batten LED T5 OR LED T8 refer to LED Tube data sheet
- 2feet : 6W - 1 pcs x 6W 8W - 1 pcs x 8W
- 2feet : 9W - 1 pcs x 9W 10W - 1 pcs x 10W
- 4feet : 12W - 1 pcs x 12W 14W - 1 pcs x 14W
- 4feet : 16W - 1 pcs x 16W 18W - 1 pcs x 18W
- 4feet : 20W - 1 pcs x 20W
- 5feet : 22W - 1 pcs x 22W 25W - 1 pcs x 25W
- 5feet : 28W - 1 pcs x 28W 30W - 1 pcs x 30W
Twin Tube Tube Batten LED T5 OR LED T8 refer to LED Tube data sheet
- 2feet : 12W - 2 pcs x 6W 16W - 2 pcs x 8W
- 2feet : 18W - 2 pcs x 9W 20W - 2 pcs x 10W
- 4feet : 32W - 2 pcs x 16W 36W - 2 pcs x 18W
- 4feet : 40W - 2 pcs x 20W
- 5feet : 44W - 2 pcs x 22W 50W - 2 pcs x 25W
- 5feet : 56W - 2 pcs x 28W 60W - 2 pcs x 30W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type or Remoted LED Driver

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC220-240V 50/60HZ Cable wire for AC LED Tube

2. ELV Dimming Driver (5-100%) AC 220-240V 50/60HZ for DC LED Tube

3. 1-10V Dimming Driver  AC220-240V 50/60HZ for DC LED Tube

4. DALI Dimming Driver AC220-240V 50/60HZ for DC LED Tube

5. DMX Driver AC220-240V 50/60HZ for DC LED Tube

6. RDM Driver  AC220-240V 50/60HZ for DC LED Tube

7. ZIGBEE Wireless Control (Remoted Driver ) AC220-240V 50/60HZ for DC LED Tube

8. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia

9. Microwave Sensor ON/OFF
Control Protocol-控制協議

Protocolo de Control

1-10V / DALI / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle 光束角 ángulo de haz

Refer to LED T5 / T8 tube data sheet
Photobiological safety-IEC 62471 / of Luminaire

光生物安全檢驗(ICE/EN 62471) 结果:

Seguridad fotobiológica-IEC 62471

• Low Risk Group 1 (RG1) Refer to LED T5 / T8 Specification

• 低風險組1 (RG1) 參閱LED T5 / T8 規格

• Grupo de bajo riesgo 1 (RG1) Consulte la especificación LED T5 / T8
Housing materials-外殼材料

Materiales de la carcasa
- Steel sheet 鋼板 Hoja de acero
Housing Color 外殼顏色

color de la carcasa

White coating 白色塗層Recubrimiento blanco
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Ingress Protection-防護等級 Protección de ingreso

IP20
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC/ EN 60598-1 / EN 60598-2-1 / EN 62031 / EN 62493 / IEC/EN 62471 / IEC 60598-2-22 / IEC 62031 /EN 55015 / EN 61000-3-2 / EN 61000-3-3 / EN 61547 / IEC 62262 / IEC 60529 / IEC TR62778

Luminaries Performance : IEC 62722-1 / IEC 62722-2-1 FSD regulation PPA 104A (4th Rev). RoHS
