BAWAD

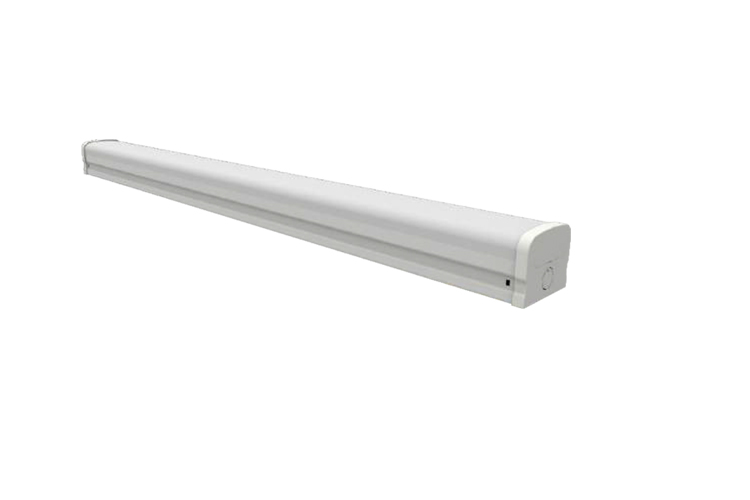

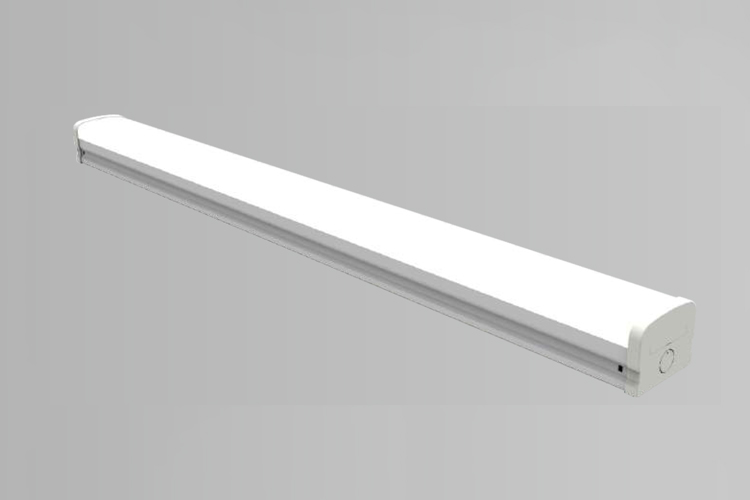

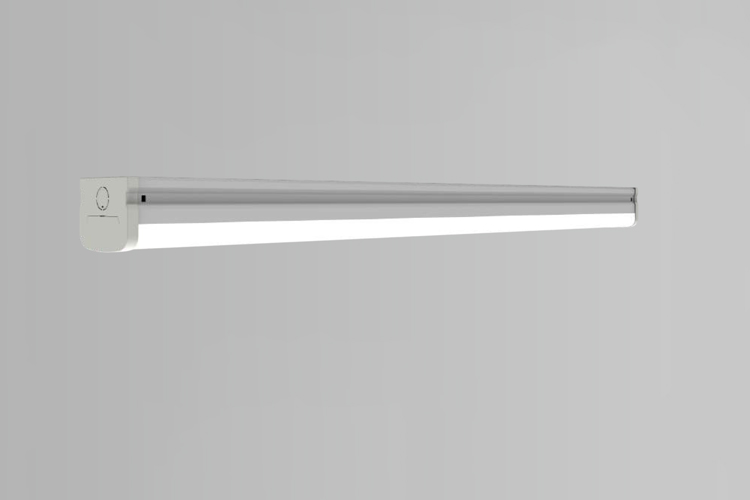

LED Linear Batten Light

LED Slim Batten Light for replacing T5, T8, T10 fluorescent lamp;
Aluminum alloy body with white coated, polycarbonate end caps and opal diffuser
Multiple control function is optional, switch on / off, motion sensor, DALI control
dimming, emergency device, emergency + motion sensor and changeable CCT.

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Surface Mounted Type

明裝式燈具

Superficie Tipo Montado
Operating voltage

100-240V AC 50/60HZ or AC220-240VAC 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max
- 14W / 20W @ 2 ft 600mm
- 28W / 40W @ 4 ft 1200mm
- 42W / 60W @ 5 ft 1500mm
LED Driver Type

LED驅動款式

Tipo de controlador LED

(Integrated-type LED Driver / 內置LED驅動 /Controlador de LED de tipo integrado)

1. ON/OFF Switch AC100-240V 50/60HZ

2. 0 -10V Dimming Driver AC100-240V 50/60HZ

3. Dali Dimming Driver AC100-240V 50/60HZ

4. Emergency Backup
Power Factor / 功率因數/Factor de potencia

PF>0.92
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD<20%
Control

控制

Control
- SW -ON/OFF
- Dali Control
- 0-10V Control
- Microwave Sensor
- Zigbee Wireless Control
- Emergency
Light Source Brand-光源品牌-Fuente de luz de marca
CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"
1. L90(10k) = 50,700 hrs

2. L80(10k) > 63,500 hrs

3. L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED
>60,000 hours
Color Temperature -色溫

Temperatura del color
2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM

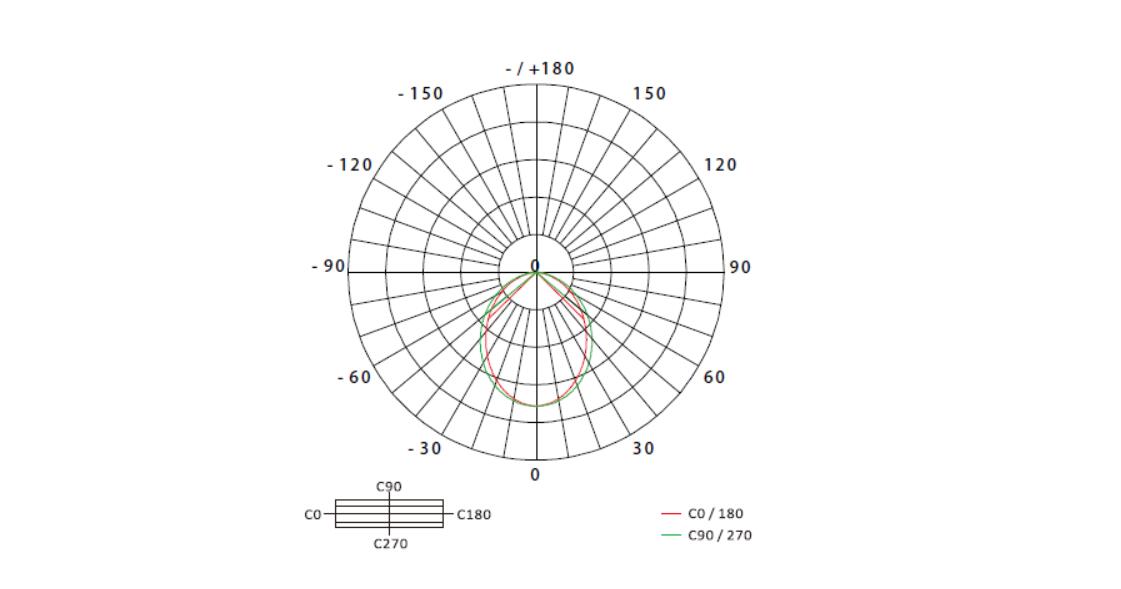

Beam Angle

光束角

ángulo de haz

120°
Luminaire Efficacy

燈具效率

La eficacia de la luminaria
- 120 Lm/w(2700K),
- 130 Lm/w(3000K),
- 140 Lm/w(4000K),
- 150 Lm/w(5000K),
- 150 Lm/w(6500K
LED Source Luminous Efficacy

LED光源光效

Fuente luminosa LED Eficacia
- 140 Lm/w(2700K),
- 150 Lm/w(3000K),
- 160 Lm/w(4000K),
- 170 Lm/w(5000K),
- 170 Lm/w(6500K),
Housing Color

外殼顏色

color de la carcasa

Matte White

啞光白色

Blanco mate
Housing materials-外殼材料

Materiales de la carcasa

Aluminium with white coating

鋁白色塗層

Aluminio con revestimiento blanco.
Ingress Protection

IP20 - (IEC 60529)
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +60 °C / -4 °F / +124 °F

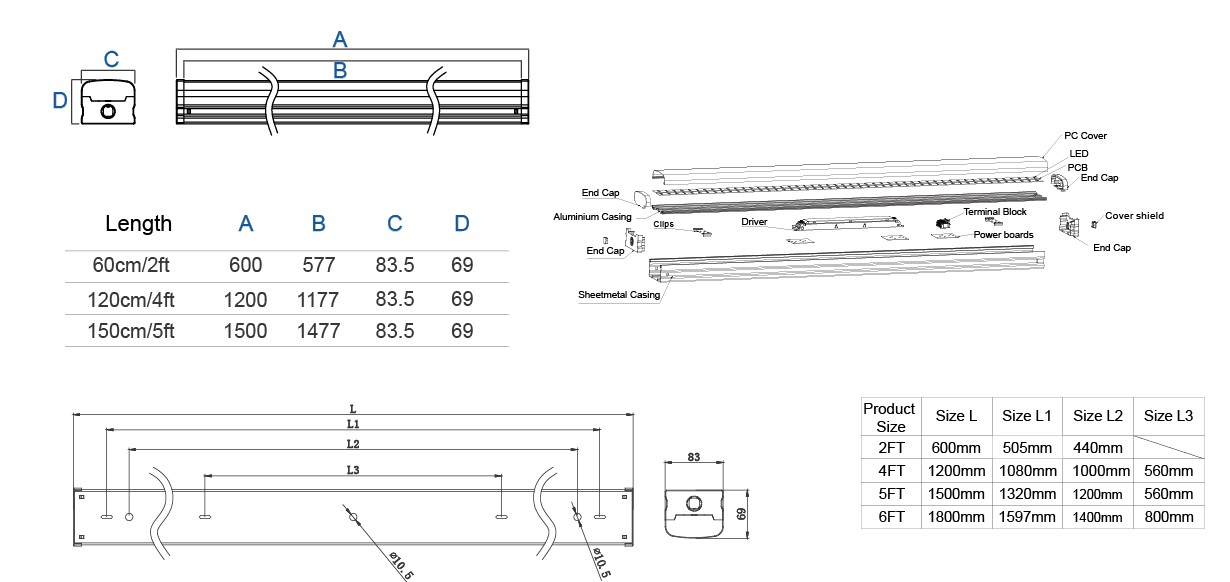

Dimension (LxWxH)/尺寸/ Dimensión
- L: 600 x W: 83.5 x H: 69 @ 2 ft
- L: 1200 x W: 83.5 x H: 69 @ 4 ft
- L: 1500 x W: 83.5 x H: 69 @ 5 ft
Net Weight /Gross Weight

淨重/毛重

Peso Neto / Peso bruto
- 14W / 20W @ 1.15KG / 1.2KG
- 28W / 40W @1.6KG / 1.66KG
- 42W / 60W @2.1kg /2.3 kg
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento
LED Luminaries: IEC 60598-1;IEC 60598-2-1;IEC62471;RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015
