HALLEY

Modular 480W Max IP66

LED High Bay Light IP66

With the large light-emitting surface, the fixture delivers high uniformity light and excellent performance of low glare. It’s UGR value could be lower than 19 with anti-glare frame. It is ideal for sports facility applications, and also a perfect solution for indoor sports halls with DIN 57710-13 Sports hall ball tests.

High-protective structure design, IP66 and IK10.

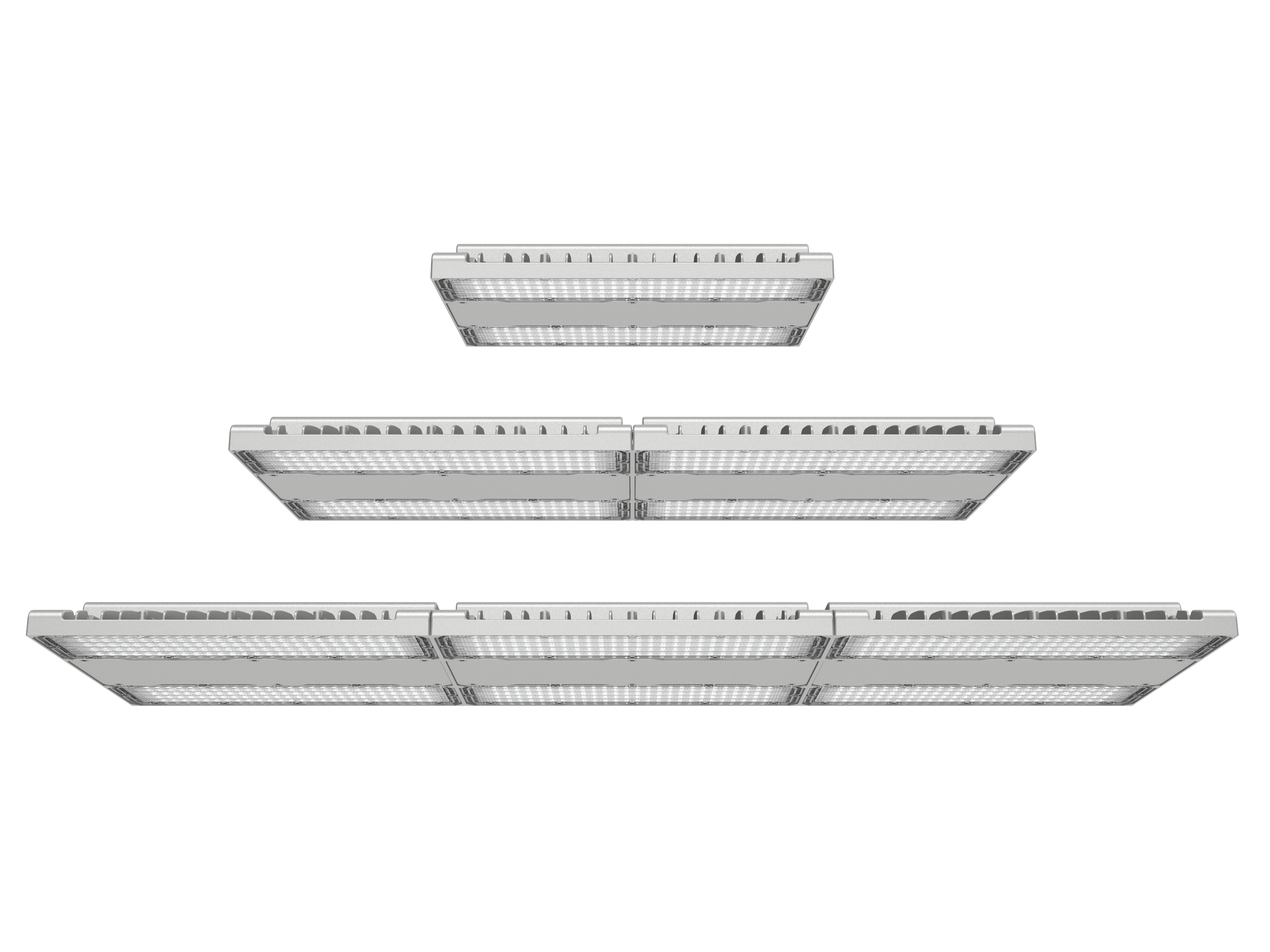

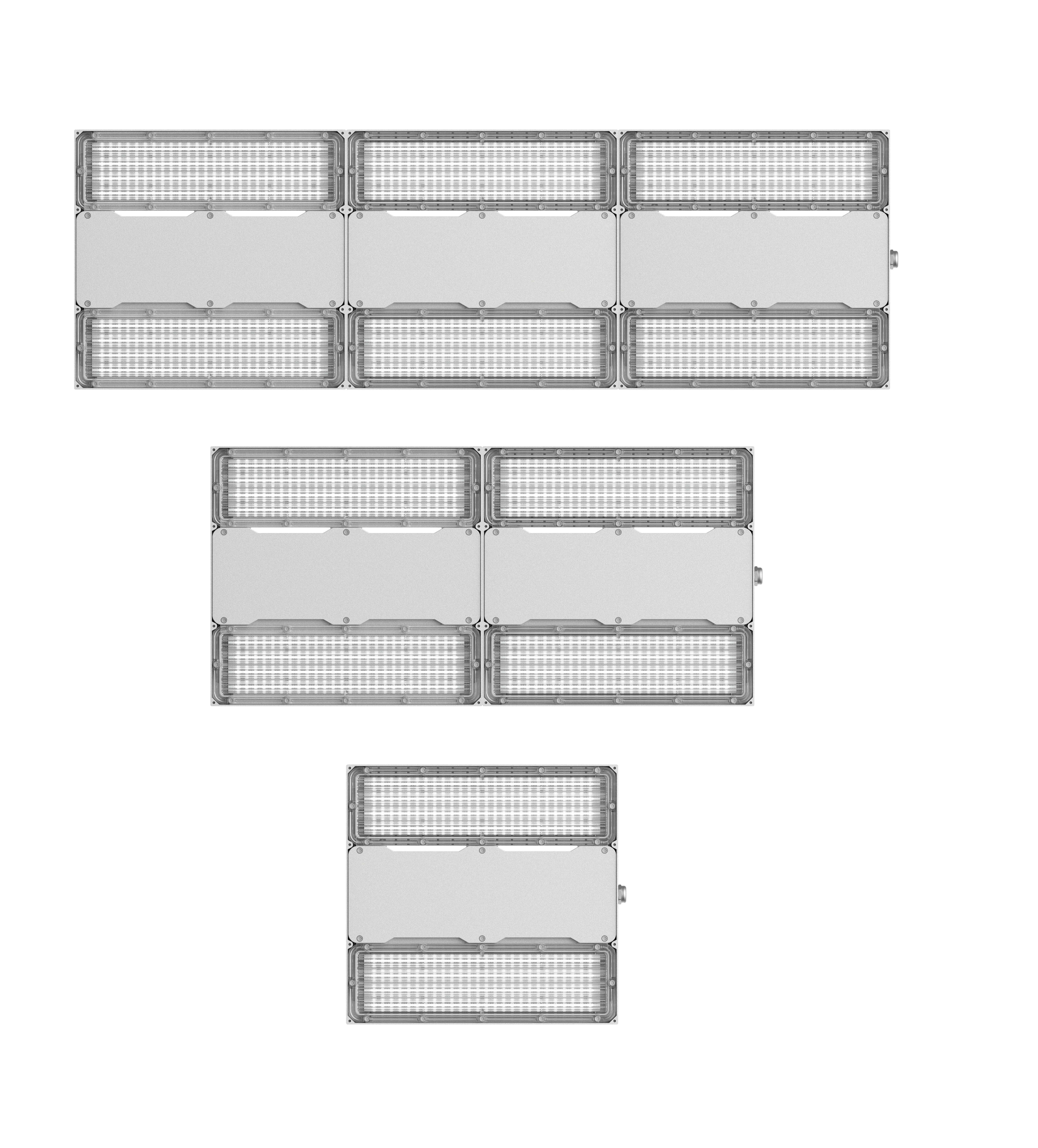

Modular design
Good performance in anti-glare control
Flexible intelligent control for more energy saving
Multiple mounting options

Technical Data

Installation method安裝方式Metodo de instalacion

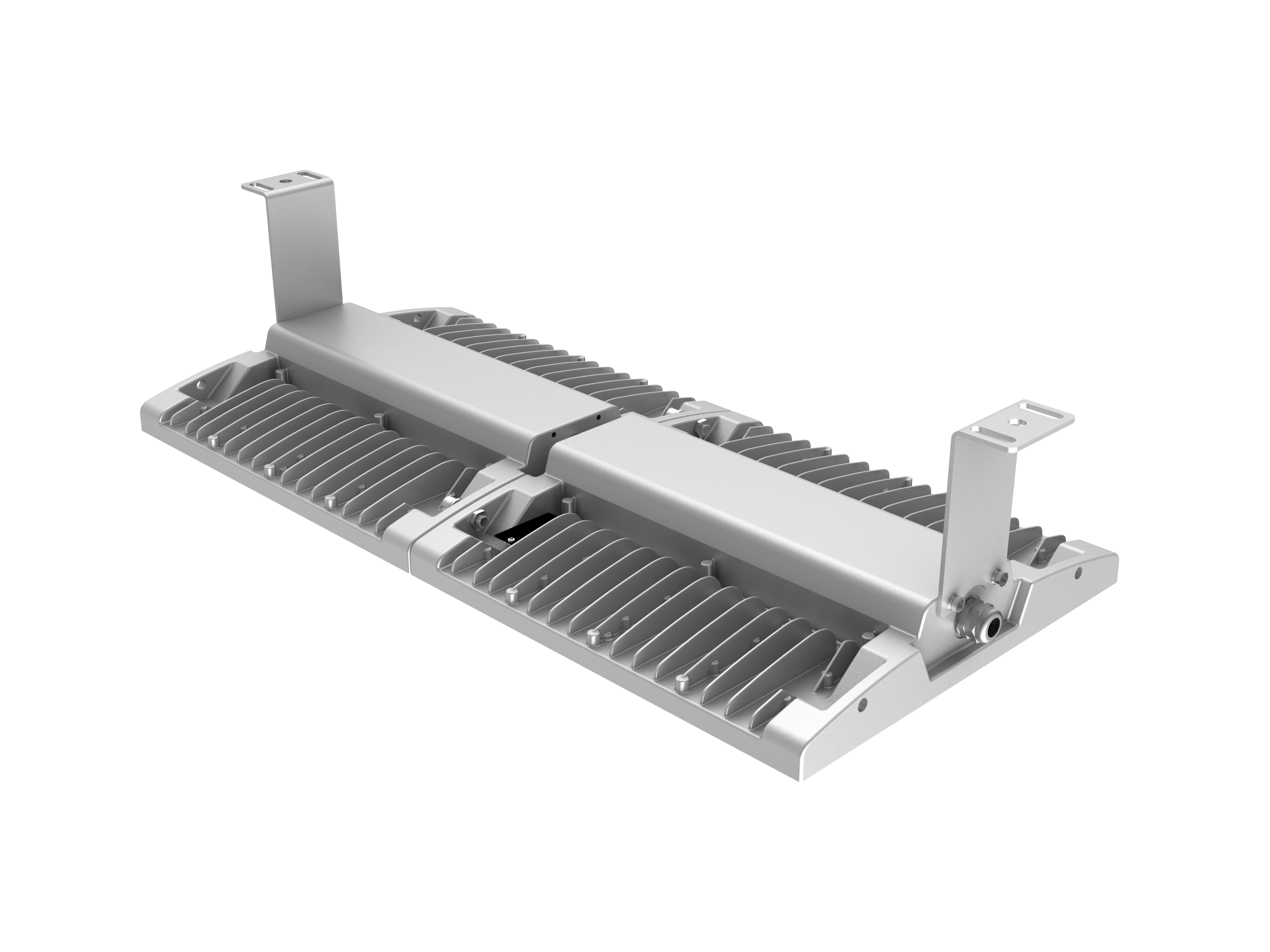

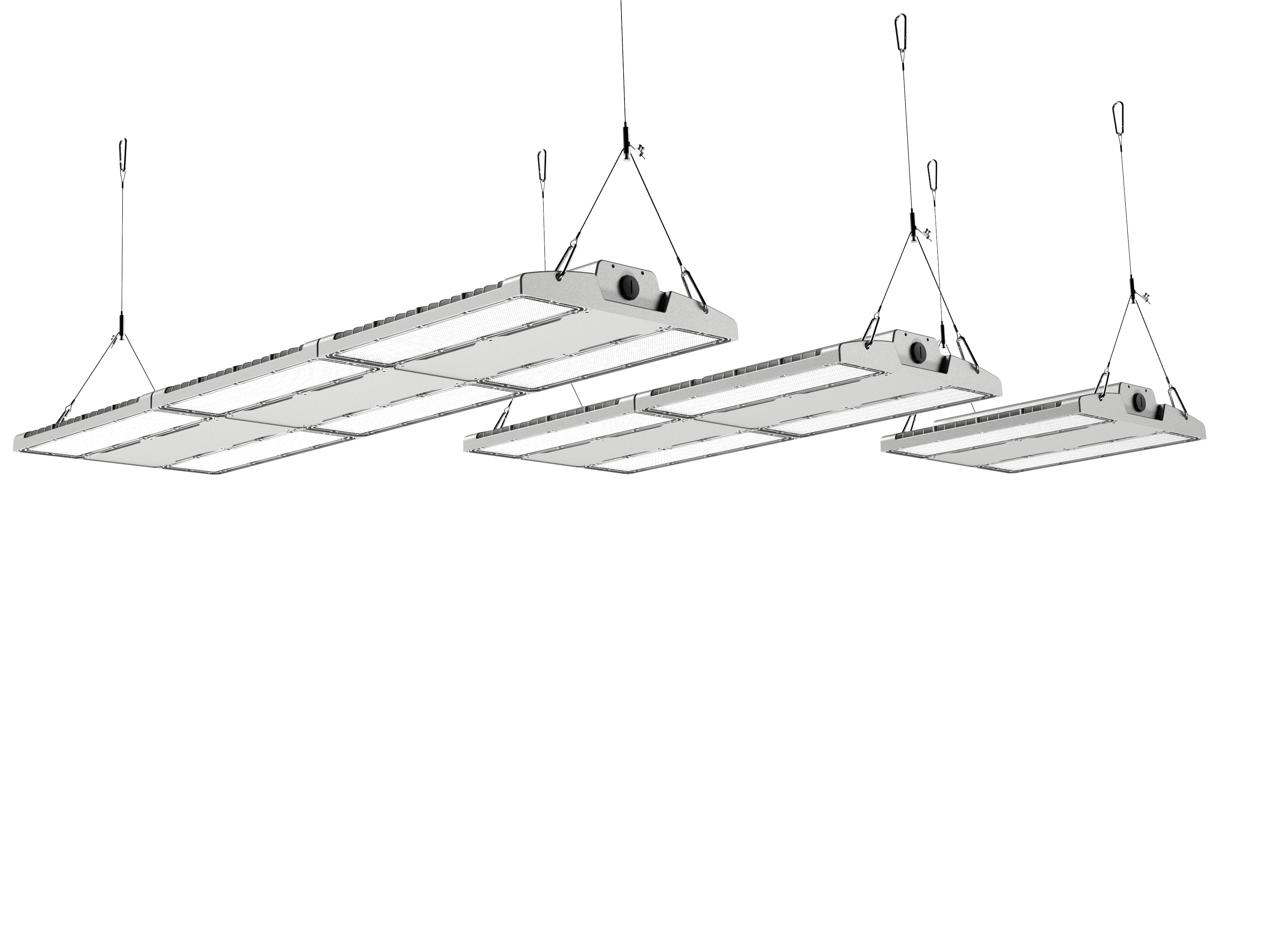

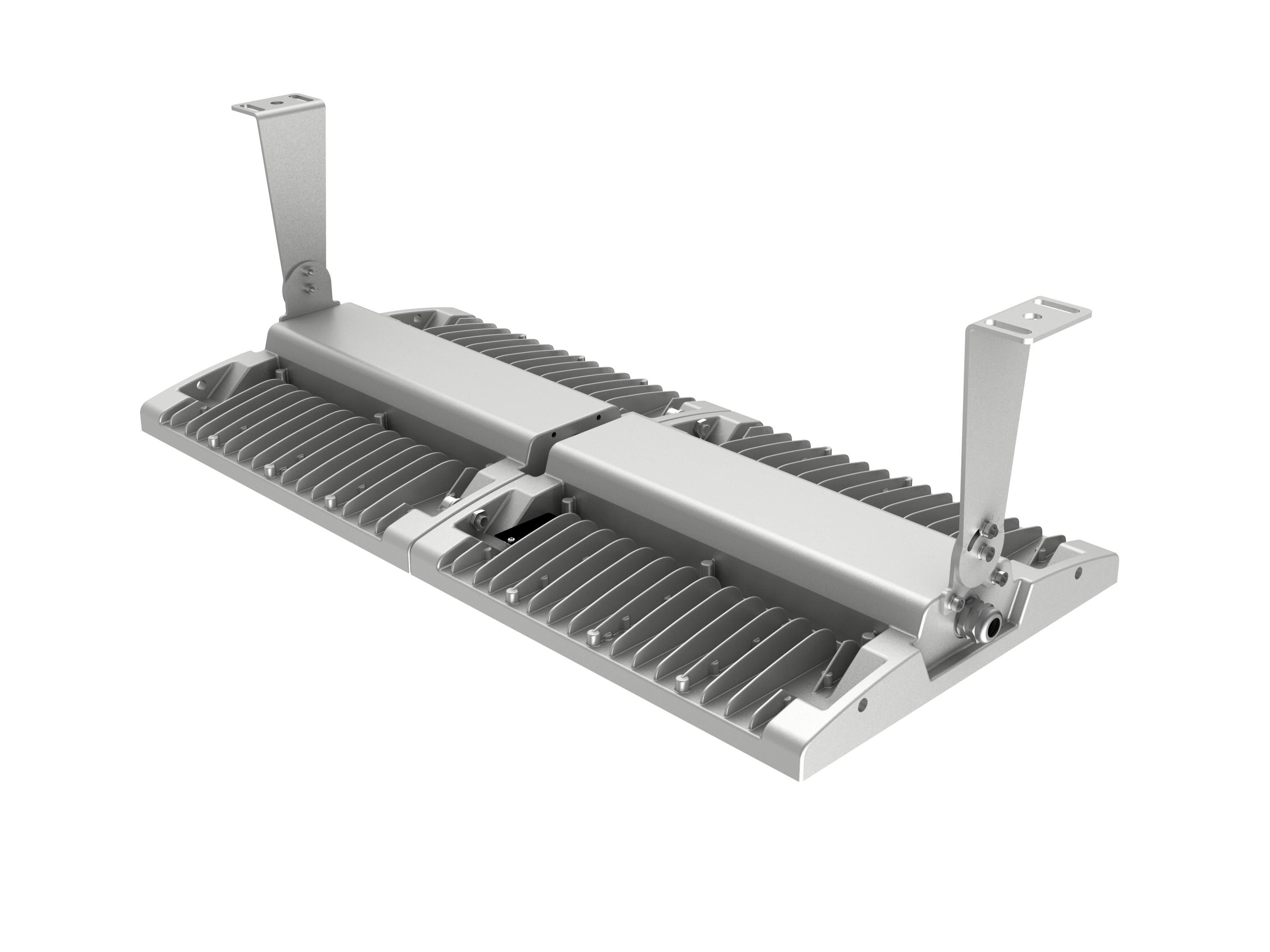

Mouting by Bracket or Hanging by ring

安裝支架固定或者吊裝

Soporte de montaje fijo o elevación
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED
- 340×325×60mm : 100W 150W
- 680×325×60mm : 200W 240W 300W
- 1020×325×60mm : 400W 480W
Input Voltage / 輸入電壓

Voltaje de entrada

220-240VAC/50-60HZ
Control Protocol/控制協議/Protocolo de Control

SW: ON/OFF Switch Driver AN: 1-10V Dimming Driver

DA: DALI Dimming Driver ZI: ZIGBEE Wireless Control

MS: Motion Sensor DS: Daylight Sensor
Power Factor / 功率因數/Factor de potencia

PF>0.9
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD <20%
Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

6kV line-line, 10kV line-earth
Light Source Brand-光源品牌-Fuente de luz de marca

SEOUL LED
"Lumen Maintenance LM-80 Reported by TM-21"

L70 > 54,000 Hours
LED Life-LED壽命-La vida del LED

>100,000 hours
Color Temperature 色溫 Temperatura y color

3000K 4000K 5000K 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromáca

70 : CRI>70

80 : CRI>80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Beam Angle光束角ángulo de haz

Refer to Beam Angle List
Luminaire Efficacy燈具效率

La eficacia de la luminaria

CRI:80 130 Lm/w(3000K) 140 Lm/w(4000K) 150 Lm/w(5000K) 150 Lm/w(6500K)

CRI:70 150 Lm/w(3000K) 160 Lm/w(4000K) 170 Lm/w(5000K) 170 Lm/w(6500K)
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

CRI:80 160 Lm/w(3000K) 170 Lm/w(4000K) 180 Lm/w(5000K) 180 Lm/w(6500K)

CRI:70 180 Lm/w(3000K) 190 Lm/w(4000K) 200 Lm/w(5000K) 200 Lm/w(6500K)
Housing materials外殼材料

Materiales de la carcasa

Die-cast aluminium and Polycarbonate Lens

壓鑄鋁和聚碳酸酯鏡片

Aluminio fundido a presión y lente de policarbonato
Housing Color外殼顏色color de la carcasa

Powder coating-Silver grey 粉末塗料-銀灰色 Recubrimiento en polvo-Gris plateado
Ingress Protection-防護等級

Protección de ingreso

IP66
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Mech impact protection機械衝擊保護

Protección contra impactos mecánico

IK10 and Ball proof test(DIN 57710-13)passed 通過防球測試（DIN 57710-13）
Storage Temperature/儲藏溫度

Temperatura de almacenamiento

-40 °C / +70 °C
Operating Humidity / 工作濕度 / Humedad de funcionamiento

0~100%, non-condensing-不結霜sin condensación
Product Dimension / 產品尺寸

Dimensión del producto

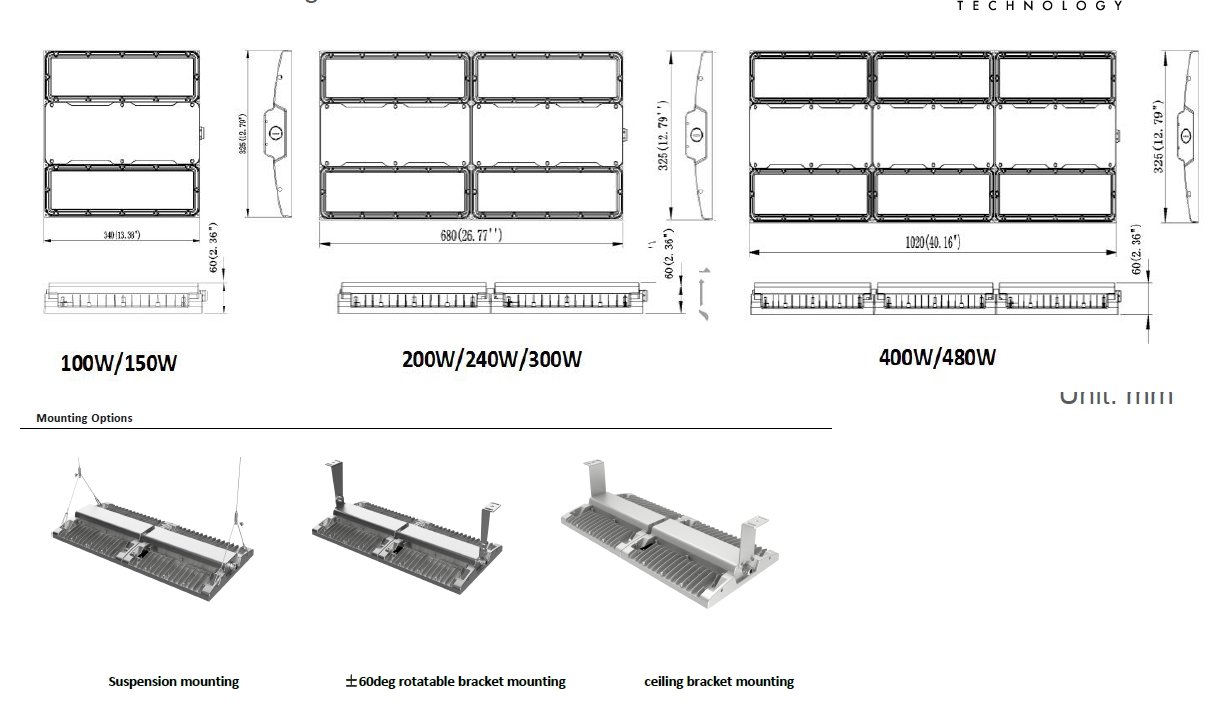

Refer to Drawing
Luminaire Net Weight (±0.3kg)燈具淨重 (±0.3kg)

Peso neto de la luminaria (±0,3 kg)

340×325×60mm: 3.7 KG 80×325×60mm : 6.8 KG (7.8KG for 300W)

1020×325×60mm: 11.1KG
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: IEC 60598-1:2017 ; IEC 60598-2-1:1987; IEC TR 62778:2014 (RG1); IEC 62031:2014(LED Modul); IEC 61058-2000 (Sensor); ROHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 61347-2-13; EN 55015; EN 61000-3-2;EN 61000-3-3; EN 61547;EN 62384
