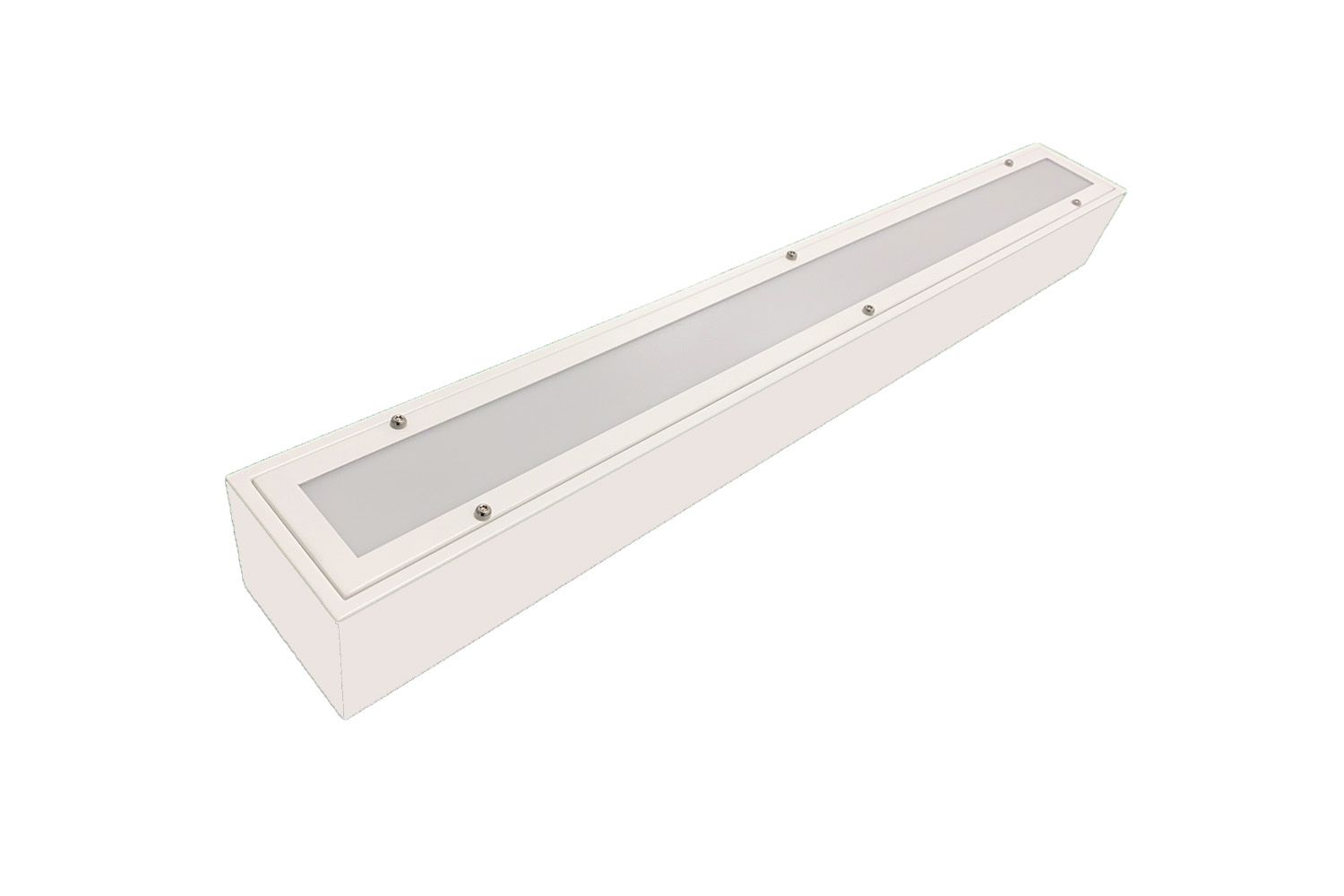

Applications: Pedestrian Subways; Footbridge; Kiosk Canopy; Cover walkway ect
1 mm Stainless steel body finished in chemical and abrasion resistant textured polyester powder coat
Stainless steel security screws
Pure aluminum reflector painted in fine textured white
Easy installation for T5 LED tube
Installation method / 安裝方式 / Tipo de luminaria
Surface or Wall Mounted / 表面或壁掛式
Montaje en superficie o en pared
Dimension / 尺寸 / Dimensión
L 630 x W 145 x H 100 mm
L 930 x W 145 x H 100mm
L1230 x W 145 x H 100mm
L1530 x W 145 x H 100mm
Input Voltage / 輸入電壓
Voltaje de entrada
220-240V/AC 50/60Hz
Power Consumption with LED Driver
LED燈具包括LED驅動電源功率
Consumo de energía con controlador de LED
Single Tube Batten LED T5
2 feet : 1 x 6W 1 x 7W 1 x 8W 1 x 9W 1 x 10W
3 feet : 1 x 13W 1 x 14W 1 x 15W 1 x 16W
4 feet : 1 x 13W 1 x 14W 1 x 15W 1 x 16W
4 feet : 1 x 18W 1 x 20W 1 x 22W 1 x 24W
5 feet : 1 x 20W 1 x 22W 1 x 24W 1 x 25W
5 feet : 1 x 26W 1 x 28W 1 x 30W 1 x 32W
Twin Tube Batten LED T5
2 feet : 2 x 6W 2 x 7W 2 x 8W 2 x 9W 1 x 10W
3 feet : 2 x 13W 2 x 14W 2 x 15W 2 x 16W
4 feet : 2 x 13W 2 x 14W 2 x 15W 2 x 16W
4 feet : 2 x 18W 2 x 20W 2 x 22W 2 x 24W
5 feet : 2 x 20W 2x 22W 2 x 24W 2 x 25W
5 feet : 2 x 26W 2 x 28W 2 x 30W 2 x 32W
LED Driver Type / LED驅動款式
Tipo de controlador LED
Integrate-type LED Driver--Constant Current LED Driver
Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. On / Off Switch AC220-240V 50/60HZ
2. 1-10V Dimming Step (50%, 75%, 85% and 100%) for DC LED T5
3. DALI Dimming Driver AC220-240V 50/60HZ or DC LED T5
4. Microwave sensor / PIR Sensor / Daylight Sensor
5. Emergency Backup >2 hours or >3 hours @ < 12 charger hours 應急電池/Copia de seguridad de emergencia
LED Driver Features - Constant Current LED Driver:
驅動特性-恆流LED驅動器
Funciones del controlador de LED
Power Factor : >0.9
Total Harmonic Distortion: <15%
Control Protocol / 控制協議 / Protocolo de Control
1-10V / DALI / PIR / Microwave sensor
Lumen Maintenance LM-80 Reported by TM-21
L70 > 54,000 hrs
LED Life-LED壽命-La vida del LED
>100,000 hours
Color Temperature -色溫
Temperatura del color
3000K / 4000K / 5000K / 6500K
Color Rendering Index / 顯色指數
Índice de reproducción cromática
>80
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 5 SDCM
標準偏差配色< 5 SDCM
Coincidencia de color estándar Desviación < 5 SDCM
Beam Angle / 光束角 / ángulo de haz
120°
Luminaire Efficacy / 燈具效率
La eficacia de la luminaria
Clear diffuser: 100 Lm/w (3000K) 110 Lm/w (4000K) 120 Lm/w (5000K) 120 Lm/w (6500K)
Milky diffuser: 80 Lm/w (3000K) 90 Lm/w (4000K) 95 Lm/w (5000K) 100 Lm/w (6500K)
LED T5 Tube Luminous Efficacy
LED T5 Tube 光效
Eficacia del tubo LED T5
180 Lm/w (3000K) 190 Lm/w (4000K) 200 Lm/w (5000K) 200 Lm/w (6500K)
Basing on TUTA- LED T5 Master Version
Housing materials / 外殼材料
Materiales de la carcasa
1 mm Stainless steel body with resistant textured polyester powder
Inner Zinc coated steel reflector in white polyester powder coat , Gasket and Milky Polycarbonate
1毫米不鏽鋼主體，表面經耐磨紋理聚酯粉末塗層處理
內部鍍鋅鋼反射器，表面經白色聚酯粉末塗層處理，配有密封墊圈和乳白色聚碳酸酯板
Housing Color / 外殼顏色
color de la carcasa
Matte White RAL9003 / 啞白色 RAL9003
Blanco mateRAL9003
Ingress Protection / 防護等級
Protección de ingreso
IP 65
Impact protection / 衝擊保護
Protección contra impactos
IK 10
Operating Humidity / 工作濕度
Humedad de funcionamiento
0~99%, non-condensing / 不結霜
sin condensación
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-20 °C / +45 °C
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 TM21
LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2 IEC/EN 61000-3-3;IEC/EN61574;
EN 55015 ; IEC /EN 62384
