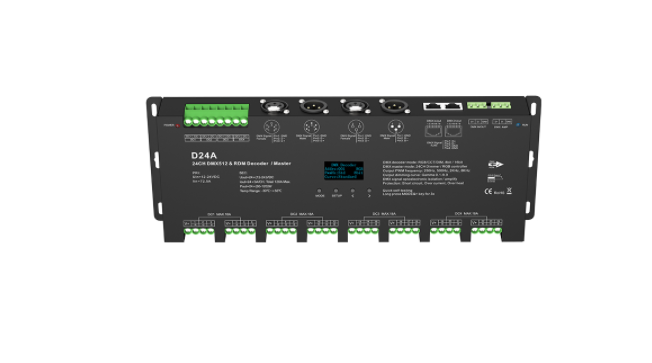

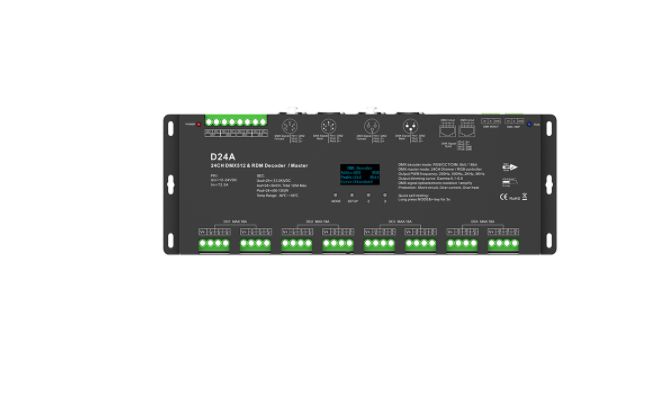

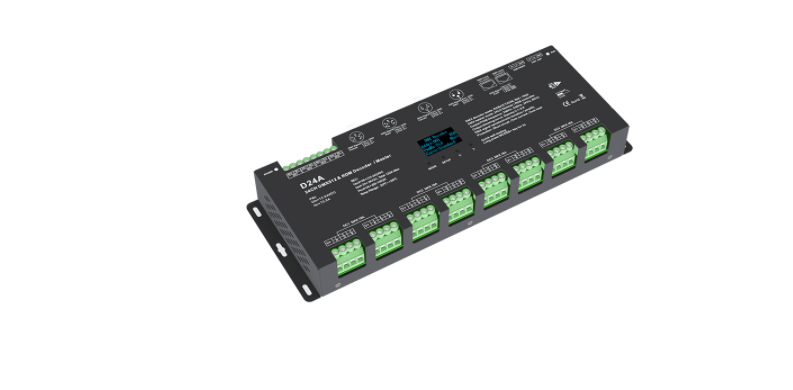

RDM/Stand-alone function/8 bit or 16bit decode/Four PWM frequency/Multiple dimming curve/OLED display
● 24 channels constant voltage output, Max. 5A current per channel, up to 2880W output power.
● Master & decoder mode, RDM function.
● Easy operation with OLED display and 4 buttons.
● DIM/CCT/RGB decoding mode selectable.
● PWM frequency 250/500/2000/8000Hz selectable.
● 16bit (65536 levels) /8bit (256 levels) grey level selectable.
● Output dimming curve gamma value 0.1-9.9 selectable.
● Stand-alone RGB mode and 24 channel dimmer mode selectable,
work as DMX master(8 bit) to control other decoders.
● Built-in 10 RGB programs, speed and brightness adjustable.
● Comply with the DMX512 standard protocols.
● DMX signal optoelectronic isolation / amplify.
● Over-heat / Over-load / Short circuit protection, recover automatically.
● With fast self-testing function.
