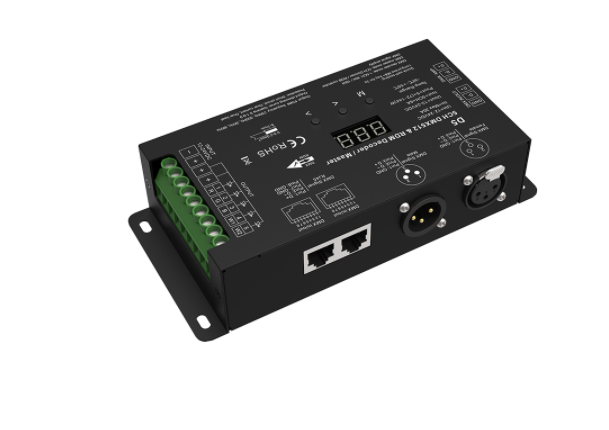

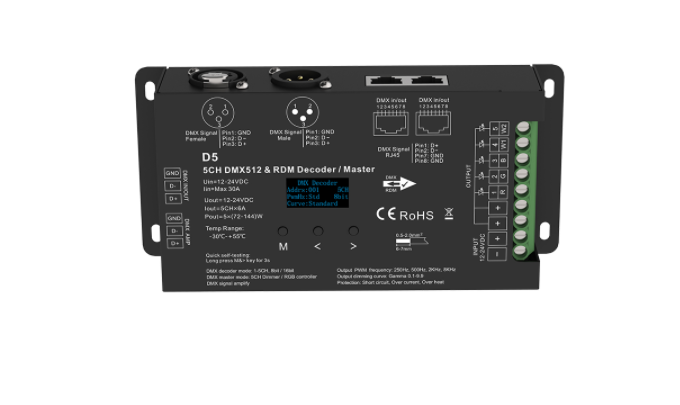

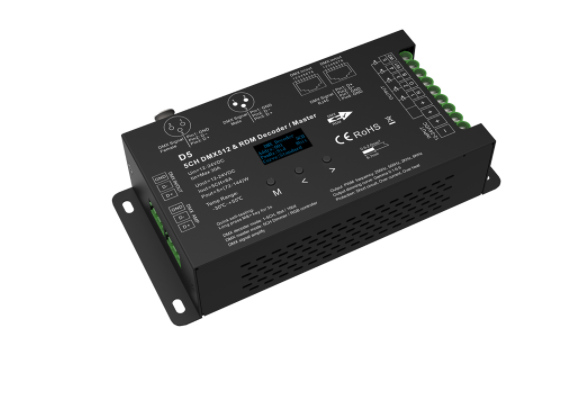

5 Channel Constant Voltage DMX512 & RDM Decoder & Master
5 Channel Constant Voltage DMX512 & RDM Decoder & Master

RDM/Stand-alone function/8 bit or 16bit decode/Four PWM frequency/Multiple dimming curve/OLED display

● 5 channels constant voltage output, Max. 6A current per channel, up to 720W output power.
● Master & decoder mode, RDM function.
● Easy operation with OLED display and 3 buttons.
● 1/2/3/4/5 channel decoding mode selectable.
● PWM frequency 250/500/2000/8000Hz selectable.
● 16bit (65536 levels) /8bit (256 levels) grey level selectable.
● Output dimming curve gamma value 0.1-9.9 selectable.
● Stand-alone RGB mode and 5 channel dimmer mode selectable,
work as DMX master(8 bit) to control other decoders.
● Built-in 25 RGB programs, speed and brightness adjustable.
● Support 3 kinds of DMX ports: Green terminal(amplify output), XLR3 and RJ45 port.
● Comply with the DMX512 standard protocols.
● Over-heat / Over-load / Short circuit protection, recover automatically.
● With fast self-testing function
