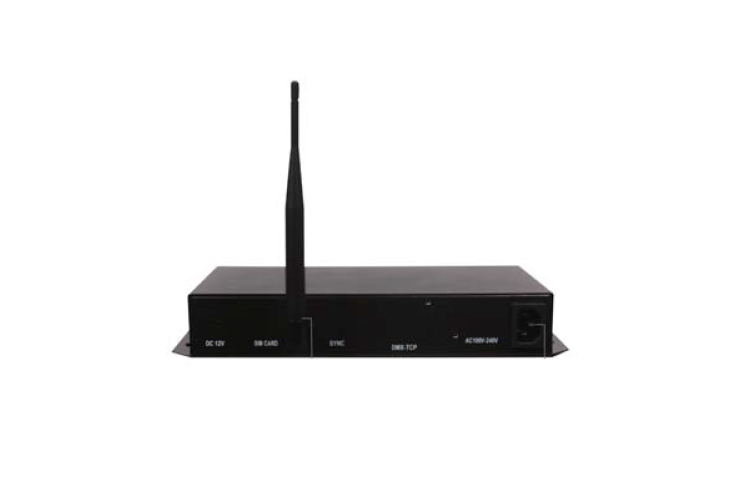

MANYA-2
DMX/RDM Master Controller
DMX/RDM Master Controller
  • Control up to  150,000 pixels (RGB) or 450,000 DMX512 Channels

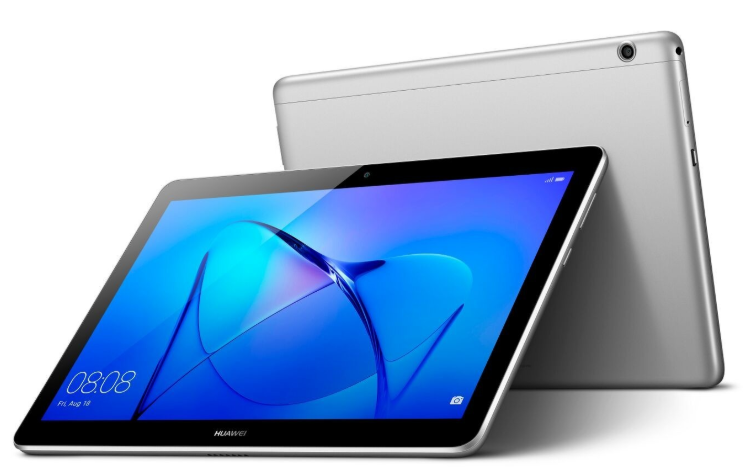

  • Smart Key Pad-Andriod Android Tablet  Connect by WIFI System for Wireless control the Light Effect
  • Off-Line Control Master to play Light effect automoaticly without PC
  • Support two-way Failover backup

Technical Data

  • System Characteristics

    • Control up to  150,000 pixels (RGB) or 450,000 DMX512 Channels
    • Scheduling Control for Light Effect controlled by date and time
    • Smart Key Pad-Andriod Android Tablet  Connect by WIFI System for Wireless control the Light Effect
    • Off-Line Control Master to play Light effect automoaticly without PC
    • Support switch parallel program: reduce the length of the system cascade chain to improve stability.
    • Support two-way Failover backup
    • Using Ethernet interface and UDP network protocol transmission stability, the maximum transmission distance of 100 meters by CAT5E
    • SD card storage, the controller can support up to 32G, up to 99 preset program files.
    • Built-in animation test program to facilitate debugging and application in the project.
  • Input Voltage

    AC 100~240V 50/60Hz

  • Power

    30W Max

  • Signal Mode

    DMX512 (1990) and the various signal transmitted by RS‐485 interface

  • Maximum DMX  Capacity

    • 150,000 pixels RGB or  450,000 DMX Channel
  • SD Socket

    1x32GB max

  • Interface mode

    • RS‐485
    • WIFI
  • Signal Input Socket

    RJ45 x 2

  • Output Protocol

    DMX512 (RJ45)

  • Weight

    1.0 kg

  • IP RATING

    IP20

  • Certification

Specification Code

Example Product Code:
DMX/RDM Master Controller--MANYA
MANYA
-
MANYA

DMX/RDM Master Controller

  • MANYA
    DMX/RDM Master Controller

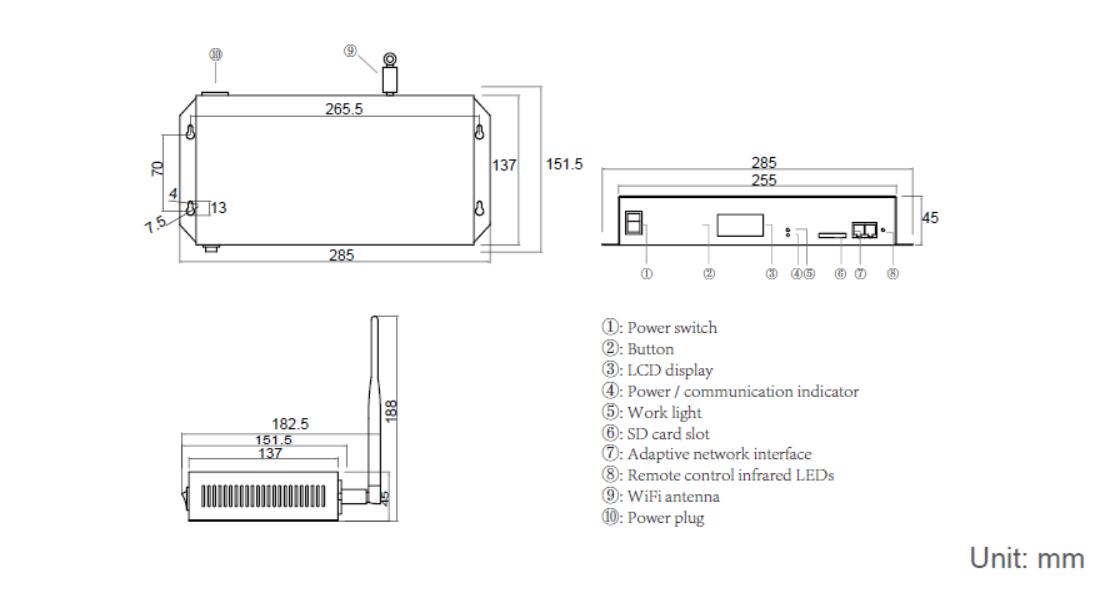

Technical Drawing

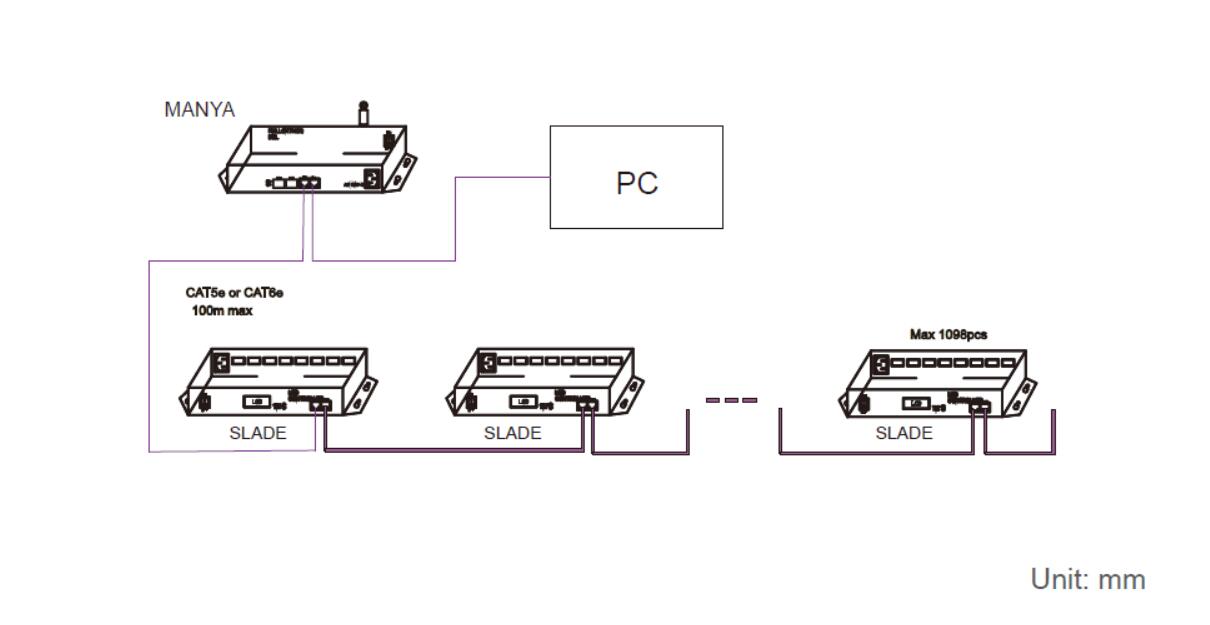

Wiring Drawing
