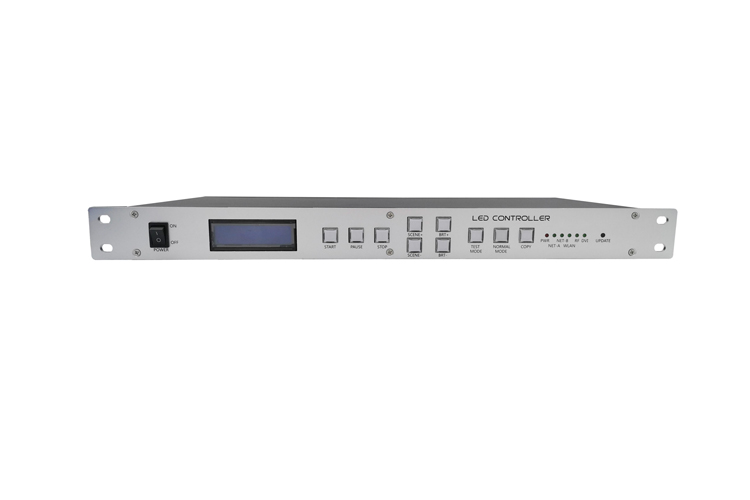

MASTALE-1

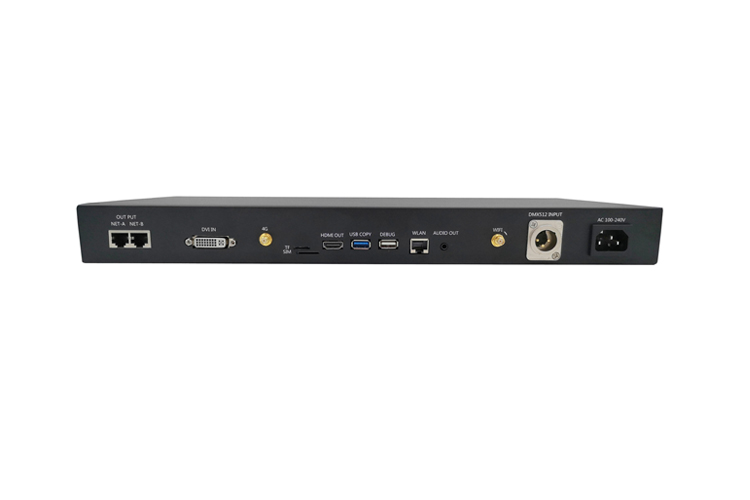

MASTALE-2
DMX Master Controller
DMX Master Controller
  • ARM Cortex-A53 architecture, 64-bit CPU, 1.8GHZ main frequency, integrated Mali-T720 GPU.
  • Dual 1000M network interface, support access switch, optical fiber transceiver and other network equipment.
  • Output image 1920*1080, 30Hz.
  • Built-in 4G mobile network module to realize high-speed mobile Internet function.
  • Support copy U disk, TF card program files.
  • Automatically import project routing files (DOT files).
  • Support APP online debugging, DMX address writing, demo effects, etc.
  • Realize remote cloud control through WIFI, 4G, internal network, etc.

Technical Data

  • Input Voltage

    AC 100~240V 50/60Hz

  • Power

    45W Max

  • Signal Mode

    DMX512 (1990)

  • Maximum DMX  Capacity

    300,000 pixels RGB or  900,000 DMX Channel

  • SD Socket

    1x32GB max

  • WLAN Interface

    10/100/1000M Ethernet

  • Output Protocol

    DMX512

  • Sending card network interface

    Dual 1000M Ethernet

  • USB interface

    USB3.0

  • Mobile Network

    Support 4G networks of China Mobile, China Unicom and Telecom

  • DVI IN Resolution

    1920*1080、1280*720

  • Audio output

    3.5mm Line out

  • Antenna

    Mobile network / WIFI choose one

  • Weight

    2.4 kg

  • Operating Temperature Range

    -20 °C  To +65 °C

  • Operating Humidity

    0~90%, non-condensing

  • IP RATING

    IP20

  • Dimension

    L496 x W 200 x H 44 mm refer to

  • Accessories

    AC power cord, HDMI to DVI cable, 32GTF card

  • Certification

Specification Code

Example Product Code:
MASTALE
MASTALE
-
MASTALE

DMX Master Controller

  • MASTALE
    DMX Master Controller

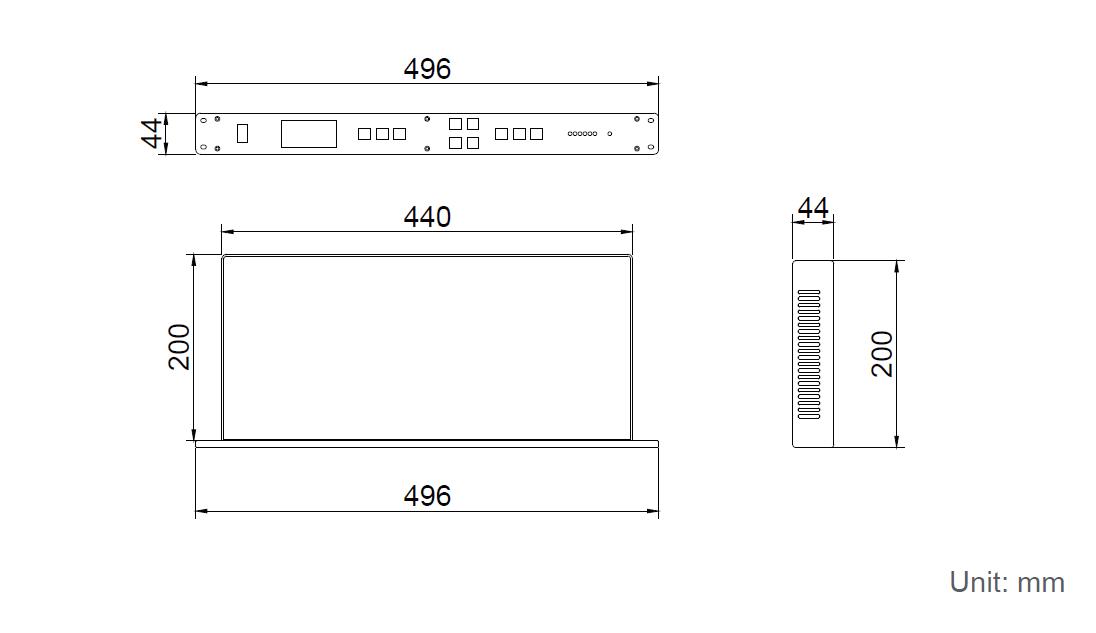

Technical Drawing
