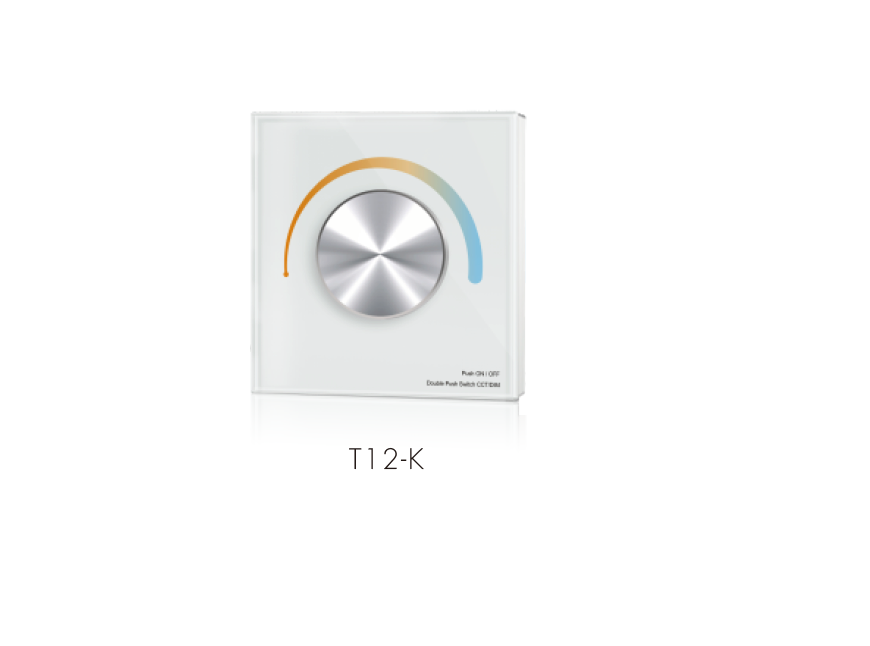

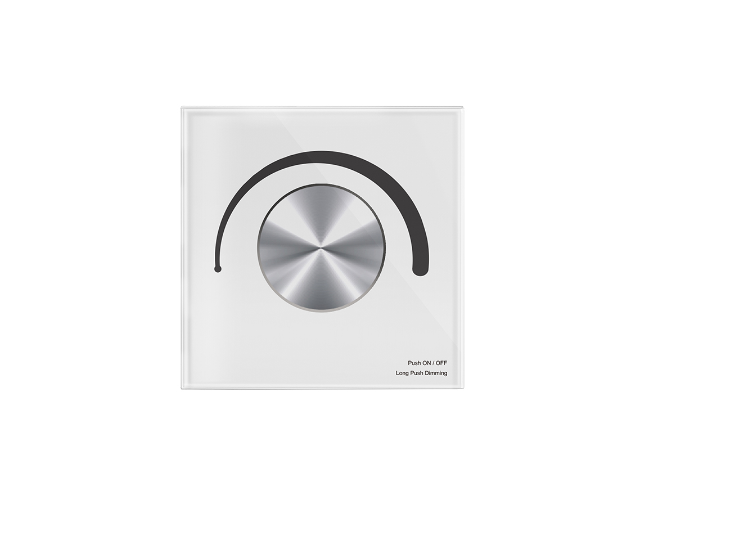

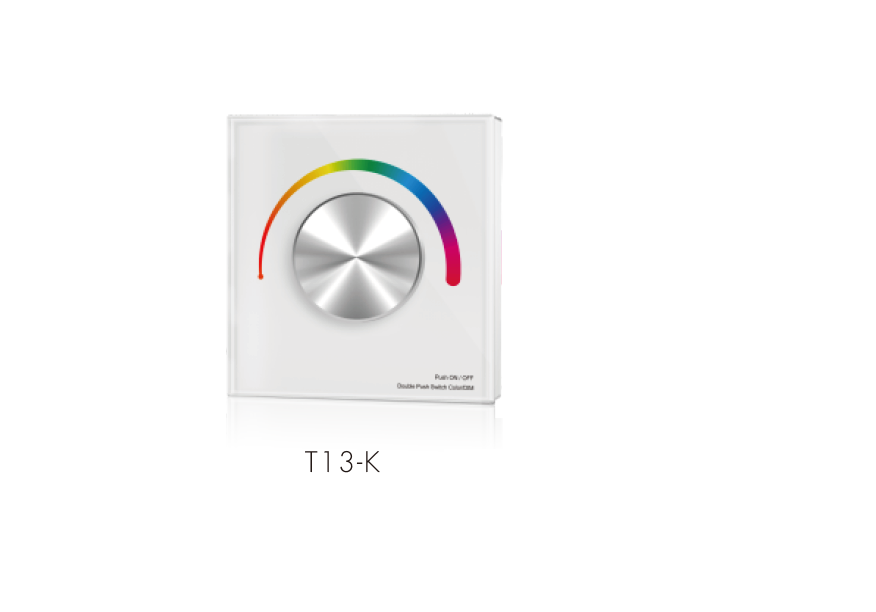

T11-K &T12-K & T13-K

DMX Dimmer
A wall mounted DMX Dimmer

Features

● Rotary panel single color, dual color or RGB DMX512 master, can also be used as one zone RF remote.
● DMX signal output, comply to standard DMX512 protocol, compatible with DMX decoder from any supplier.
● When work as DMX512 master, compatibility with RF 2.4G single zone or multiple zone remote control.
● When used as RF remote, can remote control multiple RF 2.4G LED controllers.
● Rotate knob to change RGB color, color temperature or brightness.
● 256 levels 0-100% dimming smoothly without any flash.
● Push/Rotate with chord tones and LED indicator.
● White & Black glass panel available.

Technical Data

  • Input Voltage / 輸入電壓

    Voltaje de entrada

    100-240Vac, 50/60HZ

  • Switching Power

    El cambio de poder

    100-240Vac, 0.1A Max

  • Output signal



    DMX512, RF 2.4GHz

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -20 °C / +50 °C / -4 °F / +114 °F

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20

  • Dimension-尺寸-Dimensión

    86(L)x86(W)x48(H)mm

  • Housing Color

    外殼顏色

    color de la carcasa

    Matte White 砂白色

  • Certification
