- User selectable power and flash character settings via DM Bluetooth -Smart App (Android Base)
- Max Distance up to 10nm

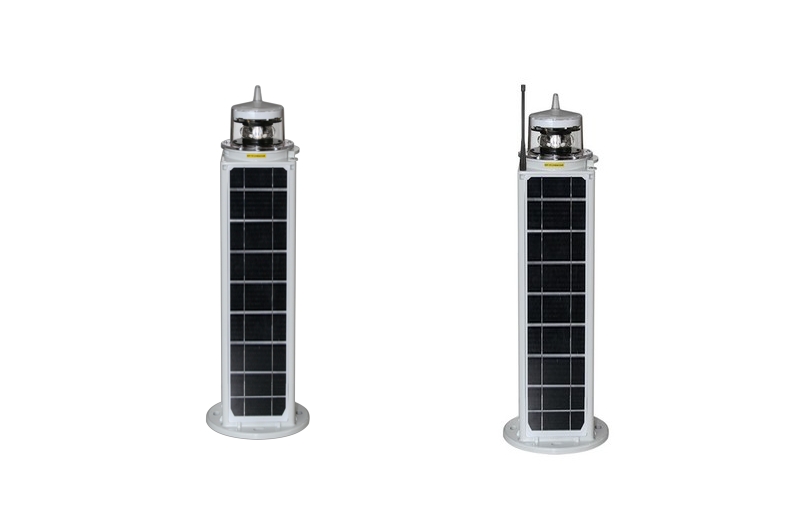

- SOLAR-X-10NM series is a self-contained lantern powered by solar energy and lithium battery with integrated structure design.
- It has the characteristics of low power consumption, easy maintenance and aging resistance.
- It can be widely used in inland rivers, Coastal and harbor light buoys.
- This series of lamps is composed of LED point light source, lens, solar panel and weather-resistant material base.
- The lamp can easily realize the remote measurement and control of the lantern through the NB-IoT or 4G communication method with DIMON Marine Monitoring system App.
- The GPS high-precision clock is used to realize the synchronous flash function;
- the maximum range is >5 nautical miles, the vertical divergence angle is ≥2.5 degrees, and the horizontal divergence angle is 360 degrees.
SOLAR-X-10NM
Technical Data
-
Features
功能
Long Life -LED Light Source
Optional GPS synchronisation module
4 levels of luminous intensity adjustment to adapt to different range requirements.
Available in all IALA approved colours
256 user selectable flash characters and selectable dayligt sensor
Magnetic On/Off Switch for quick deployment and hassle free storage maintenance check
User selectable power and flash character settings via BLUE-Tooth 5.0 meter
Optional Control protocol : NB-IoT for Long Distance Wireless control
Working hours lasting up to 30 days in bad weather (1:1 ratio of light to dark).
Optional GNSS synchronized-conotrol flash function by GPS or BDS
Optional 4G wireless DIMON Monitoring system for comprehensive fault alarm and status monitoring.
Ingress Protection: IP68
-
Selectable Range
可選範圍
6-10 nautical miles selectable
可選範圍
-
Available Colours
可選顏色
• Red 紅 Max Intensity : 1803cd
• Green 綠 Max Intensity : 1860cd
• Yellow黃 Max Intensity : 1830cd
• White 白 Max Intensity : 1893cd
-
Visibility能見角
360° horizon (omnidirectional)360° 地平線(全向)
-
Vertical Divergence
垂直發散角度≥2.5°
-
Flash Codes
燈質閃爍編號Up to 256 codes IALA , field selectable
-
Synchronisation同步
• GPS-Global Positioning System全球定位系統
or 或
• BDS-BeiDou Navigation Satellite北斗導航衛星 -
Daylight (Lux) Sensor
日光傳感器Default 300Lux (100~1000Lux adjustable)
默認 300Lux(100~1000Lux 可調) -
LED Lamp Input Voltage and Power
LED燈輸入電壓和功率DC7.3V 15W
-
Solar Power
太陽能功率40W (4 x 10.0W DC7.3V ) Solar Panels
40W (4 x 10.0W DC7.3V )太陽能電池板
-
Battery Capacity
電池容量7.3 V 238AH 1737.4 Wh Lithium Ion (Comply IEC 62133-2 ; UL1642 , UN38., MSDS )
7.3 V 238AH 1737.4 Wh 鋰離子電池(通過以下測試標準 IEC 62133-2 ; UL1642 , UN38., MSDS )
-
Duration 耐用時間
Working hours on rainy days
雨天工作時間Standard configuration for 30 days @ ON/OFF : Ratio 1:1
標準配置 30 天 @ 明暗設計 比例 1:1 -
Control Protocol Selection:
控制協議選擇:• BLUE Tooth 5.0 up to 40meter for IALA Flasing Code, Lux Sensor and Distance setting. Battery
monitoring by APP software
• 藍牙 5.0 最遠 40 米,用於IALA閃光代碼、勒克斯感光照度和距離設置 都可以通
過APP軟件監控電池
• NB-IoT Overvoltage and Undervoltage, Fault, Position offset report by PC IOT Software
• 電腦軟件透過4G/ NB-IoT協議做燈具的 過壓和欠壓、故障、位置偏移監測回報
• BDS-BeiDou Navigation Satellite & 4G Wireless control system: Overvoltage and Undervoltage, Fault, Position offset report by PC
4G Software
• 電腦軟件透過 北斗或4G協議做燈具的 過壓和欠壓、故障、位置偏移監測回報 -
Magnetron Switch
磁控開關For Turn On and Turn OFF Lantern Power
用於打開和關閉燈具電源 -
Net Weight 淨重
10KG
-
Dimension 尺
Dia 250mm x H: 640mm
-
Operating Temperature Range 工作溫度範
-35° to +60°C
-
Ingress Protection-防護等
IP 68
-
Housing materials外殼材
UV resistant molded polycarbonate 抗紫外線模塑PC
-
Mech impact protection機械衝擊保
IK08
Specification Code
Color
-
RRed
-
GGreen
-
YYellow
-
WWhite
Control
-
AISAIS
-
4G4G Wireless control system
-
BG4G Wireless control system & BLUE Tooth 5.0
Synchronisation
-
GPSGPS
-
BSDBDS-BeiDou Navigation Satellite
