TUWA

TUWA-1
TUWA
80W-120W IP66
LED Tunel Light IP66

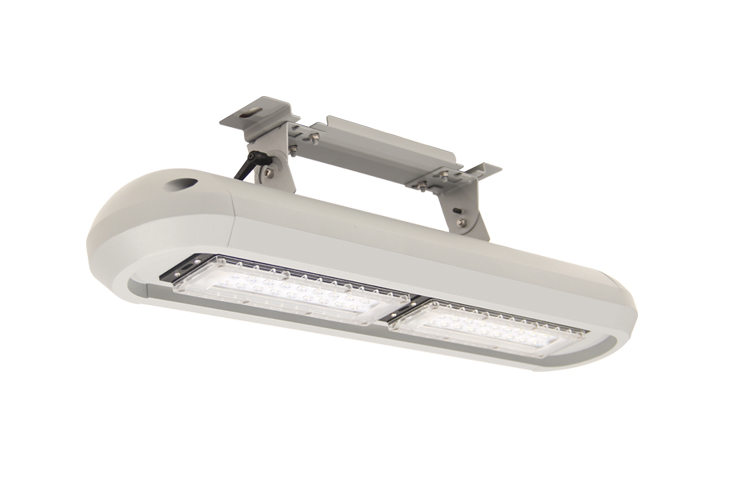

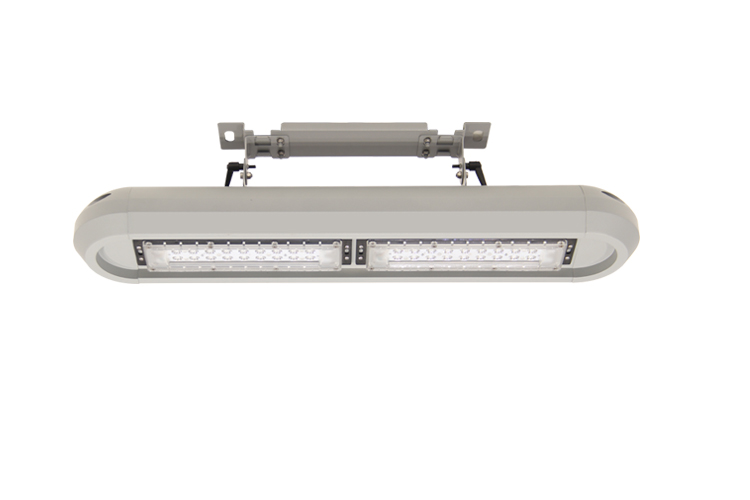

LED ASYMMETRIC TUNNEL LIGHT with IP65 protection and adjustable bracket. Made of die-casting aluminum housing. With series of lamps with simple modern design,meaning satisfactory and beauty. Effective anti-dust self-cleaning with streamlined integrated surface.The surface of the lamp shell is coated with static powder coating, corrosion resistance, aging resistance. LED tunnel lighting design for the purpose of modern simple appearance, simple and reasonable structure and easy maintenance, reasonable light distribution design, user-friendly installation and maintenance structure, modular product portfolio planning for urban tunnels and highway tunnels and other types of tunnel needs.

Technical Data

  • Luminaire Type-

    安裝方式

    Tipo de luminaria

    Bracket Mounting

    支架安裝

    Poste de montaje del soporte

  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    • 80 W
    • 100 W
    • 120 W



  • Input Voltage / 輸入電壓

    Voltaje de entrada

    AC200-240V 50/60Hz

  • Control Protocol/控制協議

    Protocolo de Control



    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Power Factor / 功率因數/Factor de potencia

    PF>0.90

  • Total Harmonic Distortion/總諧波失/Distorsión armónica total

    THD<18%

  • Protection Against Surgers/防護措施/PROTECCIÓN CONTRA LAS PROMOCIONES:

    Line-Earth:6KV

    Line-Line:4KV

  • QTY of LEDs-燈珠數量-CANT de LEDs

    36pcs LEDs

  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE - (Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk))

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED



    >60,000 hours

  • Color Temperature and Color

    色溫和顏色

    Temperatura y color del color

    • 3000K
    • 4000K
    • 6500K



  • Color Rendering Index-顯色指數

    Índice de reproducción cromáca

    >70

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

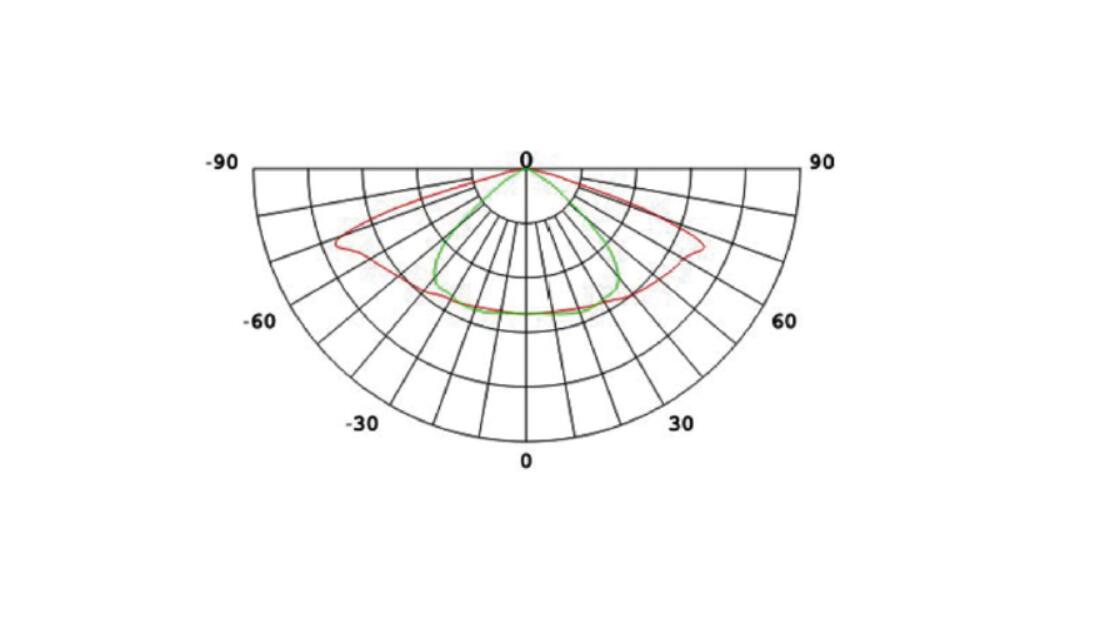

  • Beam Angle

    光束角

    ángulo de haz

    70° x 140° @ Asymmetric



  • Luminaire Efficacy

    燈具效率

    La eficacia de la luminaria

    • 85 Lm/w(3000K)
    • 95 Lm/w(4000K)
    • 105 Lm/w(6500K)



  • LED Source Luminous Efficacy

    LED光源光效

    Fuente luminosa LED Eficacia

    • 110 Lm/w(3000K)
    • 120 Lm/w(4000K)
    • 130 Lm/w(6500K)
  • Housing materials

    外殼材料

    Materiales de la carcasa

    Die-cast aluminium

    壓鑄鋁

    Die fundición de aluminio

  • Housing Color

    外殼顏色

    color de la carcasa

    Polyester powders Coating(RAL 9006 Silver) /Matte Black

    聚酯粉末塗料 (RAL 9006 銀灰色) / 黑色

    Polvos de poliéster Revestimiento(RAL 9006 Plata)/Negro mate

  • Ingress Protection-防護等級

    Protección de ingreso

    IP66 - ( IEC 60529 )

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -35 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Dimension (LxWxH)

    尺寸

    Dimensión

    L: 776 x W: 166 x H: 203 mm

  • Net Weight /Gross Weight

    淨重/毛重

    Peso Neto / Peso Bruto

    5.8 kg / 7.0 kg

  • Country of Origin 產地

    PRC 中國

  • Certificate Standard Complied

    符合安規標準

    estándar certificado de cumplimiento

    LED Luminaires: IEC 60598-1 / IEC 60598-2-3/ Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 /IEC 61347-1 /IEC 61347-2-13 6/IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
TUWA-120W-SW-40-MS
TUWA
-
POWER CONSUMPTION
-
CONTROL
-
COLOR TEMPERATURE
-
HOUSING COLOR

POWER CONSUMPTION

  • 80W
    80W
  • 100W
    100W
  • 120W
    120W

CONTROL

  • SW
    ON/OFF Switch
  • AN
    Analog 0-10V Dimming
  • ELV
    ELV Leading Edge Control
  • DA
    DALI Dimming
  • DMX
    DMX Dimming
  • RDM
    RDM Dimming
  • ZI
    ZIGBEE Wireless Control

COLOR TEMPERATURE

  • 30
    3000K
  • 40
    4000K
  • 65
    6500K

HOUSING COLOR

  • MS
    Matte Silver
  • MB
    Matte Black

Technical Drawing

Accessories

  • Gateway- NANO
  • INNO-SENSOR-823
  • INNO-SENSOR-826
  • Z501-CZ
  • INNO734

Product Download Tab

DATA SHEET

DIMENSION DRAWING
