Housing: die-cast aluminium, powder-coated, designed as heat sink. Anti-glare reflector and diffusor system made of PC. LED module: high-power CREE LEDs Array, CRI>90, LM-80 performance approval >50,000 hours. Deep recessed design achieves super eye comfort.
Luminaire Type-安裝方式Tipo de luminaria

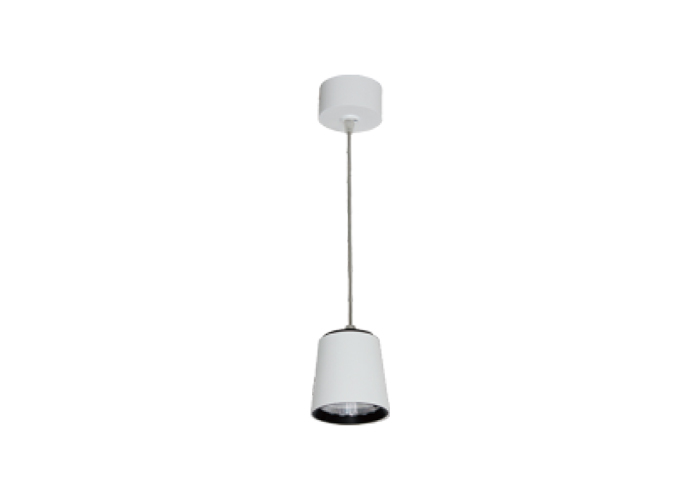

Pendant Mounted Type-懸垂式-Montado en colgante

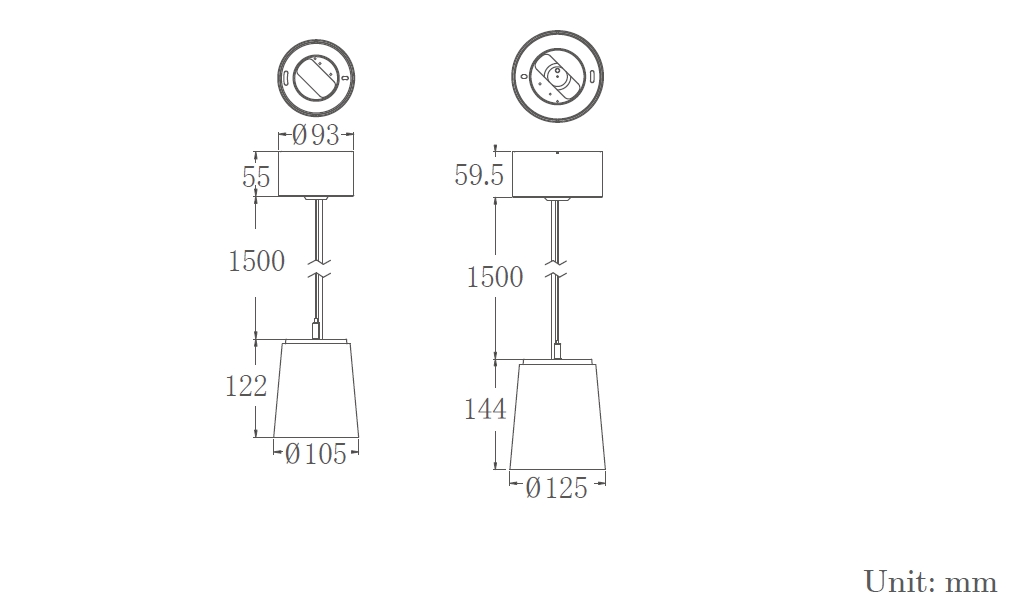

Dimension-尺寸-Dimensión
Dia 105 x H:122 mm
Dia 125 x H:125 mm
QTY of LEDs-燈珠數量-CANT de LEDs
1 pcs CREE LED Array COB
Input Voltage-輸入電壓-Voltaje de entrada
AC220-240V 50/60HZ or Refer to LED Driver data sheet
Power Consumption Max-燈具功率
Consumo de energía Max
LED Driver Type
LED驅動款式
Tipo de controlador LED
Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ
3. 0-10V Dimming Driver AC100-240V 50/60HZ
4. Dali Dimming Driver AC100-240V 50/60HZ
5. DMX Driver AC100-240V 50/60HZ (Dimming range from 0-100%)
6. RDM Driver AC100-240V 50/60HZ
7. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features
驅動特性 Funciones del controlador de LED
POWER FACTOR : PF>0.90 @ Full Load -Refer to LED Driver data sheet
TOTAL HARMONIC DISTORTION: THD< 20%- Refer to LED Driver data sheet
Control Protocol-控制協議
Protocolo de Control
1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

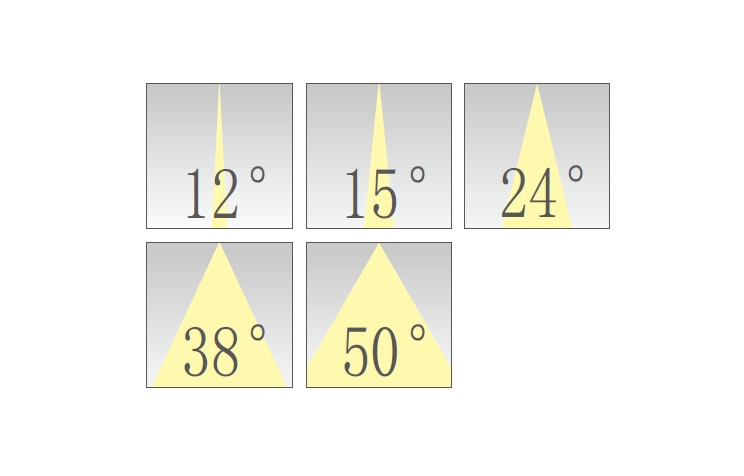

Beam Angle 光束角 ángulo de haz
12° 15° 24° 38° 50°
Light Source Brand-光源品牌-Fuente de luz de marca
CREE- ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"
L90(10k) = 50,700 hrs L80(10k) > 63,500 hrs L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED
>60,000 hours
Color Temperature -色溫
Temperatura del color
2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數
Índice de reproducción cromática
> 80
> 90
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM
標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率
La eficacia de la luminaria
95 Lm/w(2700K),
100 Lm/w(3000K),
100 Lm/w(4000K),
110 Lm/w(5000K),
110 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效
Fuente luminosa LED Eficacia
125 Lm/w(2700K),
130 Lm/w(3000K),
130 Lm/w(4000K),
140 Lm/w(5000K),
140 Lm/w(6500K),
Housing materials-外殼材料
Materiales de la carcasa
Die-cast aluminum and acrylic
壓鑄鋁和亞克力
Fundición de aluminio y acrílico

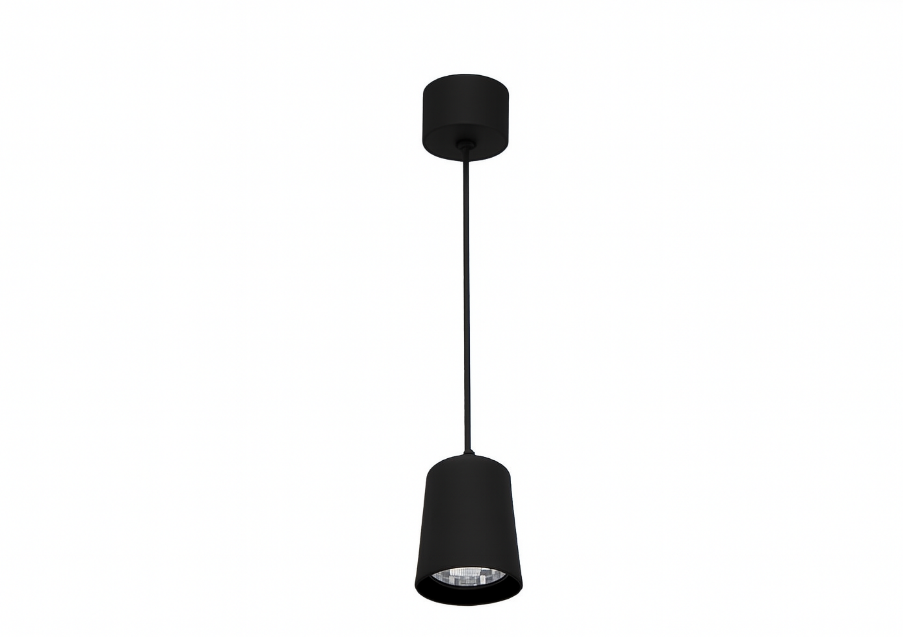

Trim Color-框邊顏色-Estilo Color
Matte white / Matte black
啞光白色 / 啞光黑色
Blanco mate / Matte black
Reflector Color-反光杯顏色-Reflector color
Matte Black / Bright silver / Matte silver
啞黑 / 亮銀 / 啞光銀
Negro Mate / Plata brillante / Plata mate
Ingress Protection-防護等級
Protección de ingreso
IP20
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +50 °C
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data
LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
