The excellent thermal management is achieved by integrated reflector and superior aluminum material.
The reflector in anodizing finish provides much better performance on ageing,yellowing and corroding resistance than those in normal plating finish.
Different beam angles are available in various reflectors.
Luminaire Type-安裝方式Tipo de luminaria

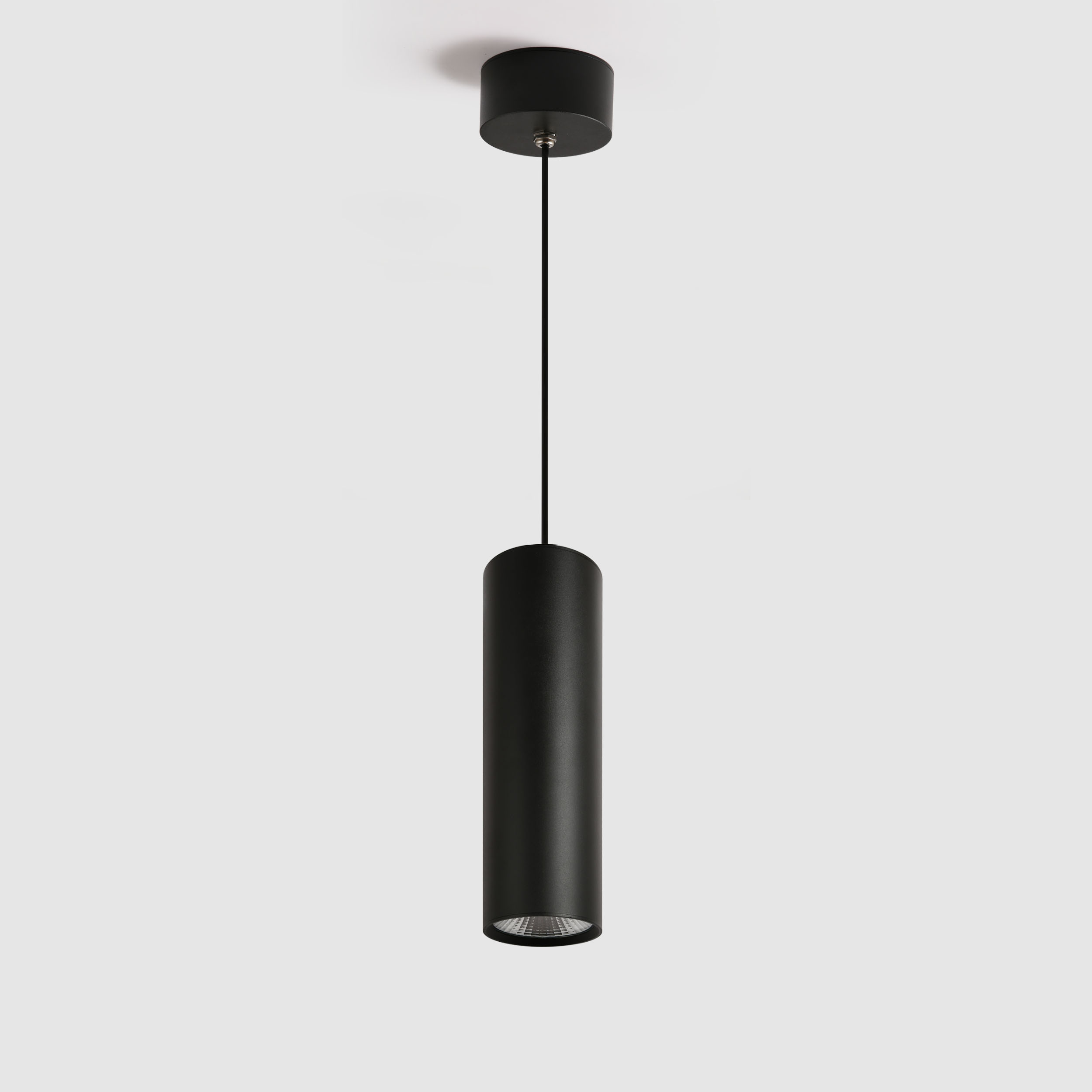

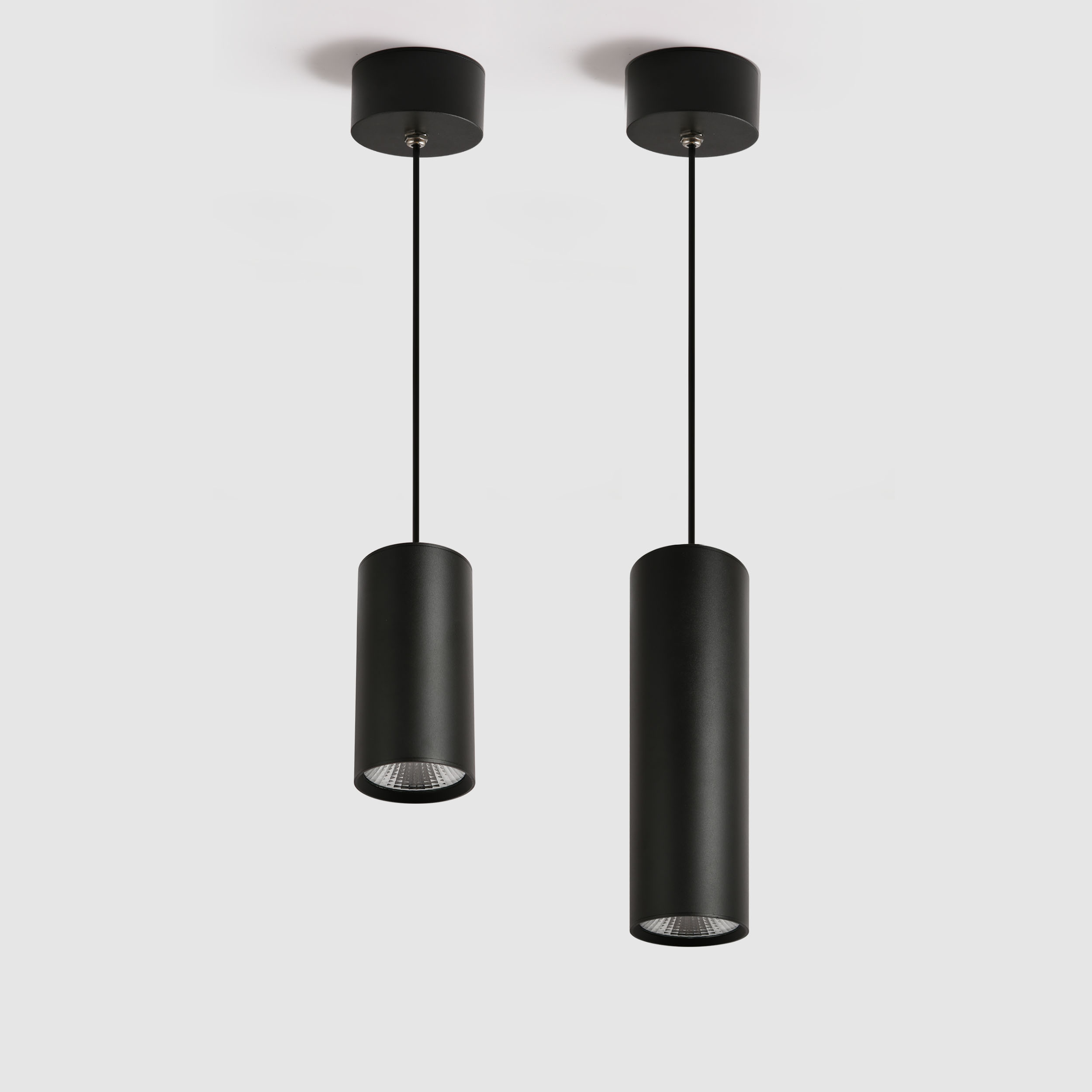

Pendant Mounted Type-懸垂式-Montado en colgante
Dimension-尺寸-Dimensión
DIA: 80 x H: 150 mm DIA: 80 x H: 200 mm DIA: 80 x H: 300 mm
DIA: 100 x H: 150 mm DIA: 100 x H: 200 mm DIA: 100 x H: 300 mm
DIA: 120 x H: 150 mm DIA: 120 x H: 200 mm DIA: 120 x H: 300 mm
DIA: 150 x H: 150 mm DIA: 150 x H: 200 mm DIA: 150 x H: 300 mm
Input Voltage-輸入電壓-Voltaje de entrada
AC220-240V 50/60HZ
Power Consumption Max-燈具功率
Consumo de energía Max
DIA: 80mm @ 5W 8W 10W
DIA: 100mm @ 10W 15W
DIA: 120mm @ 15W 20W
DIA: 150mm @ 15W 20W 25W 30W
LED Driver Type
LED驅動款式
Tipo de controlador LED
Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
2. 0 -10V Dimming Driver AC220-240V 50/60HZ
3. DALI Dimming Driver AC220-240V 50/60HZ
4. Zigbee Wireless Control Driver AC220-240V 50/60HZ
LED Driver Features
驅動特性
Funciones del controlador de LED
Power Factor: PF>0.9
THD< 20%
Control Protocol-控制協議
Protocolo de Control
0-10V / DALI / ZIGBEE Wireless Control
Beam Angle
光束角
ángulo de haz
12°
24°
36°
60°
Light Source Brand-光源品牌-Fuente de luz de marca
CREE COB
Bridgelux COB
"Lumen Maintenance LM-80 Reported by TM-21"
1. L70> 54,000 hrs
LED Life-LED壽命-La vida del LED
>100,000 hours
Color Temperature -色溫
Temperatura del color
2700K / 3000K / 4000K / 5000K / 6500K/
Color Rendering Index-顯色指數
Índice de reproducción cromática
> 80
> 90
MacAdam Ellipses Binning
麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM
標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率
La eficacia de la luminaria
85 Lm/w(2700K), 90 Lm/w(3000K), 90 Lm/w(4000K),
100 Lm/w(5000K), 100 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效
Fuente luminosa LED Eficacia
130 Lm/w(2700K), 140 Lm/w(3000K), 140 Lm/w(4000K),
150 Lm/w(5000K), 150 Lm/w(6500K),
Housing materials-外殼材料
Materiales de la carcasa
Die-cast aluminum and tempered glass
壓鑄鋁和鋼化玻璃
Fundicion de aluminio y vidrio templado
Housing Color
外殼顏色
color de la carcasa
UV resistant Powder Coating :Matte Black RAL 9005 / Matte White RAL 9003
抗紫外線粉末塗料：啞光黑色燈身 RAL 9005 / 啞光白色燈身 RAL9003 /
Resistente a los rayos UV Recubrimiento en Polvo: Matte Black RAL 9005 / Matte Blanco RAL 9003
Optical materials
光學材料
Materiales ópticos
Safe Optical Glass with Aluminium Reflector /玻璃和鋁反光杯表面處理 Vidrio óptico con aluminio reflector
Silver
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +50 °C
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
Ingress Protection-防護等級
Protección de ingreso
IP66
IP20
Environment-使用環境-medio ambiente
Indoor
Outdoor
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format
LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
