DYNOMAX

Dia 70mm ~ Dia 80mm

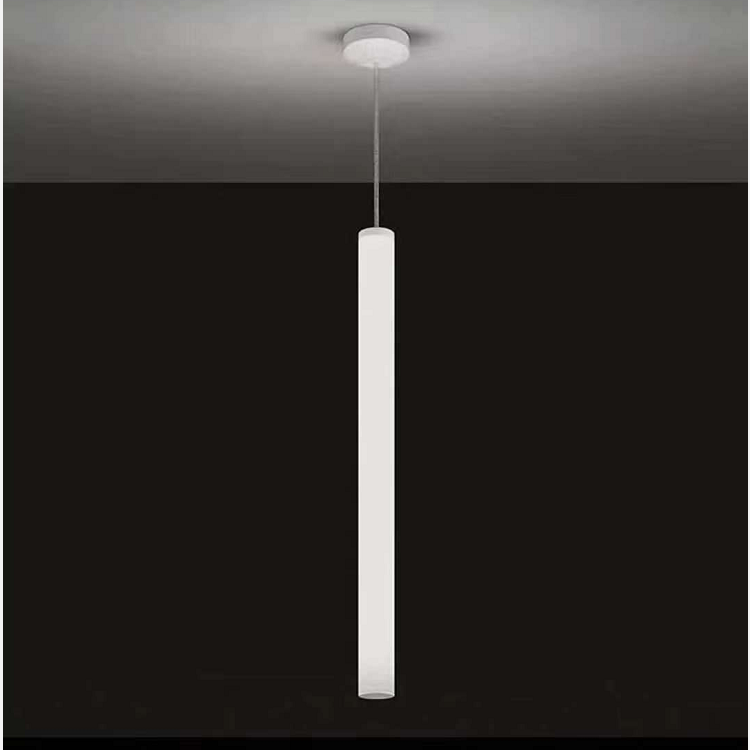

Pendant Mounted Type

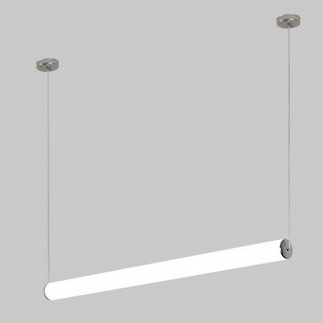

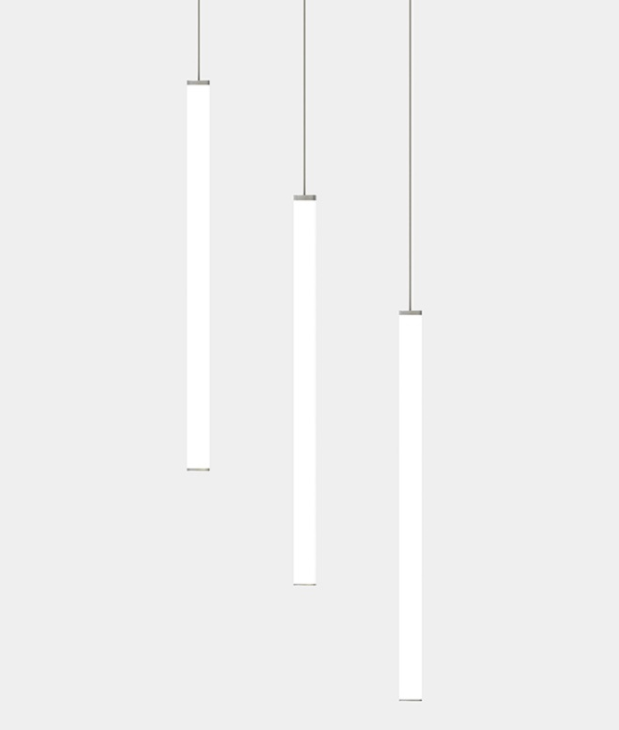

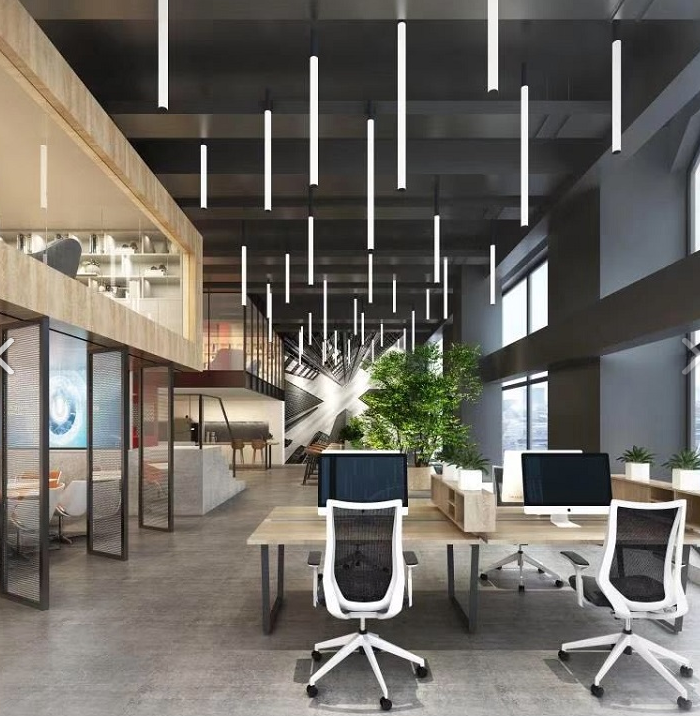

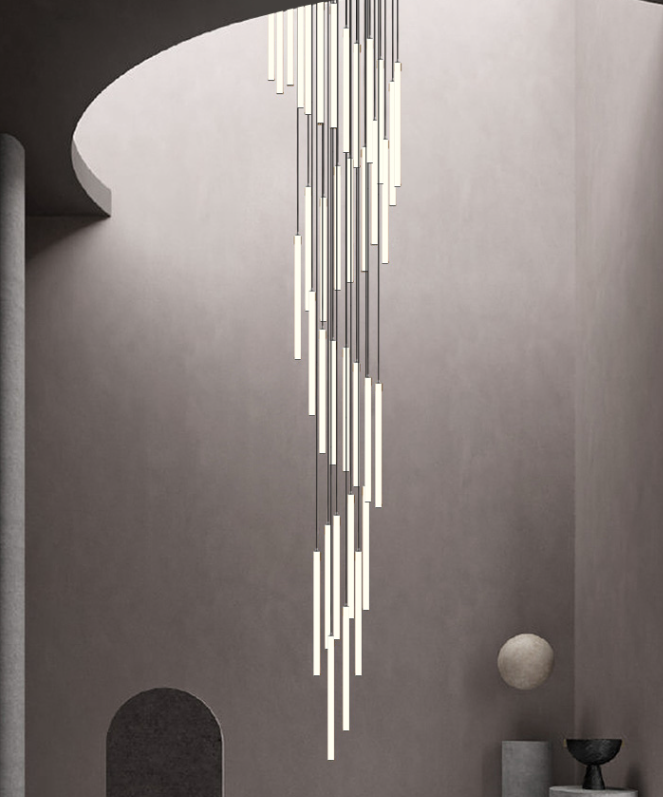

Suspended Mounted in a vertical or horizontal orientation.
360-degree diffused Light distribution
Option Diameter from 30mm to 80mm opal tubes in 627mm, 904mm and 1224mm lengths.
Ambient lighting with a choice of 2700K, 3000K or 4000K colour temperatures including tuneable white.
A range of dimming/control options including Fixed Output,1-10V, DALI or DMX.
CRI >80 as standard, with >90 on request.
Matt White, Matt Black, Matt Silver ,Glod or Copper color End-cap finishes

Technical Data

Luminaire Type-安裝方式Tipo de luminaria

Pendant Mounted Type- Vertical Type or Horizontal Type

吊裝型 - 立式或橫式

Tipo de montaje colgante: tipo vertical o tipo horizontal
Dimension-尺寸-Dimensión

Diameter x Lengteh of Tube

Type A: Dia 70mm x L:627 / 904 / 1224mm
Type B: Dia 80mm x L:627 / 904 / 1224mm
Power Consumption Max-燈具功率

Consumo de energía Max
- L:627 mm : 18W / 20W
- L:904 mm : 27W / 30W
- L:1224mm : 36W / 48W
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ
LED Driver Type

LED驅動款式

Tipo de controlador LED

LED Driver--Refer to LED driver specification

請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. Integrated-type -ON/OFF Switch AC220-240V 50/60HZ

2. Remote-type 0-10V Dimming Driver AC220-240V 50/60HZ

3. Remote-type Dali Dimming 0-100% Driver AC220-240V 50/60HZ

4. Remote-type DMX Dimming 0-100% Driver AC220-240V 50/60HZ
LED Driver Features驅動特性

Funciones del controlador de LED
- POWER FACTOR : PF>0.90 @ Full Load
- TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control

1-10V / Dali / Dali 2 / DMX512
Beam Angle光束角ángulo de haz

360°
Light Source -光源-Fuente de luz de marca

OSRAM SMD
"Lumen Maintenance LM-80 Reported by TM-21"

L70 > 54,000 hrs
LED Life-LED壽命-La vida del LED
>100,000 hours
Color Temperature -色溫

Temperatura del color
2700K / 3000K / 4000K / 5000K / 6500K

Turnable White (2700K to 6500K)
Color Rendering Index-顯色指數

Índice de reproducción cromátic
- >80
- >90
MacAdam Ellipses Binning 麥克亞當橢圓分級

Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy燈具效率

La eficacia de la luminaria
- 110Lm/w(2700K), 110 Lm/w(3000K), 120 Lm/w(4000K),
- 120 Lm/w((5000K), 120 Lm/w(6500K), 120Lm/w ( TW 2700K~6500K)
LED Source Luminous EfficacyLED光源光效

Fuente luminosa LED Eficacia
- 140Lm/w(2700K), 140 Lm/w(3000K), 160 Lm/w(4000K),
- 170 Lm/w((5000K), 170 Lm/((6500K), 160Lm/w ( TW 2700K~6500K)
Housing materials-外殼材料

Materiales de la carcasa
Aluminum End-cap and OpalPolycarbonate diffuser 鋁和乳白PC 擴散器

Aluminio fundido a presión y difusor de policarbonato
Housing Color外殼顏色

color de la carcasa
- Polyester powder-coated for End-Cap and Mounting box : Matt White, Matt Black, Matt Silver ,Gold or Copper color
- 端蓋和安裝盒的聚酯粉末塗層：亞光白、亞光黑、亞光銀、金色或銅色
- Recubrimiento de polvo de poliéster para la tapa del extremo y la caja de montaje: blanco mate, negro mate, plata mate, oro o color cobre
Ingress Protection-防護等級

Protección de ingreso
IP20
Operating Humidity -工作濕度

Humedad de funcionamiento
0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento
-30 °C / +50 °C
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba
LED Luminaires: IEC/EN 60598-1 ; IEC/EN 60598-2-1 ; IEC/ EN62493 ; IEC/EN 62301 ; IEC TR 62778 & IEC 62471

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
