LABITY-M

LABITY
LABITY
LABITY
W60mm (280mm one step)

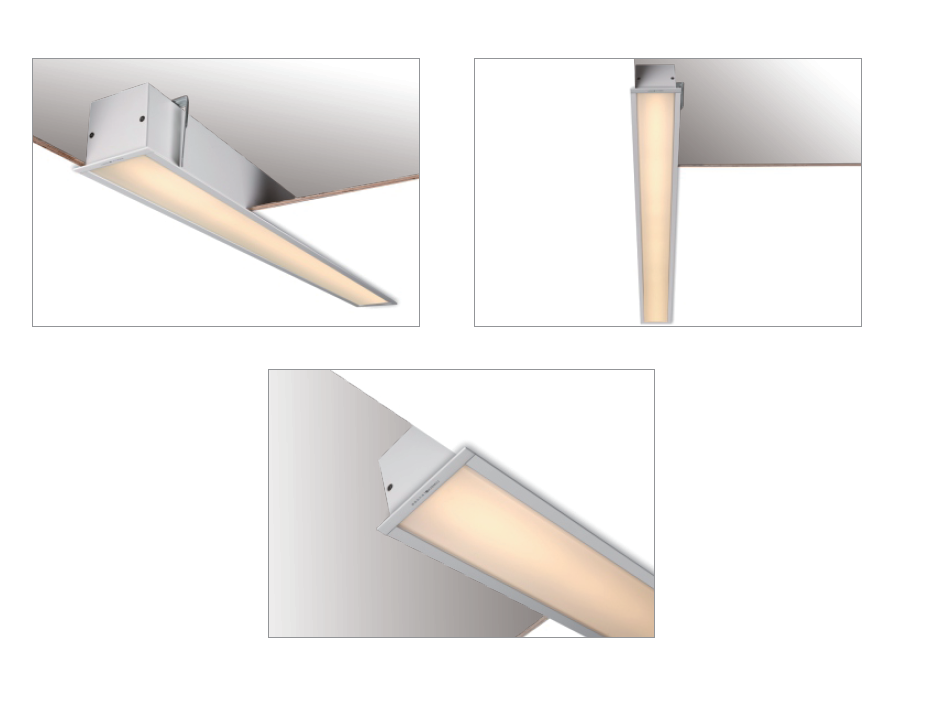

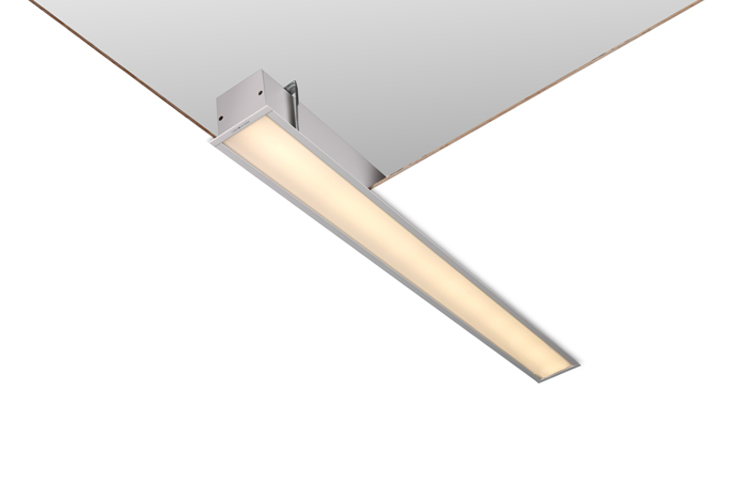

Recessed luminaire and continuous lighting system
  • Housing made of high pressure extruded aluminum construction, Die-cast aluminum end cap. UV and Corrosion resistance, with durable, anti-fading and anti-scratch Electrostatic Thermo-painting finish in Architectural Silver Grey or Matt White.

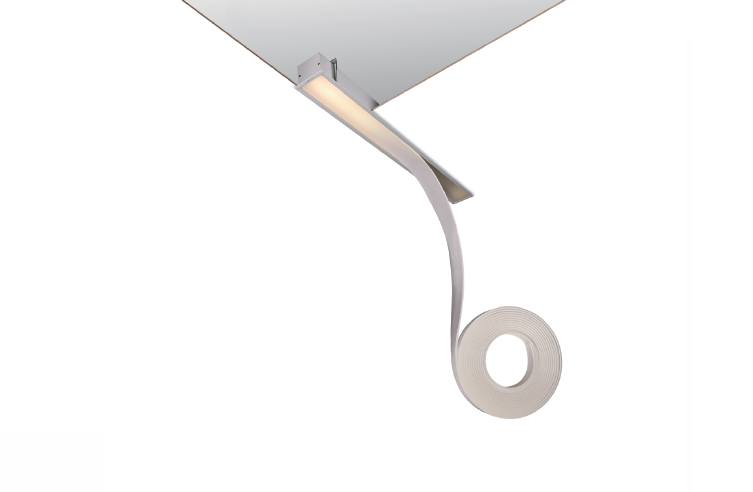

  • Slim Compact series with Germany imported high transmittance PMMA diffuser which can be infinitely extended up to 30Meter
  • Uniform lighting distributions (LED Dots-Free illumination), Low glare (UGR<19)
  • Continuous lighting system -PMMA diffuser can be infinitely extended

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria

    Recessed Mounted嵌入式Empotrado montado

  • Dimension-尺寸-Dimensión

    Cut off size -開孔尺寸-Corte el tamaño

    Refer to Technical Drawing

    Continuous Lighting Diffuser System(280mm one step)連續照明擴散器系統(280mm /段)Sistema difusor de iluminación continua (280 mm en un paso)

    Germany imported high transmittance PMMA diffuser which can be infinitely extended up to 30Meter 德國進口高透光PMMA擴散片,可無限延長至30米

    Alemania importó un difusor de PMMA de alta transmitancia que se puede extender infinitamente hasta 30 metros

    • L:1160xW:90xH:75mm
    • L:1440xW:90xH:75mm
    • L:1720xW:90xH:75mm
    • L:2000 xW:90xH:75mm
    • Others
  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    • L:1160xW:90xH:75mm :   18W         20W       28W       36W
    • L:1440xW:90xH:75mm :   24W         32W       40W
    • L:1720xW:90xH:75mm:   30W          38W       42W
    • L:2000 xW:90xH:75mm : 35W          45W        50W        55W           60W
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated -type LED Driver--Constant Current LED Driver

    Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch AC220-240V 50/60HZ

    2. 1-10V Dimming Driver AC220-240V 50/60HZ

    3. Dali 0-100% Dimming Driver AC220-240V 50/60HZ

  • LED Driver Features  Constant Current LED Driver:

    驅動特性-恆流LED驅動器

    Funciones del controlador de LED

    POWER FACTOR : PF>0.98   & TOTAL HARMONIC DISTORTION: THD< 10%

    Refer to LED driver specification 請參閱LED驅動器規格

  • Control Protocol/控制協議/Protocolo de Control

    1-10V / Dali

  • Light Source Brand-光源品牌-Fuente de luz de marca

    OSRAM

  • "Lumen Maintenance LM-80 Reported by TM-21"@25 °C

    L70(10k) > 60,000 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫-Temperatura del color

    2700K / 3000K / 4000K / 5000K /6000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    • >80
    • >90
  • MacAdam Ellipses Binning  麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

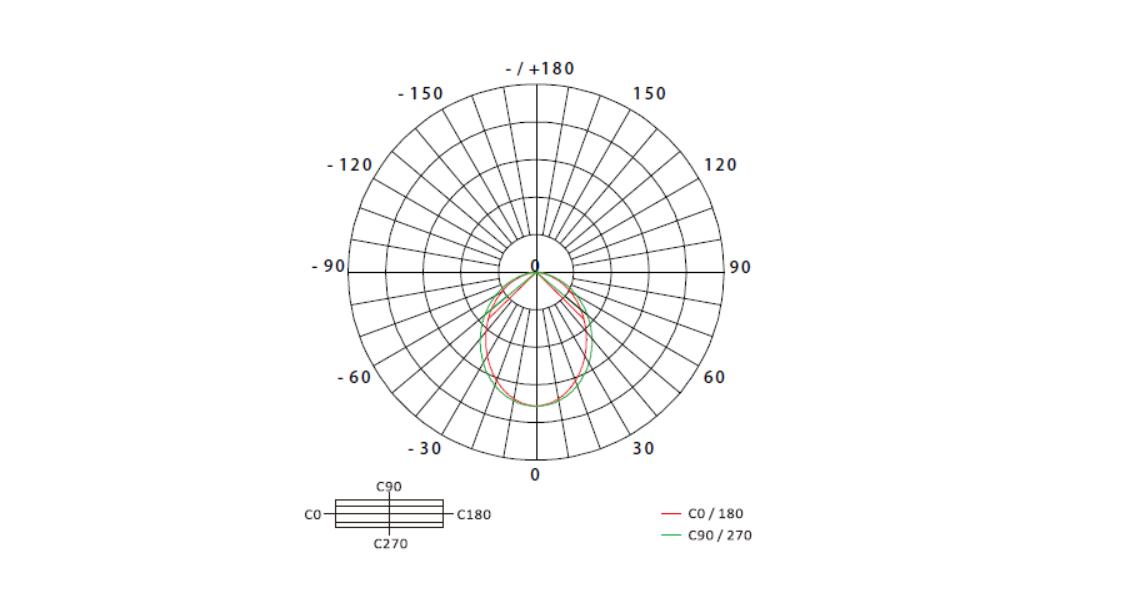

  • Beam Angle光束角ángulo de haz

    90° Symmertric

  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    • 110 Lm/w(2700K)           110 Lm/w(3000K)          120 Lm/w(4000K)
    • 120 Lm/w(5000K)           120 Lm/w(6000K)          120 Lm/w(6500K)
  • LED Source Luminous Efficacy

    LED光源光效Fuente luminosa LED Eficacia

    • 130 Lm/w(2700K)         130 Lm/w(3000K)         140 Lm/w(4000K)
    • 140 Lm/w(5000K)          140 Lm/w(6000K)        140 Lm/w(6500K)
  • Housing materials-外殼材料

    Materiales de la carcasa

     High-quality Aluminum alloy and PMMA  Diffuser優質鋁合金和PMMA擴散器

    Aleación de aluminio de alta calidad y difusor de PMMA

  • Housing Color外殼顏色color de la carcasa

    Electrostatic thermal-painting靜電熱噴塗

    Pintura térmica electrostática

    Powder Coating :Matte white RAL9003 / Matte black RAL9005  / Matte Grey RAL 9006

    粉末塗料:啞光白 RAL9003 / 啞光黑 RAL9005 / 啞光灰 RAL 9006

    Recubrimiento en polvo: blanco mate RAL9003 / negro mate RAL9005 / gris mate RAL 9006

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaries:  LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471 (Risk Group 1)LED Driver:  IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2; IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
LABITY-36W-SW-40-80-19
LABITY-M
-
Power Consumption
-
LED Driver Type (Remoted Type)
-
Color Temperature
-
COLOR RENDERING INDEX
-
19

Power Consumption

  • 18W
    18W @L:1160xW:90xH:75mm
  • 20W
    20W @L:1160xW:90xH:75mm
  • 28W
    28W @L:1160xW:90xH:75mm
  • 36W
    36W @L:1160xW:90xH:75mm
  • 24W
    24W@ L:1440xW:90xH:75mm
  • 32W
    32W@ L:1440xW:90xH:75mm
  • 40W
    40W@ L:1440xW:90xH:75mm
  • 30W
    30W@L:1720xW:90xH:75mm:
  • 38W
    38W@L:1720xW:90xH:75mm
  • 42W
    42W@L:1720xW:90xH:75mm
  • 35W
    35W@L:2000xW:90xH:75mm
  • 45W
    45W@L:2000xW:90xH:75mm
  • 50W
    50W@L:2000xW:90xH:75mm
  • 55W
    55W@L:2000xW:90xH:75mm
  • 60W
    60W@L:2000xW:90xH:75mm

LED Driver Type (Remoted Type)

  • DA
    DALI Dimming
  • ZI
    ZIGBEE Wireless Control
  • SW
    ON/OFF Switch
  • AN
    1-10V Dimming

Color Temperature

  • 27
    2700K
  • 30
    3000K
  • 40
    4000K
  • 50
    5000K
  • 65
    6500K

COLOR RENDERING INDEX

  • 80
    >80
  • 90
    >90

BEAM ANGLE (DIFFUSER SYSTEM)

  • 19
    UGR<19

Technical Drawing
