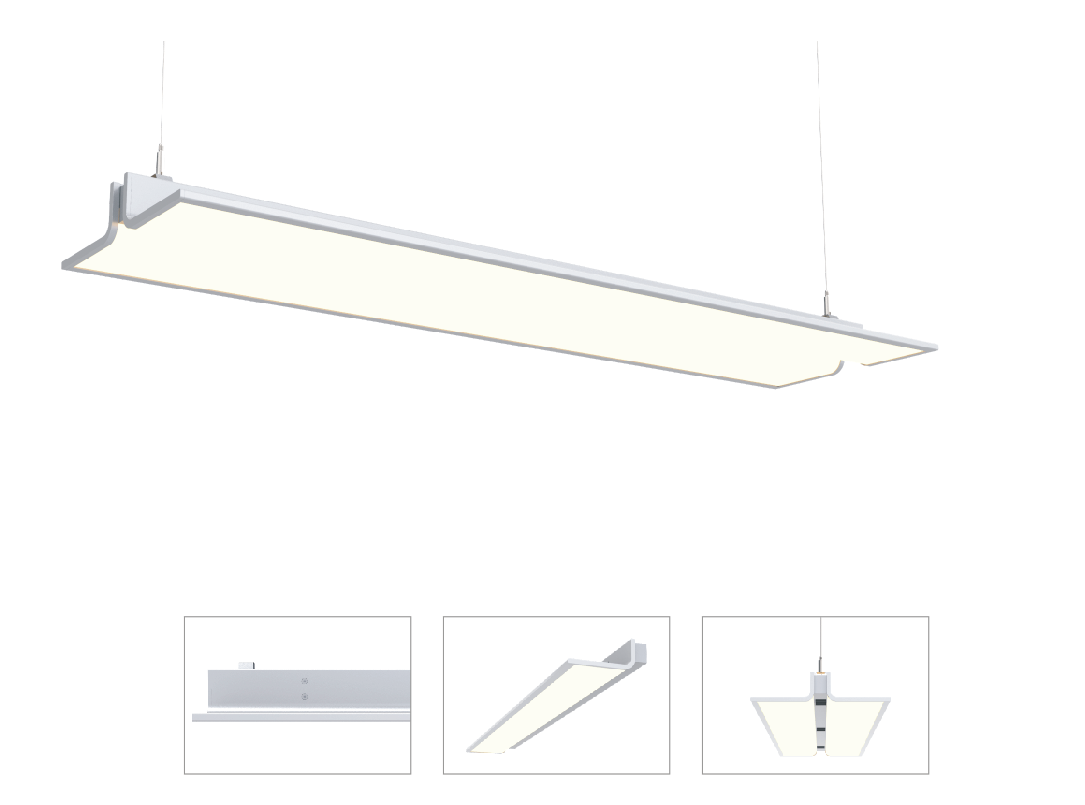

LABITY-SKY

L: 1200mm UGR19
LED LINEAR PENDANT LIGHT-IP40

Suspended /Ceiling surface/ Wall mounted luminaire with aluminum alloy structure integrated with advanced side light transmittance technology, direct and indirect light illuminating, high transmitting optical light guide PMMA plate create shadow free and uniform light output without any glare.

Advanced thermal management technology to ensure consistency of LED life span, color temperature and maximize output lumens.

Applications: Offices, schools, hospitals, hotels, shopping malls, public buildings, airport halls etc

Technical Data

  • Luminaire Type-安裝方式 Tipo de luminaria

    Suspended  Mounted-吊裝-Suspendido montado      Suspendion Wire--Length: 1000mm

    Ceiling surface mounted -吸頂安裝 Montado en la superficie del techo

    Wall Mounted -墻裝 Montado en la pared



  • Dimension-尺寸-Dimensión

    LxWxH

    • Suspend and ceiling mounted type 1200*330*69mm
    • Wall mounted type 1200*182*69mm      or    650 *182*69mm
  • Power Consumption with LED Driver

    LED燈具包括LED驅動電源功率

    Consumo de energía con controlador de LED

    • 1200*330*69mm :     30W      36W      48W     54W
    •  650 *182*69mm :     15W       18W
    • 1200 *182*69mm :     30W      36W
  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated -type LED Driver--Constant Current LED Driver

    Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

     ON/OFF Switch AC220-240V 50/60HZ

    1-10V Dimming Driver AC100-240V 50/60HZ

     Dali Dimming Driver (1-100% )AC100-240V 50/60HZ

  • LED Driver Features  Constant Current LED Driver:

    驅動特性-恆流LED驅動器

    Funciones del controlador de LED

    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

  • Control Protocol/控制協議/Protocolo de Control

    1-10V   or  Dali

  • Light Source Brand-光源品牌-Fuente de luz de marca

    OSRAM

  • "Lumen Maintenance LM-80 Reported by TM-21"

     L70 > 60,000 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    >85

  • Photobiological safety-EN 62471 /  of Luminaire

    光生物安全檢驗(EN 62471) 结果:

    Seguridad fotobiológica-EN 62471

    Exempt

    豁免(無危險)

    Eximir

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

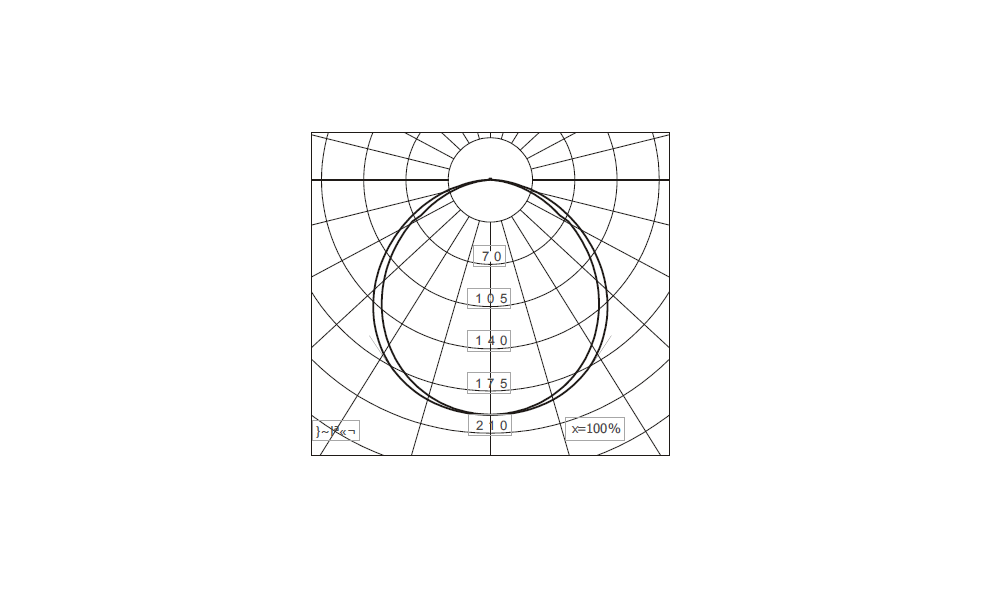

  • Beam Angle 光束角 ángulo de haz

    • 120°   UGR : 19
  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    80 Lm/w(2700K)      80Lm/w(3000K)     90 Lm/w(4000K)

    100 Lm/w(5000K)    100 Lm/w(6500K)

  • LED Source Luminous Efficacy

    LED光源光效Fuente luminosa LED Eficacia

    130 Lm/w(2700K)    130Lm/w(3000K)     140 Lm/w(4000K)

    150 Lm/w(5000K)    150 Lm/w(6500K)

  • Housing materials-外殼材料

    Materiales de la carcasa

    High-quality Aluminum alloy with PMMA Diffuser 鋁合金和PMMA 擴散器

    Aleación de aluminio de alta calidad con difusor de PMMA

  • Housing Color外殼顏色color de la carcasa

    Electrostatic thermo-painting Silver 電熱塗銀

    Termopintura electrostática Plata

  • Ingress Protection-防護等級

    Protección de ingreso

    IP40

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaries:  LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031;

                                 IEC/EN 62493 ; IEC/EN 62471

    LED Driver:          IEC 61347-1; IEC 61347-2-13; IEC 62384; IEC 61000-3-2;

                                 IEC 61000-3-3;IEC61574;EN 55015 ; IEC 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
LABITY-36W
LABITY-SKY
-
POWER CONSUMPTION

POWER CONSUMPTION

  • 30W
    30W @ 1200*330*69mm
  • 36W
    36W @1200*330*69mm
  • 48W
    48W@ 1200*330*69mm
  • 54W
    54W@ 1200*330*69mm
  • 15W
    15W@650 *182*69mm Wall Mounted
  • 18W
    18W@650 *182*69mm Wall Mounted
  • 30W
    30W@1200 *182*69mm Wall Mounted
  • 36W
    36W@1200 *182*69mm Wall Mounted

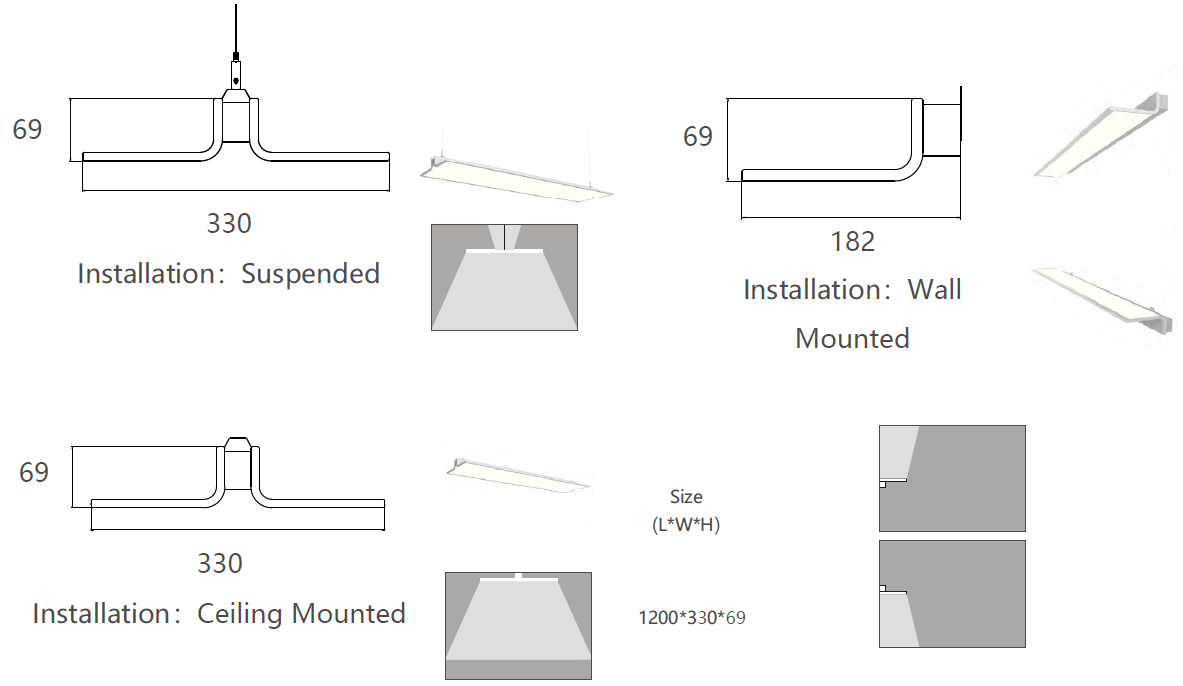

Technical Drawing
