LAHAN PRO

W60xH83 IP54& IP67 6W-80W

Linear Type

Extruded Aluminium S6063 alloy body with low copper content
Resistant to corrosive environment. Coated with epoxy resin and UV stabilized polyester powder.
Protection: IP54 or IP67 IK Rating: Protection against mechanical impact IK10
Impact resistant safety tempered glass cover and Micro-prismatic tempered glass diffuser for anti-glare

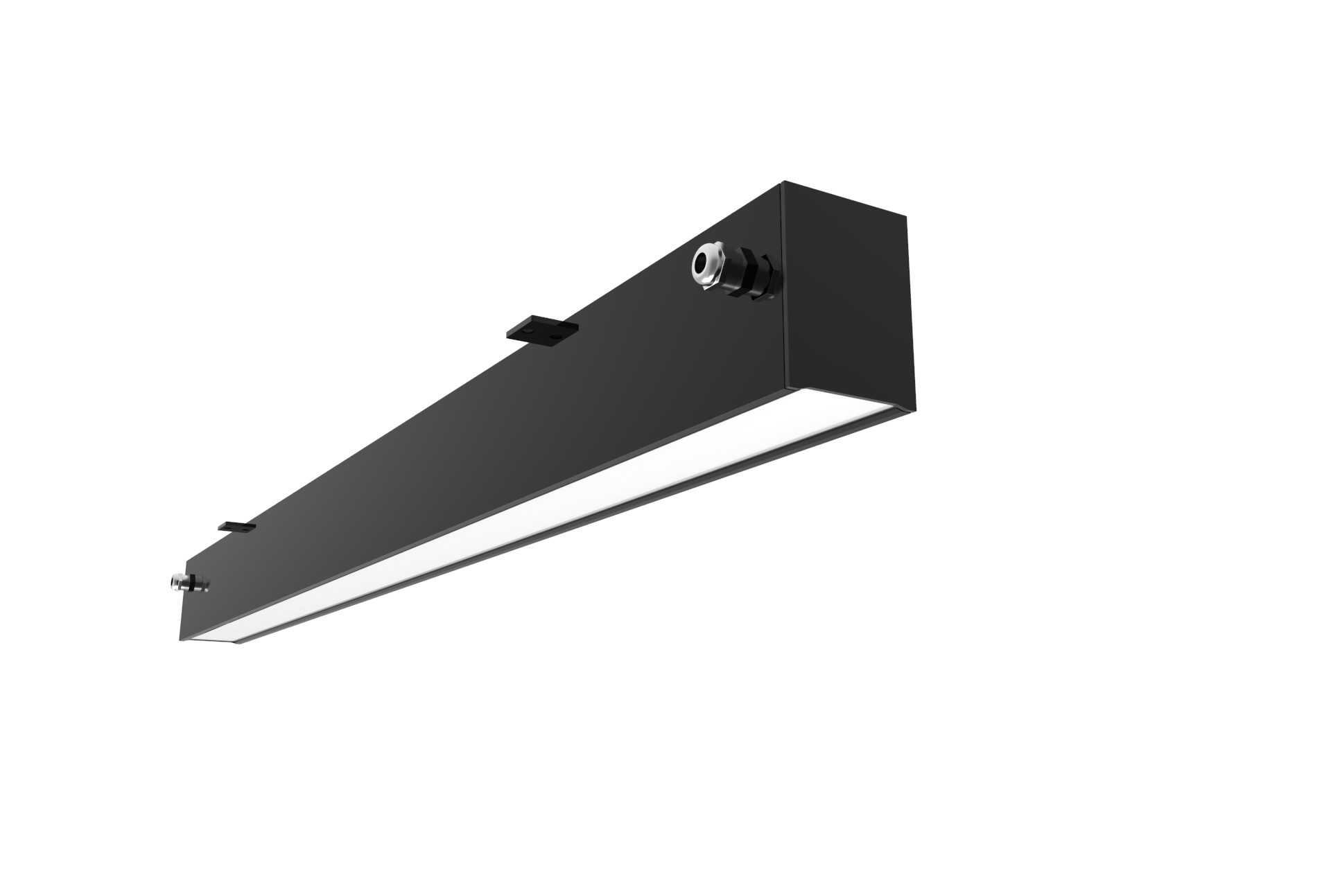

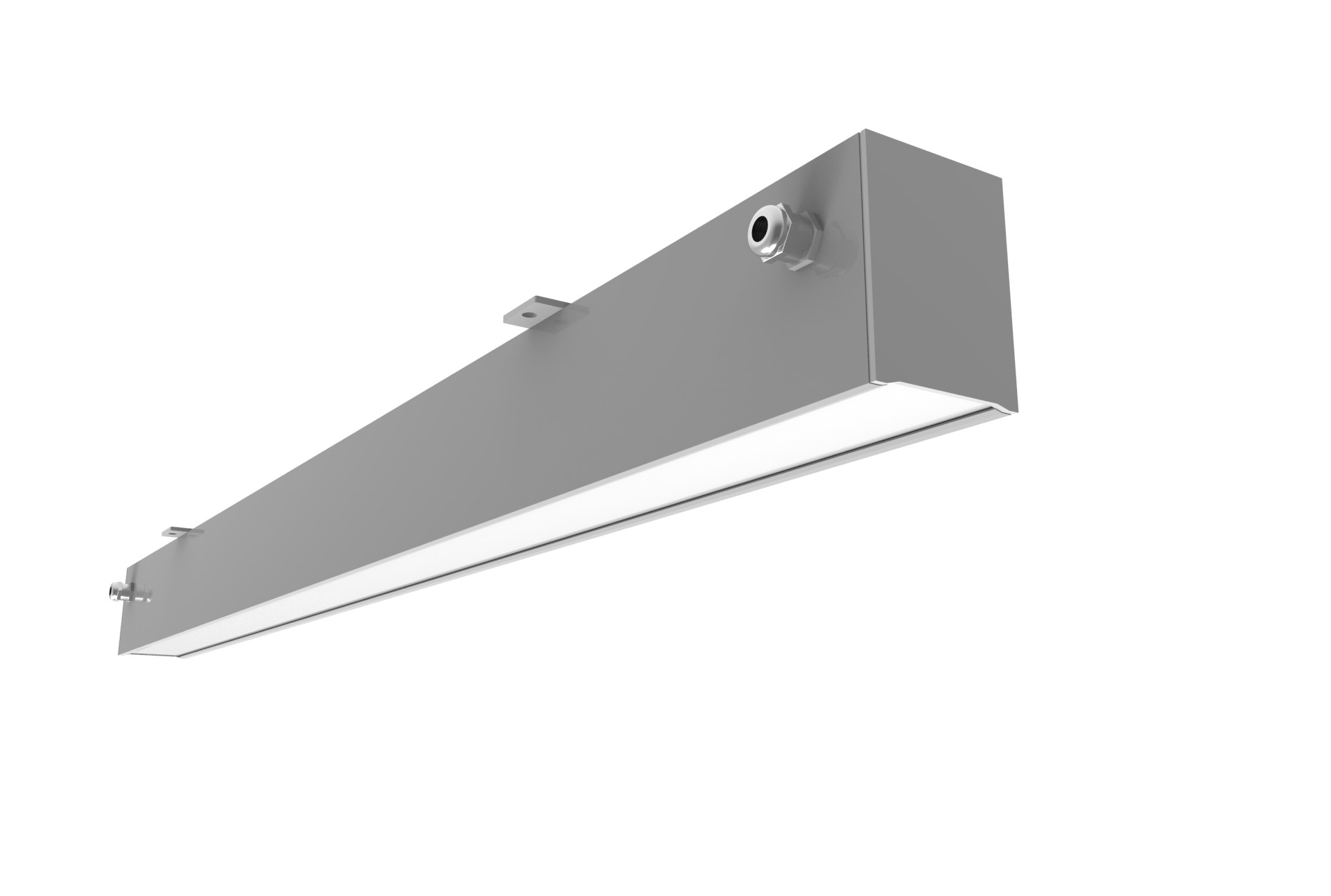

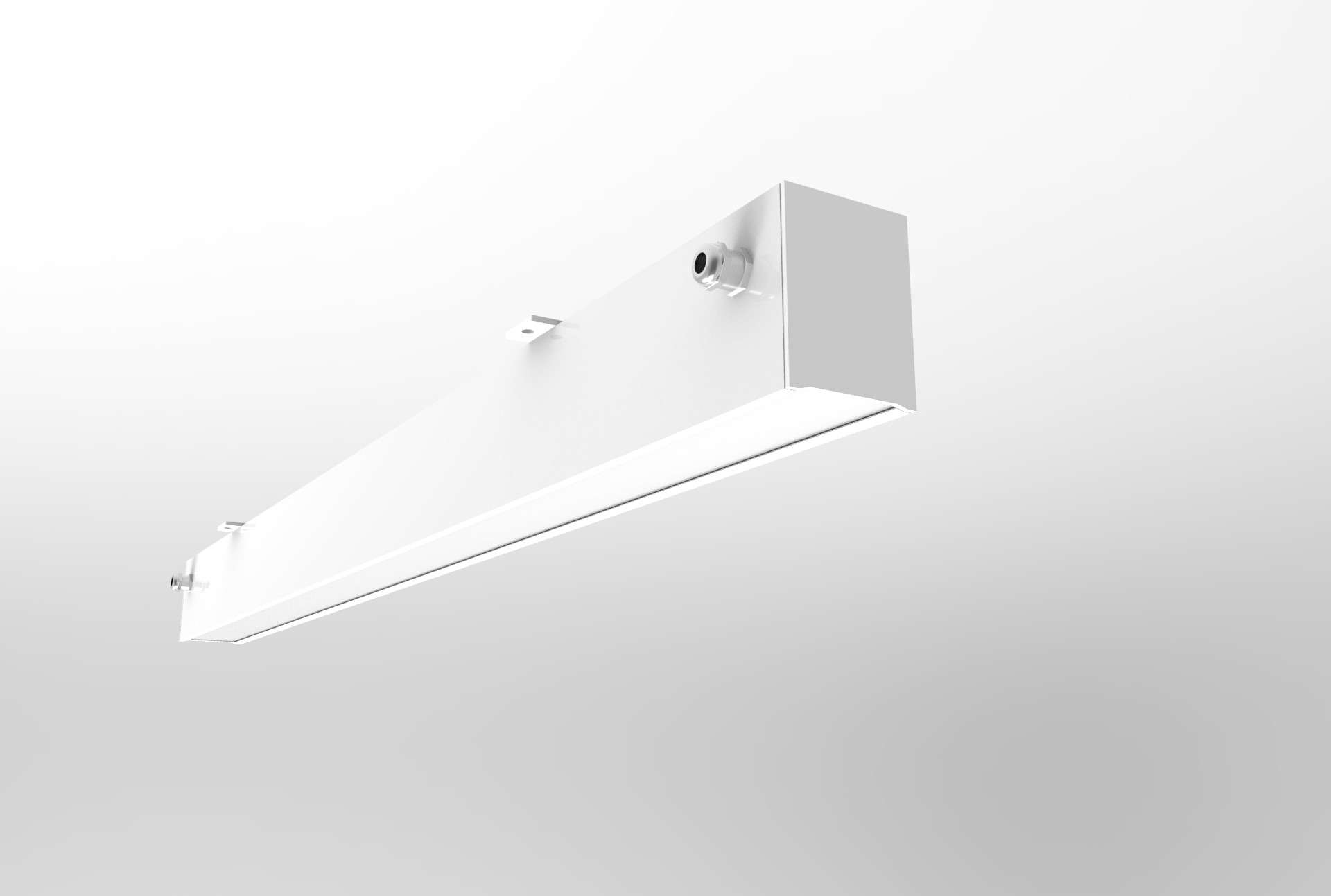

Color: Black RAL9005 / Graphite RAL 7024 / Dark Gray RAL 7021 / Grey RAL 9006 / White RAL 9003
Materials is complied with Hot Wire Testing: 850°C

Technical Data

Luminaire Type-安裝方式 Tipo de luminaria

Pendent mounted Type / Surface mounted Type

吊裝燈具\嵌入式燈具\吸頂式燈具

Pendent tipo \ Surface mounted
Dimension-尺寸-Dimensión
- Refer to Technical Drawing 請參閱技術圖紙Consulte el dibujo técnico
Power Consumption Max-燈具功率

Consumo de energía Max
- L: 514mm: 10W 13W 20W
- L: 614mm: 15W 24W
- L: 914mm: 18W 23W 36W
- L: 1014mm: 25W 28W 33W 38W 40W
- L: 1214 mm: 30W 35W 42W 45W 50W 60W
- L : 1500mm : 35W 40W 45W 50W 60W
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC100-240V 50/60HZ

2.1 -10V Dimming Driver AC100-240V 50/60HZ

3. Dali Dimming Driver AC100-240V 50/60HZ or DC48V with Dali Dimming

4. Remote Type Emergency Battery Kit with battery Back up 2 hours or 3hours
LED Driver Features驅動特性

Funciones del controlador de LED

POWER FACTOR : PF>0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control

0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle/光束角/ángulo de haz
- 75° 120°
Light Source Brand-光源品牌-Fuente de luz de marca

OSRAM LED
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 63,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80

> 90
MacAdam Ellipses Binning 麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM 標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria
- Opal Polycarbonate Diffuser
100 lm/w(2700K), 100lm/w(3000K), 120 lm/w(4000K),

120 lm/w(5000K), 120 lm/w(6500K)
- Frosted Tempered Glass or Micro-prismatic tempered glass diffuser,
90 lm/w(2700K), 90lm/w(3000K), 100 lm/w(4000K),

110 lm/w(5000K), 110 lm/w(6500K)
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

130 lm/w(2700K), 130lm/w(3000K), 150 lm/w(4000K),

150 lm/w(5000K), 150 lm/w(6500K)
Housing materials-外殼材料

Materiales de la carcasa

Extruded Aluminium Alloy body and Frosted Tempered Glass or Micro-prismatic tempered glass diffuser or Opal polycarbonate Diffuser

壓鋁S6063合金和磨砂鋼化玻璃或微棱鏡鋼化玻璃擴散器或乳白PC擴散罩

Cuerpo de aleación de aluminio extruido y difusor de vidrio templado esmerilado o vidrio templado microprismático o difusor de policarbonato opalino
Housing Color外殼顏色 color de la carcasa

Coated with epoxy resin and top coated with UV stabilized polyester powder

Color: Black RAL9005 / Graphite RAL 7024 / Dark Gray RAL 7021 / Grey RAL 9006 / White RAL9003

顏色：黑色RAL9005 /石墨黑RAL 7024 /深灰色RAL 7021 /鋁銀色RAL 9006 /白色RAL9003

Color: Negro RAL9005 / Grafito RAL 7024 / Gris oscuro RAL 7021 / Grey 9006 / Blanco RAL9003
Ingress Protection-防護等級 Protección de ingreso

IP54 or IP67
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos
IK08
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Comply Testing Standard 符合測試標準

Cumplir el estándar de prueba

LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471(Risk Group 1)EN60598-2-22 Hot Wire Testing: 850°C

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
