LASHA PRO

W:68xH:80mm IP54 45W Max

LED LINEAR LIGHT

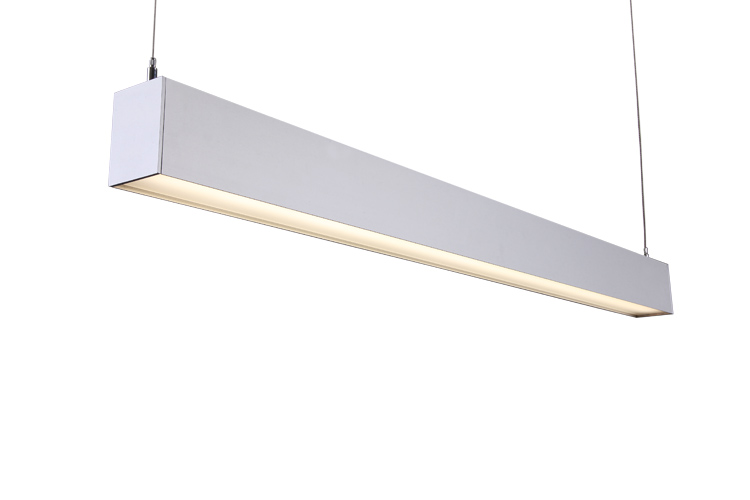

Pendant Mount Type LED LINEAR LIGHT. Housing: Extrusion aluminum, powder-coated, designed as heatsink. Anti-glare reflector and diffusor system made of PMMA. LED module: SMD LEDs, CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV, 0-10V, DALI, DMX and RDM LED constant current control gear. Deep recessed design achieves super eye comfort. The fixture can be available in different length.

Technical Data

Luminaire Type-安裝方式Tipo de luminaria

Pendant Mount Type&吊裝燈具

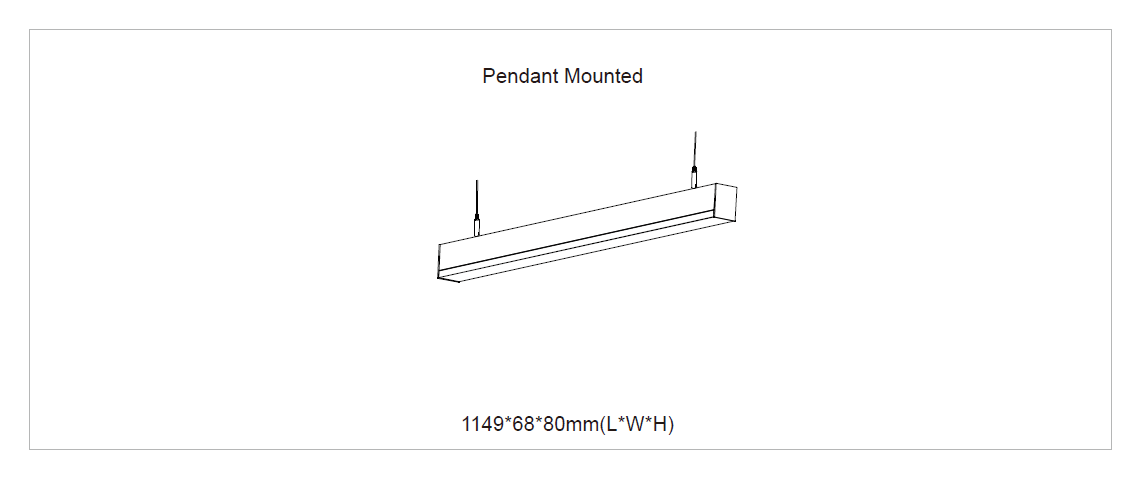

Dimension-尺寸-Dimensión

L: 1149 x W: 68 x H: 80 mm
Power Consumption Max-燈具功率

Consumo de energía Max
- 14W 20W 28W 36W 40W 45W
Input Voltage-輸入電壓-Voltaje de entrada

100-240 VAC / 100-277VAC 50-60Hz,
Power Factor / 功率因數/Factor de potencia

PF>0.95
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD <20%
LED Driver Type

LED驅動款式

Tipo de controlador LED
Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED
- ON/OFF Switch AC220-240V 50/60HZ
- 1 -10V Dimming Driver AC100-240V 50/60HZ
- Dali Dimming Driver AC100-240V 50/60HZ
- DMX Driver AC100-240V 50/60HZ
- Remote Emergency Kit Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia
Control Protocol-控制協議Protocolo de Control

1-10V / Dali / DMX 512

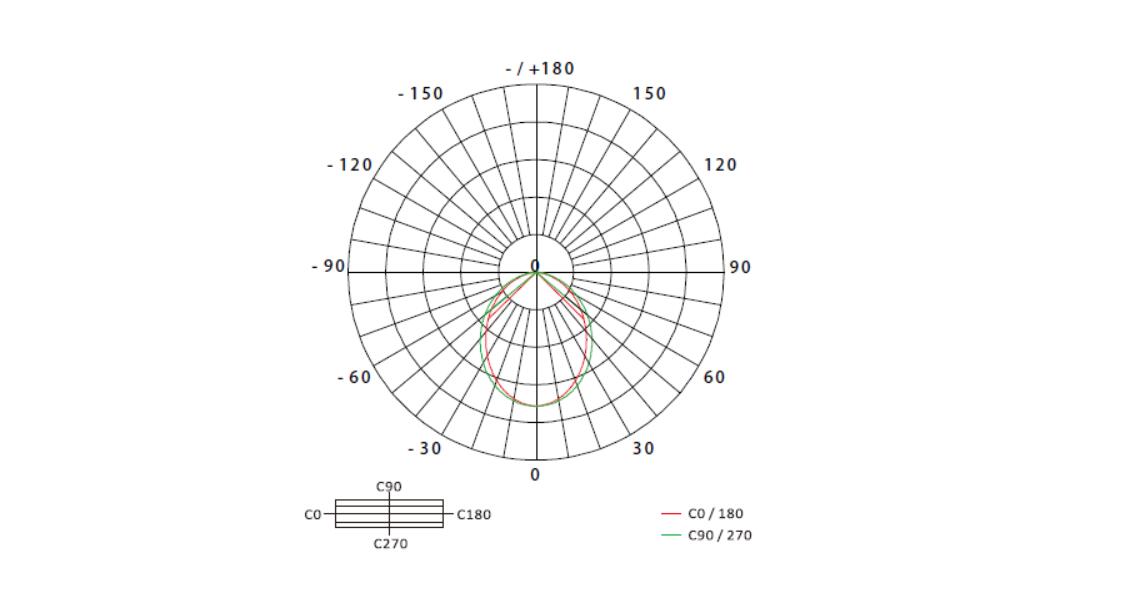

Beam Angle光束角ángulo de haz

110°
Light Source Brand-光源品牌-Fuente de luz de marca

ZHAGA - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )
"Lumen Maintenance LM-80 Reported by TM-21"
- L70(10k) > 60,500 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫

Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy燈具效率

La eficacia de la luminaria

95 Lm/w(2700K),95 Lm/w(3000K),100 Lm/w(4000K),

105 Lm/w(5000K), 105 Lm/w(6500K),
LED Source Luminous EfficacyLED光源光效

Fuente luminosa LED Eficacia

125 Lm/w(2700K),125 Lm/w(3000K),130 Lm/w(4000K),

135 Lm/w(5000K), 135 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Aluminium Alloy and PMMA Opal diffuser

鋁合金和亞克力擴散板

Aleación de aluminio y difusor de PMMA Opal
Housing Color

外殼顏色

color de la carcasa

Matte white / Matte black / Matte sliver

啞光白色 / 啞光黑色 / 啞光銀色

Blanco mate / Matte black / Astilla mate
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Ingress Protection-防護等級

Protección de ingreso

IP54
Comply Testing Standard

符合測試標準

Cumplir el estándar de prueba

LED Luminaries: LVD: IEC/EN 60598-1;EN / IEC/EN 60598-2-1;IEC62471;IEC/EN 62031; IEC/EN 62493 ; IEC/EN 62471

EMC: EN55015 ; IEC/EN 61000-3-2; IEC/EN 61000-3-3;IEC/EN61574 ; RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
