25W-148W

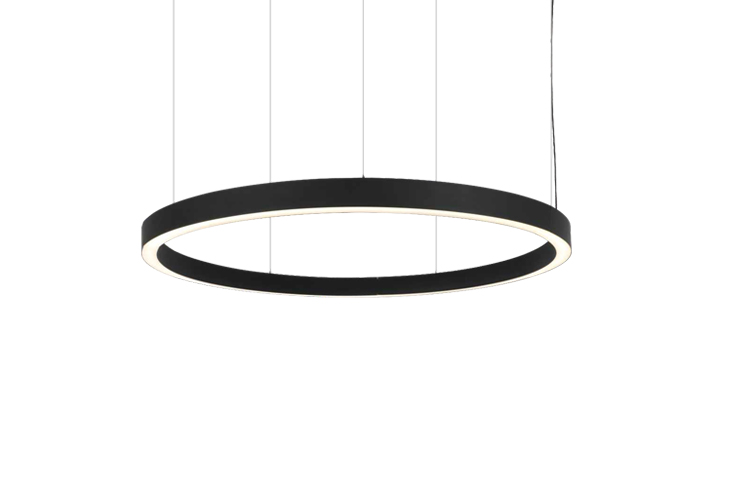

PENDANT LIGHT

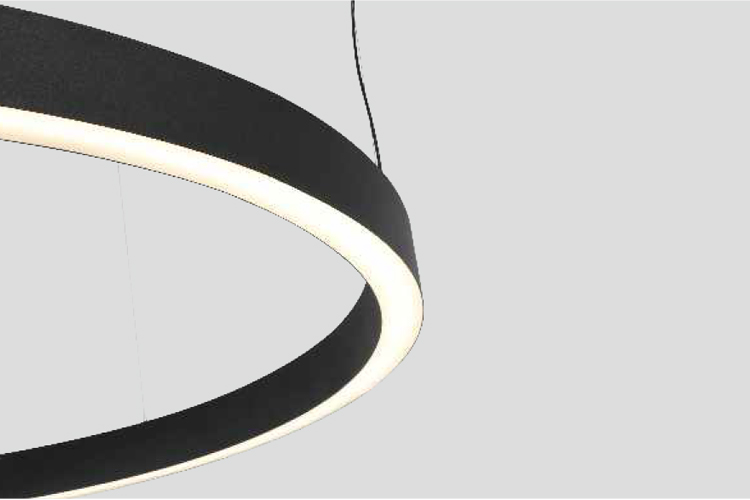

LED PENDANT LIGHT. Housing: die-cast aluminium, powder-coated, designed as heatsink. Anti-glare made of PMMA.  CRI>80, LM-80 performance approval >50,000 hours. Integrated-Type ELV, 0-10V, DALI, DMX and RDM LED constant current control gear.

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria



    Pendant Type吊裝燈具Colgante tipo

  • Dimension-尺寸-Dimensión

    • W:35 x H:35 x DIA: 400mm @ Pendant rope length: 1000 mm
    • W:35 x H:35 x DIA: 600mm @ Pendant rope length: 1000 mm
    • W:35 x H:35 x DIA: 800mm @ Pendant rope length: 1000 mm
    • W:35 x H:35 x DIA: 1000mm @ Pendant rope length: 1000 mm
    • W:35 x H:35 x DIA: 1200mm @ Pendant rope length: 1000 mm
    • W:35 x H:35 x DIA: 1500mm @ Pendant rope length: 1000 mm
    • W:60 x H:100x DIA: 1600 mm @ Pendant rope length: 1000 mm
    • W:60 x H:100x DIA: 1800 mm @ Pendant rope length: 1000 mm
    • W:60 x H:100x DIA: 2000 mm @ Pendant rope length: 1000 mm
  • Input Voltage-輸入電壓

    Voltaje de entrada

    AC220-240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    • 25W@Dia 400mm                       40W@Dia 600mm           50W@Dia 800mm
    • 60W@Dia 1000mm                     75W@Dia 1200mm         90W@Dia 1500mm
    • 100W @ Dia 1600mm                120W @ Dia 1800mm      140W @ Dia 2000mm



  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    7. Remote Emergency Backup >2 hours or >3 hours @ < 12charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features驅動特性

    Funciones del controlador de LED



    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Beam Angle光束角ángulo de haz

    120°

  • Light Source Brand-光源品牌-Fuente de luz de marca

    SMD LEDs

  • "Lumen Maintenance LM-80 Reported by TM-21"

     L90(10k) = 50,700 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

  • MacAdam Ellipses Binning  麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy燈具效率La eficacia de la luminaria



    • 100 Lm/w(2700K),      100 Lm/w(3000K)     110 Lm/w(4000K),
    • 120 Lm/w(5000K),      120 Lm/w(6500K),
  • LED Source Luminous EfficacyLED光源光效

    Fuente luminosa LED Eficacia



    • 130 Lm/w(2700K),      130 Lm/w(3000K)     140 Lm/w(4000K),
    • 150 Lm/w(5000K),      150 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum and acrylic壓鑄鋁和亞克力

    Fundición de aluminio y acrílico

  • Housing Color外殼顏色

    color de la carcasa

    Matte white / Matte black / Matte sliver

    啞光白色 / 啞光黑色 / 啞光銀色

    Blanco mate / Matte black / Astilla mate

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
LASHE-60W
LASHE-O
-
Power Consumption

Power Consumption

  • 25W
    25W@Dia 400mm
  • 40W
    40W@Dia 600mm
  • 50W
    50W@Dia 800mm
  • 60W
    60W@Dia 1000mm
  • 75W
    75W@Dia 1200mm
  • 90W
    90W@Dia 1500mm
  • 100W
    100W @ Dia 1600mm
  • 120W
    120W @ Dia 1800mm
  • 140W
    140W @ Dia 2000mm
