LONGON-T

Steel Panel for LED T8&LED T5

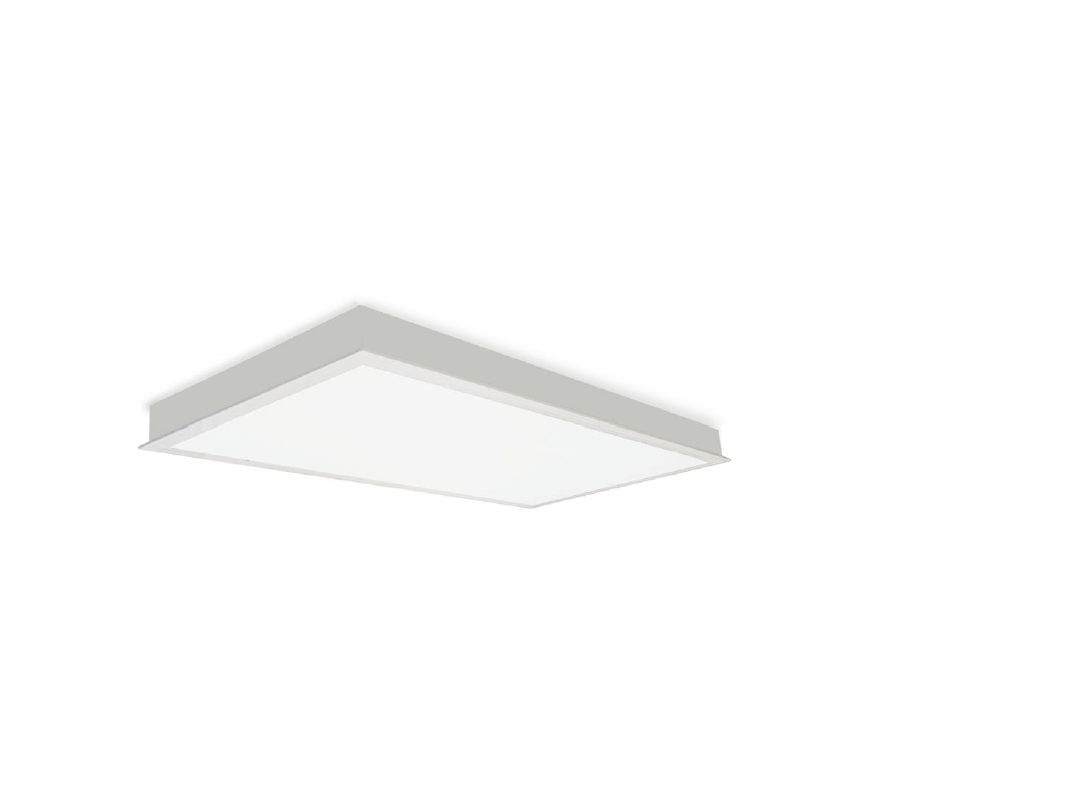

Recessed & Surface Mounted
  • Recessed or Surfaced  mounted for different ceiling type
  • PMMAPrismatic or Opal Polycarbonate  diffuser for resistant dust and moth
  • Compatible with LED T8 or  LED T5  Tube lamp
  • Anti rust treated white-painted sheet steel housing
  • Integrated LED Control Gearl 1-10V and DALI, and Zigbee wireless
  • IP44 Protection

Technical Data

  • Luminaire Type- 安裝方式 Tipo de luminaria

    • Recessed Mount  暗裝式燈具  Montaje empotrado

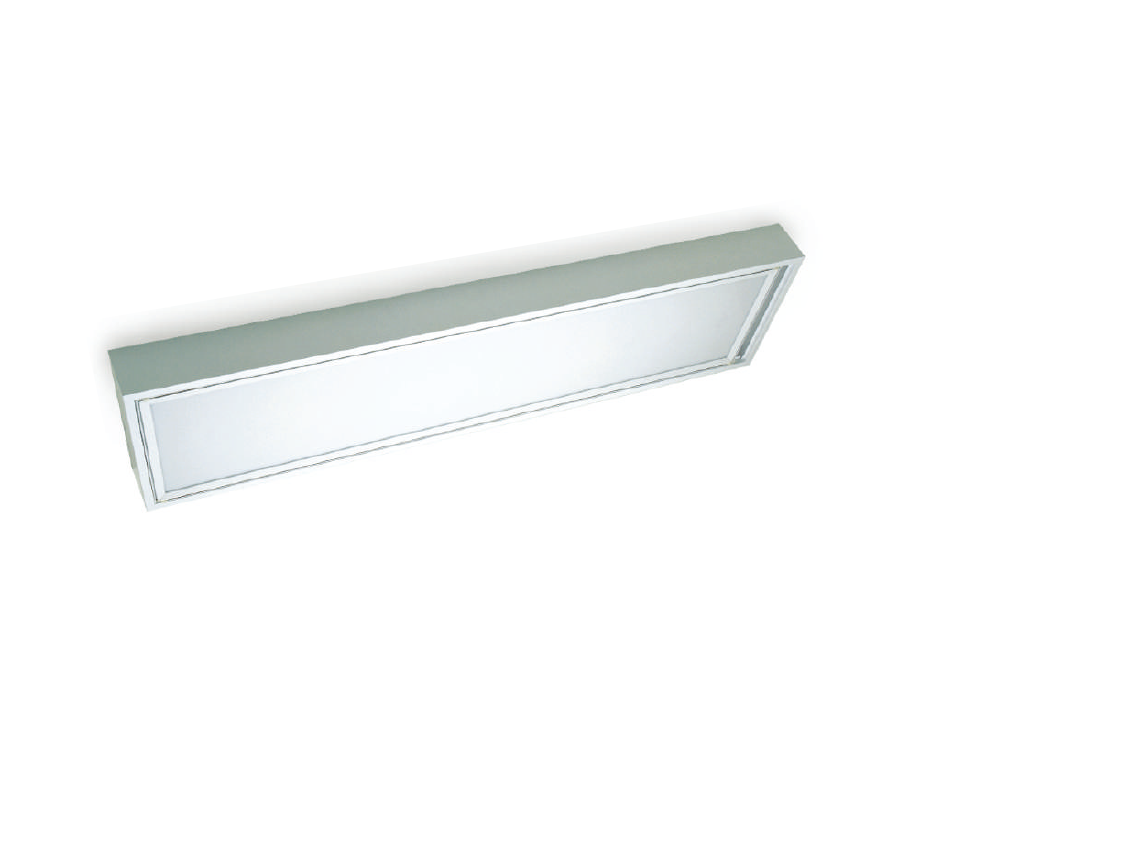

    • Surfaced  Mount 明裝式燈具  Montaje en superficie



  • Dimension-尺寸-Dimensión



    Refer to Technical Drawing 參考技術圖紙

    Consulte el dibujo técnico.

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC 220 -240V 50/60HZ

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    Refer to Technical Drawing 參考技術圖紙

    Consulte el dibujo técnico.

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED

    Integrated-type LED Driver for DC LED T5 / T8 Application--Refer to LED driver specification 請參閱LED驅動器規格Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ

    2.1-10V Dimming Driver  AC220-240V 50/60HZ  for DC LED Tube

    3. Dali Dimming Driver AC220-240V 50/60HZ  for DC LED Tube

    4. DMX Driver AC220-240V 50/60HZ  for DC LED Tube

    5. ZIGBEE Wireless Control (Remoted Driver ) AC220-240V 50/60HZ for DC LED Tube

    6. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia

    7. Microwave Sensor ON/OFF

  • Control Protocol-控制協議

    Protocolo de Control

    1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

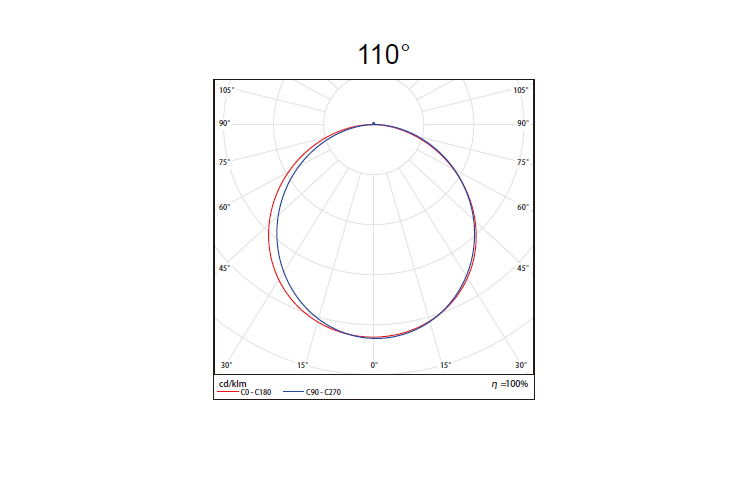

  • Beam Angle 光束角 ángulo de haz

    Refer to LED T5 / T8 tube data sheet

  • Photobiological safety-IEC 62471 /  of Luminaire

    光生物安全檢驗(ICE/EN 62471) 结果:

    Seguridad fotobiológica-IEC 62471

    • Low Risk Group 1 (RG1) Refer to LED T5 / T8 Specification

    • 低風險組1 (RG1) 參閱LED T5 / T8規格

    • Grupo de bajo riesgo 1 (RG1) Consulte la especificación LED T5 / T8

  • Housing materials-外殼材料

    Materiales de la carcasa

     Steel sheet with Prismatic PMMA diffuser  or Opal Polycarboante Diffuser

    鋼板外框棱柱形PMMA 擴散器燈罩或乳白PC 擴散器燈罩

    Chapa de acero con difusor de PMMA Prismático o Difusor de Policarbonato Opal

  • Trim Housing Color 框外殼顏色

    color de la carcasa

    White coating 白色塗層Recubrimiento blanco

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

    -30 °C / +50 °C

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Ingress Protection-防護等級 Protección de ingreso

    IP44

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC/ EN 60598-1 /  EN 60598-2-1 /  EN 62031 / EN 62493 / IEC/EN 62471 / IEC 60598-2-22 /  IEC 62031 /EN 55015 /  EN 61000-3-2 / EN 61000-3-3 /  EN 61547  / IEC 62262 /  IEC 60529 / IEC TR62778

    Luminaries Performance : IEC 62722-1 / IEC 62722-2-1   FSD regulation PPA 104A (4th Rev). RoHS

  • Certification-認證-Certificación

Specification Code

Example Product Code:
LONGON-36W
LONGON-T
-
POWER

POWER

  • 18W
    2pcs x 2feet 9W LED T5 @ LED T8
  • 27W
    3pcs x 2feet 9W LED T5 @ LED T8
  • 36W
    4pcs x 2feet 9W LED T5 @ LED T8
  • 36W
    2pcs x 4feet 18W LED T5 @ LED T8
  • 36W
    4 pcs x 2feet 9W LED T5 @600 x 600 x 80mm
  • 54W
    3pcs x 4feet 18W LED T5 @ LED T8
  • 72W
    4pcs x 4feet 18W LED T5 @ LED T8
  • XXXX
    Refer to Technical Drawing

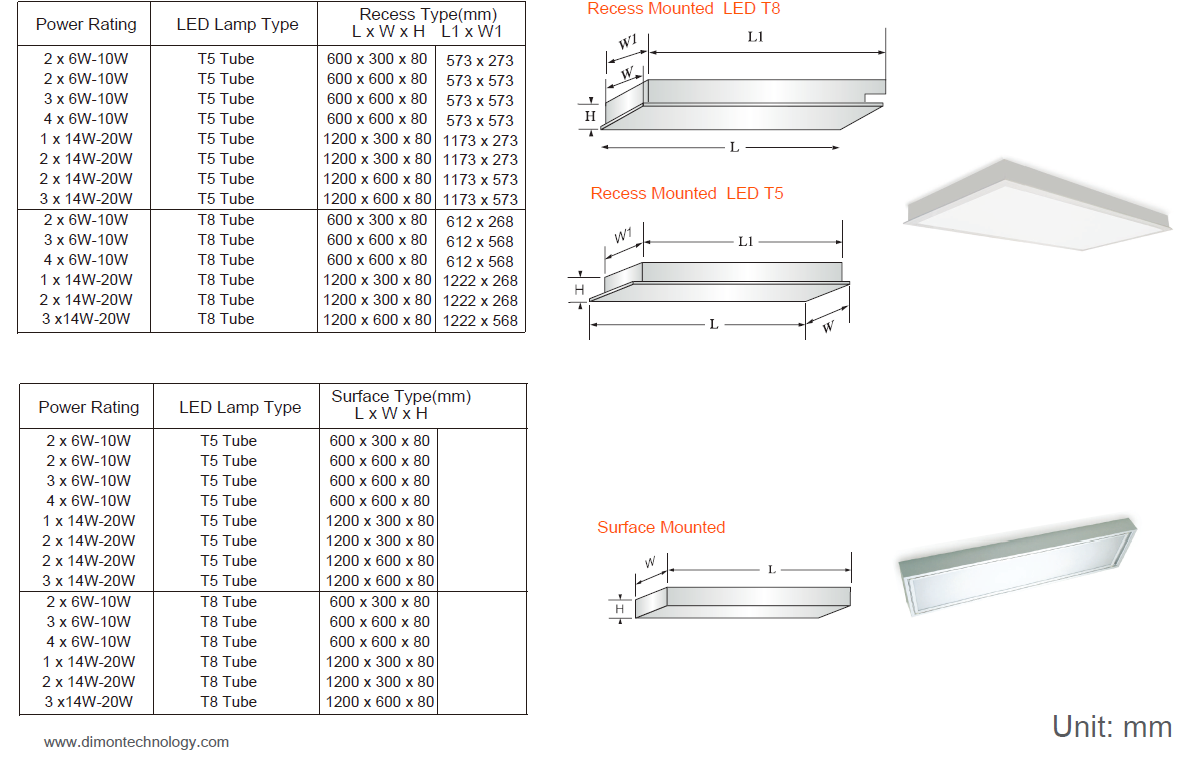

Technical Drawing
