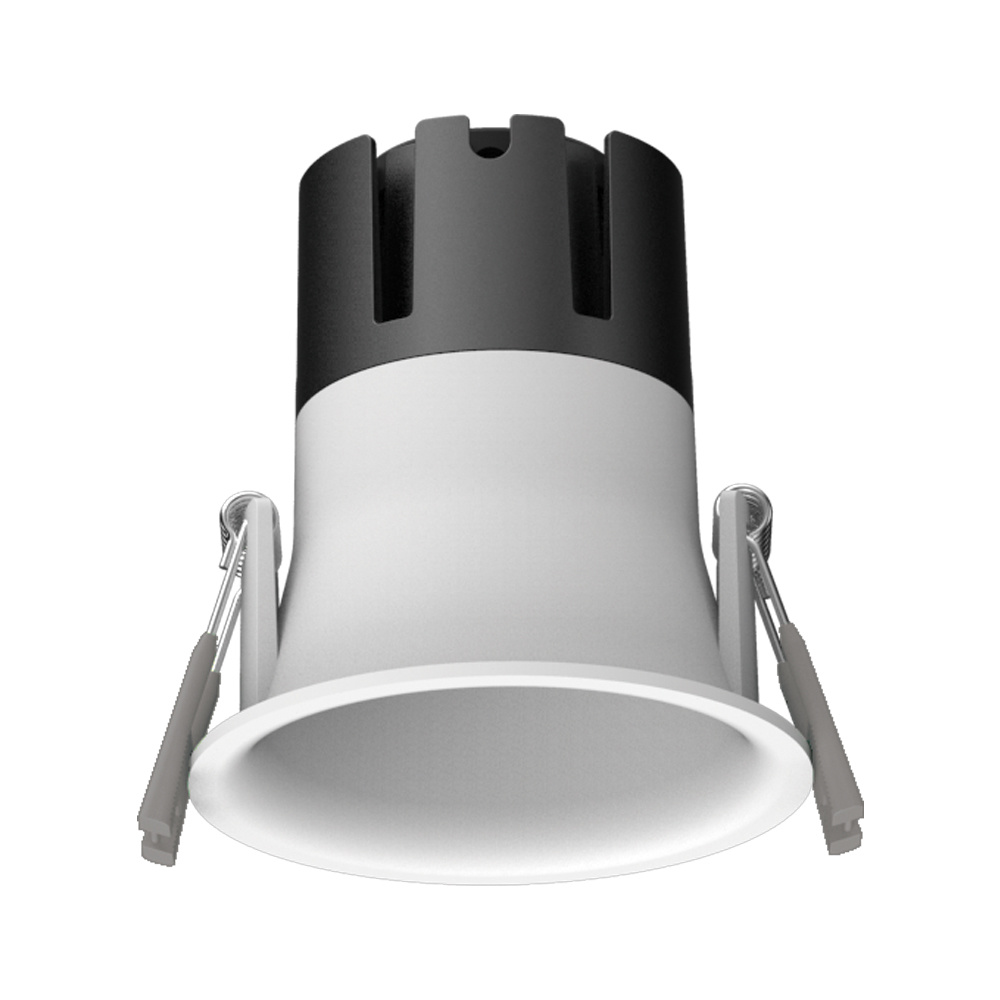

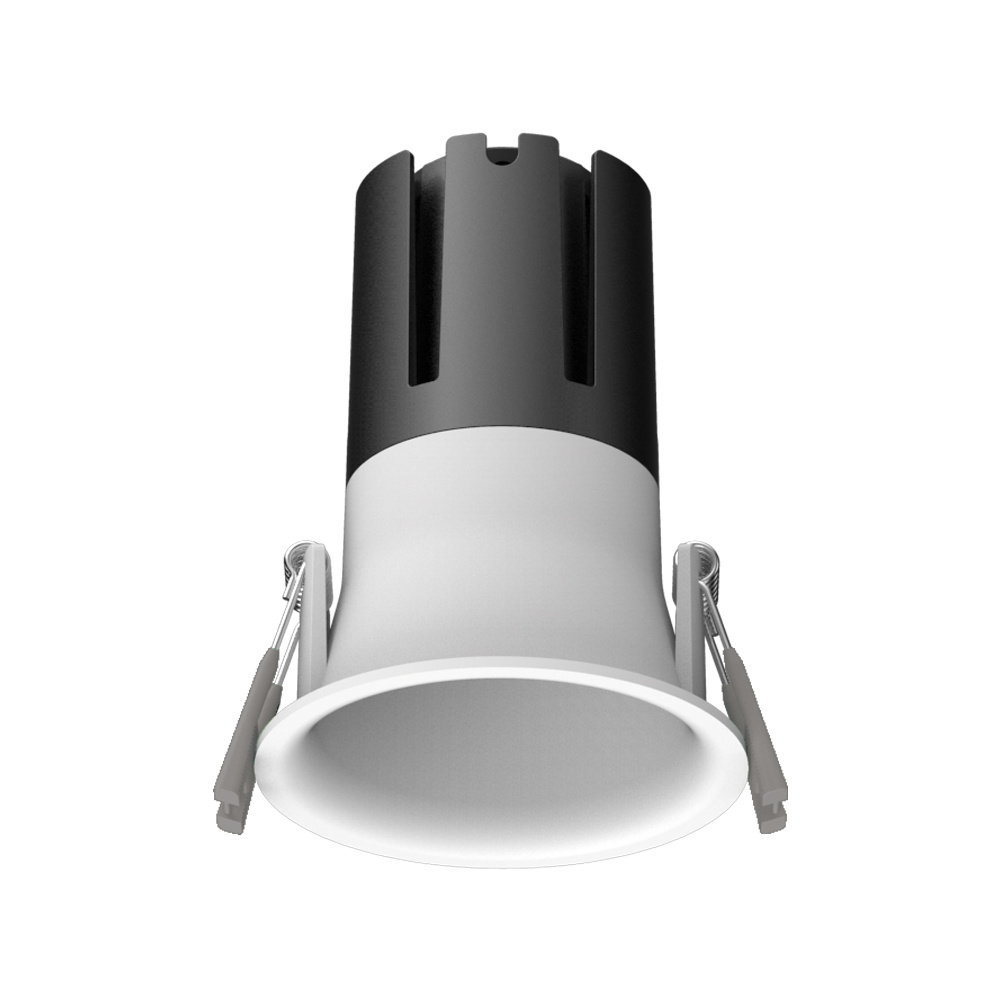

DAVIS-L&N

7W~15W IP44

RECESSED SPOTLIGHTS

Deep reflector to controlled Glare which helps control the beam angle, minimize glare, and deliver soft yet precise illumination.
The design combines practicality with aesthetics, making it suitable for residential, commercial, and architectural lighting applications.
Optional honeycomb mesh provides zero-glare effect
The design combines practicality with aesthetics, making it suitable for residential, commercial, and architectural lighting applications.
Remoted-Type 1-10V, DALI,control gear.

Technical Data

Luminaire Type-安裝方式Tipo de luminaria

Recessed Fixted Mount Type

嵌入式固定安裝類型
Dimension-尺寸-Dimensión

Cut off Dimension-開孔尺寸-Cortar Dimensión
- DIA 85 x H: 90mm Cut off: Dia 75-80 mm
- DIA 88 x H: 113mm Cut off: Dia 75-80 mm
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ or Refer to LED Driver data sheet
Power Consumption Max-燈具功率

Consumo de energía Max
- DIA 85 x H: 90mm : 7 W 9W
- DIA 88 x H: 113mm : 12W 15W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC220-240V 50/60HZ

3. 0-10V Dimming Driver AC220-240V 50/60HZ

4. Dali Dimming Driver AC220-240V 50/60HZ

5. DMX Driver AC220-240V 50/60HZ

6. RDM Driver AC220-240V 50/60HZ

7. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features

驅動特性 Funciones del controlador de LED

POWER FACTOR : PF>0.90 @ Full Load

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議

Protocolo de Control

1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle 光束角 ángulo de haz

9° 12° 15° 24° 30° 33° 36° 50°
Light Source 光源-Fuente de luz de marca

CREE COB Array
"Lumen Maintenance LM-80 Reported by TM-21"

L70> 54,000 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫-Temperatura del color

2700K / 3000K / 3500K / 4000K / 5000K /6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática

> 90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy 燈具效率

La eficacia de la luminaria

110 Lm/w(2700K), 110 Lm/w(3000K), 125 Lm/w(3500K), 125 Lm/w(4000K), 125Lm/w(5000K), 1250Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

130 Lm/w(2700K), 130Lm/w(3000K), 140 Lm/w(3500K), 140 Lm/w(4000K), 140Lm/w(5000K), 140Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminum body and reflector

壓鑄鋁製外殼和反射器
Trim Color-框邊顏色-Estilo Color

Matte white / Matte black 啞光白色 / 啞光黑色 Blanco mate / Matte black
Ingress Protection-防護等級

Protección de ingreso

IP20

IP44
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Comply Testing Standard符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC/EN 60598-1 ; IEC/EN 60598-2-2 ; IEC/ EN62493 ; IEC/EN 62301 ; IEC TR 62778 & IEC 62471 ;ROHS

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547 /IEC 62384
