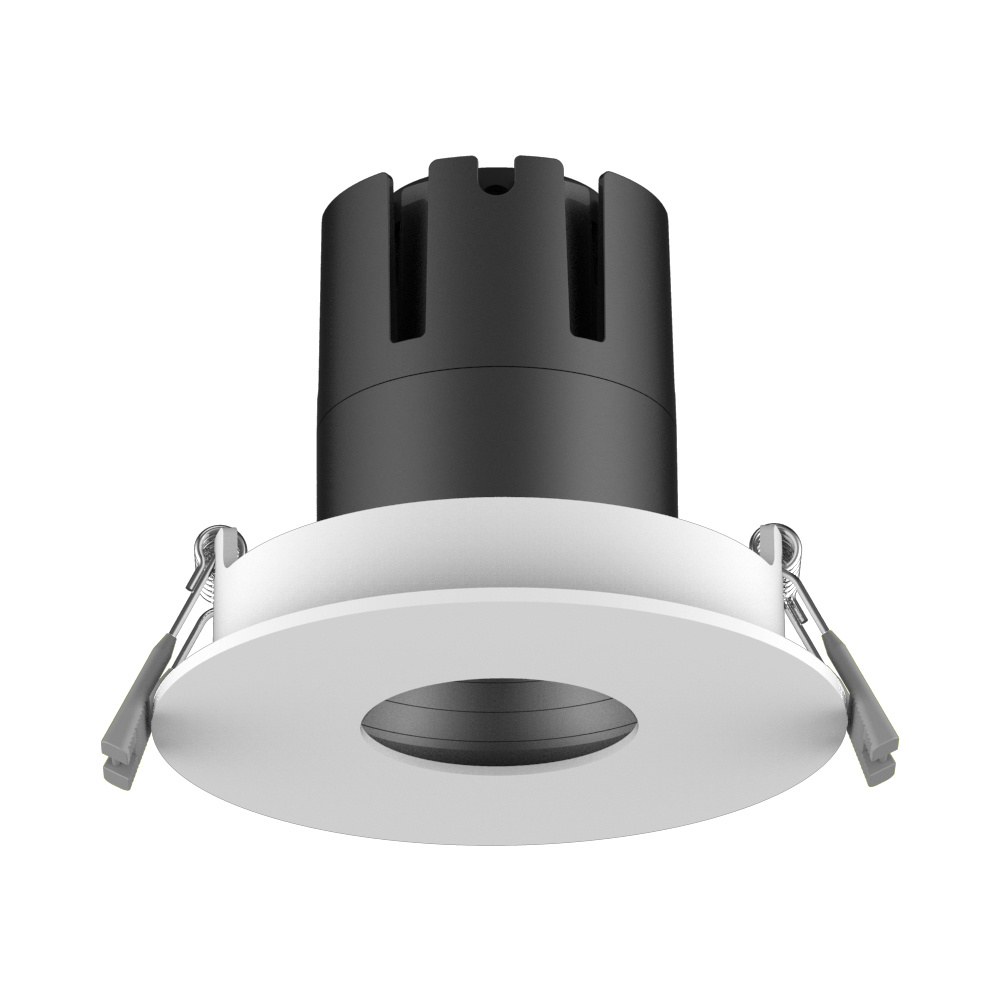

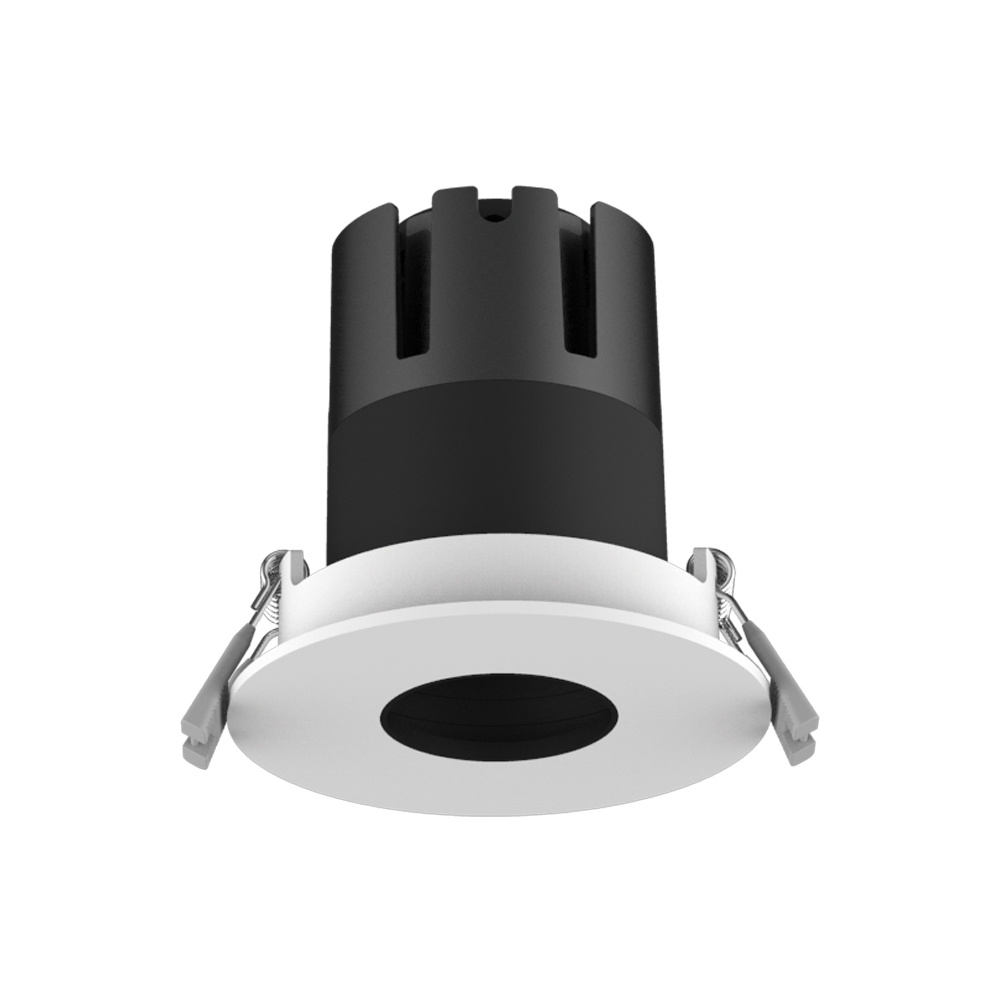

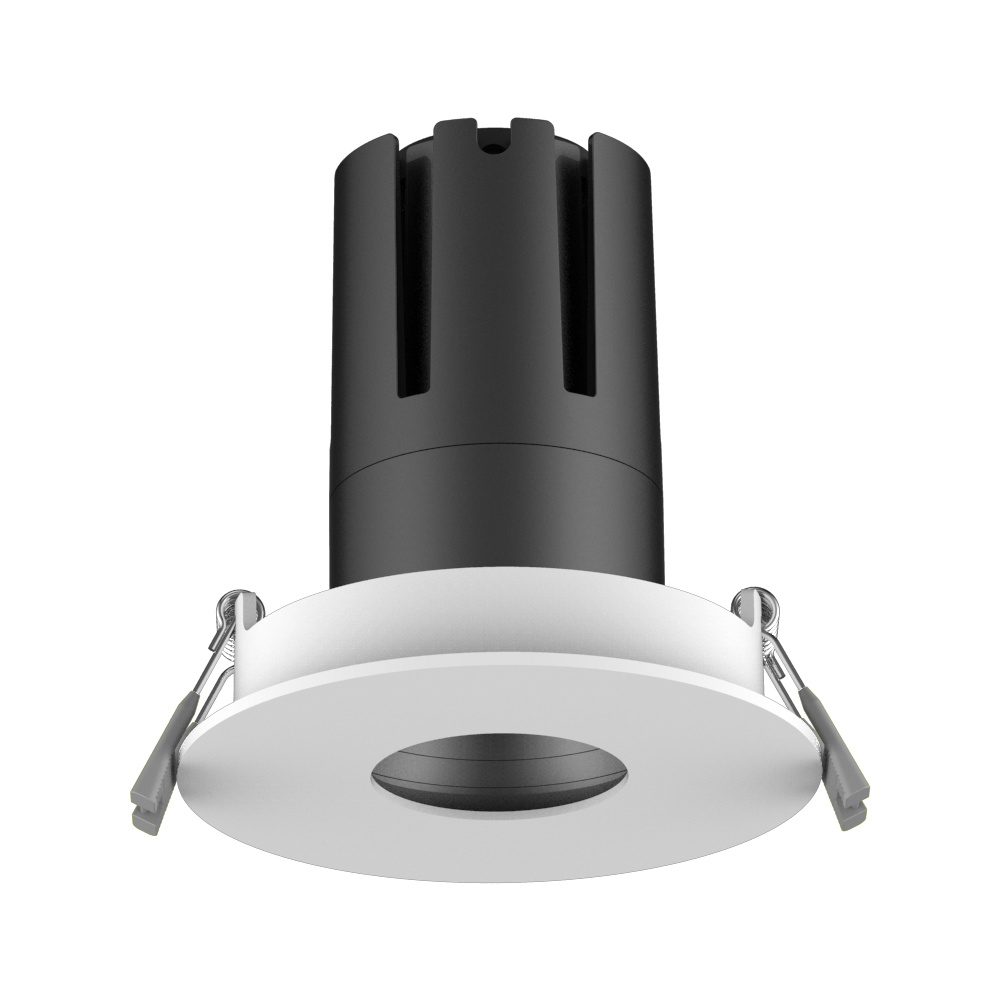

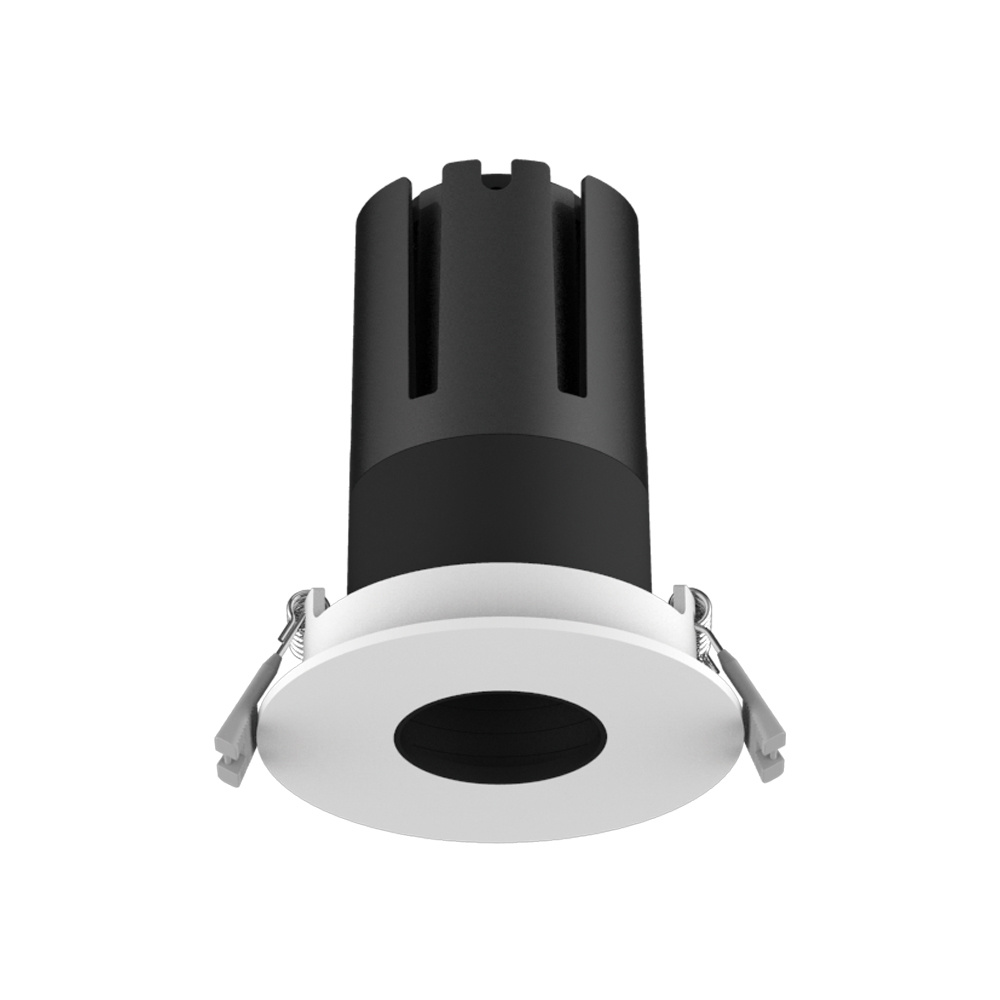

DAVIS-Q

6W~12W IP44
RECESSED SPOTLIGHTS
  • The downlight incorporates a pinhole feature, which helps control the beam angle, minimize glare, and deliver soft yet precise illumination.
  • The design combines practicality with aesthetics, making it suitable for residential, commercial, and architectural lighting applications.
  • Optional honeycomb mesh provides zero-glare effect
  • The design combines practicality with aesthetics, making it suitable for residential, commercial, and architectural lighting applications.

Technical Data

  • Luminaire Type-安裝方式Tipo de luminaria

    Recessed  Fixted Mount Type

    嵌入式固定安裝類型

  • Dimension-尺寸-Dimensión

    Cut off Dimension-開孔尺寸-Cortar Dimensión

    DIA 88 x H: 85mm         Cut off: Dia 75-80 mm

    DIA 88 x H: 108mm       Cut off: Dia 75-80 mm

    DIA 105 x H: 85mm         Cut off: Dia 90-95 mm

    DIA 105 x H: 108mm       Cut off: Dia 90-95 mm



  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60HZ or Refer to LED Driver data sheet

  • Power Consumption Max-燈具功率

    Consumo de energía Max

    DIA 88 x H: 85mm          : 6W      9W

    DIA 88 x H: 108mm        :  12W      15W

    DIA 105 x H: 85mm        :  6W      9W

    DIA 105 x H: 108mm     :  12W      15W

  • LED Driver Type

    LED驅動款式

    Tipo de controlador LED



    Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC220-240V 50/60HZ

    3. 0-10V Dimming Driver AC220-240V 50/60HZ

    4. Dali Dimming Driver AC220-240V 50/60HZ

    5. DMX Driver AC220-240V 50/60HZ

    6. RDM Driver  AC220-240V 50/60HZ

    7. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia

  • LED Driver Features

    驅動特性 Funciones del controlador de LED

    POWER FACTOR : PF>0.90 @ Full Load

    TOTAL HARMONIC DISTORTION: THD< 20%   /  LIFE HOUR : 50,000 Hours

  • Control Protocol-控制協議

    Protocolo de Control

    1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control

  • Beam Angle 光束角 ángulo de haz

    9°      12°       15°      24°     30°      33°       36°      50°

  • Light Source 光源-Fuente de luz de marca

    OSRAM COB Array

  • "Lumen Maintenance LM-80 Reported by TM-21"

    L70> 54,000 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫-Temperatura del color

    2700K / 3000K / 3500K  / 4000K / 5000K /6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 90

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse

    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy 燈具效率

    La eficacia de la luminaria

    90 Lm/w(2700K), 100 Lm/w(3000K),   110 Lm/w(3500K), 110 Lm/w(4000K), 110Lm/w(5000K), 110Lm/w(6500K),

  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    130 Lm/w(2700K), 130Lm/w(3000K),   140 Lm/w(3500K), 140 Lm/w(4000K), 140Lm/w(5000K), 140Lm/w(6500K),

  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminum body and reflector
    壓鑄鋁製外殼和反射器

  • Trim Color-框邊顏色-Estilo Color

    Matte white / Matte black 啞光白色 / 啞光黑色 Blanco mate / Matte black

  • Ingress Protection-防護等級

    Protección de ingreso

    IP20

    IP44

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC/EN 60598-1 ; IEC/EN 60598-2-2 ;  IEC/ EN62493 ; IEC/EN 62301 ; IEC TR 62778 & IEC 62471 ;ROHS

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547 /IEC 62384

  • Certification-認證-Certificación

Specification Code

Example Product Code:
DAVIS-Q-12W
DAVIS-Q
-
Power Consumption

Power Consumption

  • 6W
    6W @ DIA 88 x H: 85mm
  • 9W
    9W @ DIA 88 x H: 85mm
  • 12W
    12W @ DIA 88 x H: 108mm
  • 15W
    15W @ DIA 88 x H: 108mm
  • 6W
    6W@DIA 105 x H: 85mm
  • 9W
    9W@DIA 105 x H: 85mm
  • 12W
    12W@DIA 105 x H: 108mm
  • 15W
    15W@DIA 105 x H: 108mm
