DEGSON-G4

Dia 93 - Dia 225mm Max. 40W IP20

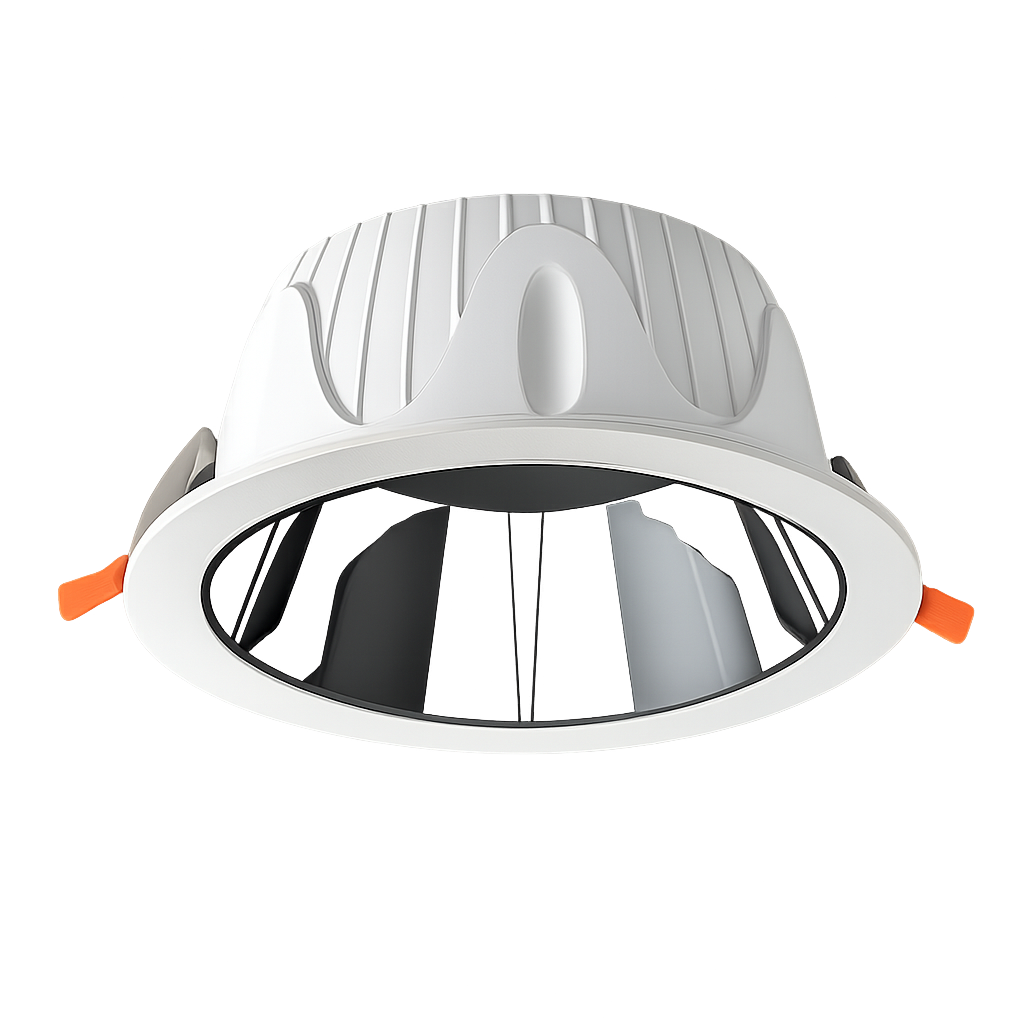

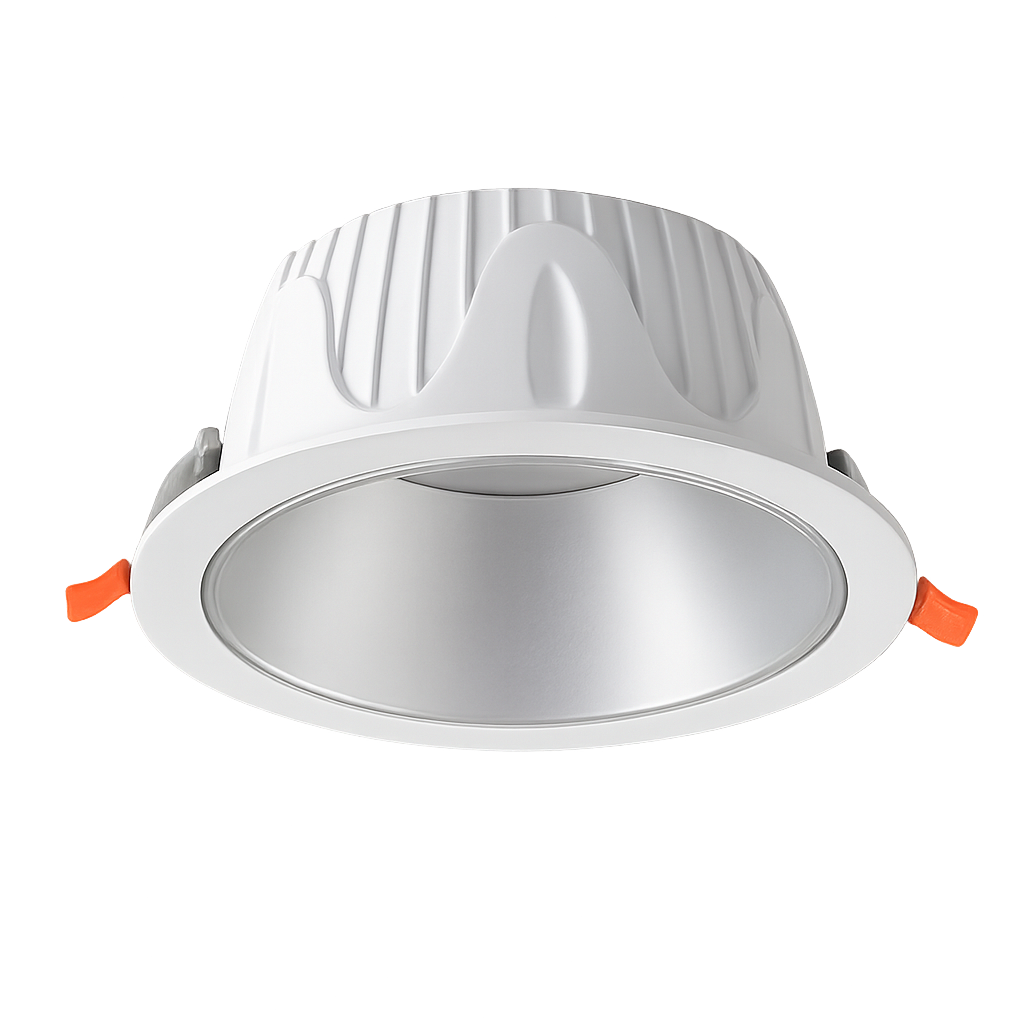

LED RECESSED LOW GLARE DOWN LIGHT

High lumen efficiency.
Reflector color options: bright silver, matt white, matt black
Dimming way: DALI, 0/1-10V.

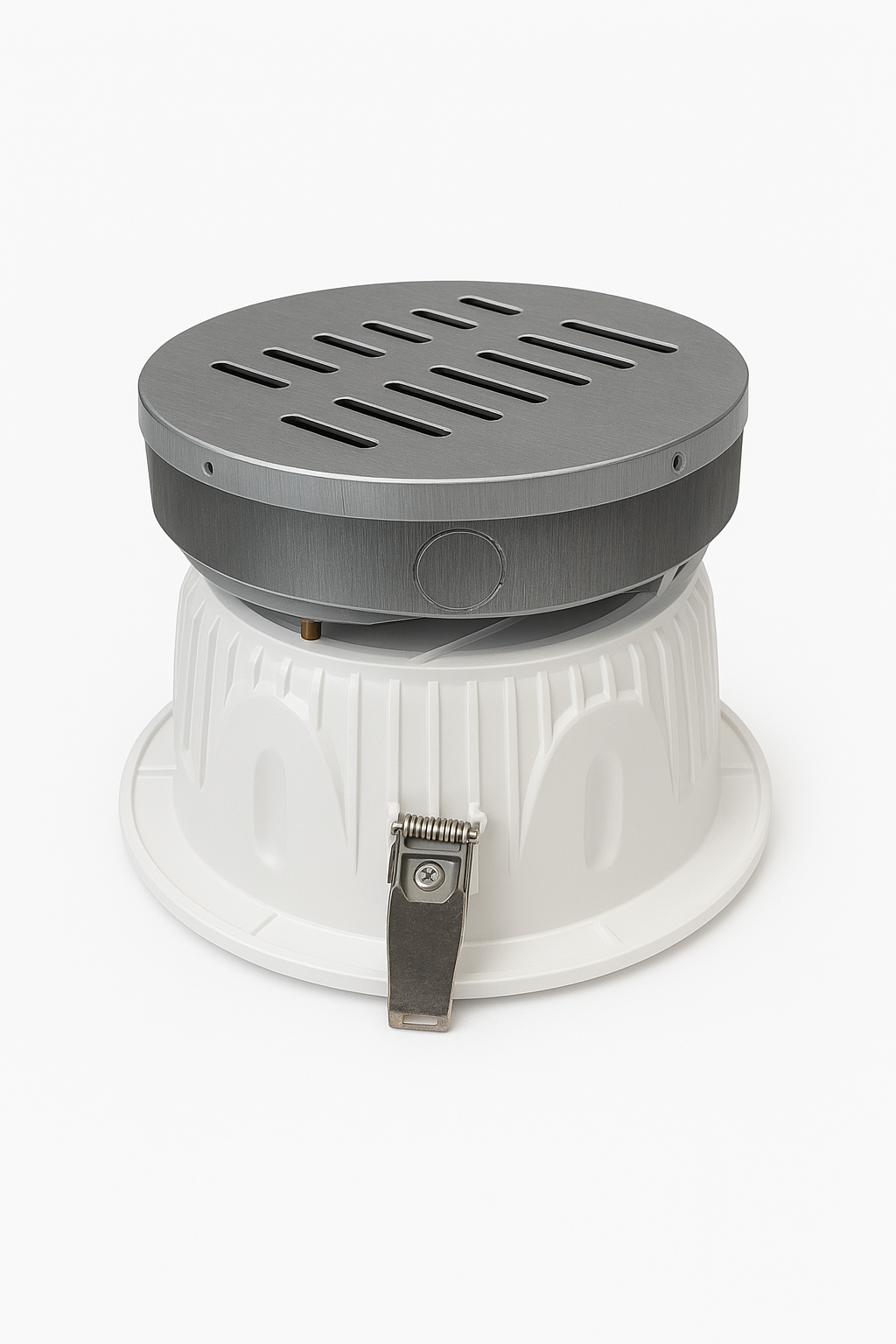

External flicker free driver.
ADC12 Aluminum profile provides excellent thermal dissipation.

Application Areas: It is designed for general lighting applications in offices, supermarkets, shops, schools, hotels, etc. It is also widely used for public areas, such as stairways, lobbies, reception, corridors, etc

Technical Data

Installation method / 安裝方式 / Método de instalación

Recessed Mount / 嵌入式 Recessed Mount
Dimension / 尺寸 / Dimensión

Cut off Dimension / 開孔尺寸 / Cortar Dimensión

Dia: 93 x H: 46 mm, Cut off: Dia 75 mm

Dia: 112 x H: 53 mm, Cut off: Dia 90 mm

Dia: 135 x H: 65 mm, Cut off: Dia 110mm

Dia: 163 x H: 75 mm, Cut off: Dia 135mm

Dia: 192 x H: 85 mm, Cut off: Dia 160 mm

Dia: 225 x H:105 mm, Cut off: Dia 190 mm
Input Voltage / 輸入電壓 / Voltaje de entrada

AC220-240V 50/60HZ
Power Consumption / 燈具功率

Consumo de energía

Dia: 93 mm 5W 7W

Dia: 112 mm 7W 9W

Dia: 135 mm 10W 12W

Dia: 163 mm 12W 15W 18W 20W

Dia: 192 mm 22W 24W

Dia: 225 mm 28W 30W 35W 40W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote Type LED Driver-Constant Current LED Driver:

Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC 220-240V 50/60HZ

2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

3. 0/1-10V Dimming Driver  AC220-240V 50/60HZ

4. DALI Dimming Driver AC220-240V 50/60HZ or Tunable White controlled by DALI Dimming Only

5. Zigbee Wireless Control Driver  AC220-240V 50/60HZ

6. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia
Power Factor / 功率因數 / Factor de potencia

THD / 總諧波失真 / Distorsión armónica total

PF>0.9

THD<15%
Beam Angle / 光束角 / ángulo de haz

80°
Light Source Brand / 光源品牌 / Fuente de luz de marca

Osram / CREE
Lumen Maintenance LM-80 Reported by TM-21 @ 25°C

L70 > 54,000 Hours
LED Life / LED壽命 / La vida del LED

>100,000 Hours
Color Temperature / 色溫 / Temperatura del color

2700K / 3000K / 3500K / 4000K / 5000K / 6000K / 6500K

TW: Tunable White (2700K-6500K)
Color Rendering Index / 顯色指數

Índice de reproducción cromática

>80

>90
Chromaticity Tolerance (initial Macadam)

色度容差（初始Macadam）

Tolerancia de cromaticidad (Macadam inicial)

Standard Deviation Colour Matching < 5 SDCM

標準偏差配色< 5 SDCM

Coincidencia de color estándar Desviación < 5 SDCM
Luminaire Efficacy / 燈具效率

La eficacia de la luminaria

100 LM/W (2700K) 105 LM/W (3000K & 3500K) 110 LM/W(4000K)

120 LM/W (5000K) 120 LM/W (6000K) 120LM/W (6500K) 110 LM/W (TW)
LED Source Luminous Efficacy / LED光源光效

Fuente luminosa LED Eficacia

140 LM/W (2700K) 150 LM/W (3000K & 3500K) 150 LM/W(4000K)

160 LM/W (5000K) 160 LM/W (6000K) 120LM/W (6500K) 150 LM/W (TW)
Housing materials / 外殼材料

Materiales de la carcasa

Die-cast aluminum / Milky Polycarbonate Diffuser

壓鑄鋁和乳白色PC
Trim Color / 框邊顏色 / Estilo Color

Matte white / Matte black

啞光白色 / 啞光黑色

Blanco mate / Matte black

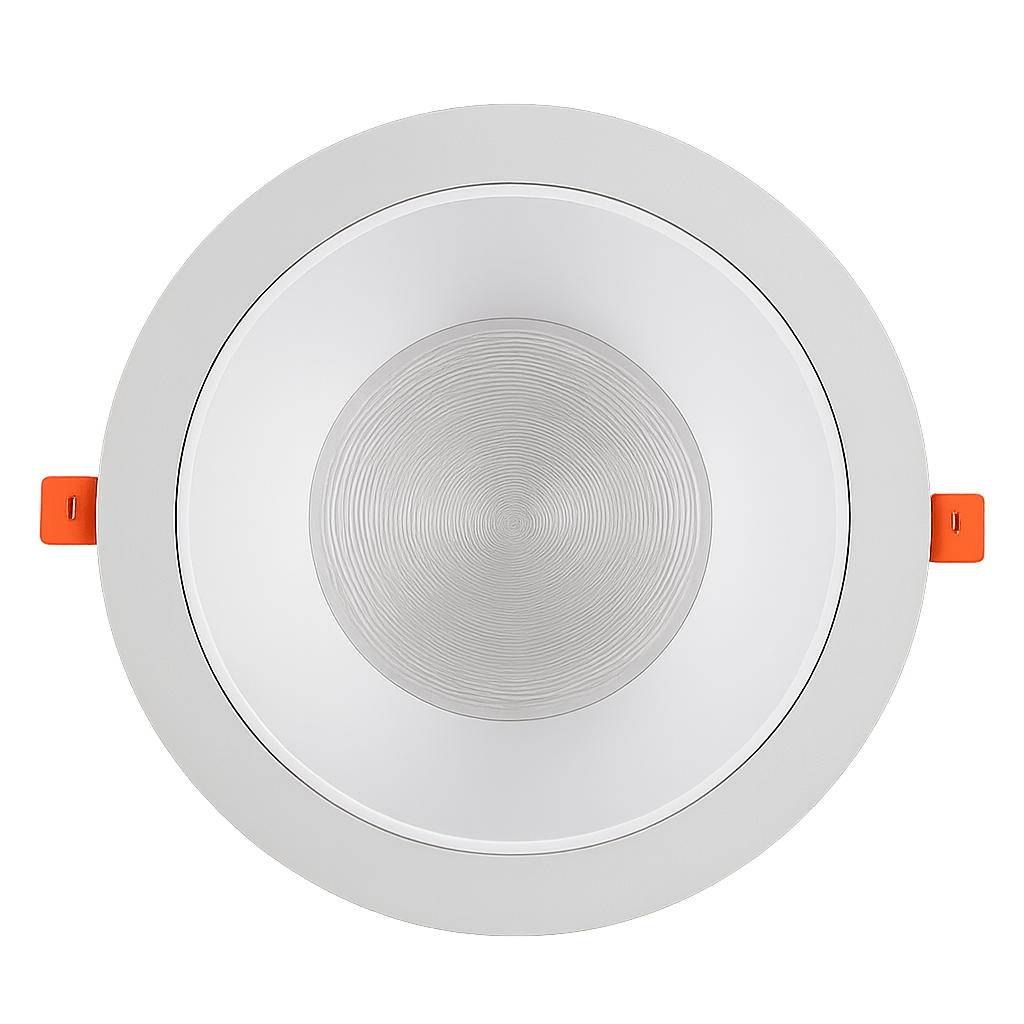

Reflector Color / 反光杯顏色

Reflector color
Specular 亮銀 De espejo / Chrome Black 鉻黑 Cromo negro / White 白色 Blanco

Matt Sliver 啞銀 Plata mate / Black 黑色 Negro / Gold 金色 Oro
Ingress Protection / 防護等級

Protección de ingreso

IP20
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +45 °C
Operating Humidity / 工作濕度

Humedad de funcionamiento

0~90%, non-condensing / 不結霜

sin condensación
Comply Testing Standard

符合測試標準 Cumplir el estándar de prueba

LED Luminaires: IEC/EN 60598-1 ; IEC/EN 60598-2-2 ; IEC/ EN62493 ; IEC/EN 62301 ; IEC TR 62778 & IEC 62471 ;ROHS

LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547
