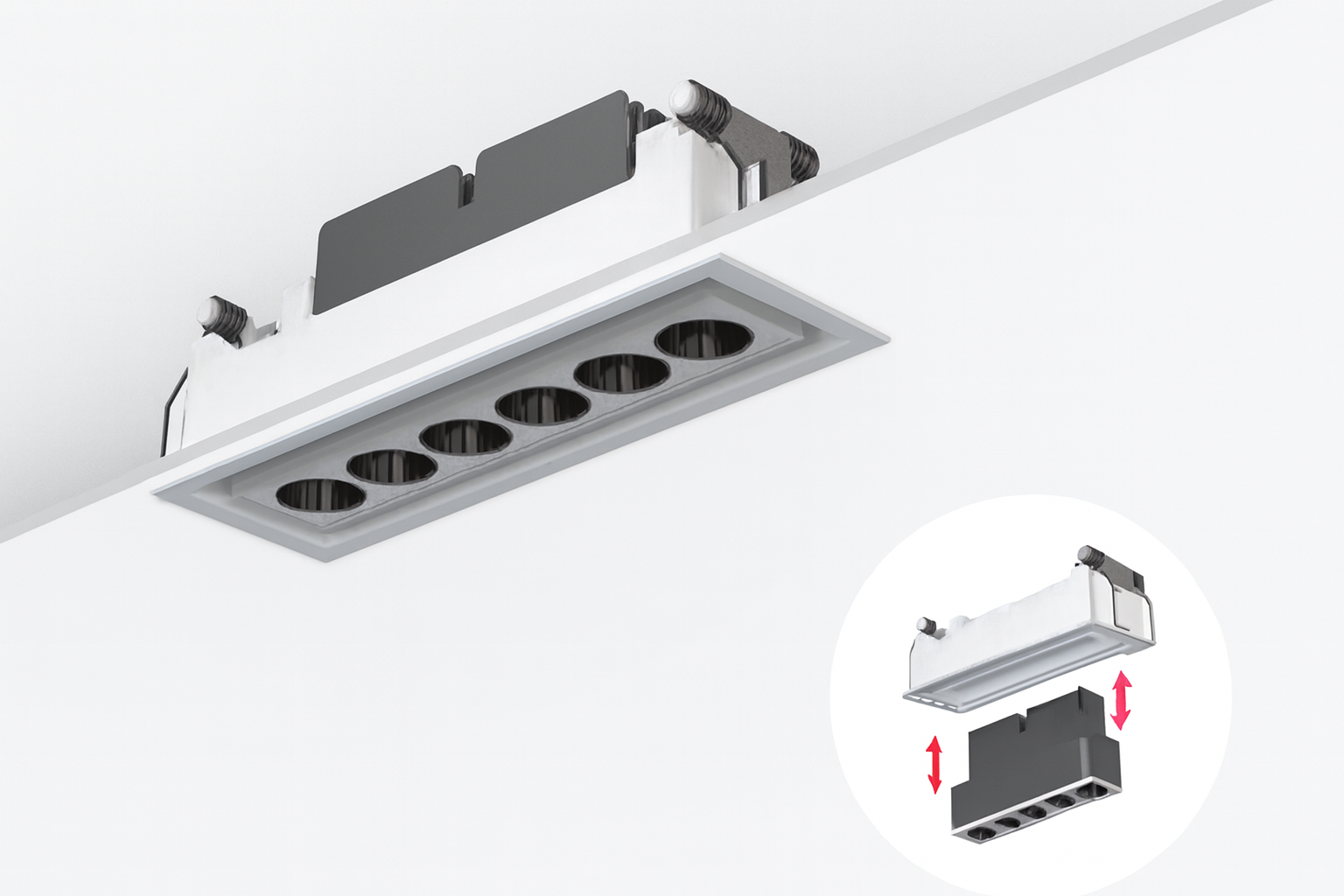

Replaceable Housing
Adopt high lumen efficiency SMD LED with even light output, aluminum light body providing excellent thermal management.
LED module: SMD LEDs, CRI>80, LM-80 performance approval >50,000 hours.
Remoted-Type 0-10V, DALI, and LED constant current control gear.
Luminaire Type-安裝方式
Tipo de luminaria
Recessed Mounting / 嵌入式安裝 / Montaje empotrado
Dimension-尺寸-Dimensión
OPTIONAL MODULES: L: 60 / L: 117 x W: 22 x H: 58mm
REPLACEABLE HOUSING KITS ( For L: 60mm 1X5W Max) :
L: 70 x W: 32 x H: 48mm Cut Out: L:63 x W:25mm
L: 85 x W: 46 x H: 48mm Cut Out: L:78 x W:38mm
L: 70 x W: 65 x H: 48mm Cut Out: L:67 x W:35mm
L: 80 x W: 76 x H: 48mm Cut Out: L:78 x W:45mm
REPLACEABLE HOUSING KITS ( For L: 117mm 1X10W Max) :
L: 127 x W: 32 x H: 48mm Cut Out: L:120 x W:25mm
L: 142 x W: 46 x H: 48mm Cut Out: L:135 x W:38mm
L: 122 x W: 70 x H: 48mm Cut Out: L:124 x W:35mm
L: 133 x W: 80 x H: 48mm Cut Out: L:135 x W:45mm
REPLACEABLE HOUSING KITS ( For L: 117mm 2X10W Max) :
L: 245 x W: 32 x H: 48mm Cut Out: L:240 x W:25mm
L: 259 x W: 46 x H: 48mm Cut Out: L:252 x W:38mm
L: 239 x W: 70 x H: 48mm Cut Out: L:241 x W:35mm
L: 251 x W: 80 x H: 48mm Cut Out: L:253 x W:45mm
Power Consumption Max-燈具功率
Consumo de energía Max
Input Voltage-輸入電壓-Voltaje de entrada
AC220-240V 50/60HZ
Power Factor / 功率因數/Factor de potencia
PF>0.9
Total Harmonic Distortion/總諧波失/Distorsión armónica total
THD<20%
LED Driver Type
LED驅動款式
Tipo de controlador LED
Remoted-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格
Consulte la especificación de controlador de LED
1. ON/OFF Switch AC220-240V 50/60HZ
3. 1 -10V Dimming Driver AC220-240V 50/60HZ
4. Dali Dimming Driver AC220-240V 50/60HZ
5. DMX Driver AC220-240V 50/60HZ
6. RDM Driver AC220-240V 50/60HZ
Control Protocol-控制協議Protocolo de Control
1-10V / Dali / DMX 512 / RDM / ZIGBEE Wireless Control
Beam Angle Combination
光束角組合
Combinación de ángulo de haz
20° 40°
Light Source Brand-光源品牌-Fuente de luz de marca
OSRAM
"Lumen Maintenance LM-80 Reported by TM-21"
L70 > 54000 hrs
LED Life-LED壽命-La vida del LED
>60,000 hours
Color Temperature -色溫 Temperatura del color
2700K / 3000K / 3500K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數
Índice de reproducción cromática
> 90
MacAdam Ellipses Binning 麥克亞當橢圓分級
Mac Adam binning elipse
Standard Deviation Colour Matching < 3 SDCM標準偏差配色< 3 SDCM
Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy燈具效率
La eficacia de la luminaria
70 Lm/w(2700K), 70 Lm/w(3000K&3500K),80 Lm/w(4000K), 850 Lm/w(5000K & 6500K)
LED Source Luminous EfficacyLED光源光效
Fuente luminosa LED Eficacia
130 Lm/w(2700K), 130 Lm/w(3000K&3500K),140 Lm/w(4000K), 150 Lm/w(5000K & 6500K)
Housing materials-外殼材料-Materiales de la carcasa
Die-casted Aluminium and Polycarbonate Reflector or Die-casted Aluminium and Polycarbonate Lens
壓鑄鋁和PC反射器 或壓鑄鋁和 PC透鏡
Housing Color-外殼顏色-color de la carcasa
Matte White / Matte black 啞光白色 / 啞光黑色 Blanco mate / Matte black
Reflector Color 反光板顏色Color del reflector
Chrom Black/ Matte White / Matte black/ Matte silver 鉻黑/ 啞白色 / 啞黑色 /啞銀色 Blanco mate / Matte black
Ingress Protection-防護等級 Protección de ingreso
IP20
Operating Humidity -工作濕度
Humedad de funcionamiento
0~90%, non-condensing-不結霜
sin condensación
Operating Temperature Range / 工作溫度範圍
Rango de temperatura de funcion amiento
-30 °C / +50 °C
Comply Testing Standard
符合測試標準
Cumplir el estándar de prueba
LED Luminaries: IEC 60598-1; IEC 60598-2-1;IEC62471;IEC 62031; IEC62493 ; IEC 62471
EMC: EN55015 ; IEC/EN 61000-3-2; IEC/EN 61000-3-3;IEC/EN61574 ; RoHS
LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;
IEC/EN 61000-3-3;IEC/EN61574;EN 55015 ; IEC /EN 62384
