LATARY-R

Dia 110-235mm Max 35W IP65

LED RECESSED DOWN LIGHT

LED down light with traditional deep reflector (UGR<19 ) that provides perfect combination of high lighting efficiency, comfortable lighting and humanization design, without compromising on light performance(color rendering and color uniformity); It offers a wide choice of options for creating the desired ambience. Housing: die-cast aluminium, powder-coated, designed as a heatsink. Anti-glare Sliver reflector and optical Lens to precise light distribution. LED module: , CRI>80 or >90 , LM-80 performance approval >50,000 hours. 0-10V, DALI.

Technical Data

Luminaire Type-安裝方式Tipo de luminaria

Recessed Mount Type嵌入式筒燈Empotrada Tipo Mount
Dimension-尺寸-Dimensión / mm

Cut off Dimension-開孔尺寸-Cortar Dimensión / mm
- Dia:110x51mm / Cut out: Dia: 90-95mm Dia:150x64 mm / Cut out: Dia: 125-140mm
- Dia:172x69 mm / Cut out: Dia: 150-165mm Dia:235x81mm / Cut out: Dia:200-220mm
Input Voltage-輸入電壓-Voltaje de entrada

AC220-240V 50/60HZ
Power Consumption Max-燈具功率

Consumo de energía Max
- Dia 110mm: 9W 11W 13W
- Dia:150mm: 11W 15W 18W 20W 25W
- Dia:172mm: 16W 22W 26W 30W
- Dia: 235mm: 19W 24W 28W 32W 35W
LED Driver Type

LED驅動款式

Tipo de controlador LED

Remote-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. ON/OFF Switch AC220-240V 50/60HZ

3. 0 -10V Dimming Driver AC220-240V 50/60HZ

4. Dali Dimming Driver AC100-240V 50/60HZ or Dali2 Dimming Driver AC100-240V 50/60HZ

5. DMX Driver AC220-240V 50/60HZ

6. Emergency Backup >2 hours or >3 hours @ < 12 charger hours應急電池/Copia de seguridad de emergencia
LED Driver Features Constant Current LED Driver:驅動特性-恆流LED驅動器

Funciones del controlador de LED

POWER FACTOR : PF>0.90 or PF >: 0.95 Refer to LED Driver data sheet

TOTAL HARMONIC DISTORTION: THD< 20%
Control Protocol-控制協議Protocolo de Control

1-10V / Dali / DMX 512 /

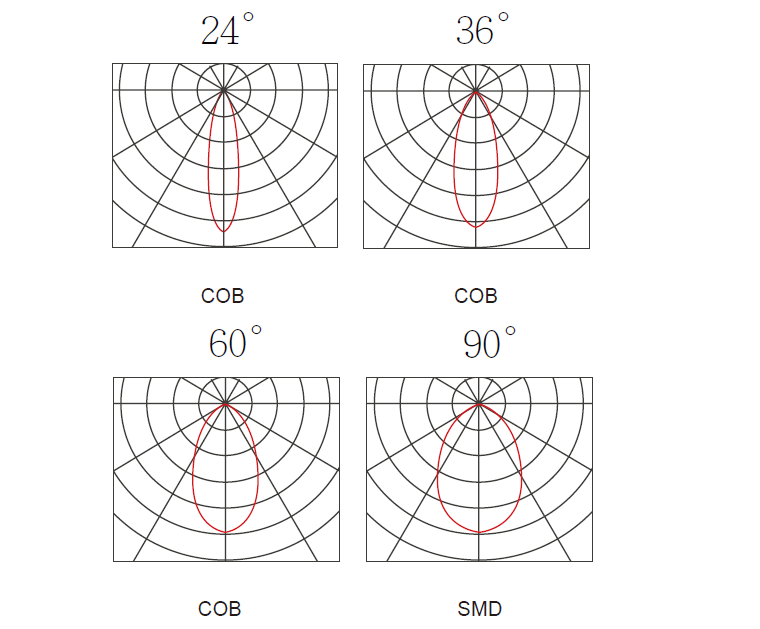

Beam Angle 光束角 /ángulo de haz
- 24° 36° 60° @ COB
- 90° @ SMD
Light Source Brand-光源品牌-Fuente de luz de marca

Citizen COB
"Lumen Maintenance LM-80 Reported by TM-21"@ 25°C

L70(10k) > 60,000 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature -色溫-Temperatura del color

2700K / 3000K / 4000K / 5000K / 6500K
Color Rendering Index-顯色指數

Índice de reproducción cromática
- > 80
Chromaticity Tolerance (initial Macadam)

色度容差（初始Macadam）

Tolerancia de cromaticidad (Macadam inicial)

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Luminaire Efficacy燈具效率

La eficacia de la luminaria
- 105 Lm/w(2700K), 105 Lm/w(3000K), 110 Lm/w(4000K),
- 115 Lm/w(5000K), 115 Lm/w(6500K),
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia
- 130 Lm/w(2700K), 130 Lm/w(3000K), 140 Lm/w(4000K),
- 150 Lm/w(5000K), 150 Lm/w(6500K),
Housing materials-外殼材料

Materiales de la carcasa

Die-cast aluminium with PMMA Lens and Polycarbonate Reflector

壓鑄鋁，PMMA鏡片和PC反射鏡

Aluminio fundido con lente de PMMA y reflector de policarbonato
Reflector反光杯Reflector
- Bright silver 亮銀Plata brillante Matt Silver 啞光銀 Plata mate
- Matt White 啞光白Blanco mate Matt Black 啞光黑Negro mate
Trim Color-框邊顏色-Estilo Color

Matte white / Matte black啞光白色 / 啞光黑色

Blanco mate / Matte black
Accessories 配件Accesorios
- Fully Frosted Tempered Glass Cover 全磨砂鋼化玻璃蓋Cubierta de vidrio completamente esmerilado
Ingress Protection-防護等級

Protección de ingreso

IP65
Mech impact protection機械衝擊保護

Protección contra impactos mecánicos
IK10
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C To +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Comply Testing Standard 符合測試標準

Cumplir el estándar de prueba

LED Luminaires: IEC/EN60598-1 ; EN60598-2-1 ;IEC/EN 62031 ;IEC/EN 62493;IEC TR62778 ; IEC62471; RoHS

LED Driver: EN 55015 / EN 61000-3-2 / EN 61347-1 / EN 61347-2-13 / EN 61547 / EN 62384
