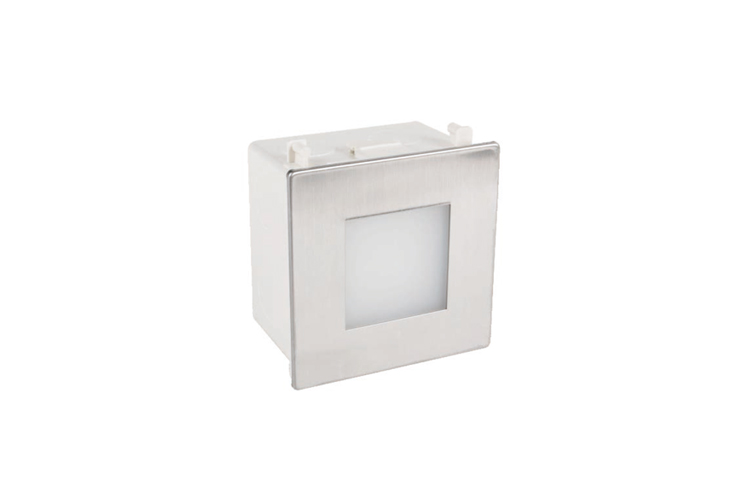

WARETY

WARETY
W70xL70xD50 mm 0.5W Max IP65
Recessed Wall Light Type

Housing: die-cast aluminium, powder-coated, designed as heat sink and ABS plastic recessed housing, stainless steel cover. Anti-glare reflector and diffusor system made of polycarbonate. LED module: CREE CRI>80 LM-80 performance approval >50,000 hours.Well balance light distribution and optimum lighting quality. Applications:schools,public buildings ,etc.It’s as well a great alternative to urban furniture due to its IP65 protection rating.

Technical Data

  • Luminaire Type-安裝方式-Tipo de luminaria



    Recessed Wall Light Type 嵌入式燈具 Tipo de Recessed

  • Dimension-尺寸-Dimensión

    W:70 x L:70 x D: 50 mm

  • Input Voltage-輸入電壓-Voltaje de entrada

    AC220-240V 50/60HZ



  • Power Consumption Max-燈具功率

    Consumo de energía Max

    0.5W

  • LED Driver Type LED驅動款式

    Tipo de controlador LED



    Integrated-type LED Driver--Refer to LED driver specification 請參閱LED驅動器規格

    Consulte la especificación de controlador de LED

    1. ON/OFF Switch  AC220-240V 50/60HZ

    2. ELV Dimming Driver (5-100%) AC 100-120V 50/60Hz or AC 200-240V 50/60HZ

    3. 0 -10V Dimming Driver  AC100-240V 50/60HZ

    4. Dali Dimming Driver AC100-240V 50/60HZ

    5. DMX Driver AC100-240V 50/60HZ

  • Control Protocol-控制協議

    Protocolo de Control

    0-10V / Dali / DMX 512

  • Beam Angle光束角ángulo de haz

    110°

  • Light Source Brand-光源品牌-Fuente de luz de marca

    CREE - ( Photobiological safety-IEC 62471 ‘Risk Group 1’ (low risk) )

  • "Lumen Maintenance LM-80 Reported by TM-21"

    1. L90(10k) = 50,700 hrs

    2. L80(10k) > 63,500 hrs

    3. L70(10k) > 63,500 hrs

  • LED Life-LED壽命-La vida del LED

    >60,000 hours

  • Color Temperature -色溫

    Temperatura del color

    2700K / 3000K / 4000K / 5000K / 6500K

  • Color Rendering Index-顯色指數

    Índice de reproducción cromática

    > 80

  • MacAdam Ellipses Binning

    麥克亞當橢圓分級

    Mac Adam binning elipse



    Standard Deviation Colour Matching < 3 SDCM

    標準偏差配色< 3 SDCM

    Coincidencia de color estándar Desviación < 3 SDCM

  • Luminaire Efficacy燈具效率

    La eficacia de la luminaria

    • 60 Lm/w(2700K),     60 Lm/w(3000K),     65 Lm/w(4000K),
    • 70 Lm/w(5000K),      70 Lm/w(6500K),
  • LED Source Luminous Efficacy LED光源光效

    Fuente luminosa LED Eficacia

    • 120 Lm/w(2700K),     120 Lm/w(3000K),     125 Lm/w(4000K),
    • 130 Lm/w(5000K),     130 Lm/w(6500K),
  • Housing materials-外殼材料

    Materiales de la carcasa

    Die-cast aluminium & Stainless steel & PC

  • Housing Color外殼顏色

    color de la carcasa

    Stainless Steel

  • Ingress Protection-防護等級

    Protección de ingreso

    IP65 - (IEC 60529)

  • Environment-使用環境-medio ambiente

    Outdoor

  • Operating Humidity -工作濕度

    Humedad de funcionamiento

    0~90%, non-condensing-不結霜

    sin condensación

  • Operating Temperature Range / 工作溫度範圍

    Rango de temperatura de funcion amiento

     -30 °C / +50 °C

  • Comply Testing Standard

    符合測試標準

    Cumplir el estándar de prueba

    LED Luminaires: IEC 60598-1 / IEC 60598-2-2 / Photometric data-IES format

    LED Driver: EN 55015 / IEC 61000-3-2 / IEC 61347-1 / IEC 61347-2-13 / IEC 61547

  • Certification-認證-Certificación

Specification Code

Example Product Code:
WARETY-0.5W
WARETY
-
0.5W

Power Consumption

  • 0.5W
    0.5W

Technical Drawing
