SOLAR-MSC

Solar Charge and Discharge Controller

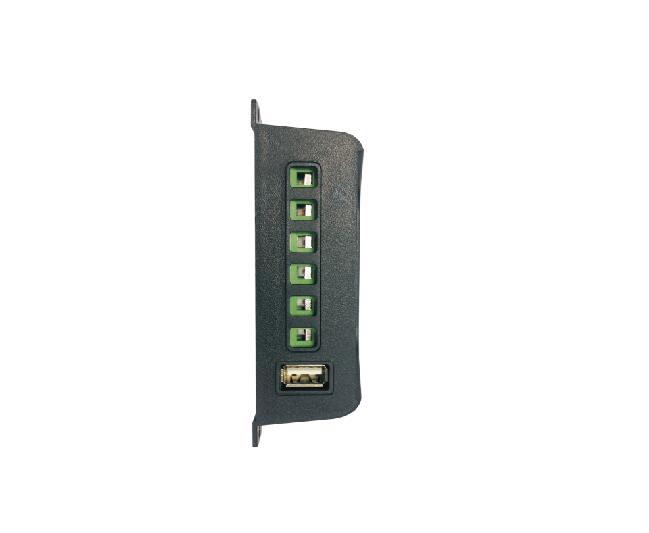

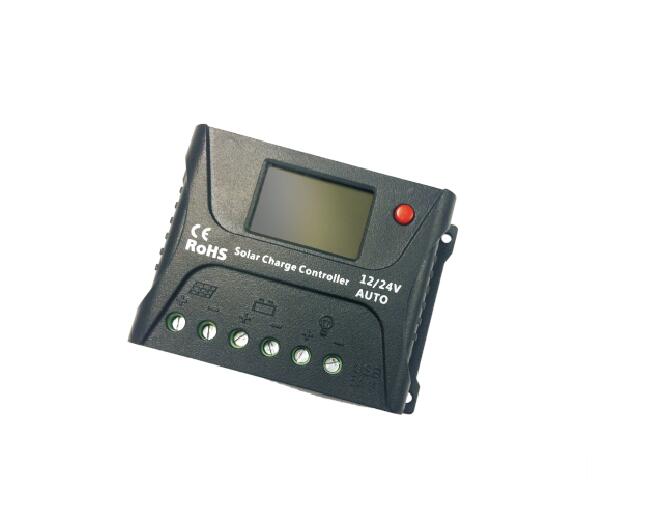

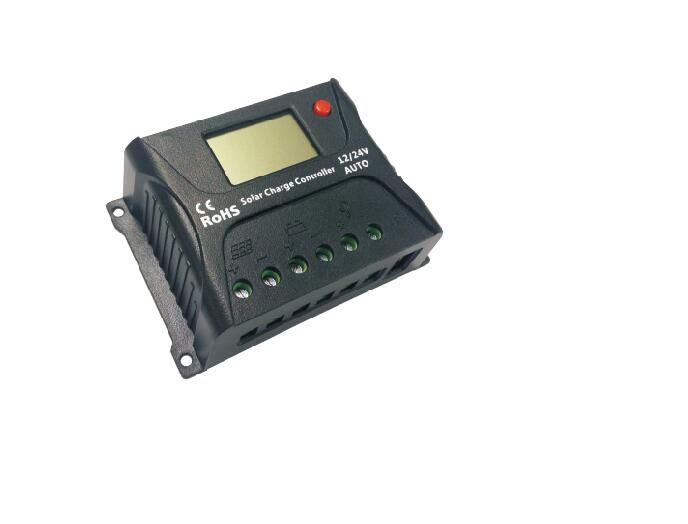

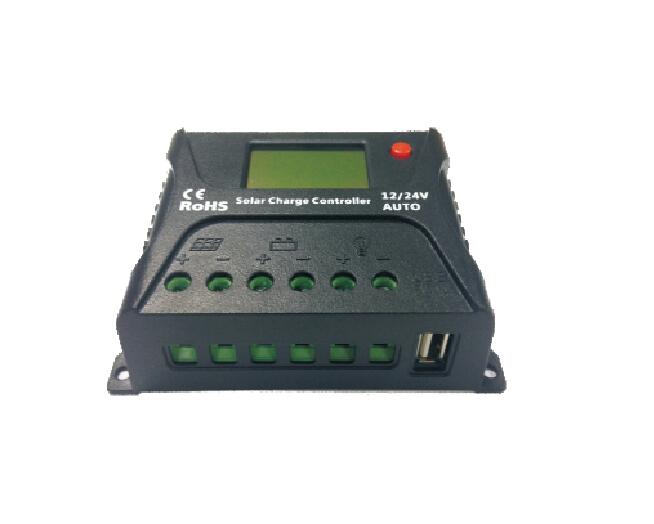

Solar Charge and Discharge Controller (MPPT)

        An upgraded 3-stage PWM charging algorithm is adopted. Application of an equalizing charging to the battery periodically or when over discharged, can effectively prevent the battery from non-equalization and sulfuration, thus extending the battery's service life.With temperature compensation employed, charging parameters can be automatically
adjusted.A wide range of load working modes facilitate the product's application to different types of load.By virtue of an advanced load starting method, large-capacitance loads can be started smoothly.The product provides a dot matrix graphic LCD screen and a human-machine interface with a key.Boasting an industrial grade design, the product can function well in various tough conditions.

Technical Data

  • System voltage (Auto)

    Automatic recognition of 12 V/ 24 V DC

  • No-load loss

    < 5mA/12V;< 9mA/24V

  • Rated current

    10A @ Solar-MSC10

    20A @ Solar-MSC20

  • Max. Solar energy input voltage

    <55V

  • Max. voltage at the battery end

    <35V

  • Overvoltage protection

    17.0V@12V Battery

    34.0V@24V Battery

  • Equalizing charging voltage

    14.6V@12V Battery

    29.2V@24V Battery

  • Boost charging voltage

    14.4V@12V Battery

    28.8V@24V Battery

  • Charging recovery voltage

    13.2V@12V Battery

    26.4V@24V Battery

  • Over-discharge recovery voltage

    12.6V@12V Battery

    25.2V@24V Battery

  • Over-discharge voltage

    11.1V@12V Battery

    22.2V@24V Battery

  • Equalizing charging interval

    7days

  • Equalizing charging time

    1H

  • Boost charging time

    2H

  • Temperature compensation

    -3.0mV/°C/2V

  • Light control voltage

    Light control on 5V@12V Battery

    Light control on 10V@24V Battery

    Light control off 6V, set value plus 1V

  • Light control judgment time

    1minute

  • Operating temperature

    -25°C  to +55 °C

  • IP protection degree

    IP30

  • Net weight

    100g @ Solar-MSC10

    160g @ Solar-MSC20

  • Product dimensions

    103×71×36(mm) @ Solar-MSC10

    130×75×38(mm) @ Solar-MSC20

  • Protection functions

    Solar panel short circuit and reverse-connection protection

    Over-temperature, overload and short circuit protection

  • Certification

Specification Code

Example Product Code:
Solar-MSC10
SOLAR-MSC-
-
Rated charging current

Rated charging current

  • 10
    10A
  • 20
    20A

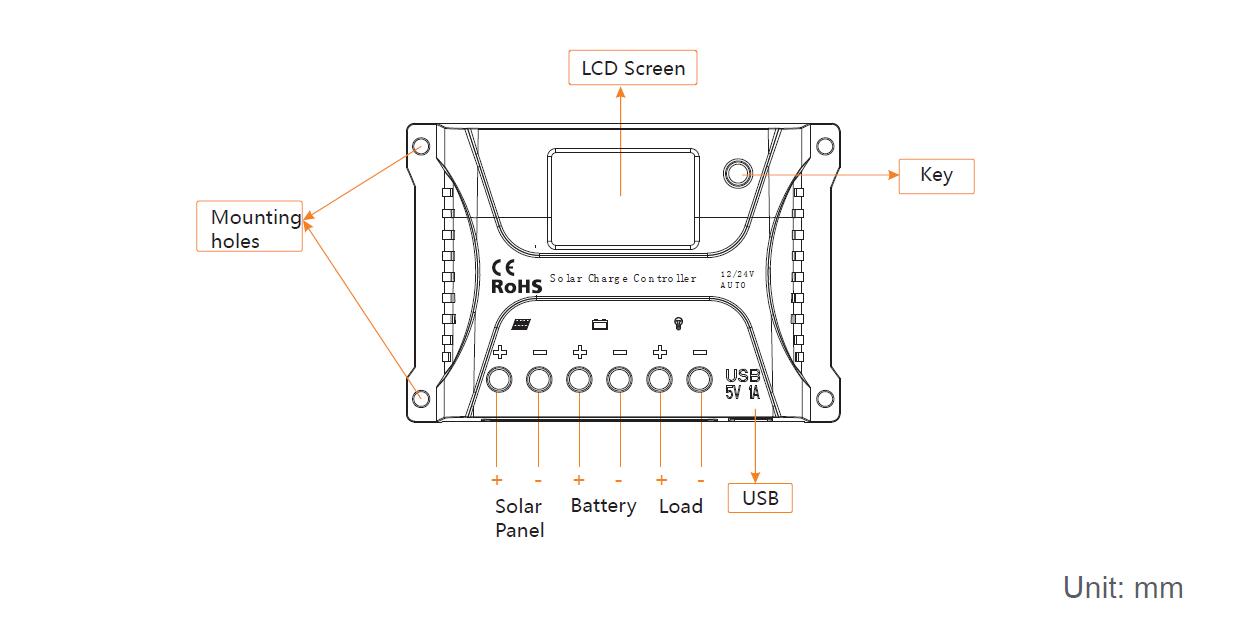

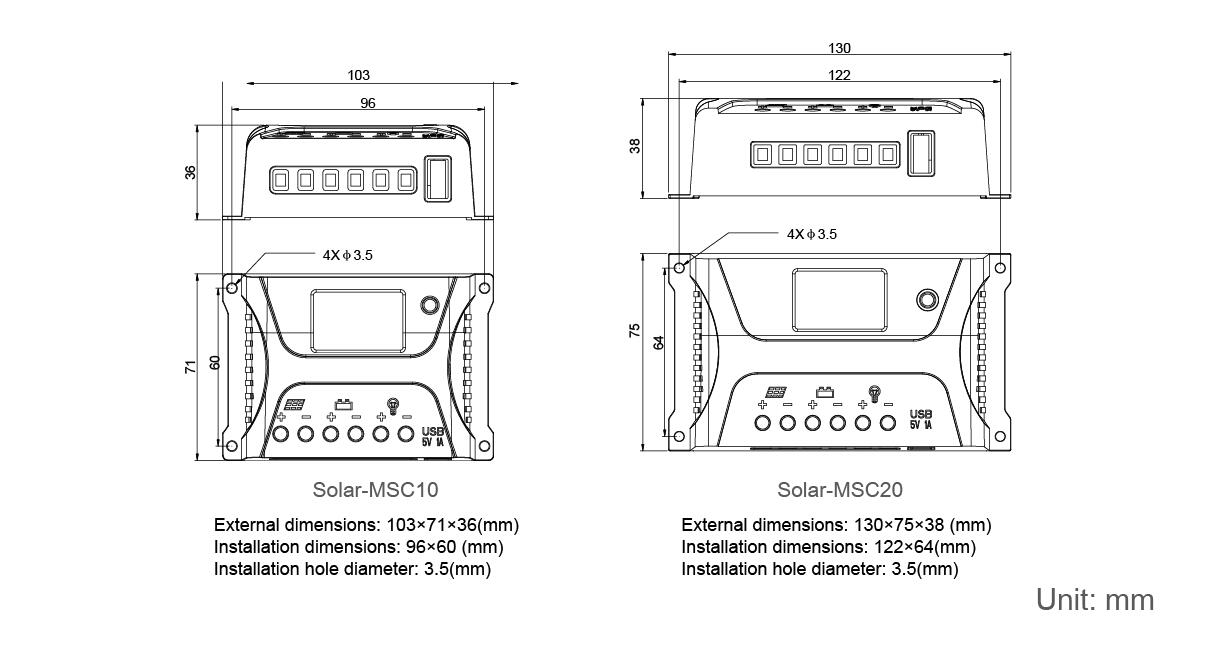

Technical Drawing

Wiring Drawing
