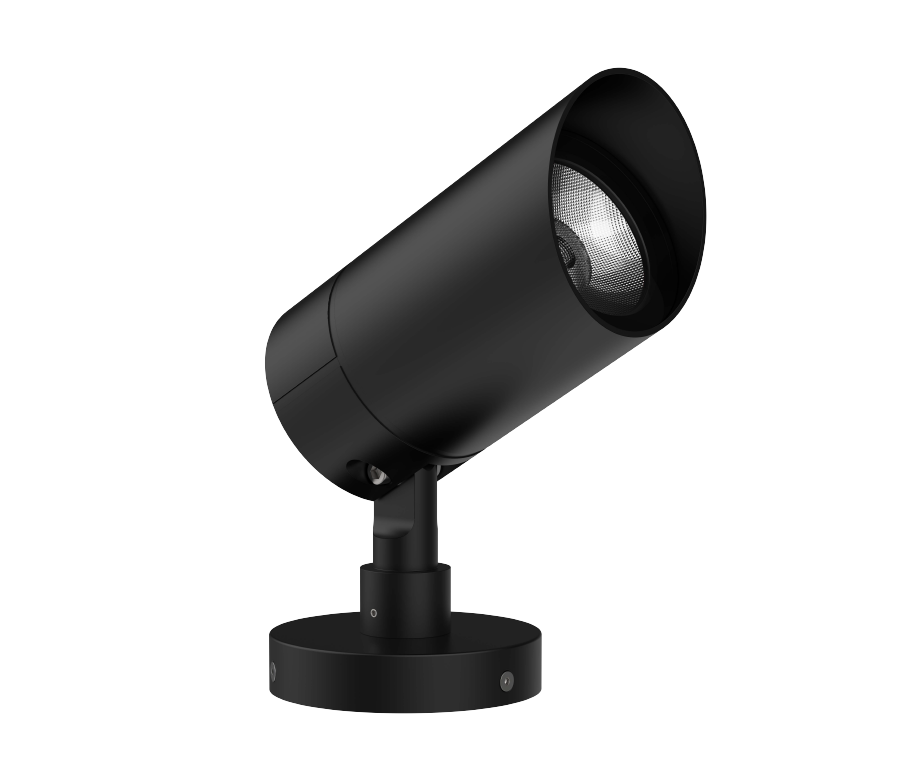

F-SPAMY

D45 D56 D69 D88 3W-18W

Surface / Spike / Tree / Wall / Pole / Spike & Pole Mounted

A very minimal dedicated and classical design, along with 24 kinds wide range of fixing options and accessories ensure it could be blended into all types of interior and exterior project applications.
To satisfy further lighting design requirements the compact it come with IP66, CRI90, SDCM<3, full CCT range white color LED engine, turnable white, RGB, RGBW.
Its features great anti glare performance snoot and depth illuminate design ensures excellent beam shape and soft edge, along with a wide advanced range of optics. Optional optical accessories like honeycomb louver and diffuses always optional
Furthermore, Grey, white and black finish in stock. if order quantity >300nos, it could be painted with customized RAL finishes.

Technical Data

Installation method

安裝方式

Método de instalación

Surface / Spike / Pole / Pole & Spike / Tree / Wall / Mounted

表面安裝 / 插地安裝 / 桿式安裝 / 桿釘式 / 環樹安裝 / 墻壁安裝

Superficie / Pico / Poste / Poste y pico / Árbol / Pared / Montado
Power Consumption with LED Driver

燈具包括LED驅動電源功率

Consumo de energía con controlador de LED

Dia 45mm 3W 5W

Dia 56mm 5W 7W

Dia 69mm 7W 9W 12W

Dia 88mm 12W 15W 18W
LED Type / LED類型 / Tipo de LED

COB / High Power SMD
Input Voltage / 輸入電壓

Voltaje de entrada

AC 220-240V / 50-60HZ

DC24V or DC24V + DMX512
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrade / Romte LED Driver-Refer to LED driver specification 參閱LED驅動器規格

Consulte la especificación de controlador de LED

1. DC24V

2. DC24V + DMX512

3. ON/OFF Switch AC220-240V 50/60HZ

4. 0-10V Dimming Driver AC220-240V 50/60HZ

5. DALI Dimming Driver AC220-240V 50/60HZ
Control Protocol / 控制協議

Protocolo de Control

DMX 512 / DALI / 0/1-10V
Light Source Brand / 光源品牌 / Fuente de luz de marca

CREE / Bridgelux / Tyanshine / Evercore
Lumen Maintenance LM-80 Reported by TM-21

L70 > 54000 Hours
LED Life / LED壽命 / La vida del LED

>100,000 Hours
Color Temperature and Color / 色溫和顏色

Temperatura y color del color

2700K 3000K 4000K 5000K 6500K

RGB RGBW(2700 / 3000 / 4000 / 5000 / 6500K)

Tunable White (2700-6500K)
Color Rendering Index / 顯色指數

Índice de reproducción cromáca

>80 or >90
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Beam Angle / 光束角 / ángulo de haz

COB: 15° 24° 36° 60°

SMD: 5° 8° 10° 15° 20° 25° 30° 40° 45° 60°
Luminaire Efficacy / 燈具效率

La eficacia de la luminaria

80 LM/W (2700K) 85 LM/W (3000K) 85 LM/W (4000K)

90 LM/W (5000K) 110 LM/W (6500K)

Adding Honeycomb Louver reduced it by approximately 25%.
LED Source Luminous Efficacy / LED光源光效

Fuente luminosa LED Eficacia

140 LM/W (2700K) 150 LM/W (3000K) 150 LM/W (4000K)

160 LM/W (5000K) 160 LM/W (6500K)
Housing materials / 外殼材料

Materiales de la carcasa

Die-cast aluminum and Clear Tempered Glass

壓鑄鋁和透明鋼化玻璃

Aluminio fundido a presión y vidrio templado transparente
Housing Color / 外殼顏色

color de la carcasa

Black, White and Grey

黑、白、灰

Negro, blanco y gris
Ingress Protection / 防護等級

Protección de ingreso

IP66
Impact protection / 衝擊保護

Protección contra impactos

IK07
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-20 °C / +45 °C
Operating Humidity / 工作濕度

Humedad de funcionamiento

0~100%, non-condensing / 不結霜

sin condensación
Dimension / 尺寸 / Dimensión

Refer to Technical Drawing 參閱圖紙 / Consulte el dibujo técnico
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: IEC / EN 60598-1;IEC/EN 60598-2-5; IEC TR62778 IEC62471 (RG1); IEC 62031; EN62493 RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2;

IEC/EN 61000-3-3;IEC/EN61574;EN 55015
