F-SPAMY- MINI

2W-18W IP66

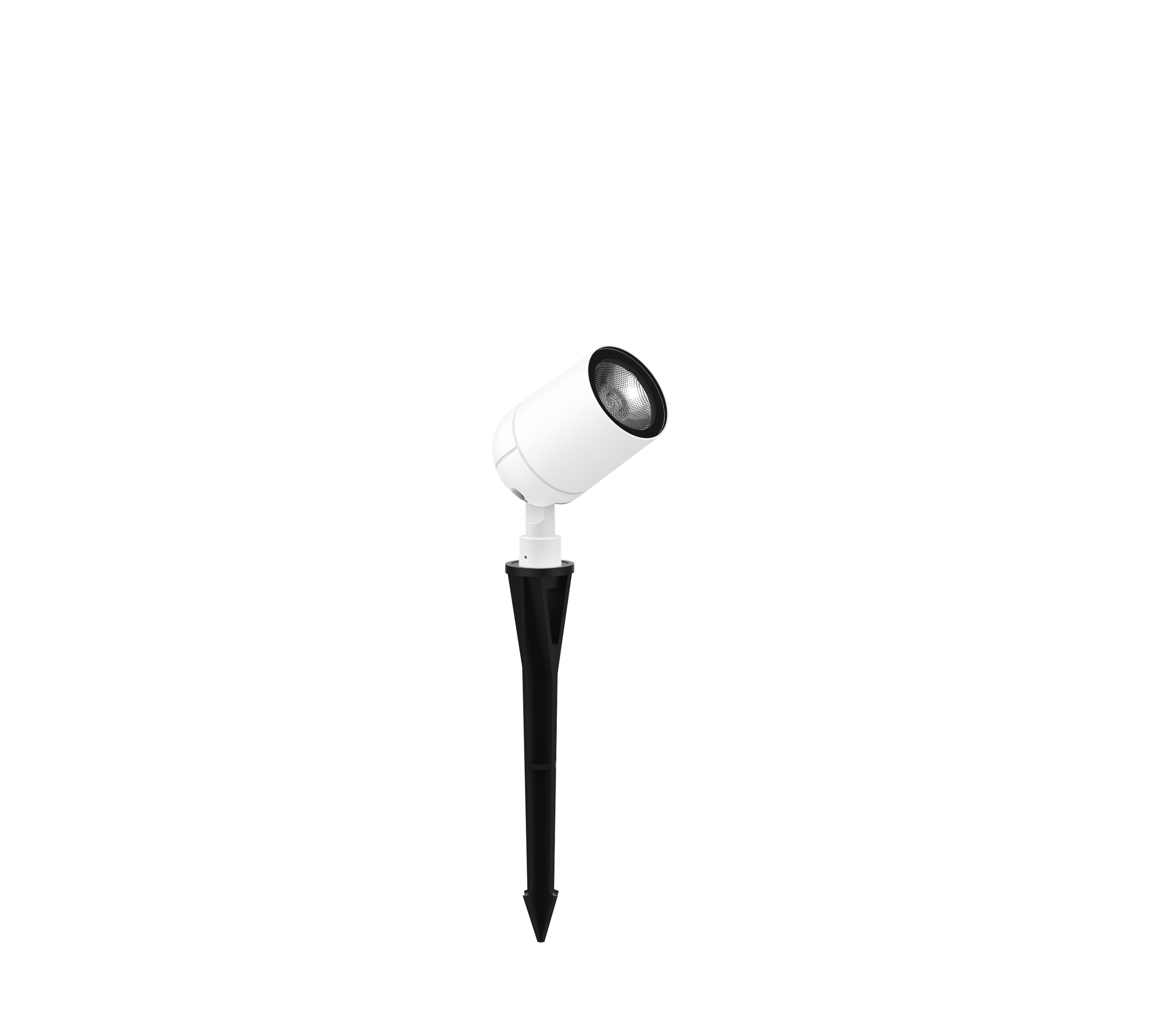

Spot & Spike & Rod mounted

Bracket & Spike & Wall & Rod & Tree mounted

Special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort.

Discreet and compact aesthetically designed architectural outdoor spotlight,ideal for glare-free accent lighting,floodlighting and wall washing in the outdoor area.

Corrosion-resistant adc12 # die-casting luminium body gives the luminaire good thermal conductivity,and large area connections between the rear of the housing and the

led's pcb ensure good heat conduction.

Technical Data

Luminaire Type-

安裝方式

Tipo de luminaria

Surface Mounted and Adjustable Type / Spike Mounted / Tree Mounted / Pole Mounted

表面安裝和可調型/釘裝/樹裝/桿裝

Montado en superficie y tipo ajustable / Montado en púas / Montado en árbol / Montado en poste
Power Consumption with LED Driver

LED燈具包括LED驅動電源功率

Consumo de energía con controlador de LED

Diameter: 35mm 2W (DC24V Only )

Diameter: 48mm 4W 6W 7W

Diameter: 68mm 9W 12W

Diameter: 88mm 15W 18W
QTY of LEDs-燈珠數量-CANT de LEDs

1pcs CREE COB
Input Voltage / 輸入電壓

Voltaje de entrada

220-240VAC/50-60HZ

DC24V DC24V + DMX DC24V+PWM for remote 0-10V or Dali Driver
LED Driver Type

LED驅動款式

Tipo de controlador LED

Integrated-type LED Driver--Constant Current LED Driver: Refer to LED driver specification 請參閱LED驅動器規格 Consulte la especificación de controlador de LED

1. ON/OFF Switch  AC220-240V 50/60HZ

2. Remoted 0/1 -10V Dimming Driver  AC220-240V 50/60HZ

3. RemotedDALI Dimming Driver AC220-240V 50/60HZ
Power Factor / 功率因數/Factor de potencia

PF>0.90
Total Harmonic Distortion/總諧波失/Distorsión armónica total

THD<20%
Light Source Brand-光源品牌-Fuente de luz de marca

CREE
"Lumen Maintenance LM-80 Reported by TM-21"

L70(10k) > 60,000 hrs
LED Life-LED壽命-La vida del LED

>60,000 hours
Color Temperature and Color 色溫和顏色

Temperatura y color del color

2700K 3000K 4000K 5000K 6500K Turnable White (2700K to 6500K)
Color Rendering Index-顯色指數

Índice de reproducción cromáca

>80
MacAdam Ellipses Binning

麥克亞當橢圓分級

Mac Adam binning elipse

Standard Deviation Colour Matching < 3 SDCM

標準偏差配色< 3 SDCM

Coincidencia de color estándar Desviación < 3 SDCM
Beam Angle/光束角/ángulo de haz

COB LED Beam Angle : 15° 24° 30° 40° 60°
Luminaire Efficacy 燈具效率

La eficacia de la luminaria

80 Lm/w(2700K) 90 Lm/w(3000K) 100 Lm/w(4000K)

100 Lm/w(5000K) 140 Lm/w(6500K) 70 Lm/w (RGBW)
LED Source Luminous Efficacy LED光源光效

Fuente luminosa LED Eficacia

120 Lm/w(2700K) 130 Lm/w(3000K) 140 Lm/w(4000K)

140 Lm/w(5000K) 140 Lm/w(6500K) 110 Lm/w (RGBW)
Housing materials 外殼材料

Materiales de la carcasa

Die-Casted Aluminium and Aluminium Alloy and Tempered Glass

壓鑄鋁和鋁合金及鋼化玻璃

Aluminio fundido a presión y aleación de aluminio y vidrio templado de
Housing Color外殼顏色

color de la carcasa

UV Resistant powder coating for Anti-corrosion Protection

Traffic Black RAL9017 / 黑 RAL9017 / Negro RAL9017

Signal white RAL9003 / 白 RAL9003 / Blanco RAL9003

Telegrey 2 RAL7046 / 灰 RAL7046 / Gris tele 2 RAL7046
Ingress Protection-防護等級

Protección de ingreso

IP66
Mech impact protection 機械衝擊保護

Protección contra impactos mecánicos

IK08
Operating Temperature Range / 工作溫度範圍

Rango de temperatura de funcion amiento

-30 °C / +50 °C
Operating Humidity -工作濕度

Humedad de funcionamiento

0~90%, non-condensing-不結霜

sin condensación
Dimension尺寸Dimensión

Refer to Technical Drawing 請參閱技術圖紙Consulte el dibujo técnico
Certificate Standard Complied

符合安規標準

estándar certificado de cumplimiento

LED Luminaries: IEC 60598-1;IEC 60598-2-5;RoHS

LED Driver: IEC/EN 61347-1; IEC/EN 61347-2-13; IEC/EN 62384; IEC/EN 61000-3-2; IEC/EN 61000-3-3;IEC/EN61574;EN 55015
